Fig. 220: Identifying Ring Gear Bolts
Courtesy of GENERAL MOTORS CORP.
2. Remove the gear bolts. Discard the bolts.
IMPORTANT: The ring gear bolts have right-hand threads.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 221: Removing Ring Gear From Differential
Courtesy of GENERAL MOTORS CORP.
3. Remove the ring gear from the differential case.
Drive the ring gear off with a brass drift if necessary.
NOTE:
Refer to Ring Gear Removal Notice .
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

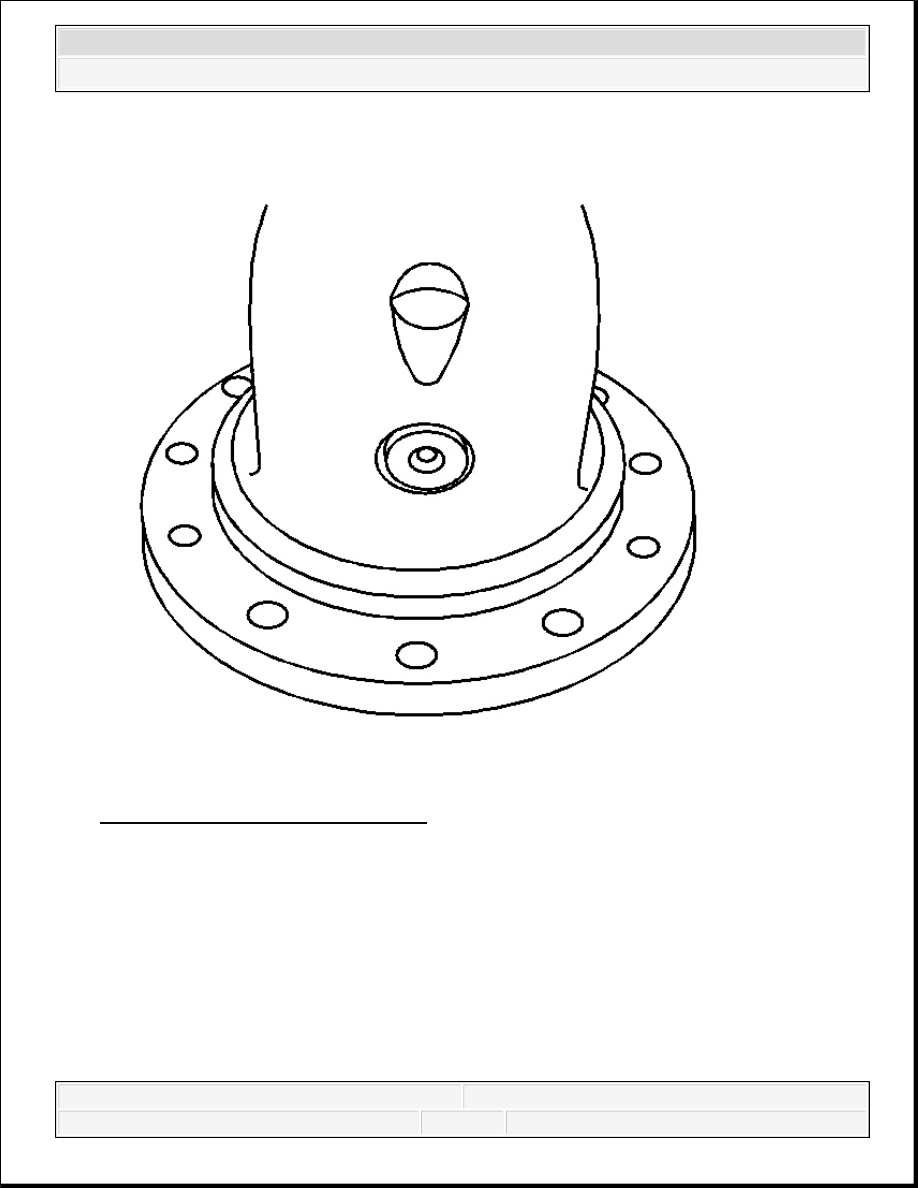

Fig. 222: Locating Pinion Shaft End
Courtesy of GENERAL MOTORS CORP.
4. Locate the end of the pinion shaft with the pilot hole.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

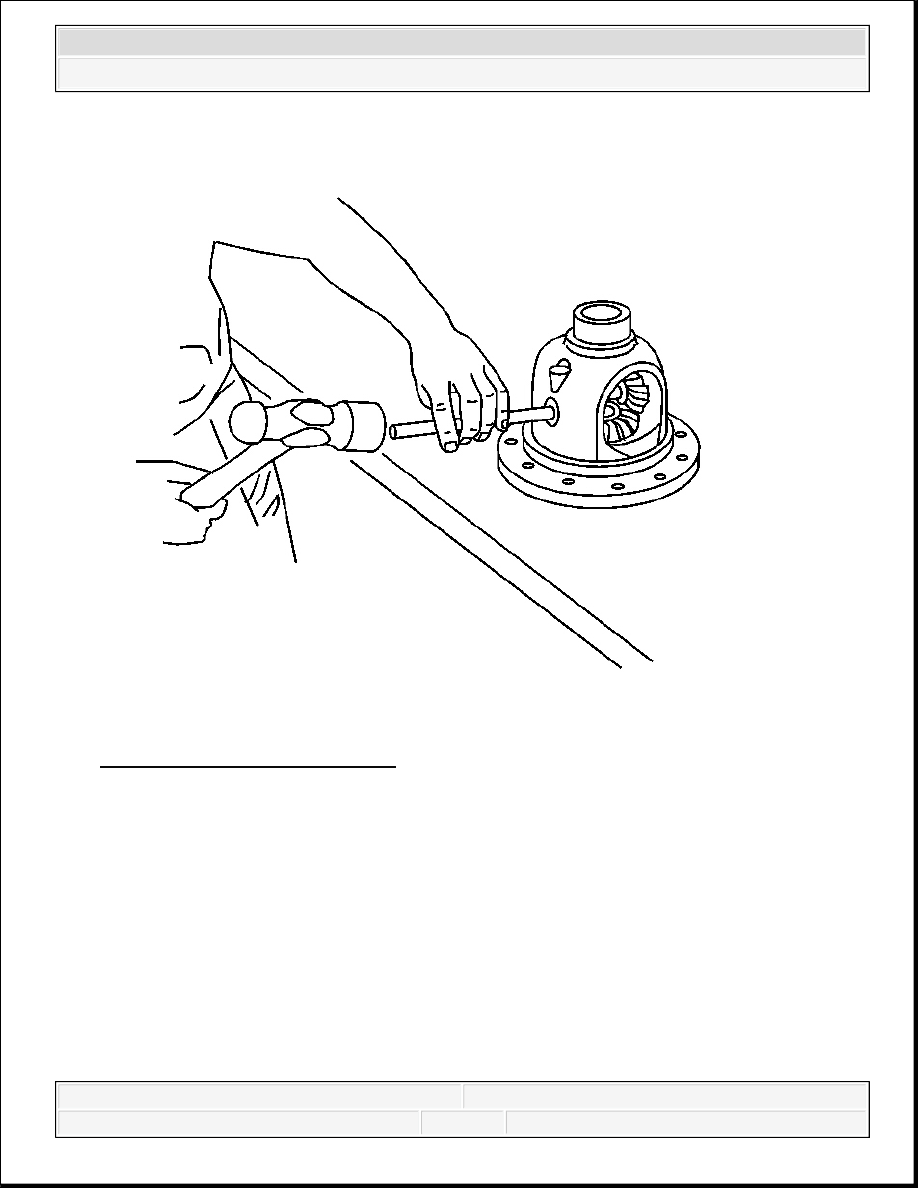

Fig. 223: Removing Pinion Shaft
Courtesy of GENERAL MOTORS CORP.
5. Remove the pinion shaft by performing the following steps:
1. Place a brass drift onto the end of the pinion shaft with the pilot hole.
2. Drive the pinion shaft through the differential case using a hammer and the brass drift.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
