Courtesy of GENERAL MOTORS CORP. 5. Remove the rear brake assembly bolts. 6. Remove the rear brake assemblies. 7. Remove the rear axle shaft oil seals and bearings. Refer to Rear Axle Shaft Seal and/or Bearing Replacement (w/o VSES) or Rear Axle Shaft Seal and/or Bearing 8. Remove the drive pinion shaft yoke and oil seal. Refer to Drive Pinion Flange/Yoke and/or Oil Seal Replacement (All Except 9.75 Inch Axle) or Drive Pinion 9. Remove the differential assembly. Refer to Drive Pinion and Ring Gear Replacement (8.6, 9.5/9.5LD, and 11.5 Inch Axles) or Drive Pinion and Ring Gear Replacement 10. Remove the drive pinion and the inner pinion bearing. Refer to Drive Pinion and Ring Gear Replacement (8.6, 9.5/9.5LD, and 11.5 Inch Axles) or Drive Pinion and Ring 11. Remove the pinion bearing cups. Refer to Drive Pinion Bearings Replacement (8.6, 9.5, 11.5 Inch Axle) or Drive Pinion Bearings Replacement (10.5 Inch Axle). Installation Procedure 1. Install the pinion bearing cups. Refer to Drive Pinion Bearings Replacement (8.6, 9.5, 11.5 Inch Axle) or Drive Pinion Bearings Replacement (10.5 Inch Axle). 2. Install the drive pinion oil seal. Refer to Drive Pinion Flange/Yoke and/or Oil Seal Replacement (All Except 9.75 Inch Axle) or Drive Pinion Flange/Yoke and/or Oil 3. Determine the selective shim thickness for the drive pinion. Refer to Pinion Depth Adjustment (10.5 Inch Axle) or Pinion Depth Adjustment (8.6, 9.5/9.5LD, and 11.5 4. Install the inner pinion bearing onto the drive pinion. Refer to Drive Pinion Bearings Replacement (8.6, 9.5, 11.5 Inch Axle) or Drive Pinion Bearings Replacement (10.5 5. Install the drive pinion. Refer to Drive Pinion and Ring Gear Replacement (8.6, 9.5/9.5LD, and 11.5 Inch Axles) or Drive Pinion and Ring Gear Replacement (10.5 6. Install the pinion yoke. Refer to Drive Pinion Flange/Yoke and/or Oil Seal Replacement (All Except 9.75 Inch Axle) or Drive Pinion Flange/Yoke and/or Oil
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Seal Replacement (8.6 Inch Axle w/Drum Brakes). 7. Install the differential assembly. Refer to Drive Pinion and Ring Gear Replacement (8.6, 9.5/9.5LD, and 11.5 Inch Axles) or Drive Pinion and Ring Gear Replacement (10.5 8. Adjust the differential side bearing preload. Refer to Differential Carrier Bearing Preload Adjustment (10.5 Inch, 11.5 Inch Axles) or Differential Carrier Bearing 9. Adjust the drive pinion to ring gear backlash. Refer to Backlash Adjustment (8.6 Inch Axle) or Backlash Adjustment (10.5, 11.5 Inch Axles) or Backlash Adjustment (9.5 10. Perform a gear tooth contact pattern check. Refer to Gear Tooth Contact Pattern Inspection. 11. Install the rear axle shaft oil seals and bearings. Refer to Rear Axle Shaft Seal and/or Bearing Replacement (w/o VSES) or Rear Axle Shaft Seal and/or Bearing
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

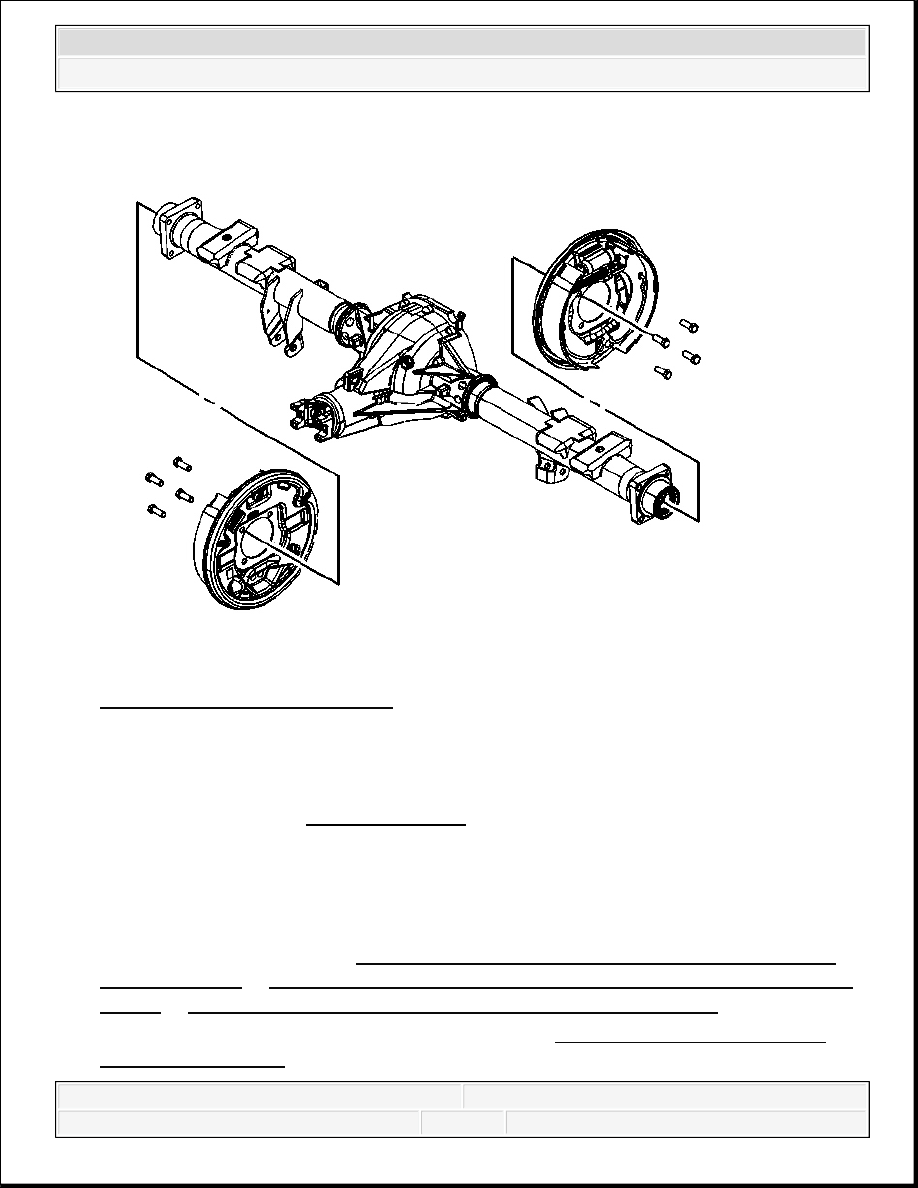

Fig. 216: Rear Brake Assemblies 12. Install the rear brake assemblies. 13. Install the rear brake assembly bolts. Tighten: Tighten the bolts to 135 N.m (100 lb ft). 14. Install the axle shafts. Refer to Rear Axle Shaft Replacement (8.6 Inch Axle w/Drum Brake w/VSES) or Rear Axle Shaft Replacement (8.6 Inch Axle w/Drum Brakes w/o 15. Install the rear axle cover housing and gasket. Refer to Rear Axle Housing Cover and Gasket Replacement. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

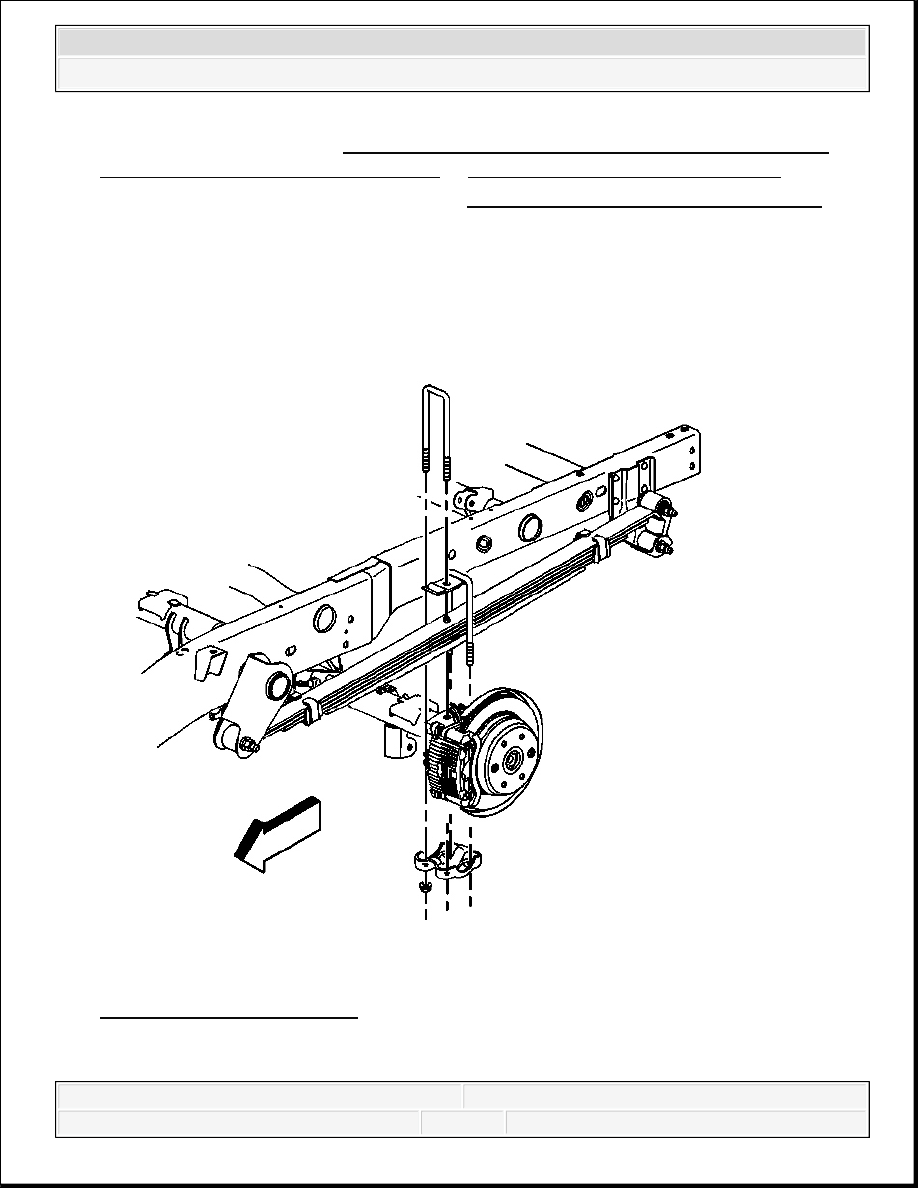

16. Install the rear axle. Refer to Rear Axle Replacement (15 Series with Drum Brakes) or Rear Axle Replacement (15/25 Series) or Rear Axle Replacement (35 Series). 17. Install the rear wheel speed sensor. Refer to Rear Wheel Speed Sensor Replacement . REAR AXLE HOUSING REPLACEMENT (W/REAR DISC ) Removal Procedure Fig. 217: Identifying U-Bolts
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
