Chevrolet Silverado / GMC Sierra. Manual - part 1459

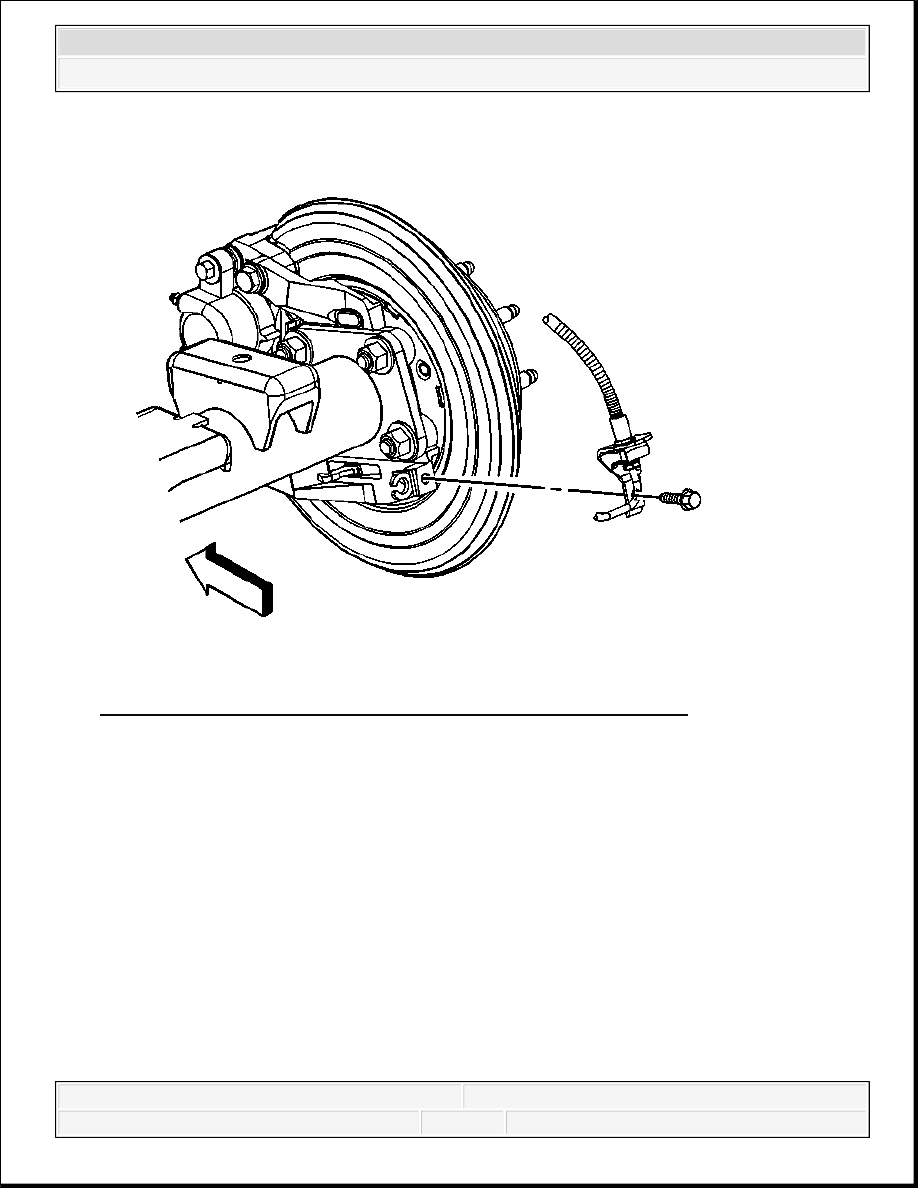

Fig. 209: View Of Brake Pipe Fitting Bracket At Brake Assembly
Courtesy of GENERAL MOTORS CORP.
10. Install the brake pipe fitting brackets.
11. Install the brake pipe fitting bracket bolts.
Tighten: Tighten the bolts to 22 N.m (16 lb ft).
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

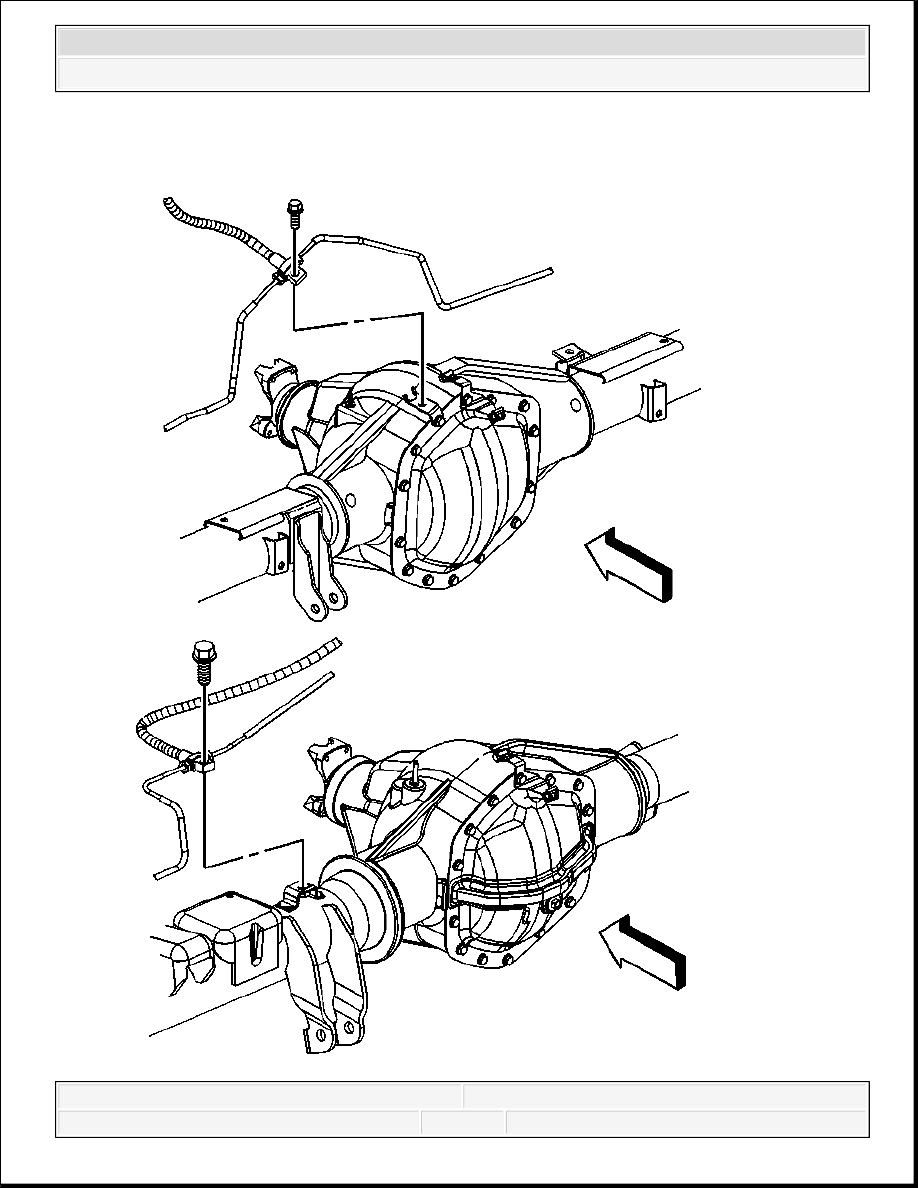

Fig. 210: View Of Brake Pipe
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
12. Install the brake pipe.
13. Install the brake pipe bolts.
Tighten: Tighten the bolts to 22 N.m (16 lb ft).
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
