Fig. 205: Stabilizer Shaft, U-Bolts, Nuts & Axle 20. Remove the stabilizer shaft U-bolt nuts (4) and the U-bolts (2) from the axle (3) (if necessary). 21. Remove the stabilizer shaft (1) from the axle (if necessary). Installation Procedure
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

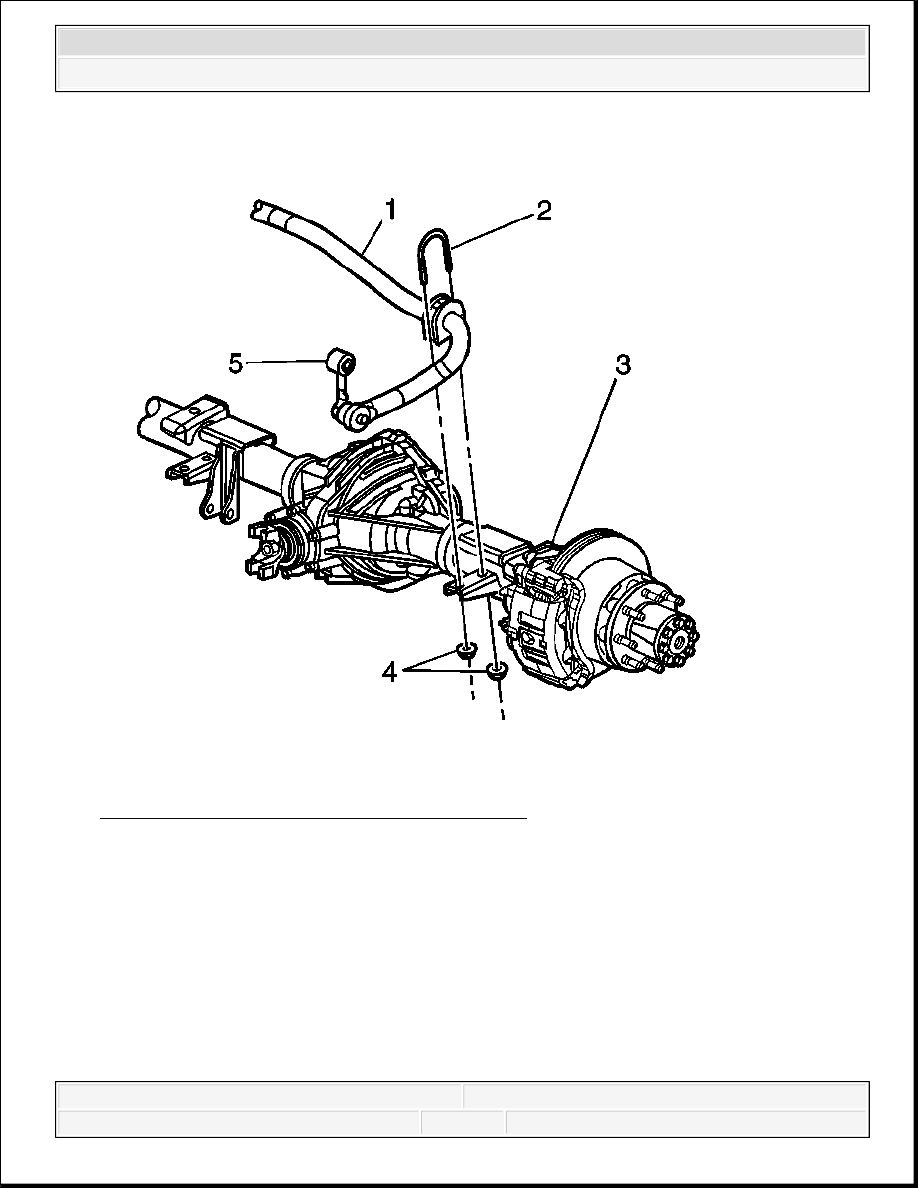

Fig. 206: Stabilizer Shaft, U-Bolts, Nuts & Axle 1. Install the stabilizer shaft (1) to the axle (3) (if necessary). 2. Install the stabilizer shaft clamps, the U-bolts (2), and the nuts (4) (if necessary). Do not torque the stabilizer shaft U-bolt nuts at this time. 3. Place the axle under the vehicle. 4. Raise the axle to the springs with the aid of a hydraulic assist. Align the axle with the springs.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

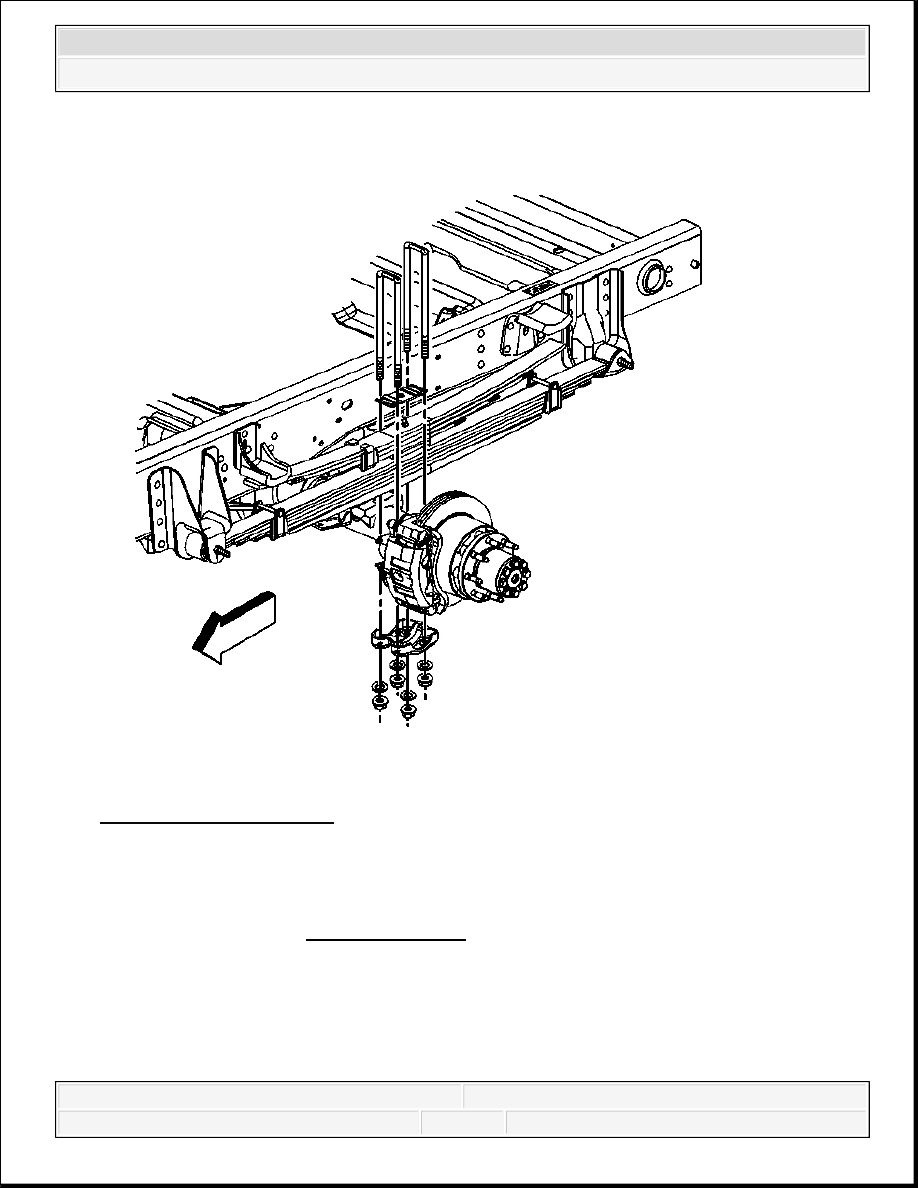

Fig. 207: View Of U-Bolts 5. Install the spacers, the anchor plates and the U-bolts. 6. Install the washers if equipped and the nuts to the U-bolts. Tighten: Tighten the nuts in a criss cross pattern to 150 N.m (110 lb ft). NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

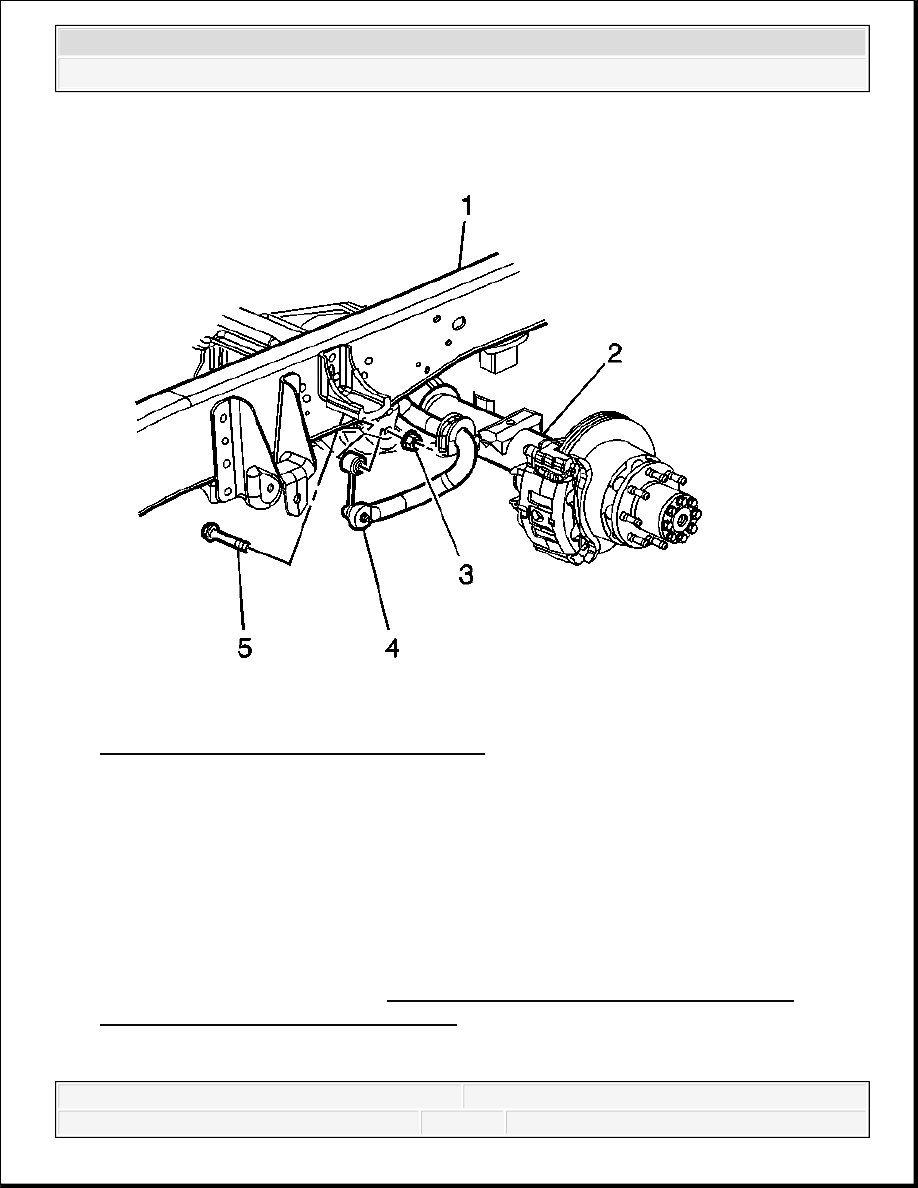

Fig. 208: Stabilizer Shaft Link, Bolt & Nut 7. Install the stabilizer shaft link to the frame (1) (if necessary). 8. Install the stabilizer shaft link bolt (5) and the nut (3) (if necessary). Tighten: 1. Tighten the stabilizer shaft link bolts to 95 N.m (70 lb ft). 2. Tighten the stabilizer shaft U-bolt nuts to 32 N.m (24 lb ft). 9. Install the brake calipers. Refer to Rear Brake Caliper Replacement (JH6, JH7) or Rear Brake Caliper Replacement (JD9) .
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
