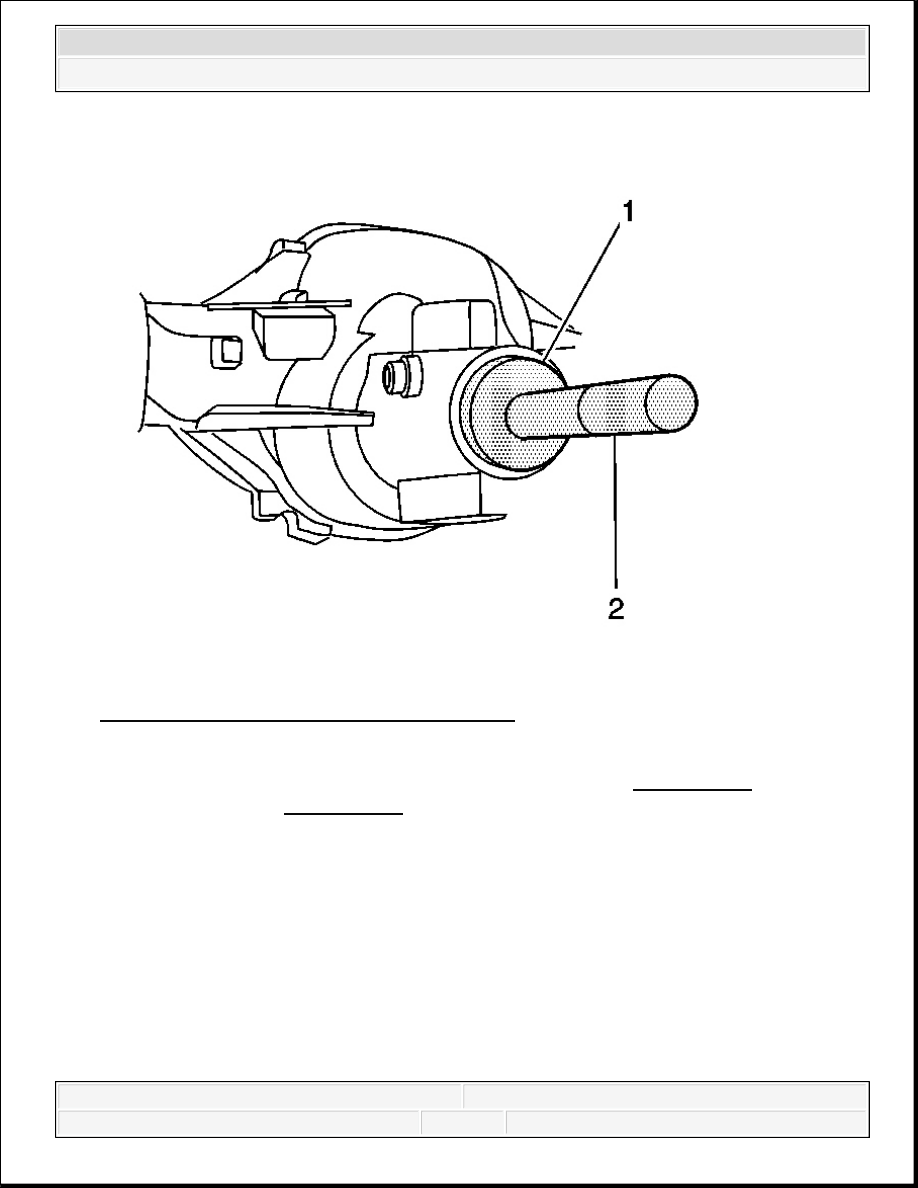

Fig. 159: Installing Outer Pinion Bearing Cup 1. Install the outer pinion bearing cup using the J 8611-01 , 8. See Special Tools.6 inch axle, or the J 7818 , 9. See Special Tools.5/9.5LD inch axle (1), and the J 8092 (2).
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

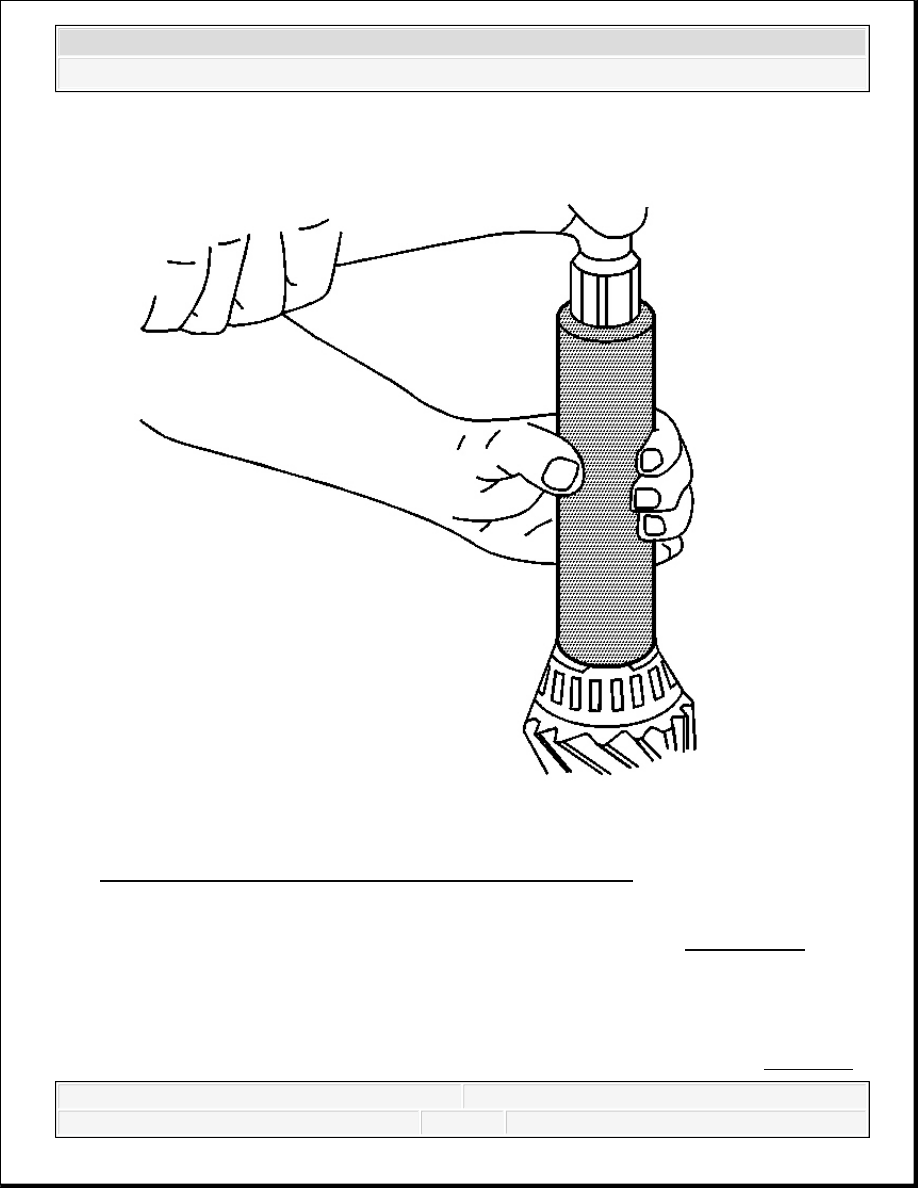

Fig. 160: Installing Inner Pinion Bearing Cup 2. Install the inner pinion bearing cup using the J 45870 , 8. See Special Tools.6 inch axle, or the J 22306 , 9. See Special Tools.5/9.5LD inch axle (2), and the J 8092 (1). 3. Determine the selective shim thickness for the drive pinion. Refer to Pinion Depth Adjustment (10.5 Inch Axle) or Pinion Depth Adjustment (8.6, 9.5/9.5LD, and 11.5 4. Install the selective shim between the inner pinion bearing and the shoulder on the gear.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 161: Installing Inner Pinion Bearing Onto Pinion Gear 5. Install the inner pinion bearing using the J 24433 or the J 36614 . See Special Tools. Press the bearing on until the cone seats on the pinion shim. 6. Install a new collapsible spacer. 7. Lubricate the pinion bearings with axle lubricant. Use the proper fluid. Refer to Fluid and
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

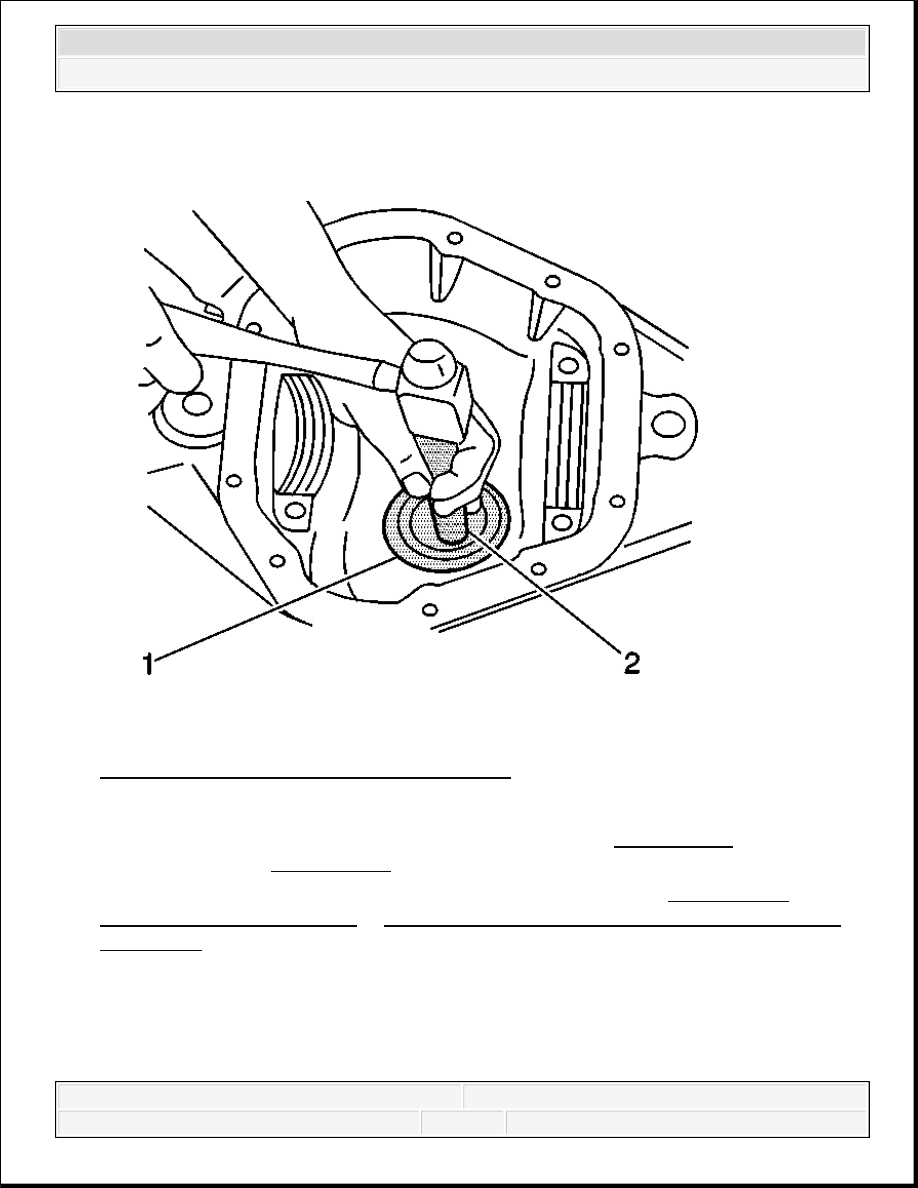

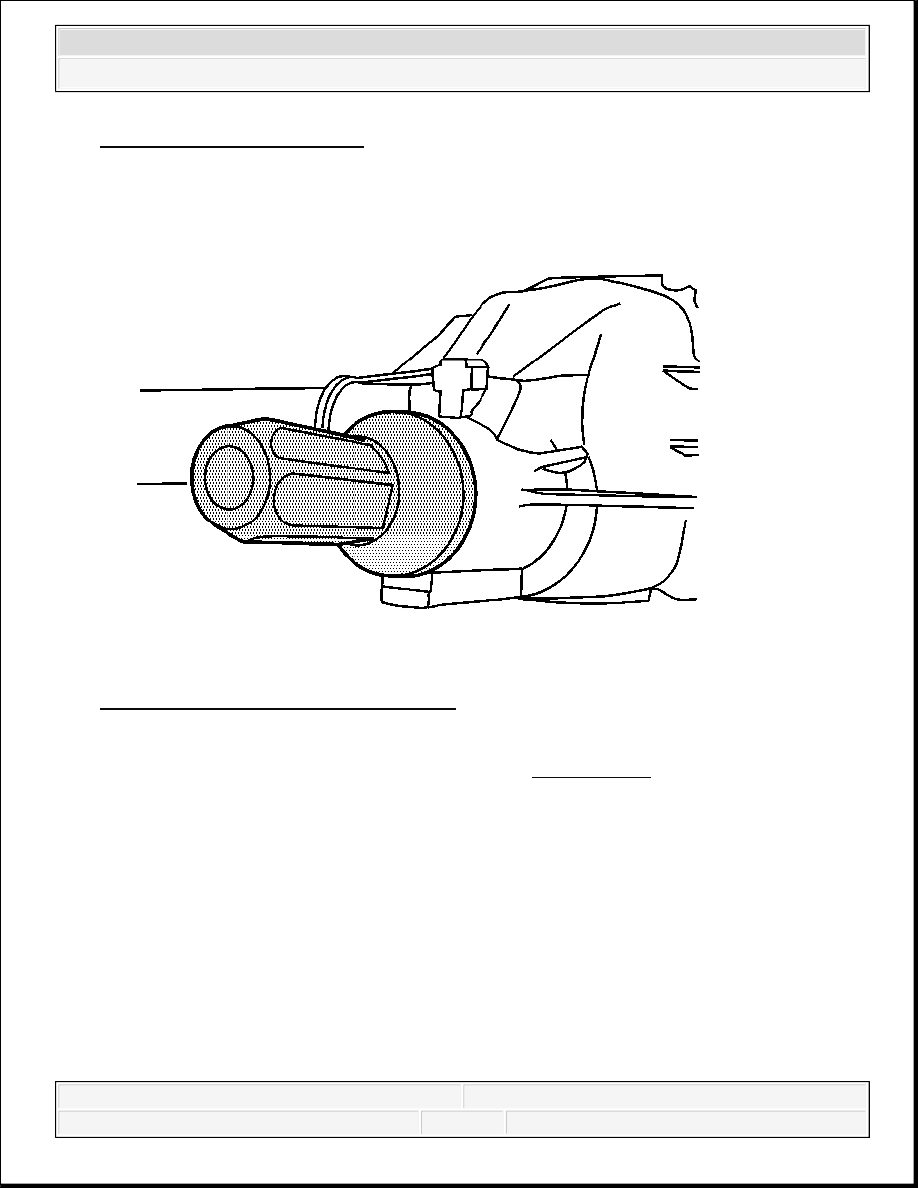

Lubricant Recommendations . 8. Install the outer pinion bearing into the axle housing. Fig. 162: Installing New Pinion Oil Seal 9. Install a new pinion oil seal using the J 22388 . See Special Tools. 10. Install the pinion into the axle housing. 11. Apply sealant, GM P/N 12346004 (Canadian P/N 10953480) or equivalent, to the splines of the pinion yoke.
