5. Install the pinion and the pinion bearings. Refer to Drive Pinion Housing and/or Seal Replacement. 6. Install the pinion gear bearing retainer. Refer to Drive Pinion Housing and/or Seal Replacement. 7. Install the differential assembly. Refer to Differential Replacement (8.6, 9.5/9.5LD Inch Axles) or Differential Replacement (10.5 Inch, 11.5 Inch Axle). 8. Fill the axle with lubricant. Use the proper fluid. Refer to Rear Axle Lubricant Replacement (8.6 Inch Axle) or Rear Axle Lubricant Replacement (9.5 Inch LD 9. Lower the vehicle. DRIVE PINION BEARINGS REPLACEMENT (8.6, 9.5, 11.5 INCH AXLE) Tools Required J 7818 Inner Bearing Race Installer. See Special Tools. J 8092 Universal Driver Handle - 3/4 in - 10 J 8611-01 Rear Pinion Bearing Race Installer. See Special Tools. J 8614-01 Flange and Pulley Holding Tool J 22306 Pinion Cup Bearing Installer - Rear. See Special Tools. J 22912-B Split Plate Bearing Puller J 22828 Input/Counterbalance Race Installer DT-47688 Pinion Bearing Remover, 8. See Special Tools.6 Inch Axle Installer J 36614 Inner Pinion Bearing Installer J 45870 Pinion Bearing Cup Installer. See Special Tools. Removal Procedure 1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle . 2. Remove the differential assembly. Refer to Differential Replacement (8.6, 9.5/9.5LD Inch Axles) or Differential Replacement (10.5 Inch, 11.5 Inch Axle). 3. Remove the drive pinion from the axle. Refer to Drive Pinion and Ring Gear Replacement (8.6, 9.5/9.5LD, and 11.5 Inch Axles) or Drive Pinion and Ring Gear
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

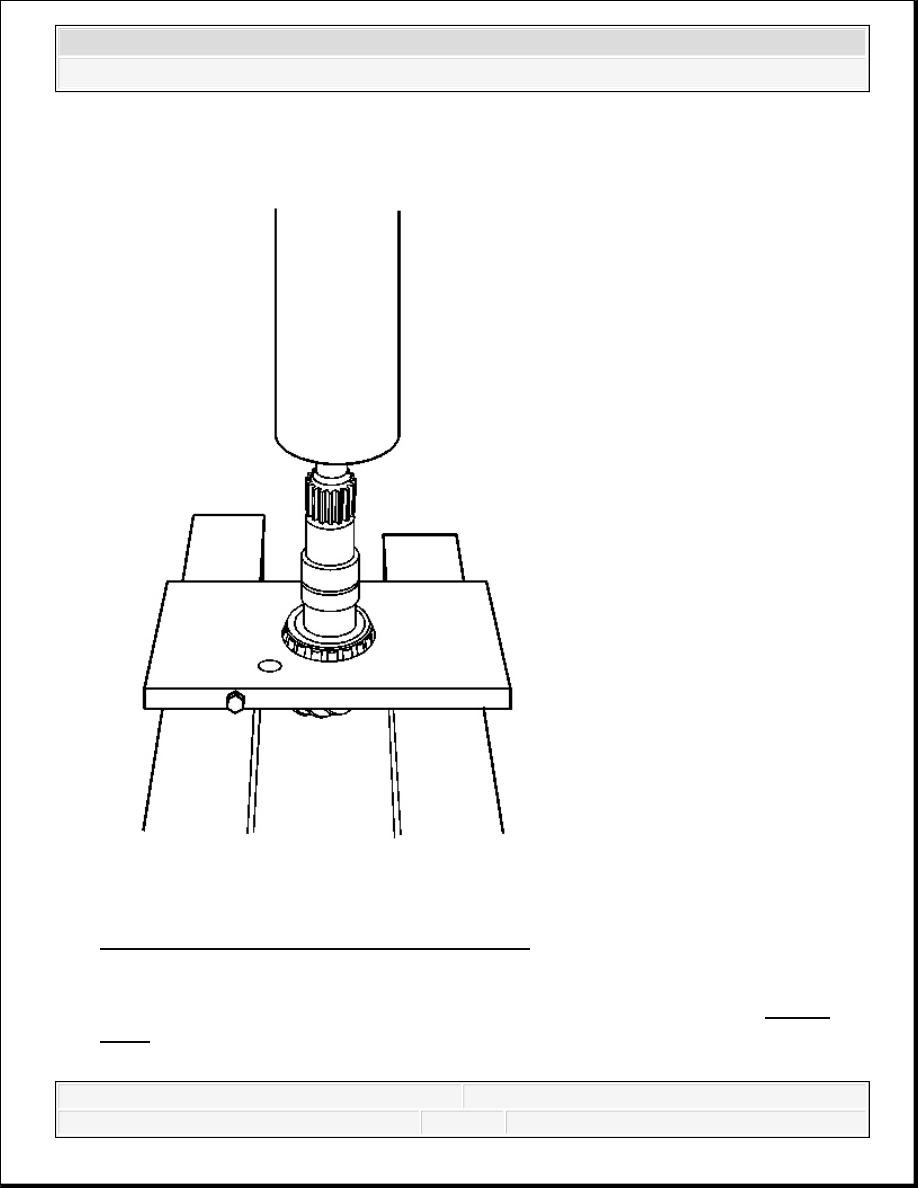

Fig. 156: Removing Bearing From Drive Pinion 4. Using the DT-47688 and a press, remove the bearing from the drive pinion. See Special Tools. 5. Remove the shim.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

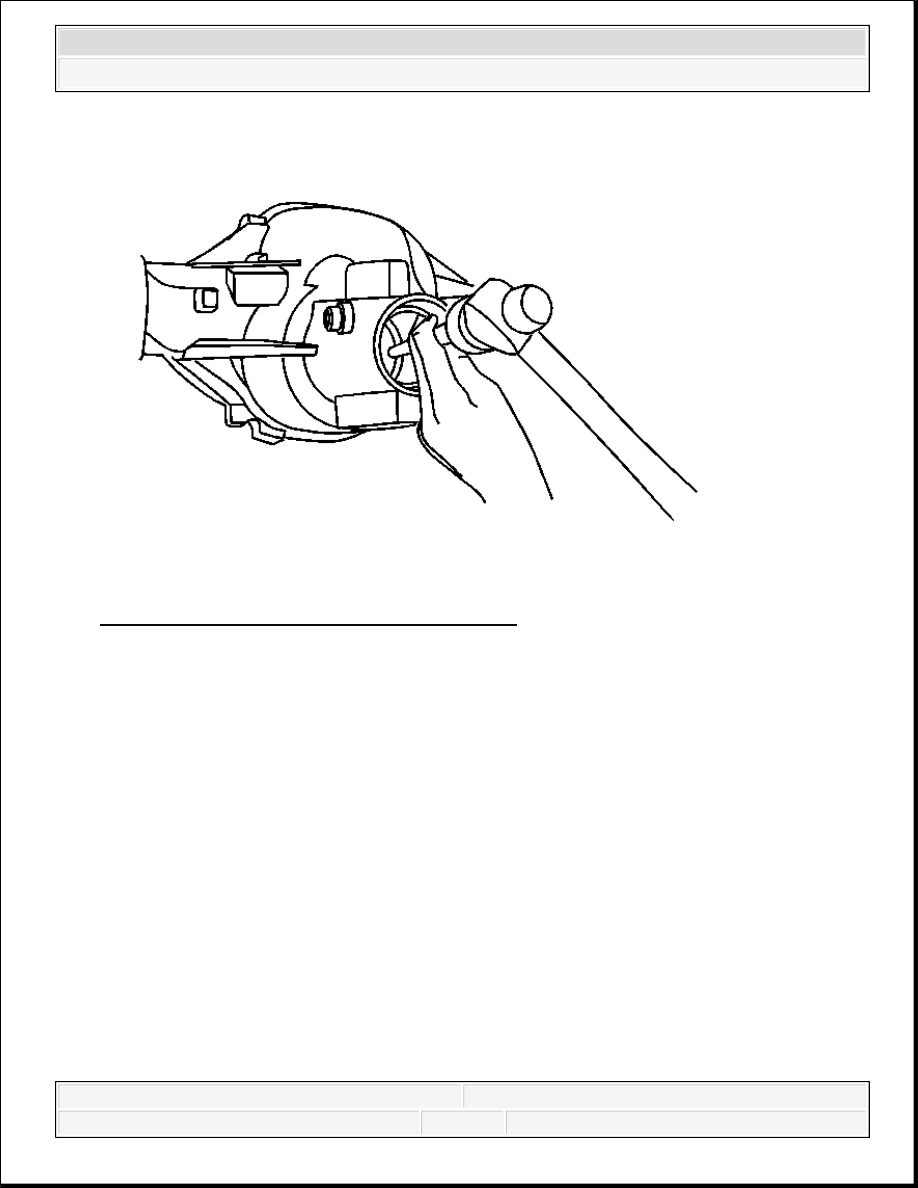

Fig. 157: Removing Outer Pinion Bearing Cup 6. Remove the outer pinion bearing cup from the axle housing using a hammer and a brass drift in the slots provided. Move the drift back and forth between one side of the cup and the
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

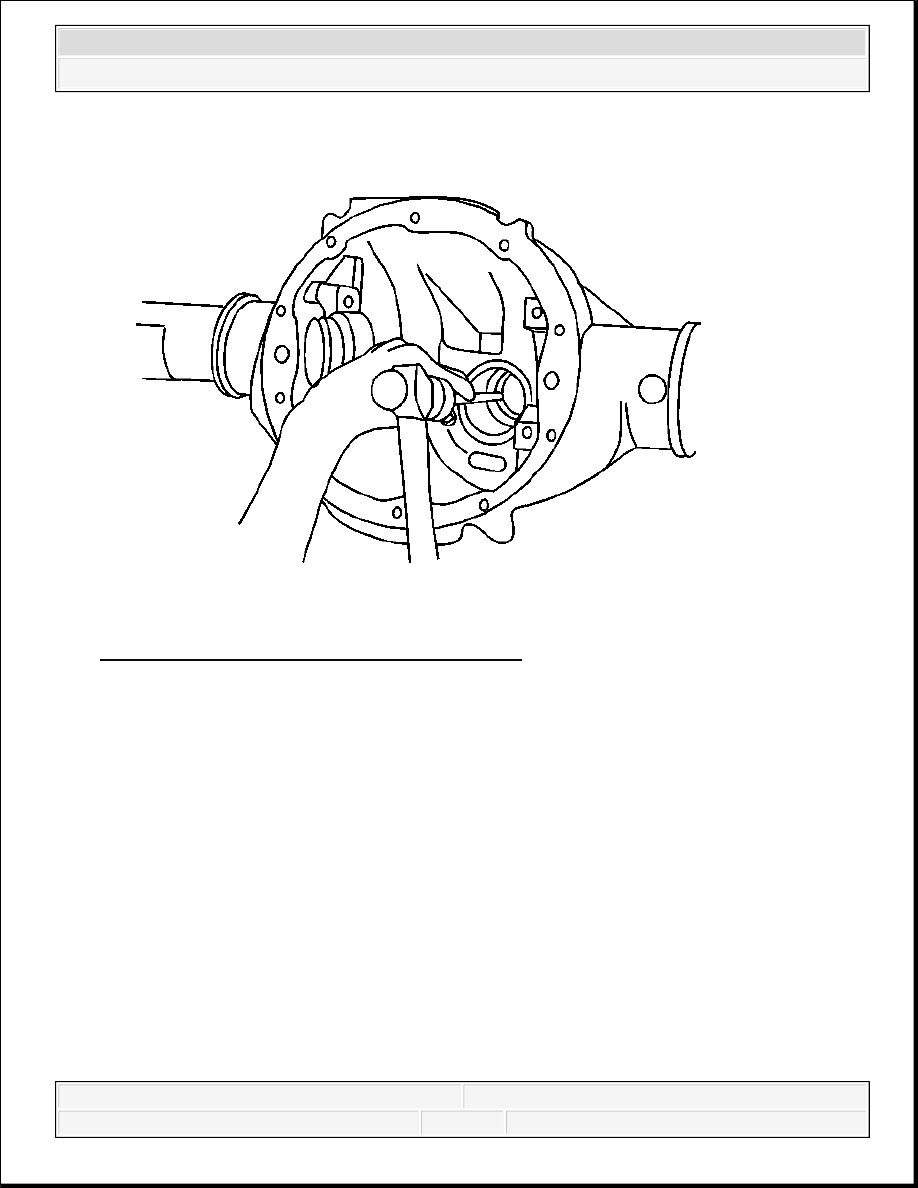

Fig. 158: Removing Inner Pinion Bearing Cup 7. Remove the inner pinion bearing cup from the axle housing using a hammer and a brass drift in the slots provided. Move the drift back and forth between one side of the cup and the Installation Procedure
