Chevrolet Silverado / GMC Sierra. Manual - part 1438

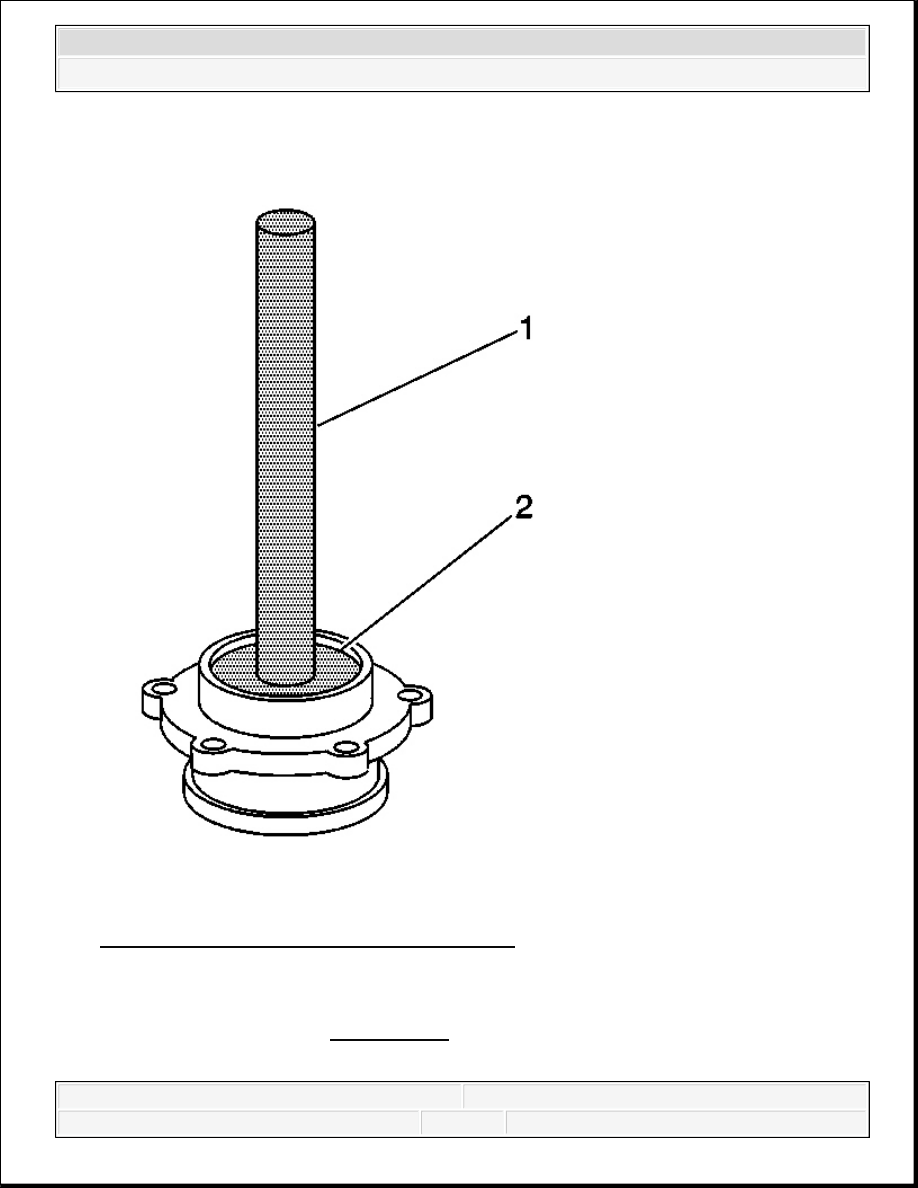

Fig. 140: Installing Outer Pinion Bearing Cup
Courtesy of GENERAL MOTORS CORP.
2. Install the outer pinion bearing cup into the pinion gear bearing retainer using the J 8608
(2) and the J 8092 (1). See Special Tools.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

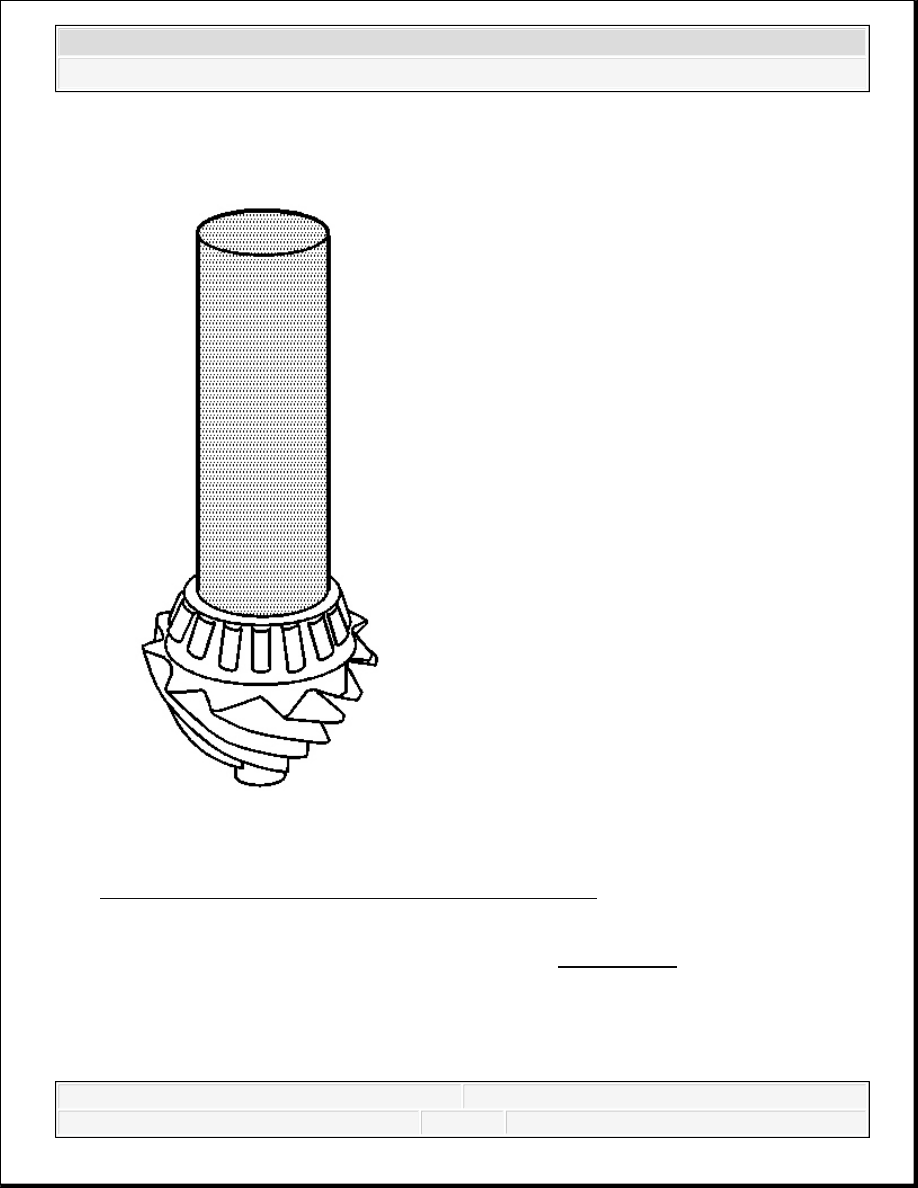

Fig. 141: Installing Inner Pinion Bearing Using J 24433
Courtesy of GENERAL MOTORS CORP.
3. Install the inner pinion bearing using the J 24433 . See Special Tools.
Press the bearing on until the cone seats on the pinion.
4. Install a new collapsible spacer.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
5. Lubricate the pinion bearings with axle lubricant. Use the proper fluid. Refer to Fluid and
Lubricant Recommendations .

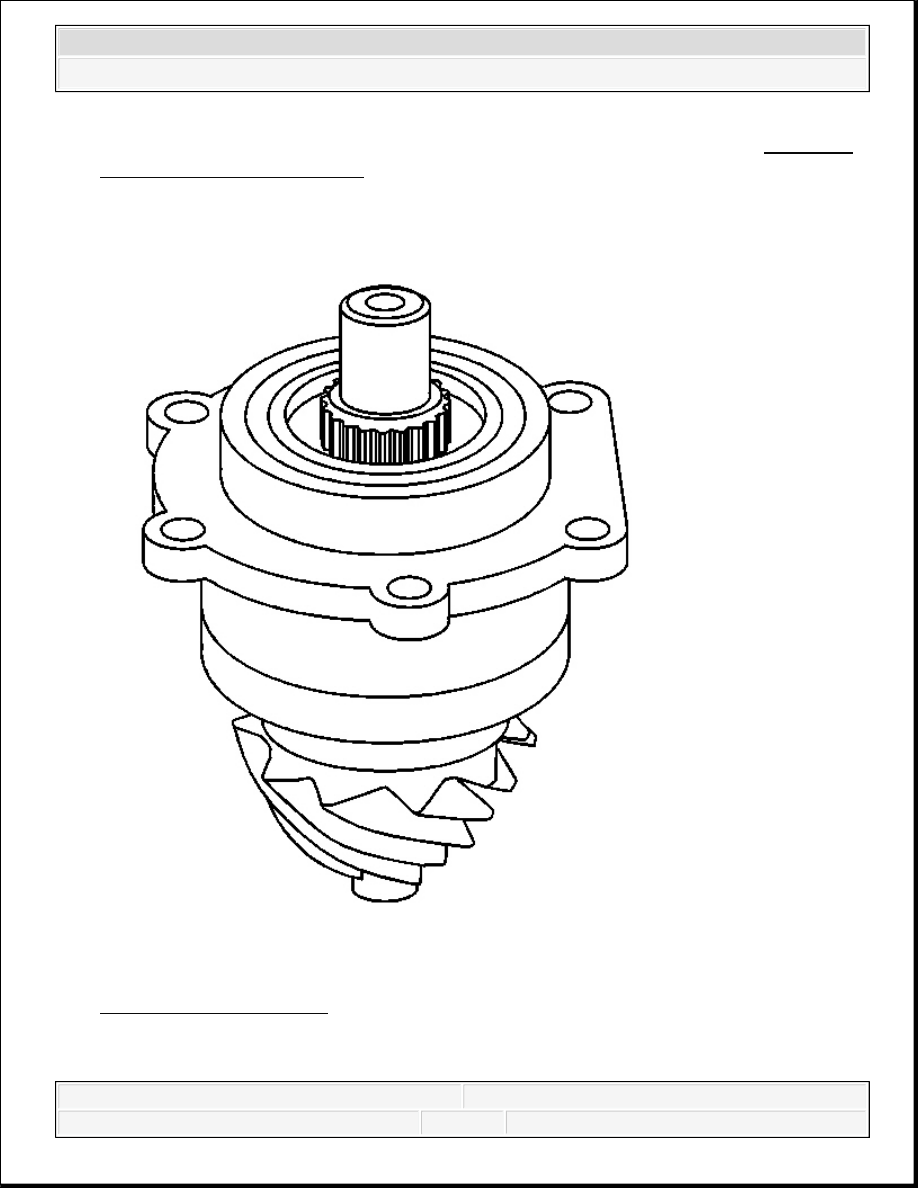

Fig. 142: Pinion Retainer
Courtesy of GENERAL MOTORS CORP.
6. Install the pinion into the pinion gear bearing retainer.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
7. Install the outer pinion bearing onto the pinion.

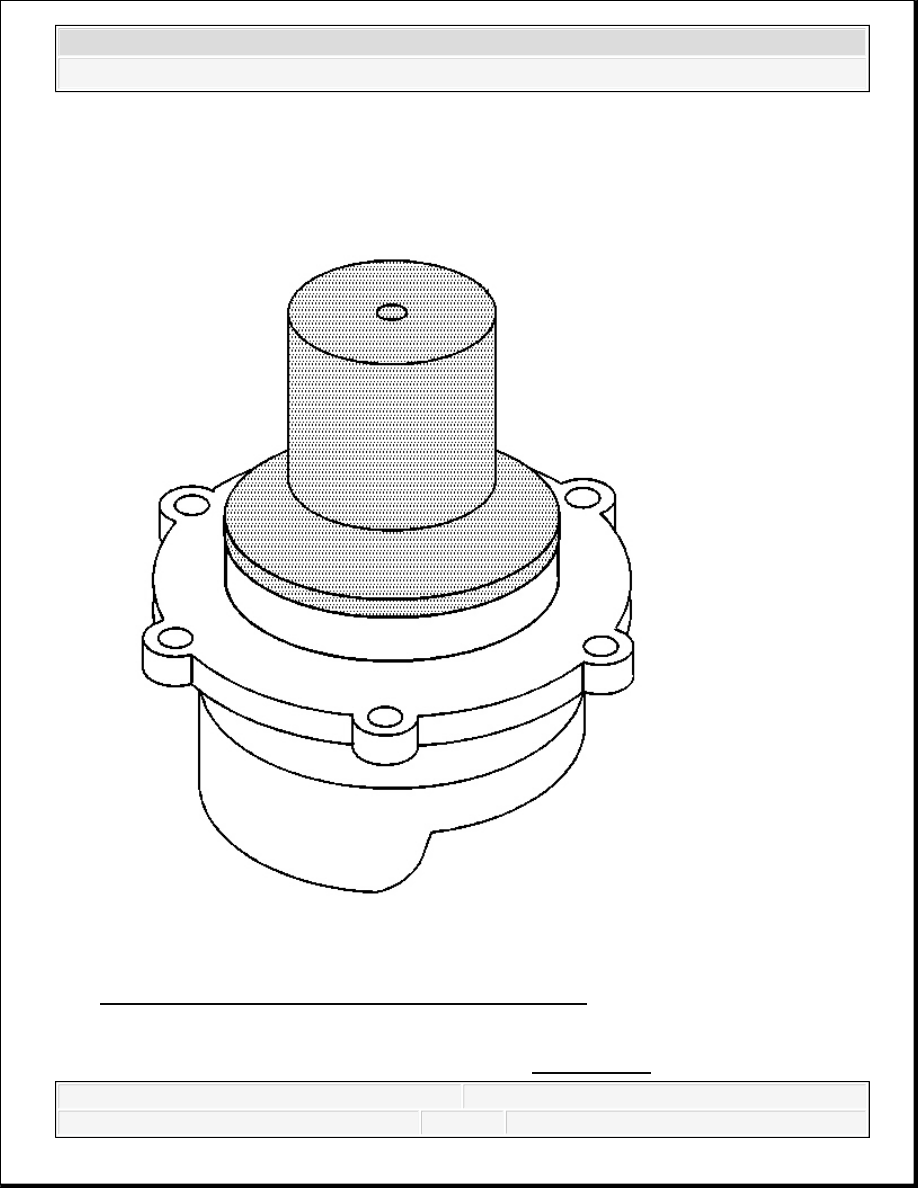

Fig. 143: Installing New Pinion Oil Seal Using J 44414
Courtesy of GENERAL MOTORS CORP.
8. Install a new pinion oil seal using the J 44414 . See Special Tools.
