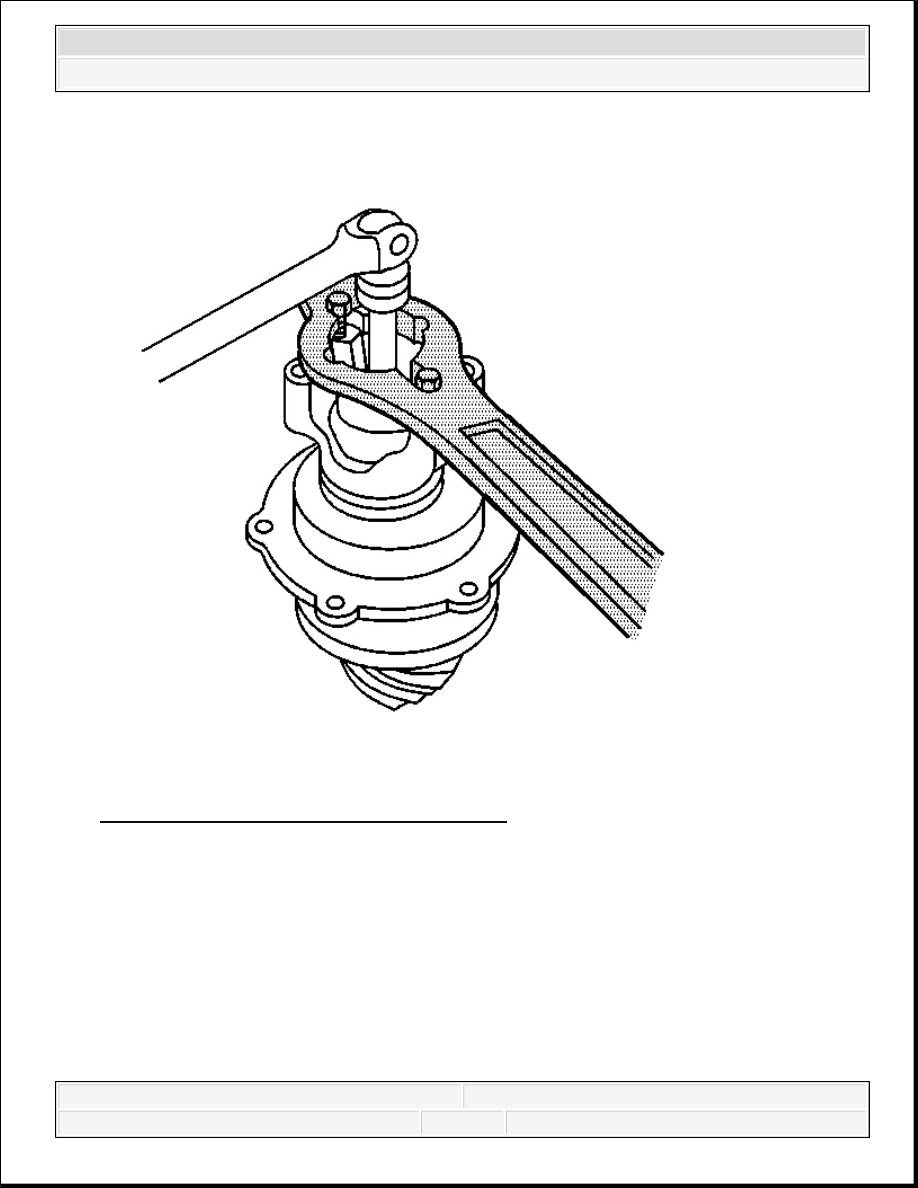

Fig. 132: Installing J 8614-01 To Pinion Yoke
Courtesy of GENERAL MOTORS CORP.
12. Install the J 8614-01 as shown.
13. Remove the pinion nut while holding the J 8614-01 .
14. Remove the washer.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

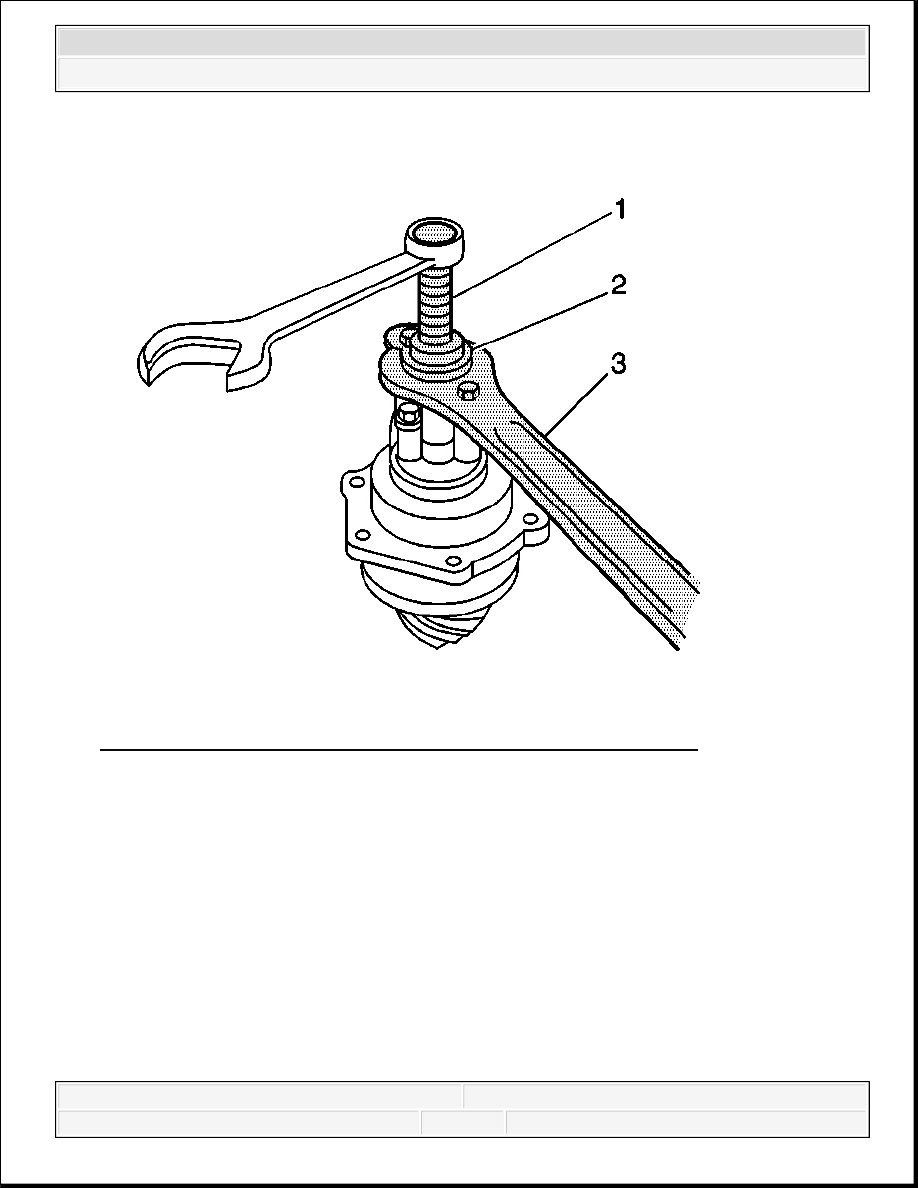

Fig. 133: Installing J 8614-3, J 8614-2 & J 8614-01 To Pinion Yoke
Courtesy of GENERAL MOTORS CORP.
15. Install the J 8614-2 (2) and the J 8614-3 (1) into the J 8614-01 (3) as shown.
16. Remove the pinion yoke by turning the J 8614-3 (1) clockwise while holding the J 8614-01
(3).
17. Remove the pinion oil seal. Use a suitable seal removal tool. Do not damage the housing.
18. Remove the outer pinion bearing.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

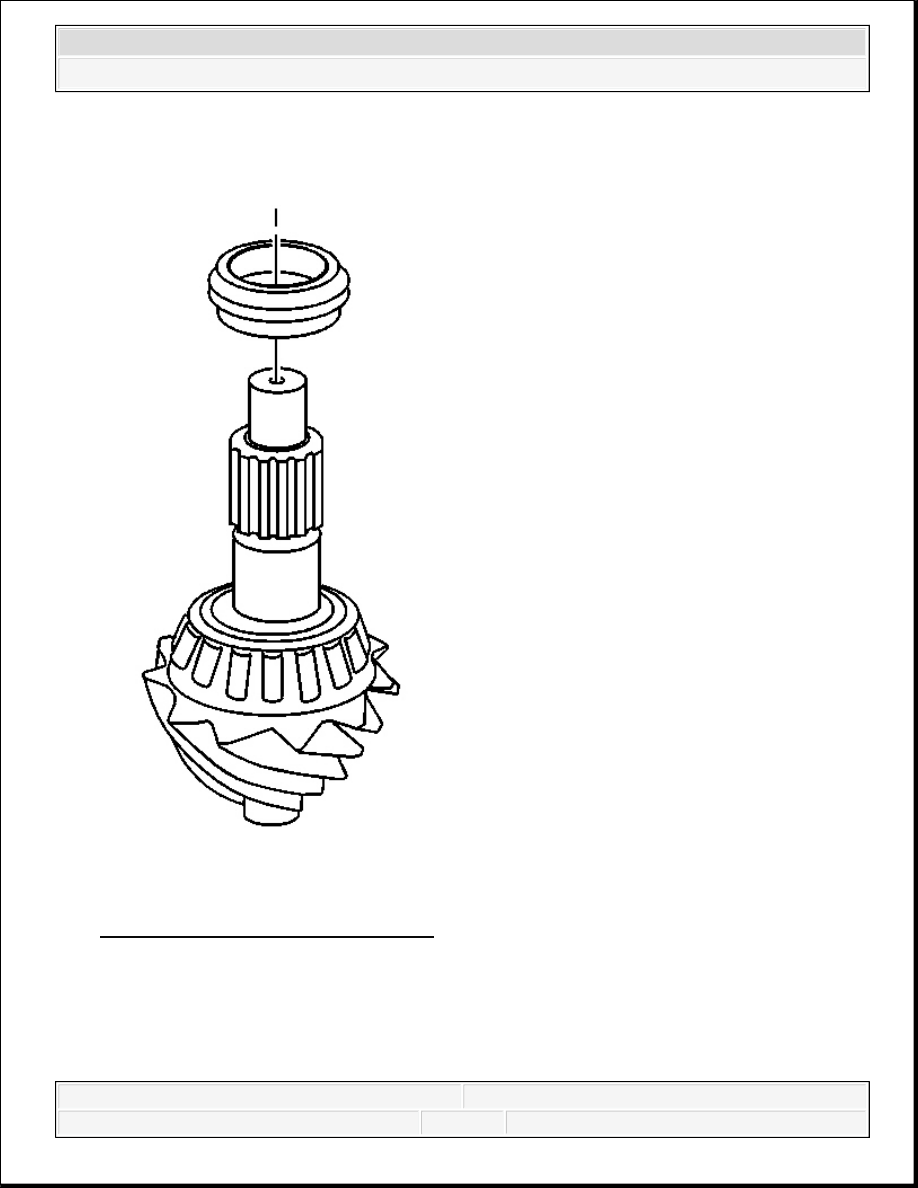

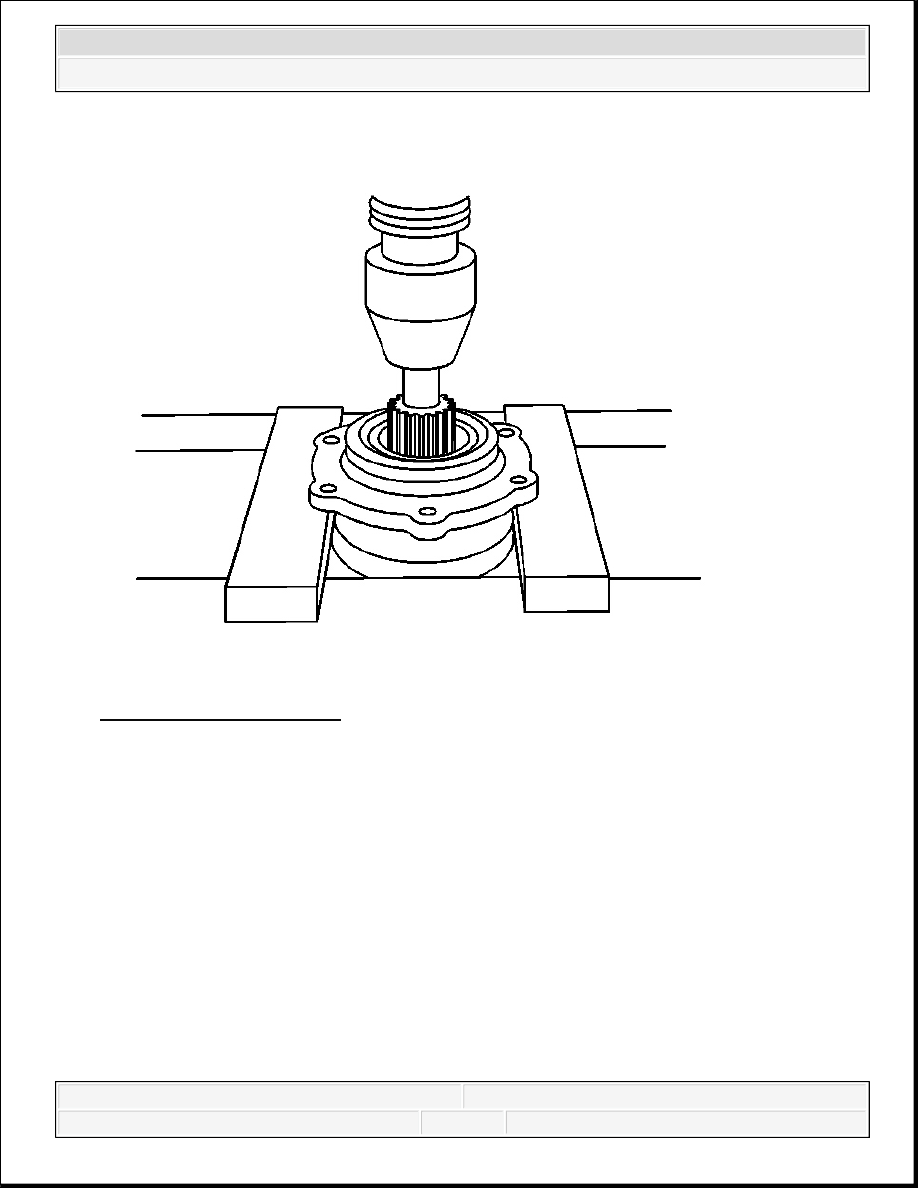

Fig. 134: Removing Pinion
Courtesy of GENERAL MOTORS CORP.
19. Remove the pinion.
