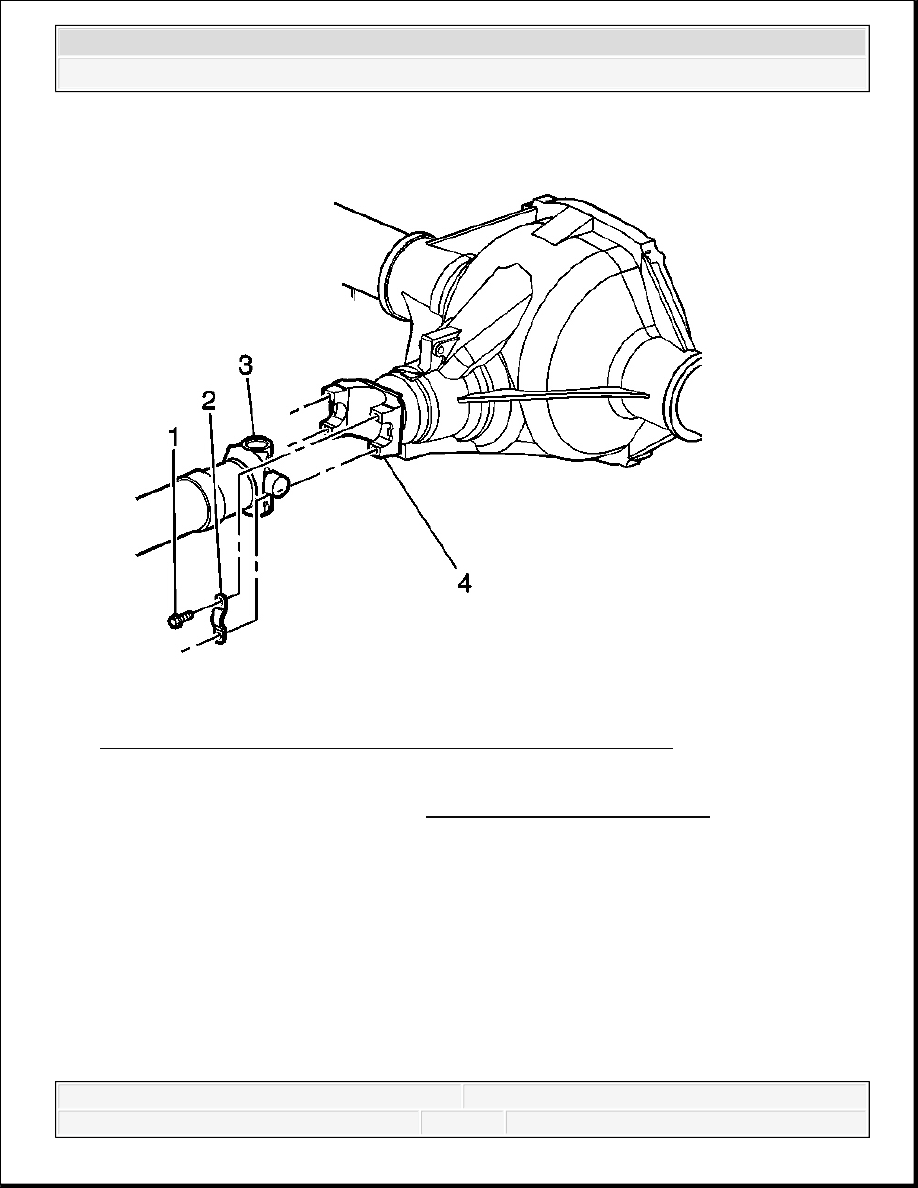

Fig. 117: Identifying Driveshaft Pinion, Yoke Retainers & Bolts 1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 2. Reference mark the rear propeller shaft (3) to the rear axle pinion yoke (4). 3. Disconnect the propeller shaft from the axle. Wrap the bearing caps with tape in order to prevent the loss of bearing rollers. Support the
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

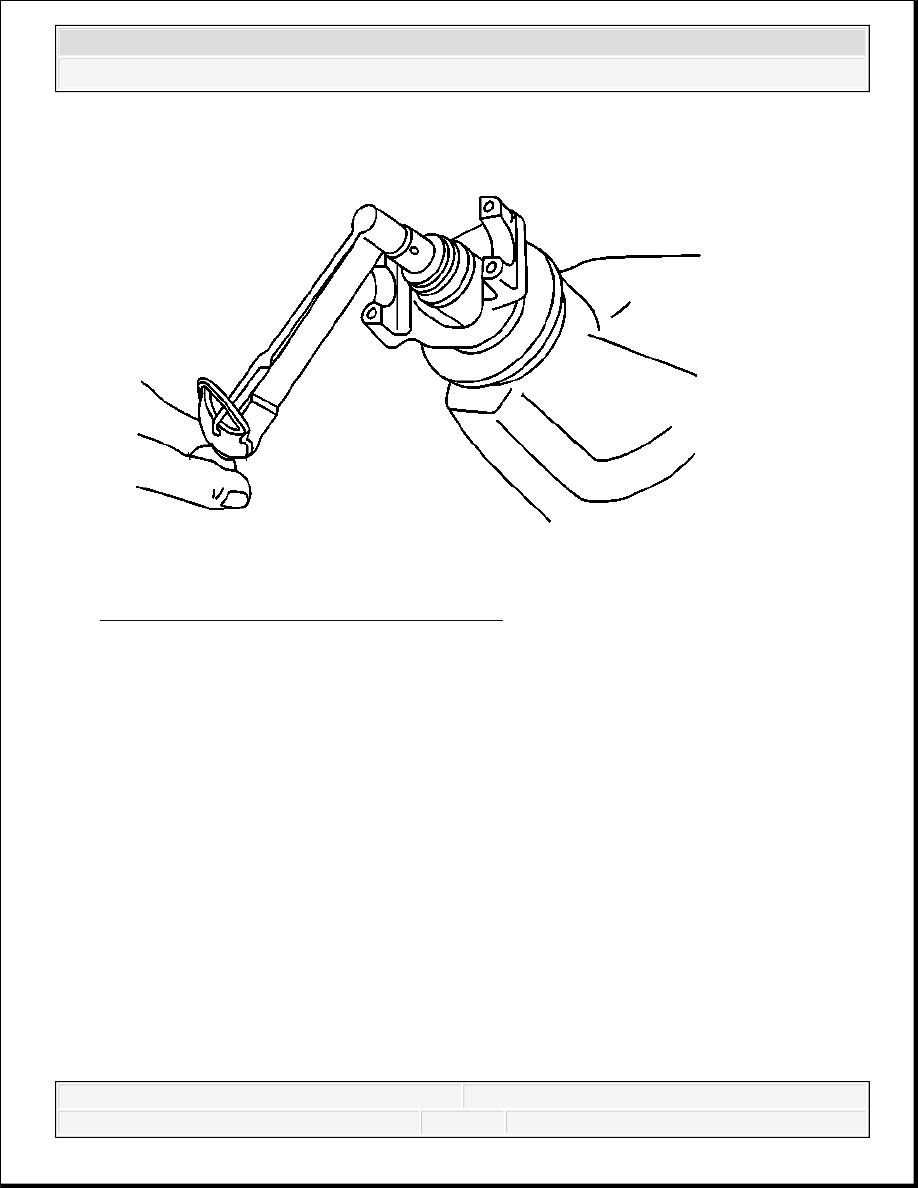

Fig. 118: Measuring Pinion Rotating Torque 4. Using an inch-pound torque wrench, measure the amount of torque required to rotate the pinion. Record this measurement for reassembly. This will give the combined preload for The pinion bearings The pinion oil seal The differential case bearings The axle bearings The axle seals
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

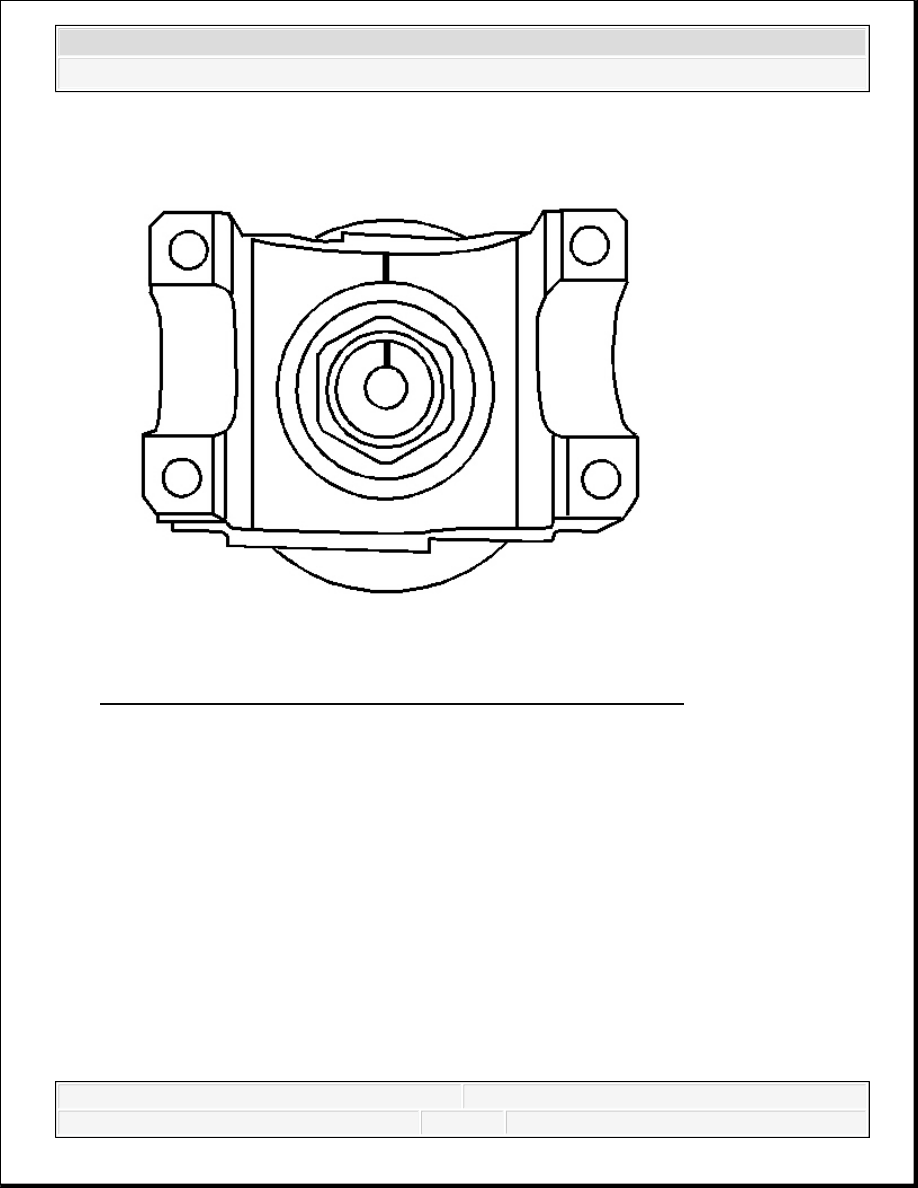

Fig. 119: View Of Pinion Shaft & Pinion Yoke Alignment Marks 5. Place an alignment mark between the pinion and the pinion yoke.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

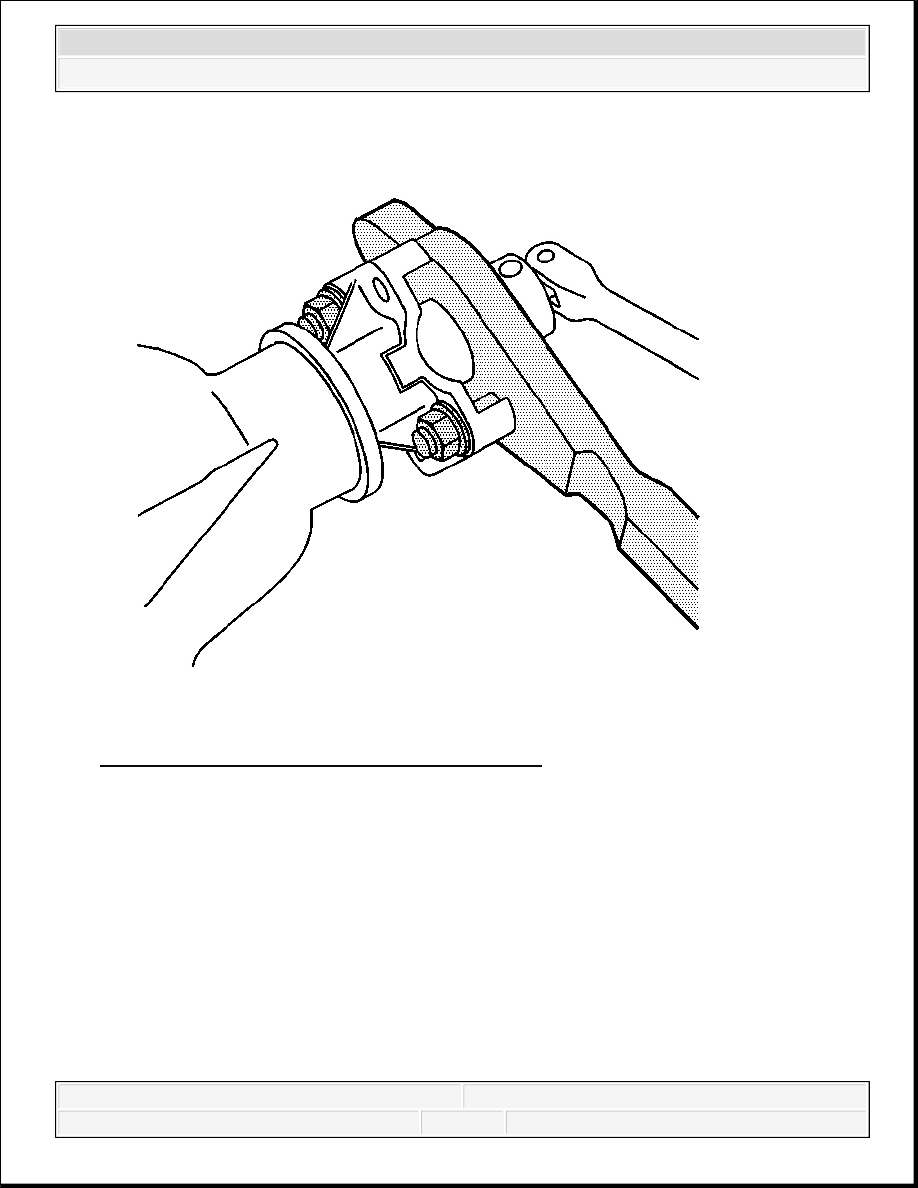

Fig. 120: Holding Pinion Yoke With Special Tool 6. Install the J 8614-01 as shown. 7. While holding the J 8614-01 , loosen the pinion nut. 8. Remove the washer.
