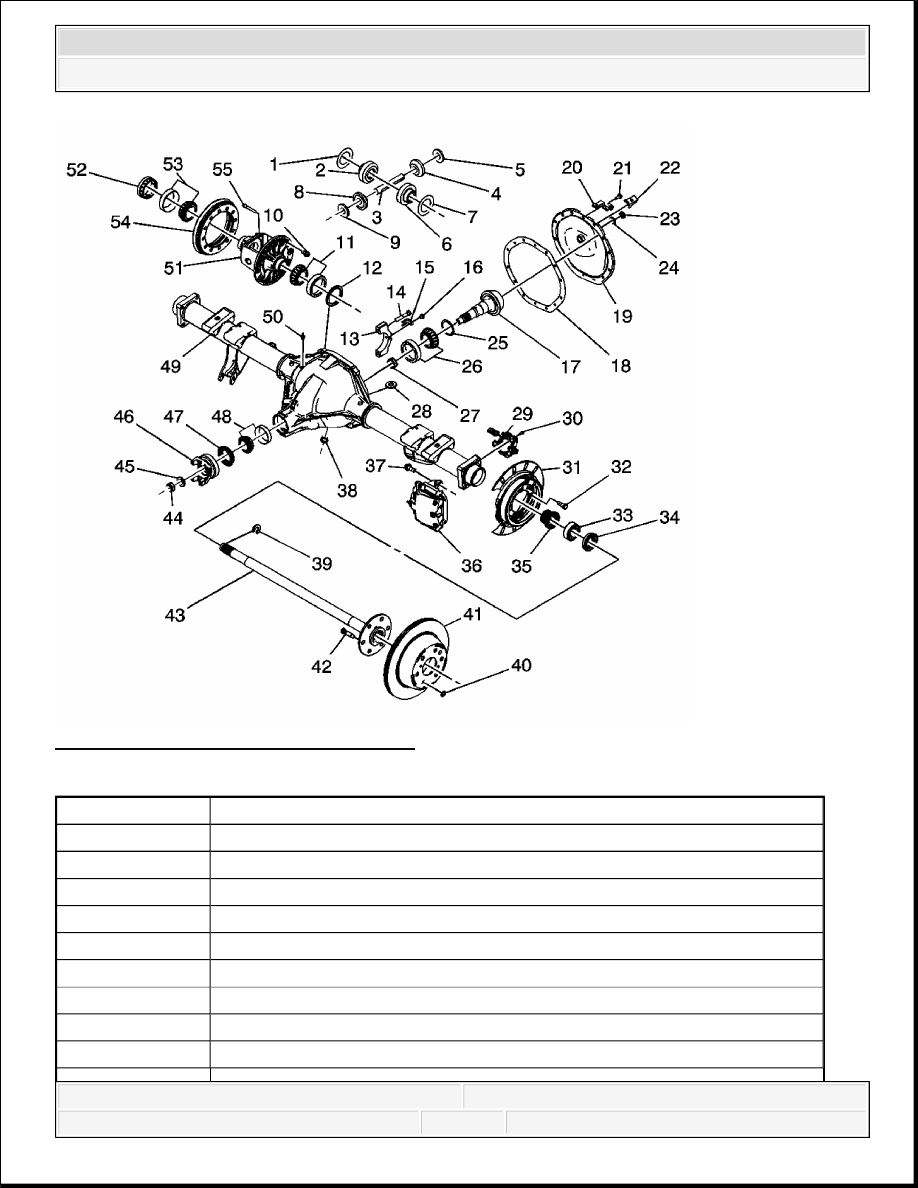

Fig. 3: 9.5 inch Rear Axle w/ Disc Brake
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Differential Side Gear Thrust Washer
2
Differential Side Gear
3
Differential Cross Shaft
4
Differential Pinion Gear
5
Differential Pinion Gear Thrust Washer
6
Differential Side Gear
7
Differential Side Gear Thrust Washer
8
Differential Pinion Gear
9
Differential Pinion Gear Thrust Washer
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
10
Ring Gear Bolt
11
Differential Case Bearing Assembly
12
Differential Case Bearing Shim
13
Differential Bearing Cap
14
Differential Bearing Cap Bolt
15
Differential Bearing Adjuster Lock
16
Differential Bearing Adjuster Lock Bolt
17
Drive Pinion
18
Cover Pan Gasket
19
Cover Pan
20
Brake Cable Bracket
21
Cover Pan Bolt
22
Brake Line Bracket
23
Fill Plug
24
Fill Plug Washer
25
Pinion Bearing Shim
26
Pinion Head Bearing Assembly
27
Pinion Bearing Spacer
28
Differential Carrier Magnet
29
VSES Sensor Assembly
30
VSES Sensor Bolt
31
Park Brake Assembly
32
Park Brake Attachment Bolt
33
Axle Shaft Bearing Assembly
34
Axle Shaft Seal Assembly
35
VSES Exciter Ring Assembly
36
Caliper Assembly
37
Caliper Bolt
38
Carrier Drain Plug
39
Axle Shaft C-Lock
40
Push Nut
41
Brake Rotor
42
Wheel Stud
43
Axle Shaft
44
Pinion Flange Nut
45
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

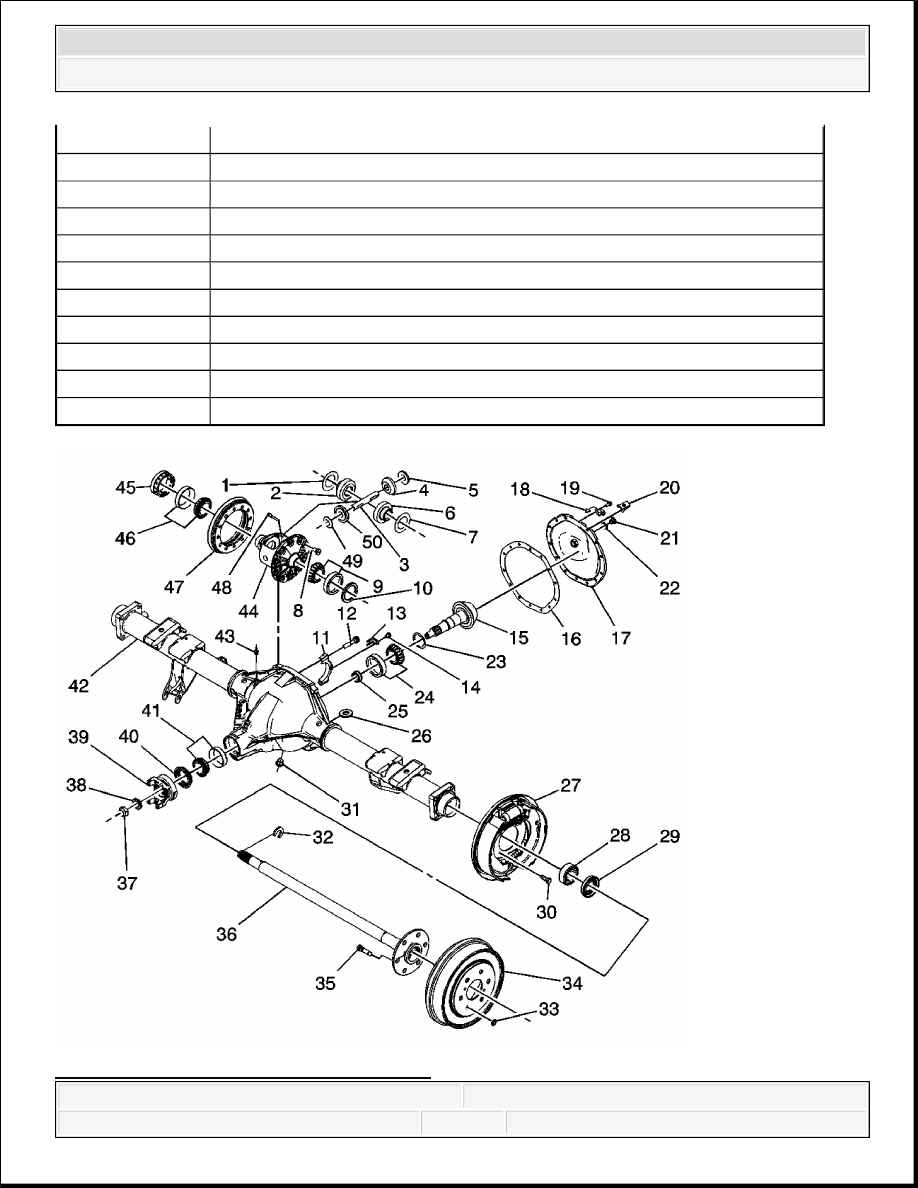

Fig. 4: Rear Axle w/ Drum Brake 9.5 inch
Pinion Flange Washer
46
Pinion Flange Assembly
47
Pinion Flange Seal Assembly
48
Pinion Tail Bearing Assembly
49
Axle Housing Assembly
50
Vent Hose Connector
51
Differential Case
52
Differential Case Bearing Adjuster
53
Differential Case Bearing Assembly
54
Ring Gear
55
Differential Cross Shaft Lock Screw
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Differential Side Gear Thrust Washer
2
Differential Side Gear
3
Differential Cross Shaft
4
Differential Pinion Gear
5
Differential Pinion Gear Thrust Washer
6
Differential Side Gear
7
Differential Side Gear Thrust Washer
8
Ring Gear Bolt
9
Differential Case Bearing Assembly
10
Differential Case Bearing Shim
11
Differential Bearing Cap
12
Differential Bearing Cap Bolt
13
Differential Bearing Adjuster Lock
14
Differential Bearing Adjuster Lock Bolt
15
Drive Pinion
16
Cover Pan Gasket
17
Cover Pan
18
Brake Cable Bracket
19
Cover Pan Bolt
20
Brake Line Bracket
21
Fill Plug
22
Fill Plug Washer
23
Pinion Bearing Shim
24
Pinion Head Bearing Assembly
25
Pinion Bearing Spacer
26
Differential Carrier Magnet
27
Brake Assembly
28
Axle Shaft Bearing Assembly
29
Axle Shaft Seal Assembly
30
Brake Assembly Attachment Bolt
31
Carrier Drain Plug
32
Axle Shaft C-Lock
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
