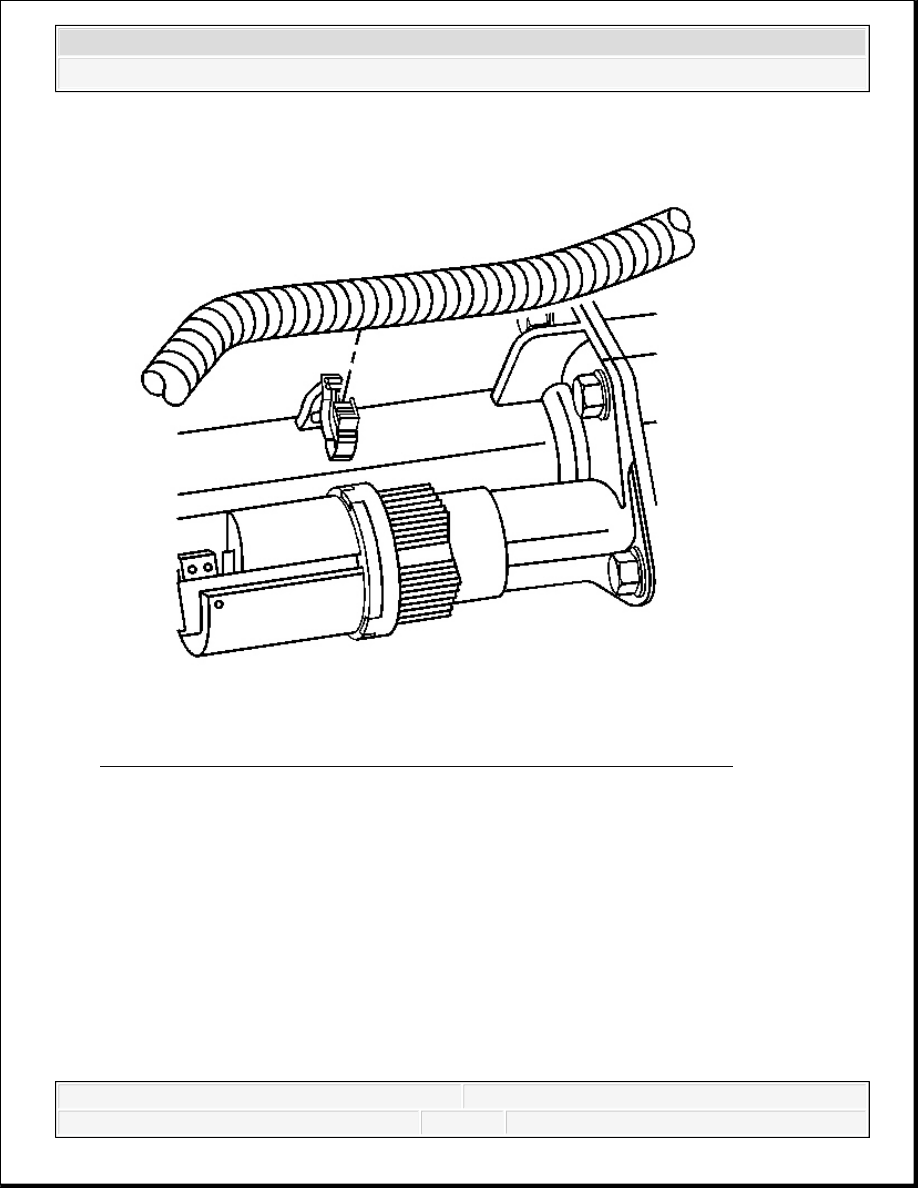

Fig. 127: View Of Wire Harness To Inner Axle Shaft Housing (S4WD) 9. Connect the wire harness to the inner axle shaft housing, S4WD axle only.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 128: View Of Front Axle Actuator Electrical Connector 10. Connect the electrical connector to the front axle actuator, S4WD axle only.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 129: View Of Wheel Drive Shaft Inboard Flange Bolt - Front Drive Axle 11. Install the wheel drive shaft inboard flange to inner axle shaft bolts, both sides. Tighten: Tighten the wheel drive shaft inboard flange to inner axle shaft bolts to 79 N.m 12. Install the relay rod. Refer to Relay Rod Replacement . 13. Install the front propeller shaft to the differential carrier assembly. Refer to Front Propeller Shaft Replacement . 14. Fill the differential carrier assembly. Use the correct fluid. Refer to Front Axle Lubricant Replacement. 15. Install the front differential carrier assembly shield, if equipped. Refer to Shield Replacement.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

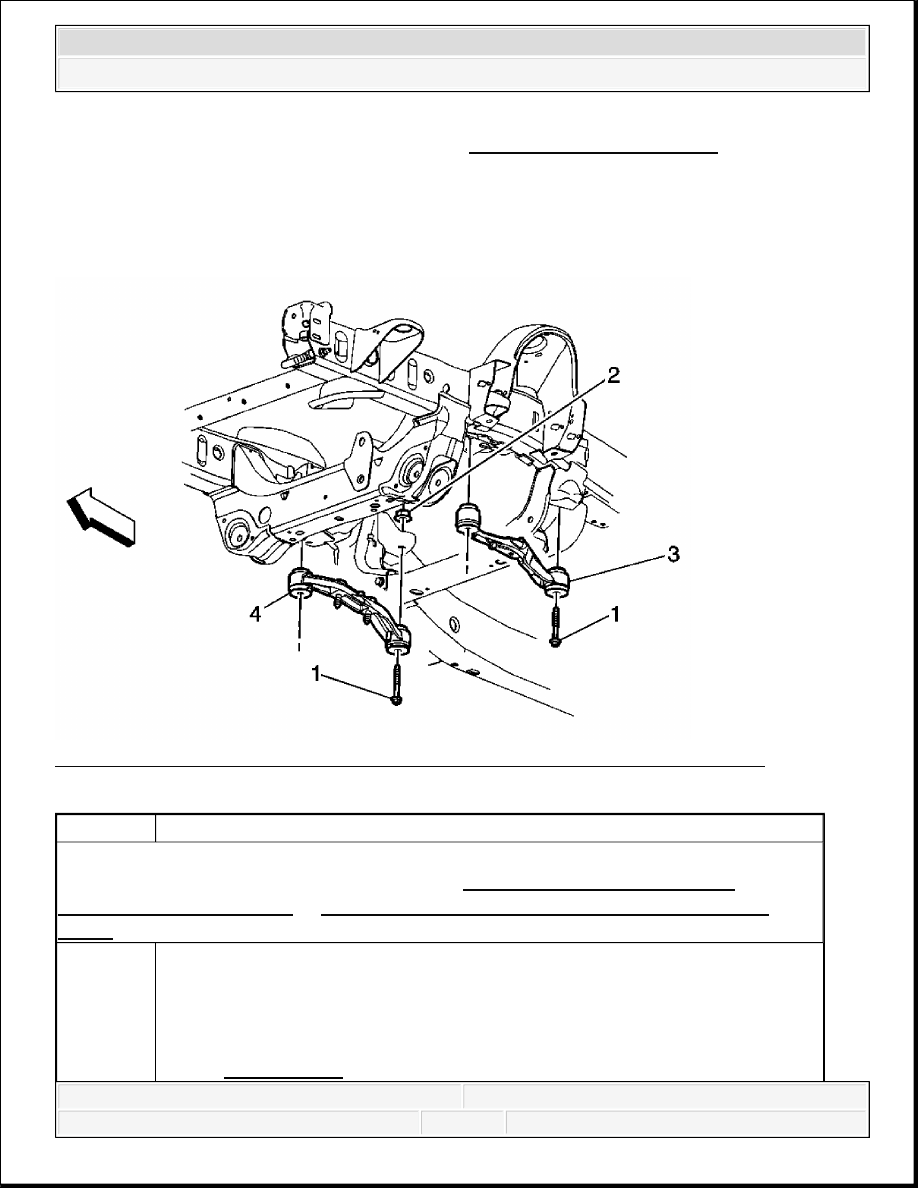

16. Install the engine protection shield. Refer to Engine Shield Replacement . 17. Remove the utility stands. 18. Lower the vehicle. BRACKET REPLACEMENT (1500) Fig. 130: View Of Front Differential Carrier Mounting Brackets, Nuts & Bolts Callout Component Name Preliminary Procedure: 1 Front Differential Carrier Mounting Bracket Bolt (Qty: 4) NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
