2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection

(w/Single Battery) or Battery Negative Cable Disconnection and Connection (w/Auxiliary Battery)
or Battery Negative Cable Disconnection and Connection (w/Dual Batteries) .

3. Remove all related panels and components.

4. Repair as much of the damage as possible to factory specifications. Refer to Dimensions - Body.

5. Note the location and remove the sealers and anti-corrosion materials from the repair area, as necessary.

Refer to Anti-Corrosion Treatment and Repair .

6. Perform additional sectioning procedures, as necessary. Refer to the following procedures:



Outer Windshield Frame Pillar Sectioning



Front Hinge Pillar Sectioning



Rocker Outer Panel Sectioning



Center Pillar Sectioning

Fig. 99: Cutting Panels For Sectioning
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Foam Sound Deadeners Caution .

IMPORTANT: Do not damage any inner panels or reinforcements.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:00 PM

Page 110

© 2005 Mitchell Repair Information Company, LLC.

7. Cut the panel in the locations where sectioning is to be performed.

Fig. 100: Drilling Out Factory Welds
Courtesy of GENERAL MOTORS CORP.

8. Locate and drill out all factory welds. Note the number and location of the welds for installation of the

service part.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:00 PM

Page 111

© 2005 Mitchell Repair Information Company, LLC.

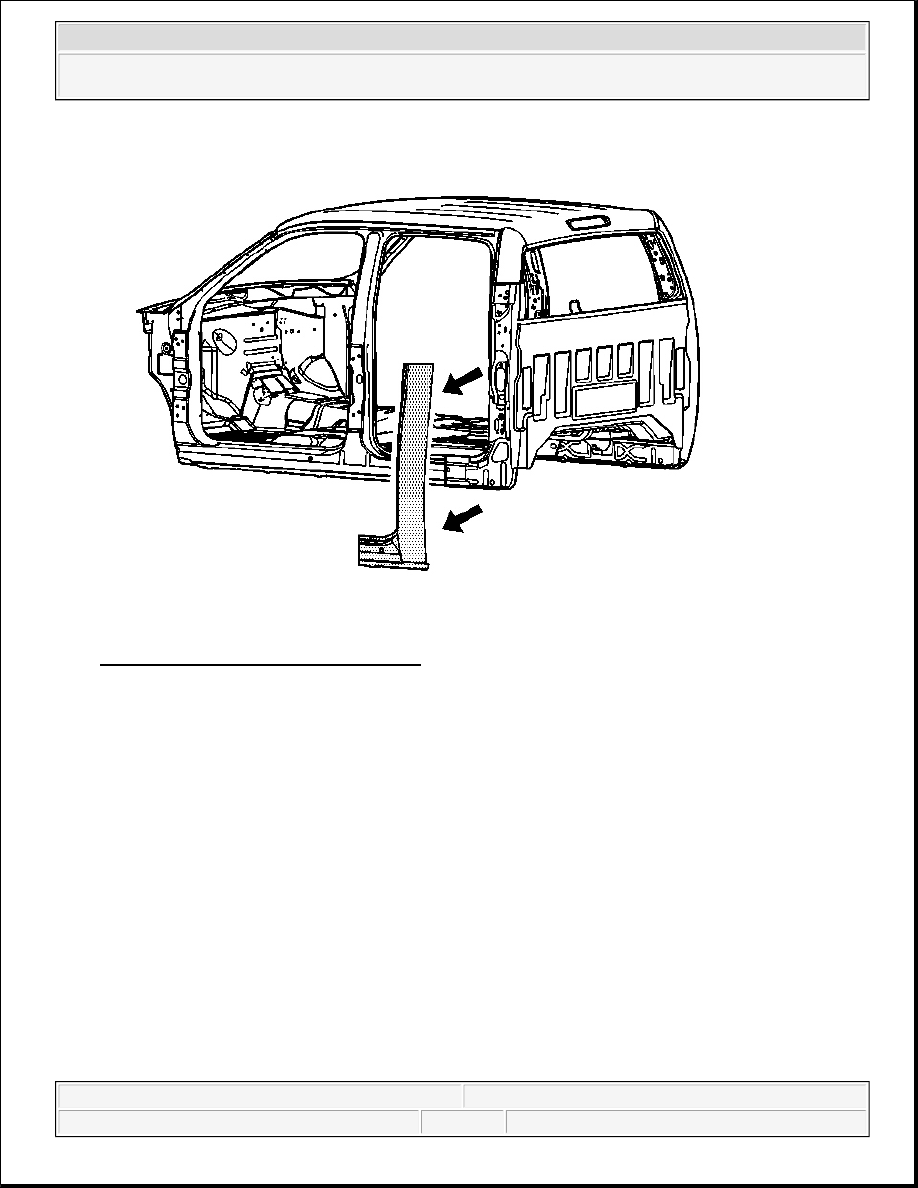

Fig. 101: View Of Damaged Pillar Section
Courtesy of GENERAL MOTORS CORP.

9. Remove the damaged pillar section.

Installation Procedure



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:00 PM

Page 112

© 2005 Mitchell Repair Information Company, LLC.

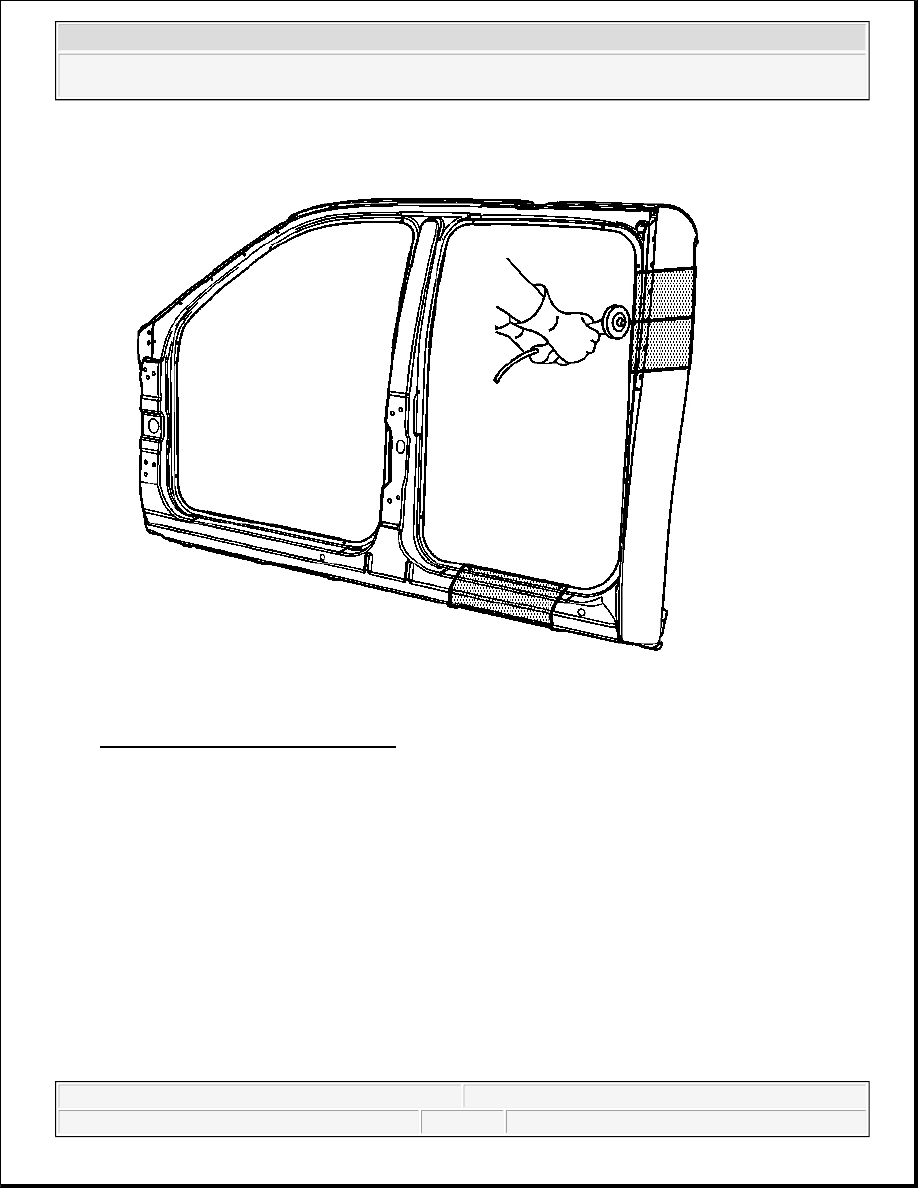

Fig. 102: Cutting Panel For Sectioning
Courtesy of GENERAL MOTORS CORP.

1. Cut the replacement body side in corresponding locations to fit the remaining original panel. The

sectioning joint should be trimmed to allow a gap of 11/2 times the metal thickness at the sectioning joint.
