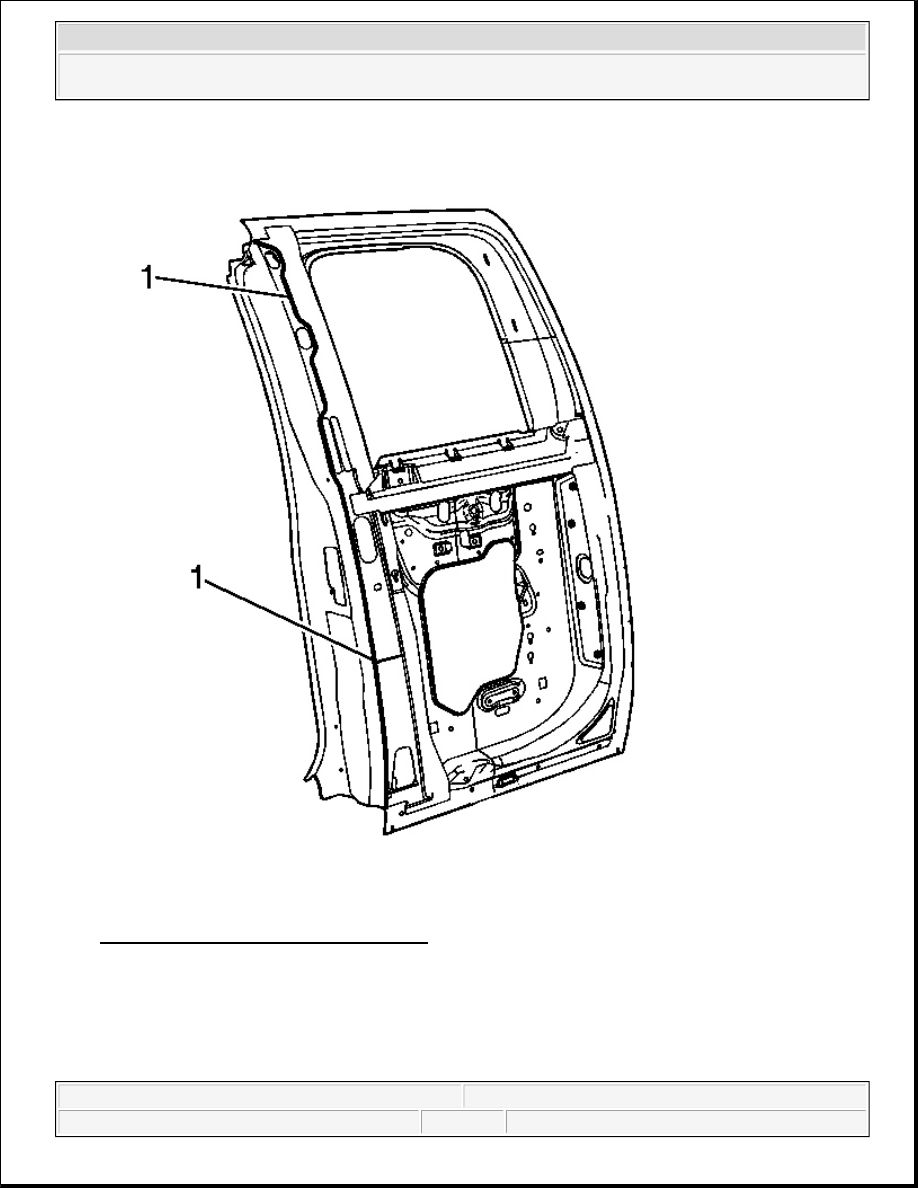

Fig. 71: Applying Metal Bonding Adhesive
Courtesy of GENERAL MOTORS CORP.

8. Apply a 3-6 mm (1/8-1/4 in) bead of metal bonding adhesive along the front portion of the door shell (1).



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:00 PM

Page 78

© 2005 Mitchell Repair Information Company, LLC.

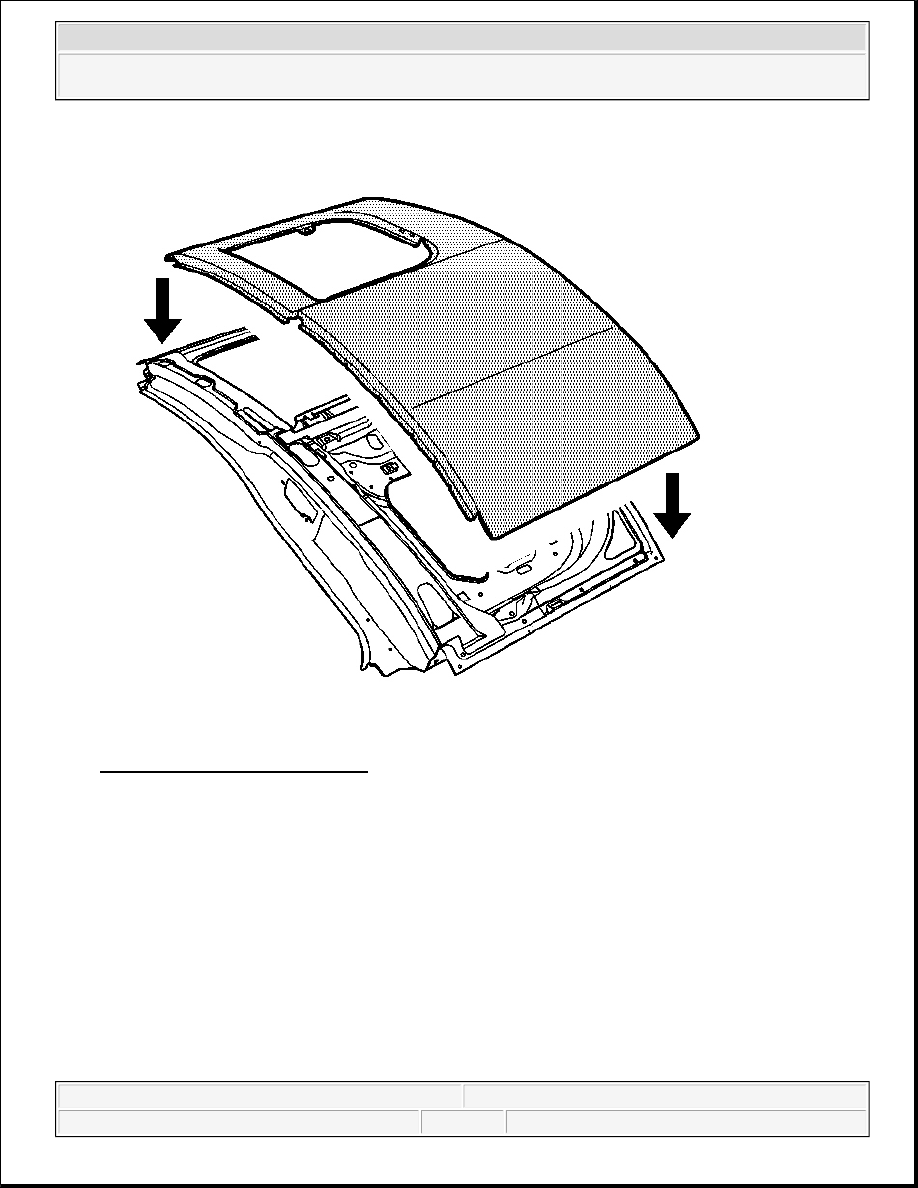

Fig. 72: View Of Outer Door Panel
Courtesy of GENERAL MOTORS CORP.

9. Install the door outer panel to the door shell.

10. Clamp the door outer panel into position, as required.

IMPORTANT: Do NOT pull the panels apart after being joined together. Slide the panels

against each other to realign the panels.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:00 PM

Page 79

© 2005 Mitchell Repair Information Company, LLC.

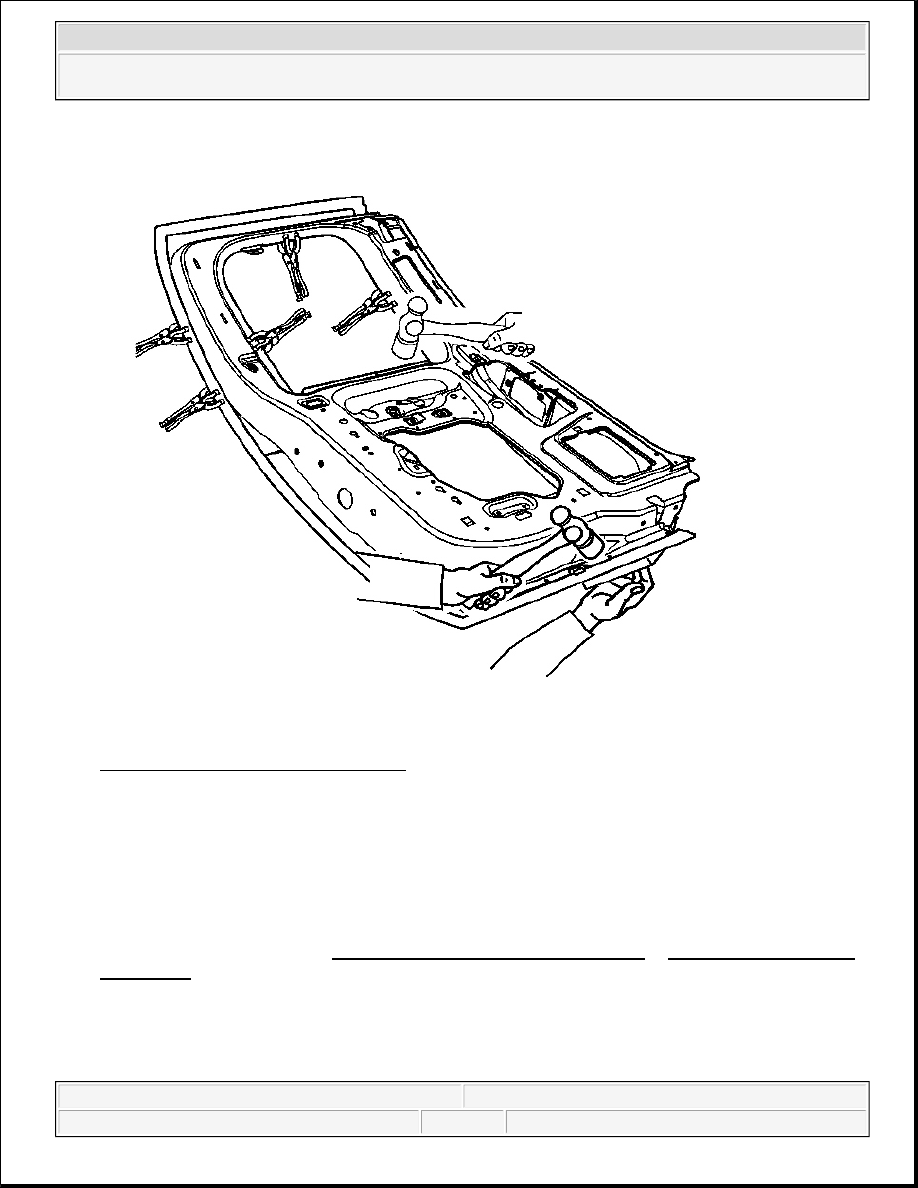

Fig. 73: Re-Hemming The Hem Flanges
Courtesy of GENERAL MOTORS CORP.

11. Using a hammer re-hem the hem flanges around the door shell.

Continue to hammer in stages along the hem flanges.

12. Remove the excess adhesive from the door panel area.

13. Install the door to the vehicle. Inspect the door outer panel for proper alignment; then adjust the

alignment, as required. Refer to Rear Door Replacement (Extended Cab) or Rear Door Replacement
(Crew Cab) .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:00 PM

Page 80

© 2005 Mitchell Repair Information Company, LLC.

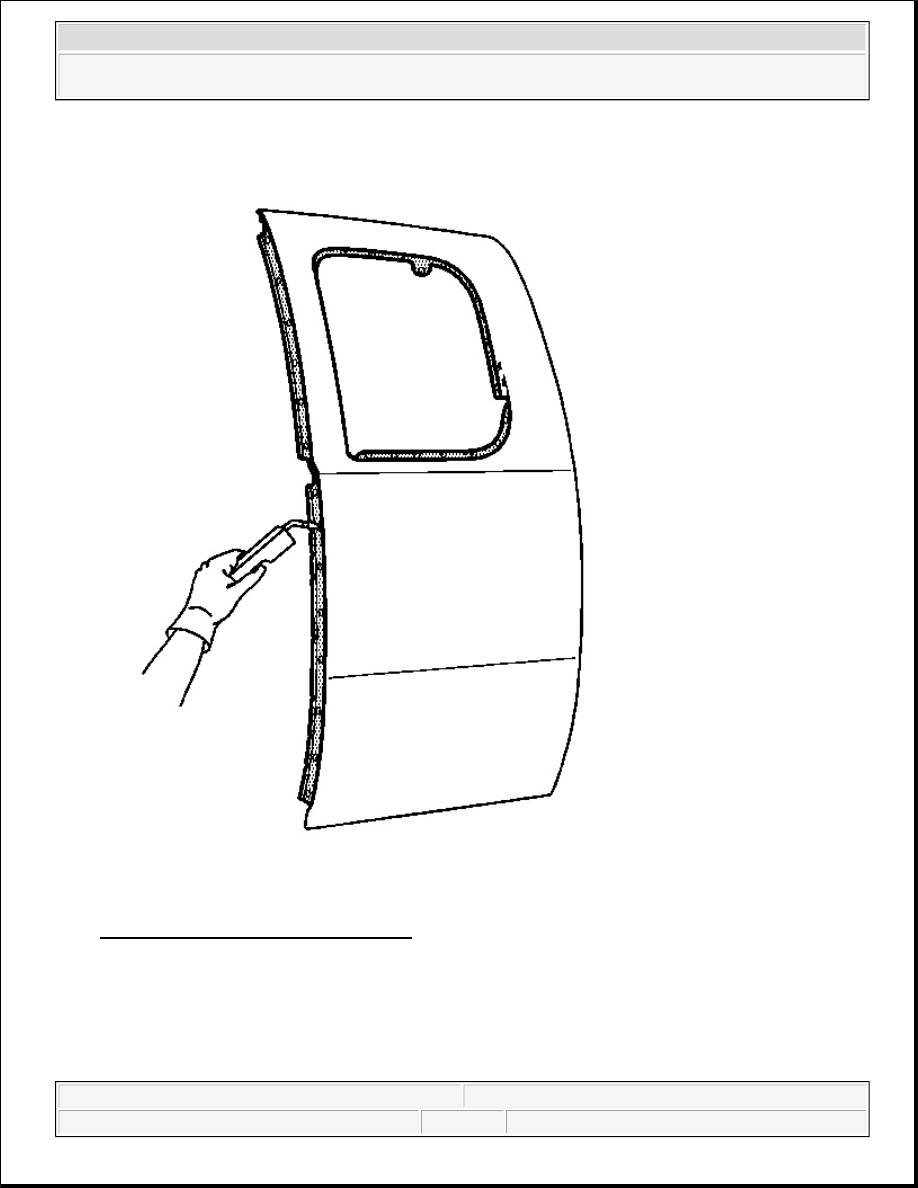

Fig. 74: MIG Welding Outer Door Panel
Courtesy of GENERAL MOTORS CORP.

14. Using metal-inert gas (MIG), weld the door outer panel to the door frame in the locations noted at the

upper door frame.

15. Clean and prepare all welded surfaces.
