Fig. 67: Grinding Edges Of Outer Door Panel
Courtesy of GENERAL MOTORS CORP.

1. Using a grinding disk grind the surface of the door shell mating flanges to bare steel.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:00 PM

Page 74

© 2005 Mitchell Repair Information Company, LLC.

Fig. 68: Scuffing Outer Door Panel Mating Surfaces
Courtesy of GENERAL MOTORS CORP.

2. Scuff the opposing mating surfaces of the door outer panel to remove the gloss of the E-Coat.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:00 PM

Page 75

© 2005 Mitchell Repair Information Company, LLC.

Fig. 69: Drilling Plug Weld Holes
Courtesy of GENERAL MOTORS CORP.

3. Drill 8 mm (5/16 in) plug weld holes, as necessary, in the locations noted from the original panel.

IMPORTANT: In any area damaged beyond recognition, space plug weld holes every 40

mm (1 in) apart.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:00 PM

Page 76

© 2005 Mitchell Repair Information Company, LLC.

4. Clean the mating surfaces.

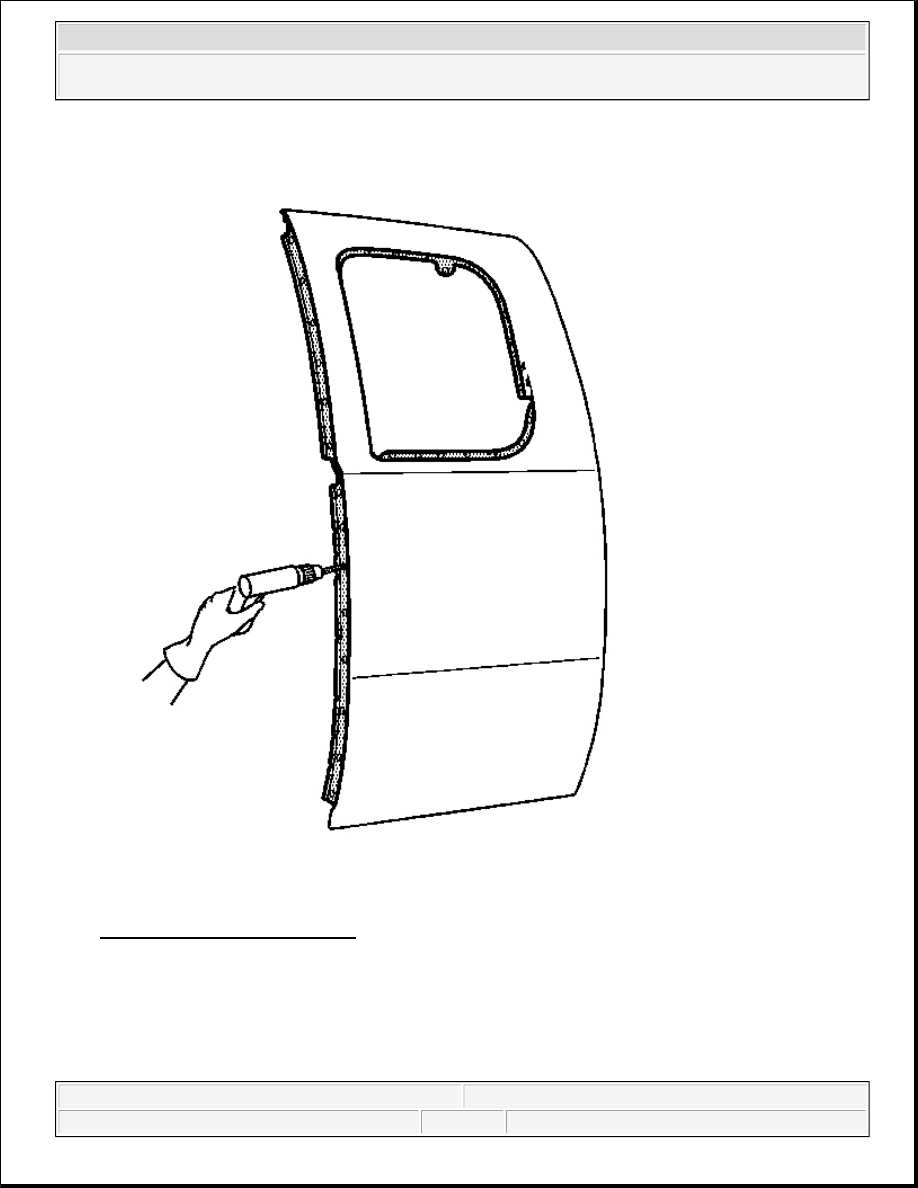

Fig. 70: Applying Metal Panel Bonding Adhesive
Courtesy of GENERAL MOTORS CORP.

5. Apply a 3-6 mm (1/8-1/4 in) bead of metal panel bonding adhesive to both of the mating surfaces.

6. Using a small acid brush, spread a coat of adhesive to cover all the bare metal surfaces to ensure

corrosion protection.

7. Apply a 9-13 mm (3/8-1/2 in) bead of metal bonding adhesive to the mating surfaces of the service panel.

IMPORTANT: Do not allow the door to totally cure off the vehicle, as proper alignment

of the door outer panel to the door shell will be difficult.
