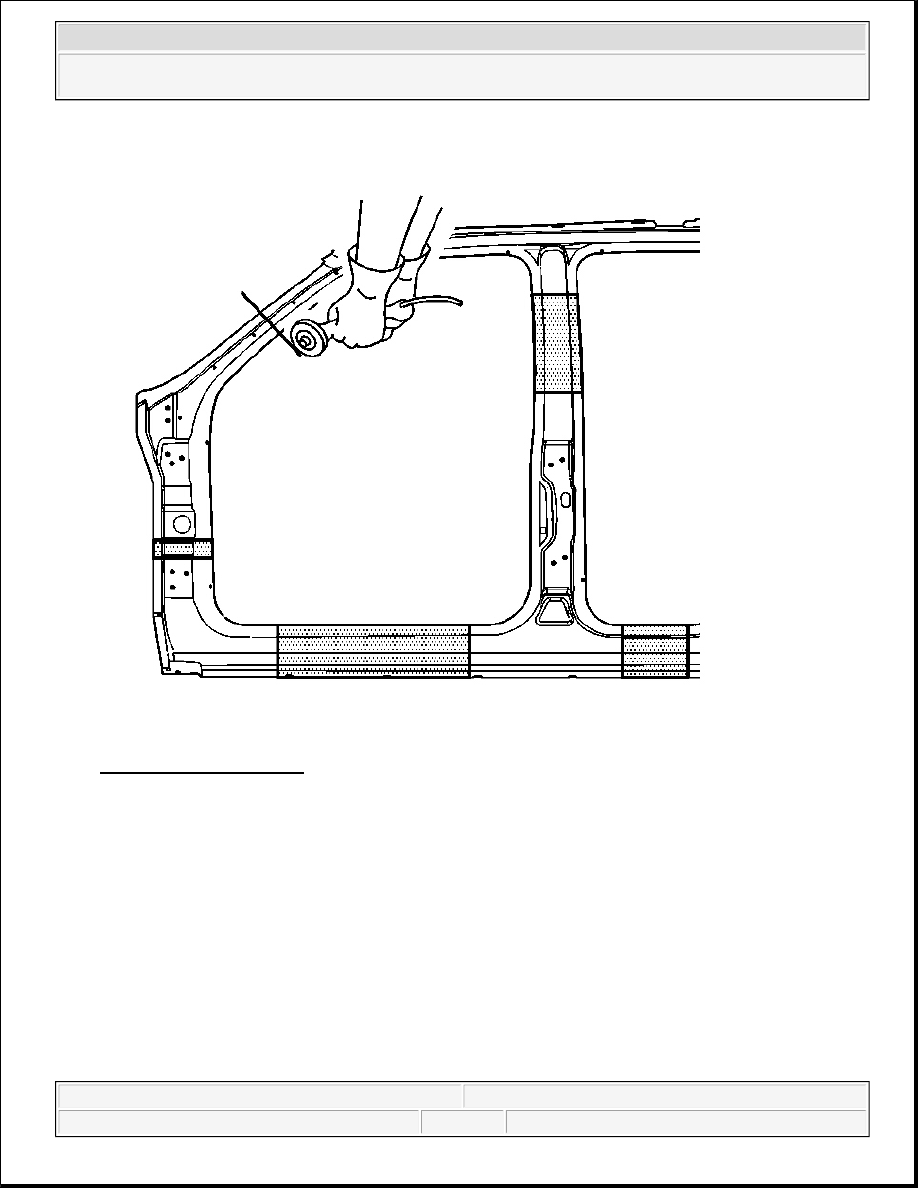

Fig. 15: Cutting The Panels
Courtesy of GENERAL MOTORS CORP.

7. Cut the panel in the locations where sectioning is to be performed.

IMPORTANT: Perform the sectioning in the windshield area 30 mm (1 3/16 in) above the

third trim mounting hole (1).

IMPORTANT: Do not damage any inner panels or reinforcements.

2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado

Microsoft

Friday, August 21, 2009 2:20:59 PM

Page 18

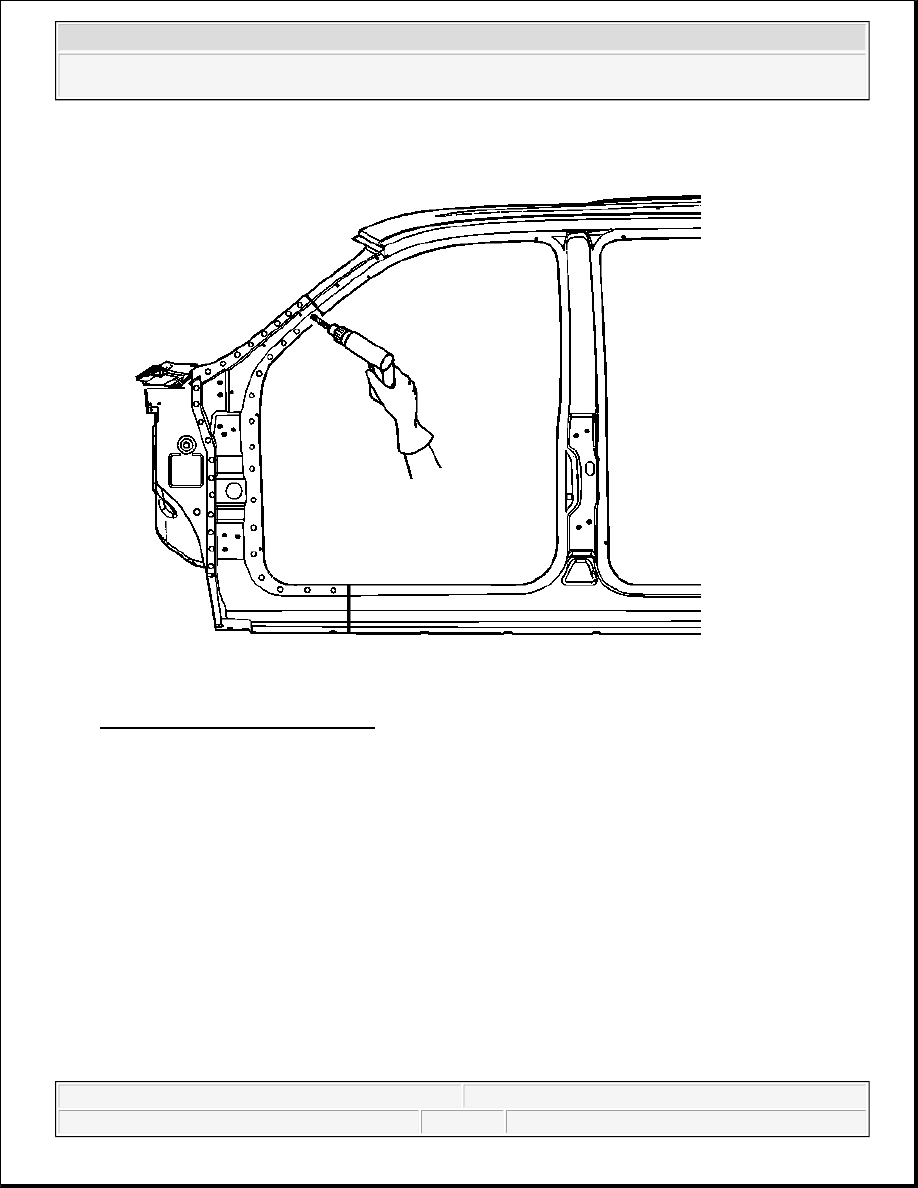

Fig. 16: Drilling Out Factory Welds
Courtesy of GENERAL MOTORS CORP.

8. Locate and drill out all factory welds. Note the number and location of the welds for installation of the

service part.

2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado

Microsoft

Friday, August 21, 2009 2:20:59 PM

Page 19

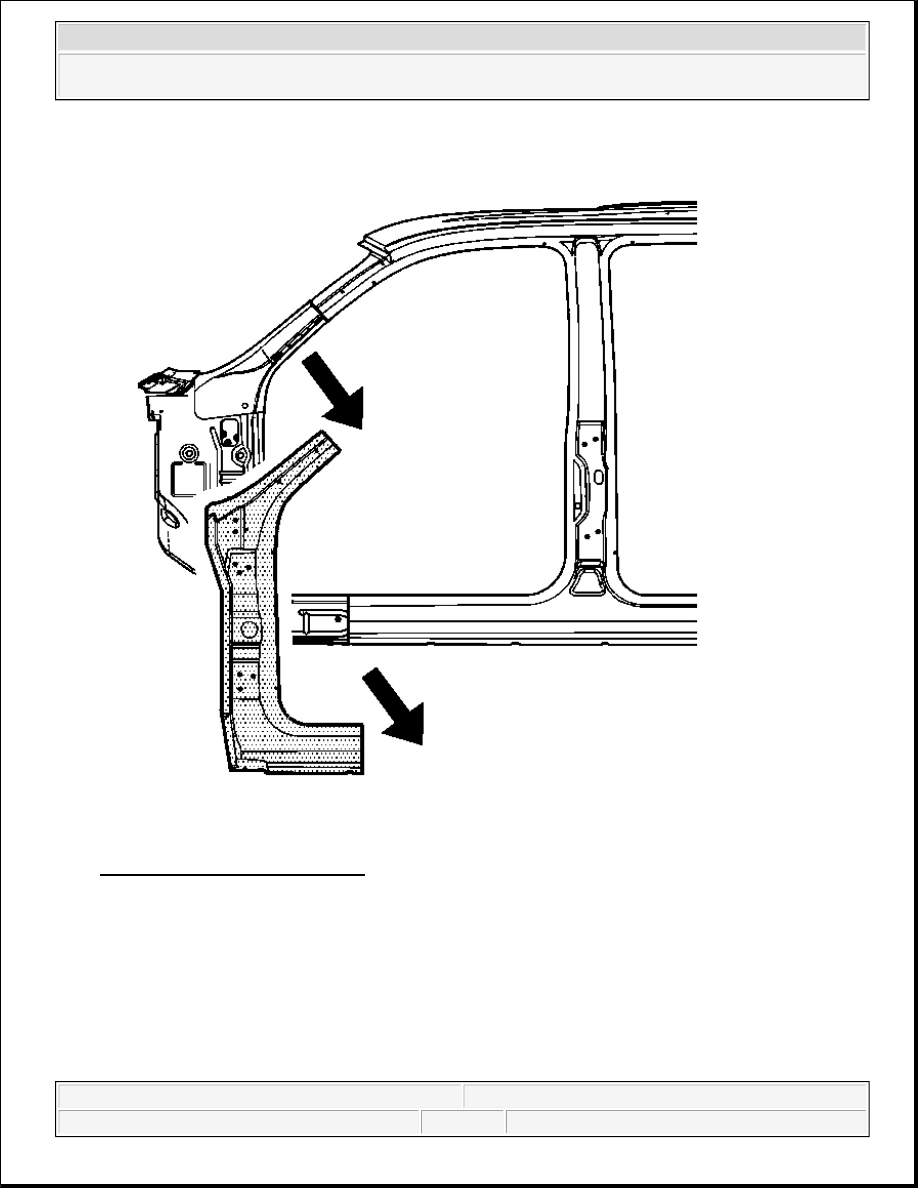

Fig. 17: View Of Damaged Section
Courtesy of GENERAL MOTORS CORP.

9. Remove the damaged body side.

Installation Procedure

2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado

Microsoft

Friday, August 21, 2009 2:20:59 PM

Page 20

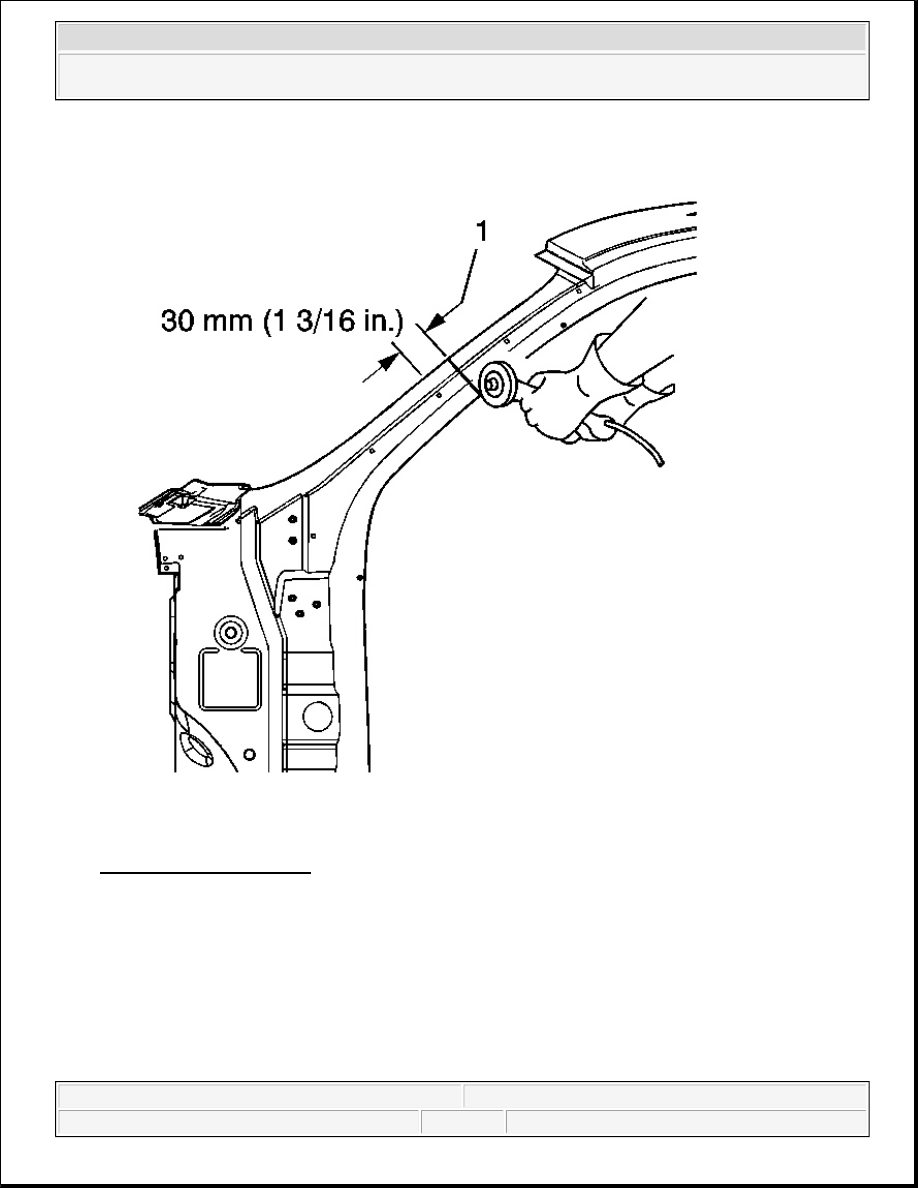

Fig. 18: Cutting The Panel
Courtesy of GENERAL MOTORS CORP.

1. Cut the replacement body side in corresponding locations to fit the remaining original panel. The

sectioning joint should be trimmed to allow a gap of 11/2 times the metal thickness at the sectioning joint.
