FUEL TANK FILLER DOOR REPLACEMENT

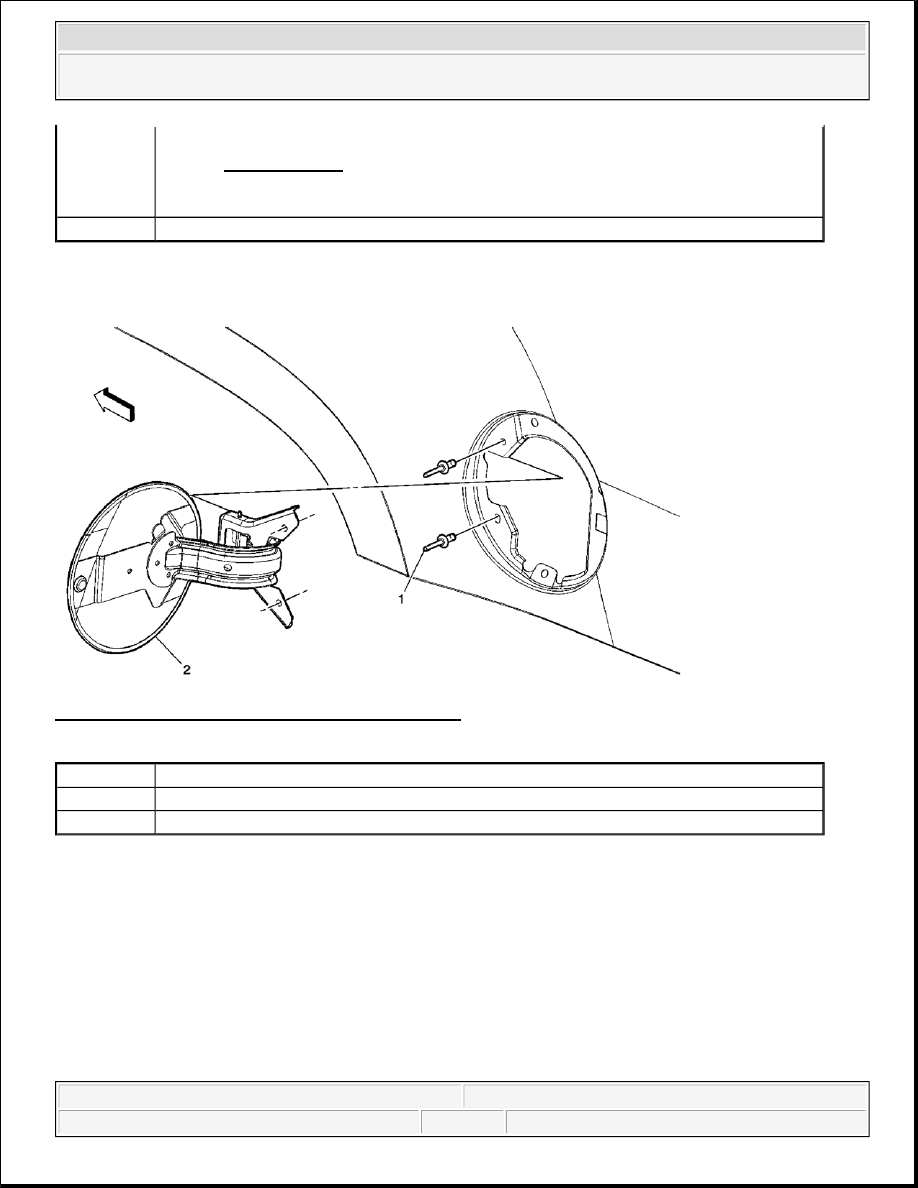

Fig. 33: View Of Fuel Filler Door Assembly & Rivets
Courtesy of GENERAL MOTORS CORP.

FUEL TANK FILLER PIPE HOUSING REPLACEMENT

1

Tighten: 25 N.m (18 lb ft)

NOTE:

Refer to Fastener Notice .

2

Hood Link

Callout

Component Name

1

Fuel Tank Filler Door Rivets (Qty: 2)

2

Fuel Tank Filler Door Assembly



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 39

© 2005 Mitchell Repair Information Company, LLC.

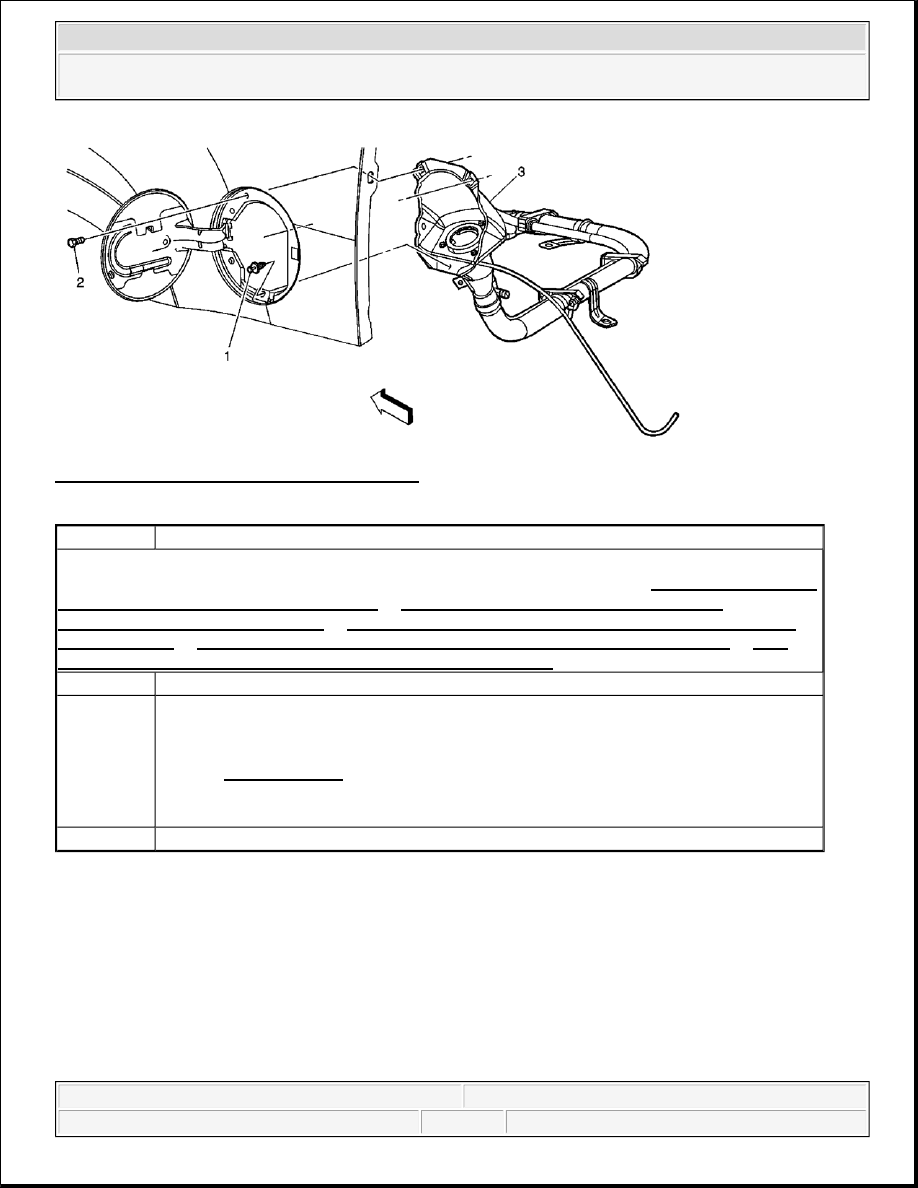

Fig. 34: View Of Fuel Tank Filler Pipe Housing
Courtesy of GENERAL MOTORS CORP.

HOOD STRUT REPLACEMENT

Callout

Component Name

Preliminary Procedure:
Disconnect the fuel tank filler pipe from the fuel tank filler pipe housing. Refer to Fuel Tank Filler Pipe
Replacement (15 Reg Cab w/26 gal Tank) or Fuel Tank Filler Pipe Replacement (15/25
Reg/Ext/Crew Cab w/34 gal Tank) or Fuel Tank Filler Pipe Replacement (35 Reg/Ext/Crew Cab
w/34 gal Tank) or Fuel Tank Filler Pipe Replacement (15 Ext/Crew Cab w/26 gal Tank) or Fuel
Tank Filler Pipe Replacement (25 Ext/Crew Cab w/26 gal Tank) .

1

Fuel Tank Filler Pipe Housing Plastic Retainer

2

Fuel Tank Filler Pipe Housing Screws (Qty: 2)

Tighten: 5 N.m (44 lb in)

NOTE:

Refer to Fastener Notice .

3

Fuel Tank Filler Pipe Housing



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 40

© 2005 Mitchell Repair Information Company, LLC.

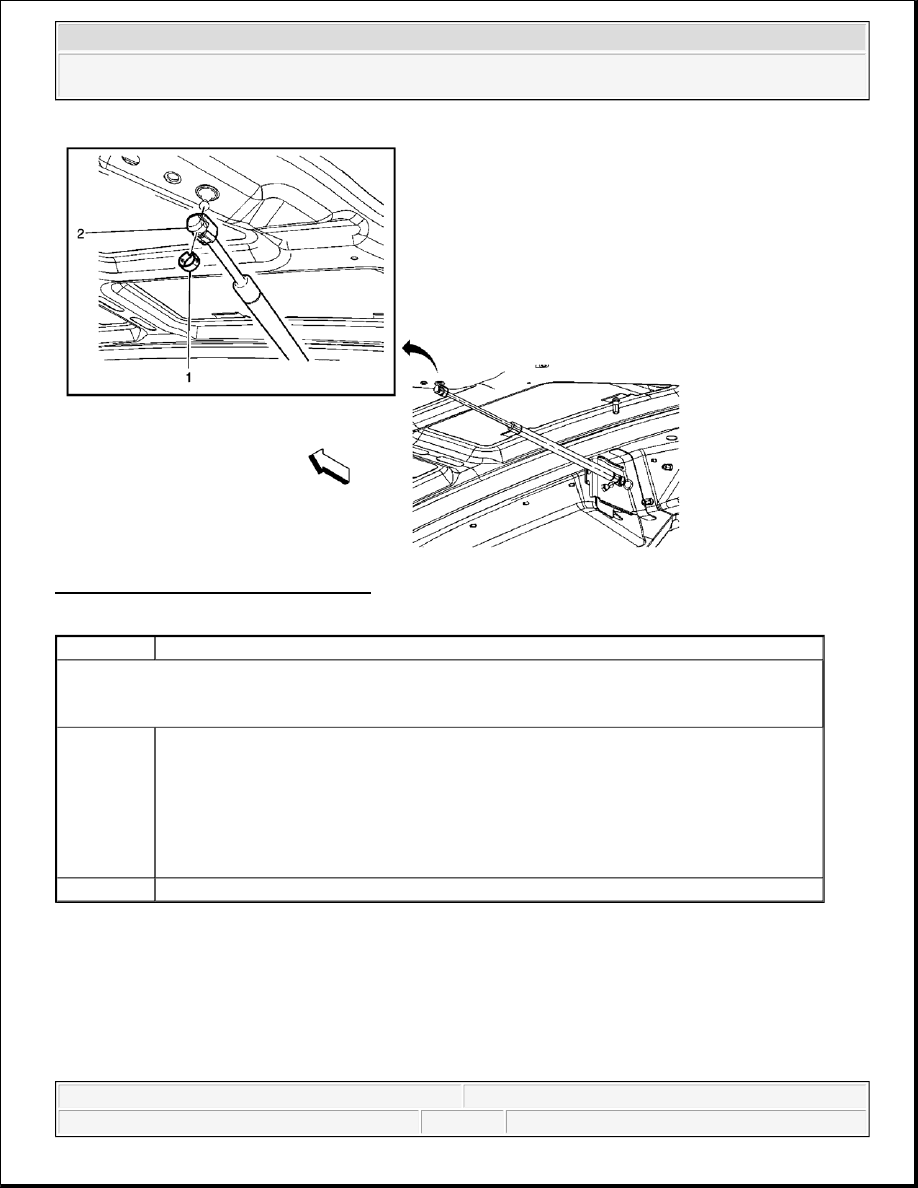

Fig. 35: View Of Hood Strut & Retainers
Courtesy of GENERAL MOTORS CORP.

HOOD FRONT SEAL REPLACEMENT

Callout

Component Name

CAUTION:

When a hood hold open device is being removed or installed, provide alternate support to avoid the
possibility of damage to the vehicle or personal injury.

1

Hood Strut Retainer (Qty: 2)

Procedure

1. Release the locking tabs on the strut.

2. Ensure the clip is fully seared when rod is reinstalled. If the clip cannot be fully

seated a new rod should be installed.

2

Hood Strut



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 41

© 2005 Mitchell Repair Information Company, LLC.

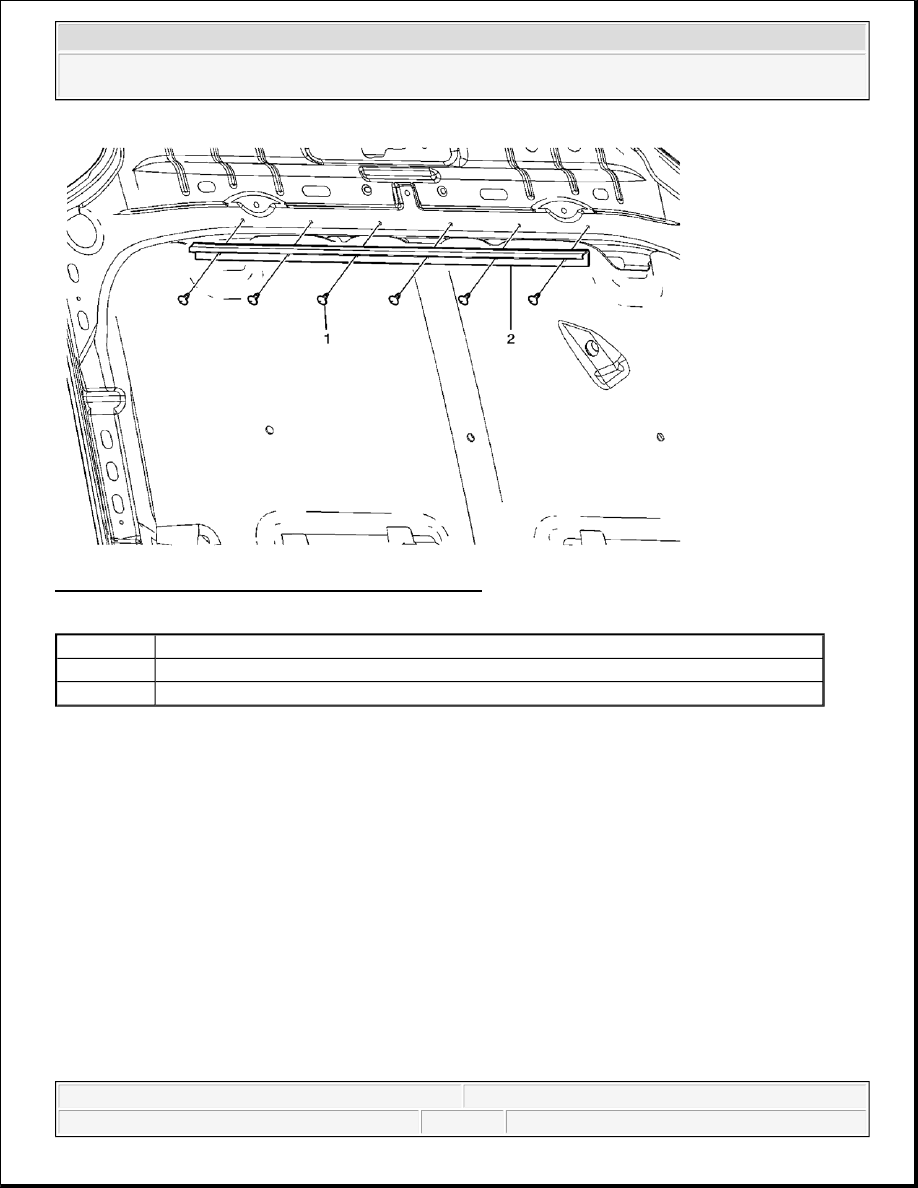

Fig. 36: View Of Front Hood Weatherstrip & Retainers
Courtesy of GENERAL MOTORS CORP.

HOOD REAR SEAL REPLACEMENT

Callout

Component Name

1

Front Hood Weatherstrip Retainer (Qty: 6)

2

Front Hood Weatherstrip



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Bolted Exterior Body Panels and Closures - Cab & Chassis Sierra, Cab & Chassis

Silverado, Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:23:22 PM

Page 42
