Chevrolet Silverado / GMC Sierra. Manual - part 1210

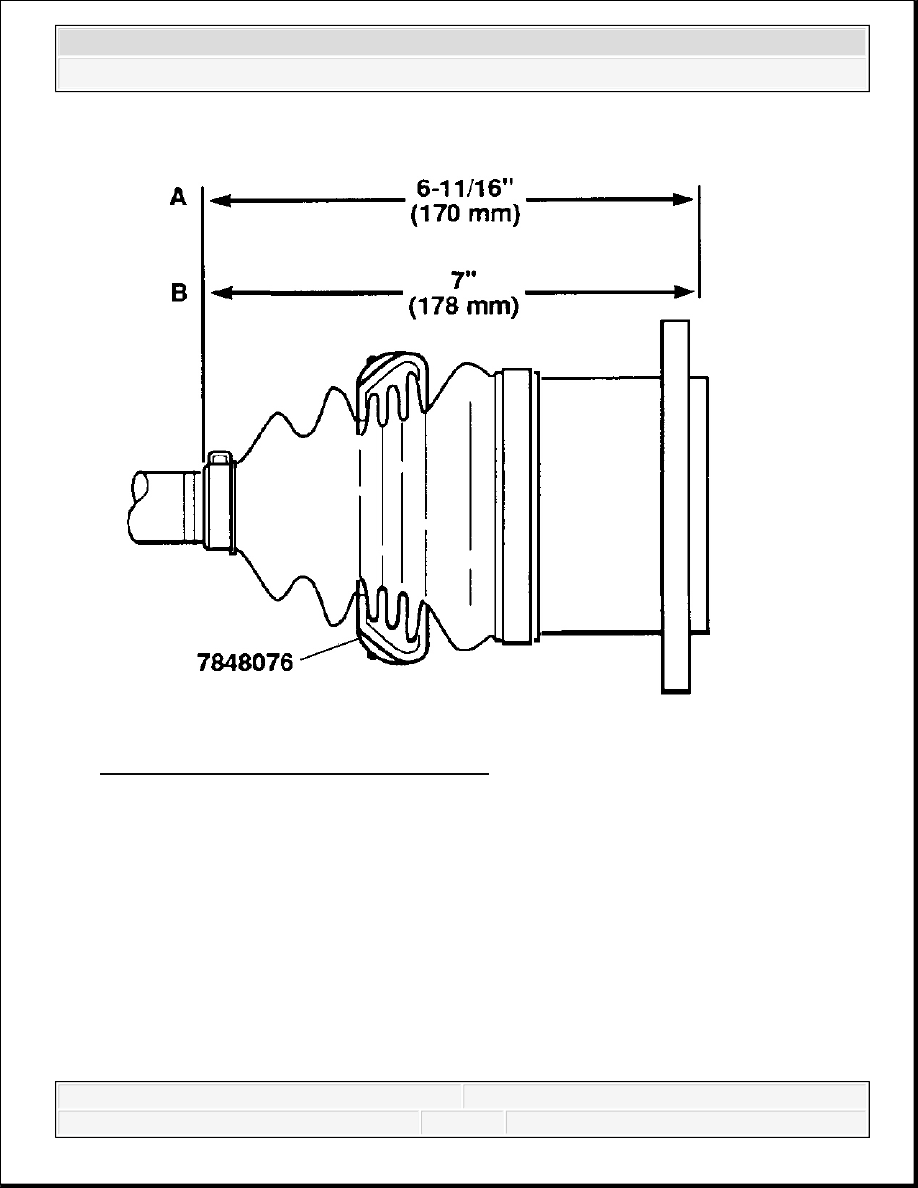

Fig. 39: Inspecting Inboard Stroke Position
Courtesy of GENERAL MOTORS CORP.
17. Inspect the inboard stroke position.
Use measurement A for the 1500 models.
Use measurement B for the 2500 and 3500 models.
2008 Chevrolet Silverado 1500
2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

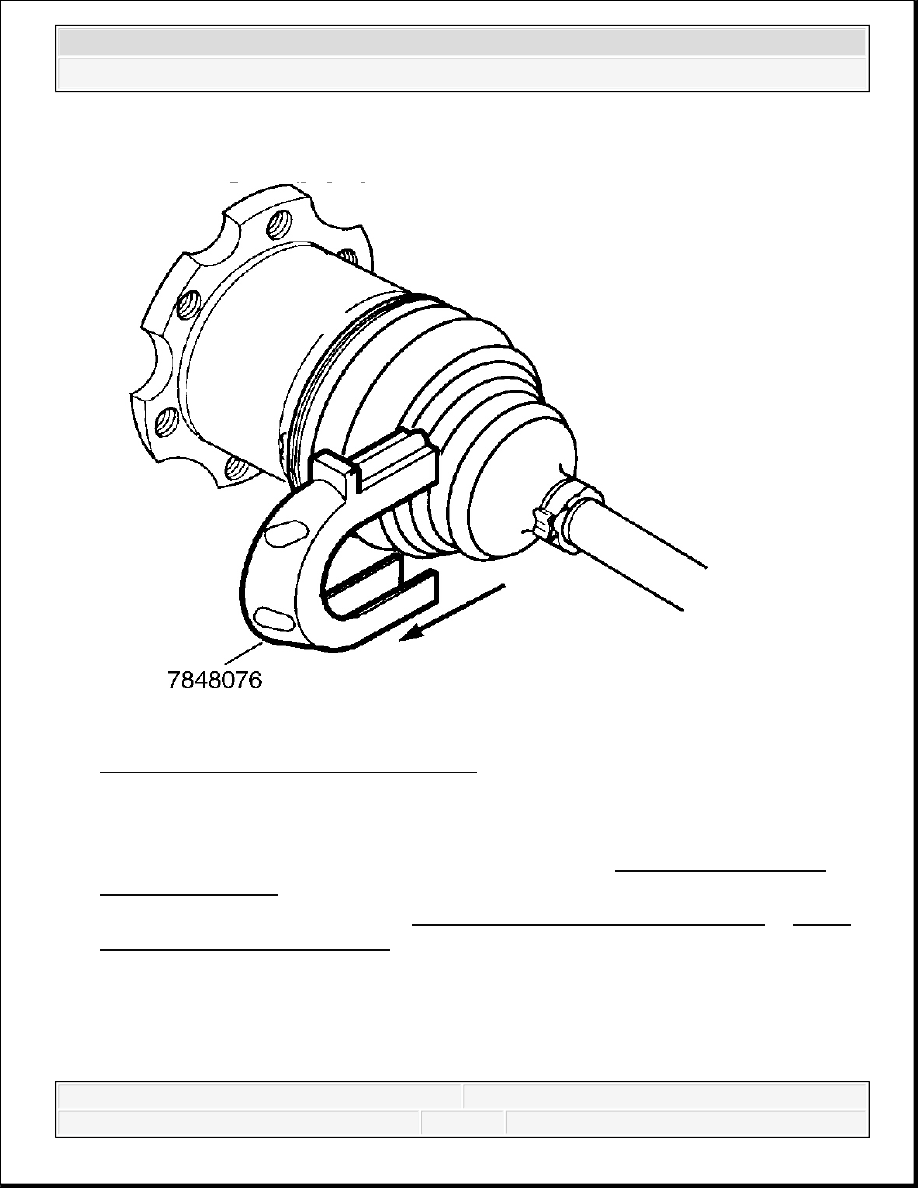

Fig. 40: View Of Convolute Retainer Tool
Courtesy of GENERAL MOTORS CORP.
18. Remove the convolute retainer tool from the boot.
19. Install the wheel drive shaft seal cover, if applicable. Refer to Wheel Drive Shaft Seal
Cover Replacement.
20. Install the wheel drive shaft. Refer to Wheel Drive Shaft Replacement (2500) or Wheel
Drive Shaft Replacement (1500).
WHEEL DRIVE SHAFT OUTER JOINT AND BOOT REPLACEMENT
Tools Required
J 8059 Snap Ring Pliers. See Special Tools.
2008 Chevrolet Silverado 1500
2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
J 35910 Drive Axle Seal Clamp Pliers. See Special Tools.
J 36652-1 Drive Axle Clamp Swage Tool. See Special Tools.
J 36652-2 Axle Swage Tool. See Special Tools.
Removal Procedure
1. Remove the wheel drive shaft. Refer to Wheel Drive Shaft Replacement (2500) or
Wheel Drive Shaft Replacement (1500).
2. Remove the wheel drive shaft seal cover, if applicable. Refer to Wheel Drive Shaft Seal
Cover Replacement.

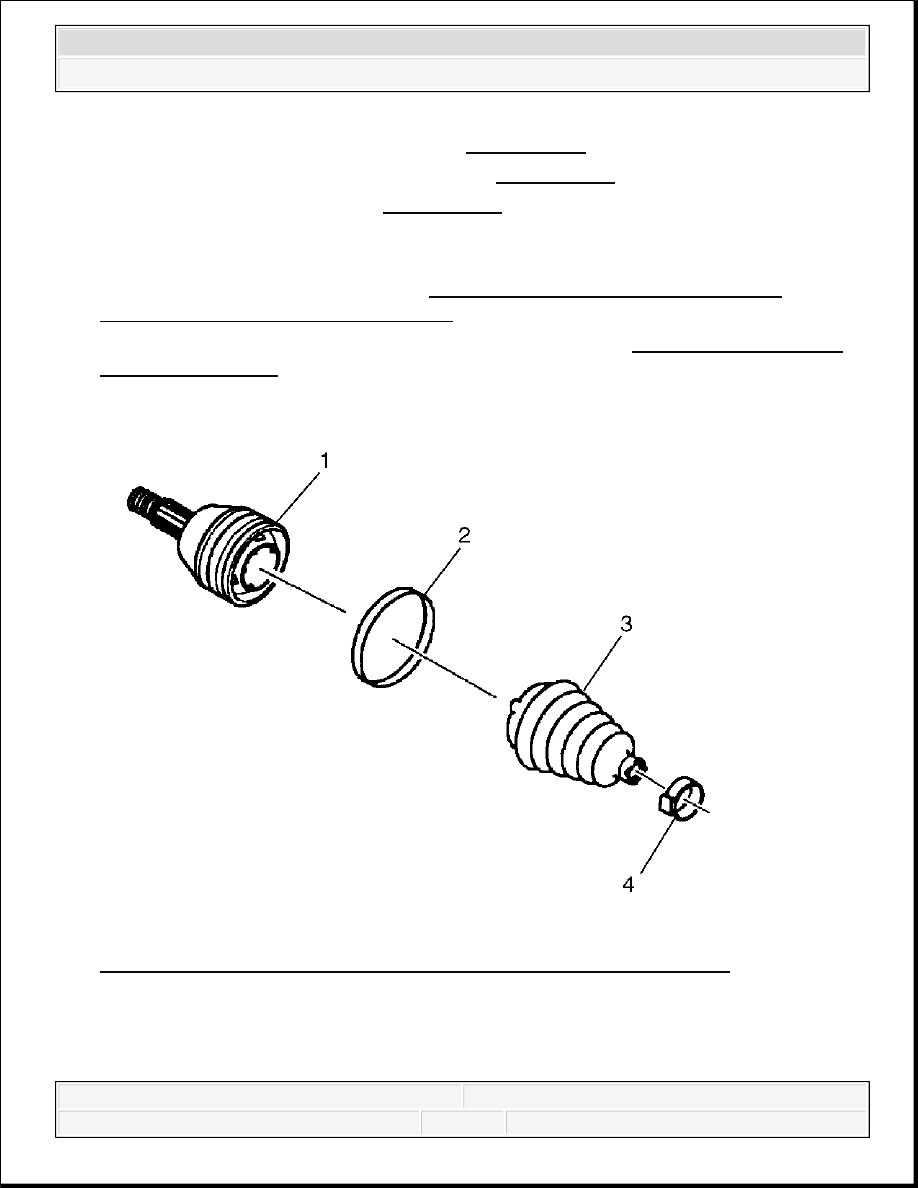

Fig. 41: CV Joint Outer Race, Swage Ring, Boot & Small Boot Clamp
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: Use caution when using the hand grinder by the CV joint
outer race (1).
2008 Chevrolet Silverado 1500
2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
3. Use a hand grinder to cut through the swage ring (2).
4. Use side cutters to cut off the small boot clamp (4).

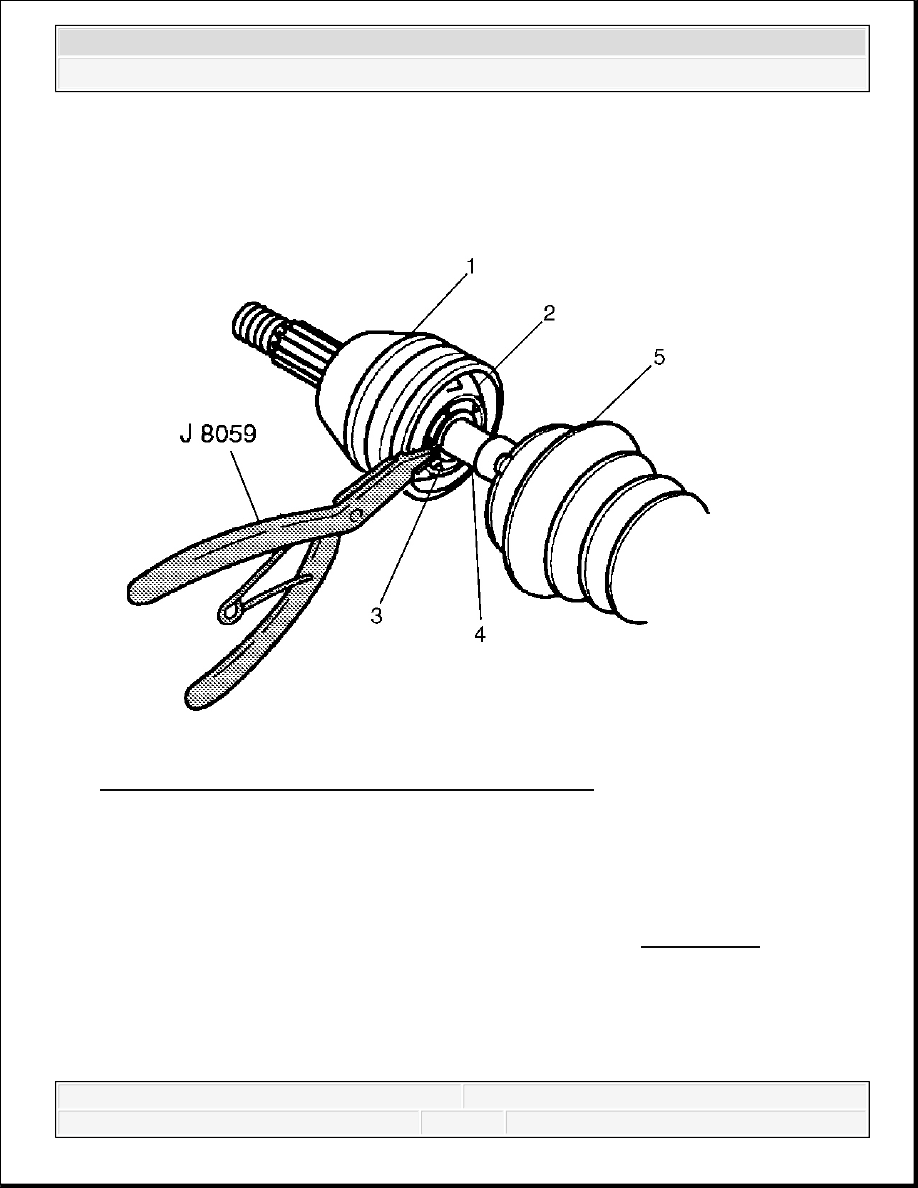

Fig. 42: Spreading Snap Ring Ears Apart Using J 8059
Courtesy of GENERAL MOTORS CORP.
5. Slide the boot (5) down the halfshaft bar (4) and away from the CV joint outer race (1).
6. Wipe all grease away from the face of the CV joint.
7. Find the halfshaft bar retaining snap ring (3), which is located in the inner race (2).
8. Spread the snap ring ears apart using J 8059 (or equivalent). See Special Tools.
9. Pull the CV joint (1) and the CV joint boot (5) from the halfshaft bar (4).
10. Discard the old CV joint boot (5).
2008 Chevrolet Silverado 1500
2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
