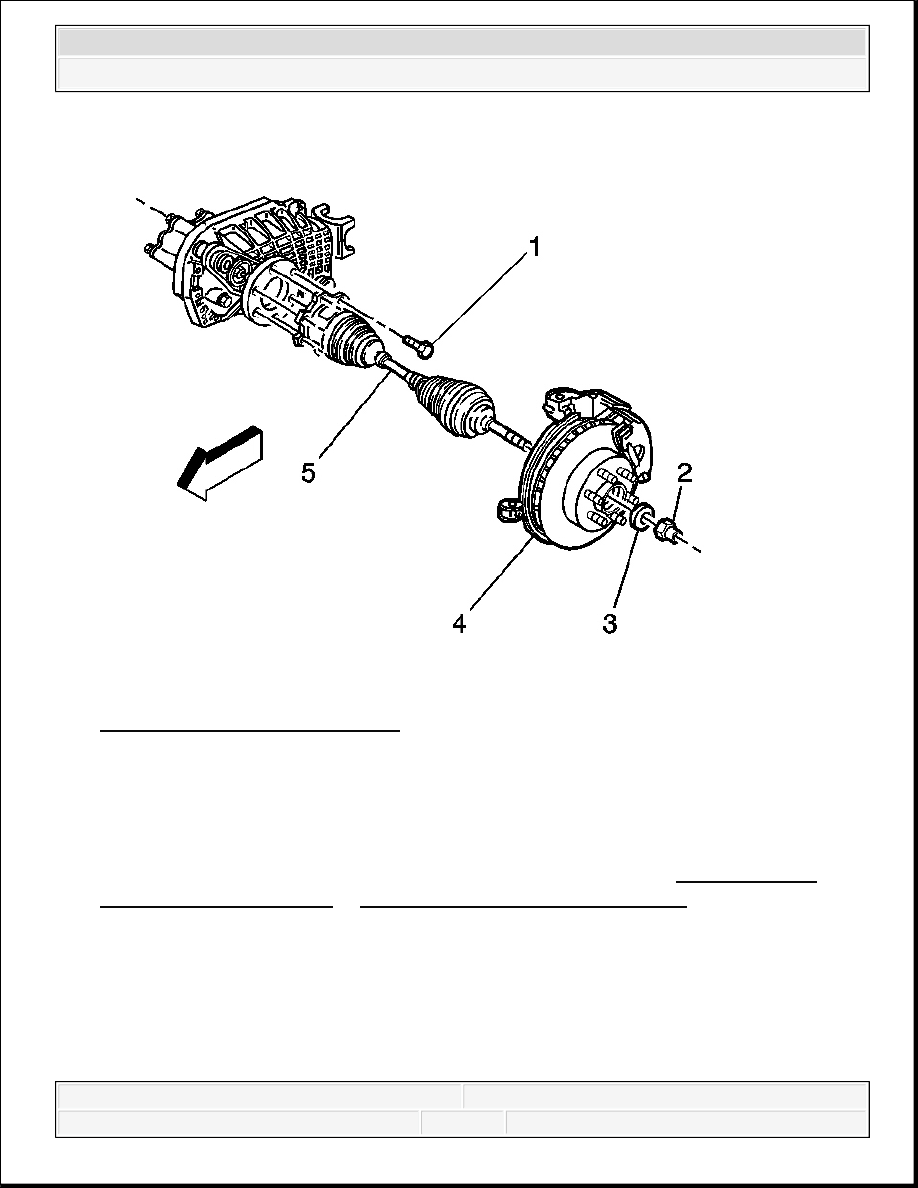

Fig. 4: Wheel Drive Shaft & Hub 7. Remove the 6 bolts (1) securing the wheel drive shaft inboard flange to the output shaft flange. 8. Remove the drift from the rotor. 9. Remove the stabilizer shaft link from the lower control arm. Refer to Stabilizer Shaft Replacement (2500, 3500) or Stabilizer Shaft Replacement (1500) . 10. Wrap shop towels around both the inner and the outer wheel drive shaft boots in order to avoid damage to the boots during removal and installation. 11. Pull the wheel drive shaft through the lower control arm opening. Installation Procedure
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 5: Wheel Drive Shaft & Hub 1. Wrap shop towels around both the inner and the outer wheel drive shaft boots in order to avoid damage to the boots during removal and installation. 2. Insert the wheel drive shaft splined shank into the knuckle hub. IMPORTANT: Clean the steering knuckle and the wheel drive shaft splines and threads. These areas must be dry and free of grease, NOTE: Use only a genuine GM front wheel drive shaft nut. Installation
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

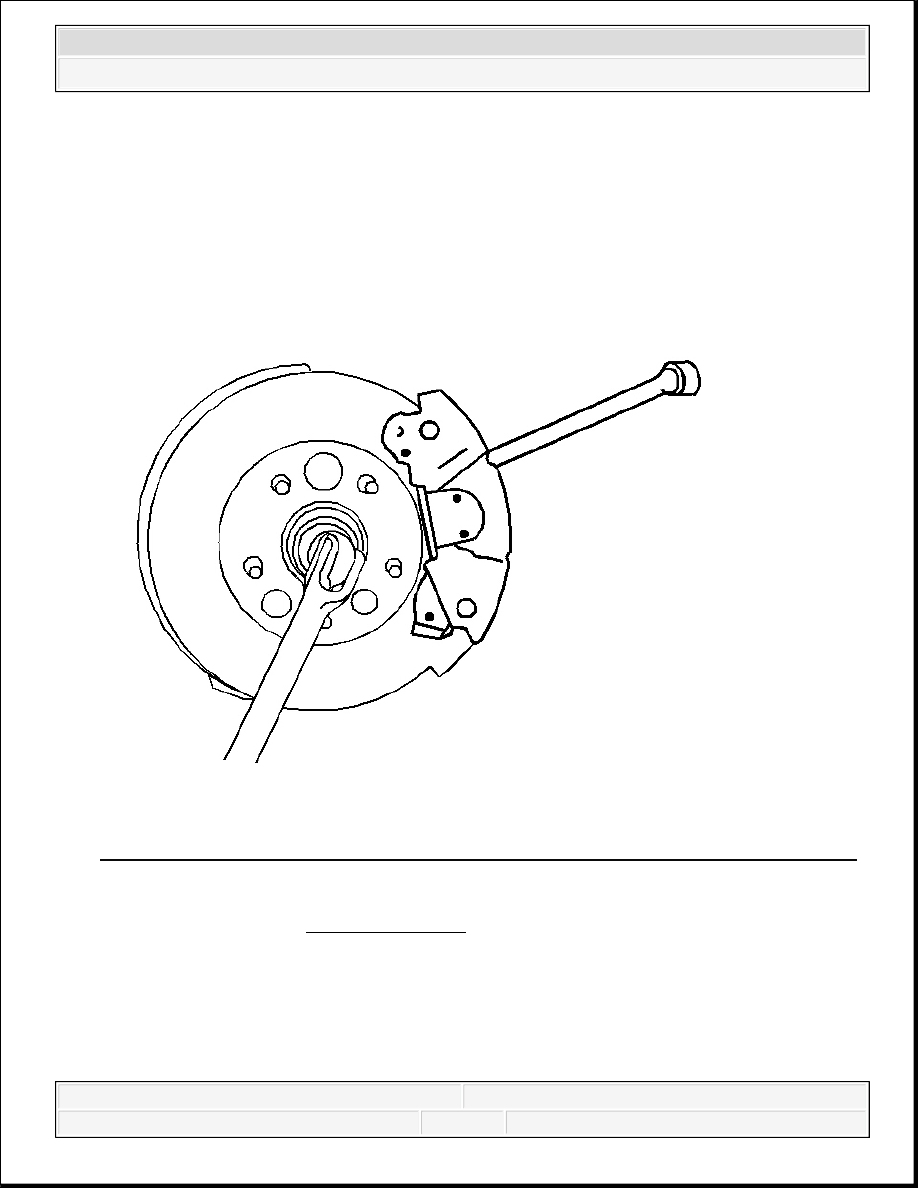

3. Install the washer (3) and the new hub nut (2) to the wheel drive shaft. Do not tighten the new hub nut at this time. 4. Attach the wheel drive shaft inboard flange to the output shaft flange using the inboard flange bolts (1). Fig. 6: Inserting Drift Or Screwdriver To Prevent Wheel Drive Shaft From Turning 5. Insert a drift or a large screwdriver through the brake caliper into 1 of the brake rotor vanes in order to prevent the wheel drive shaft from turning. Tighten: Tighten the inboard flange bolts to 79 N.m (58 lb ft). NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

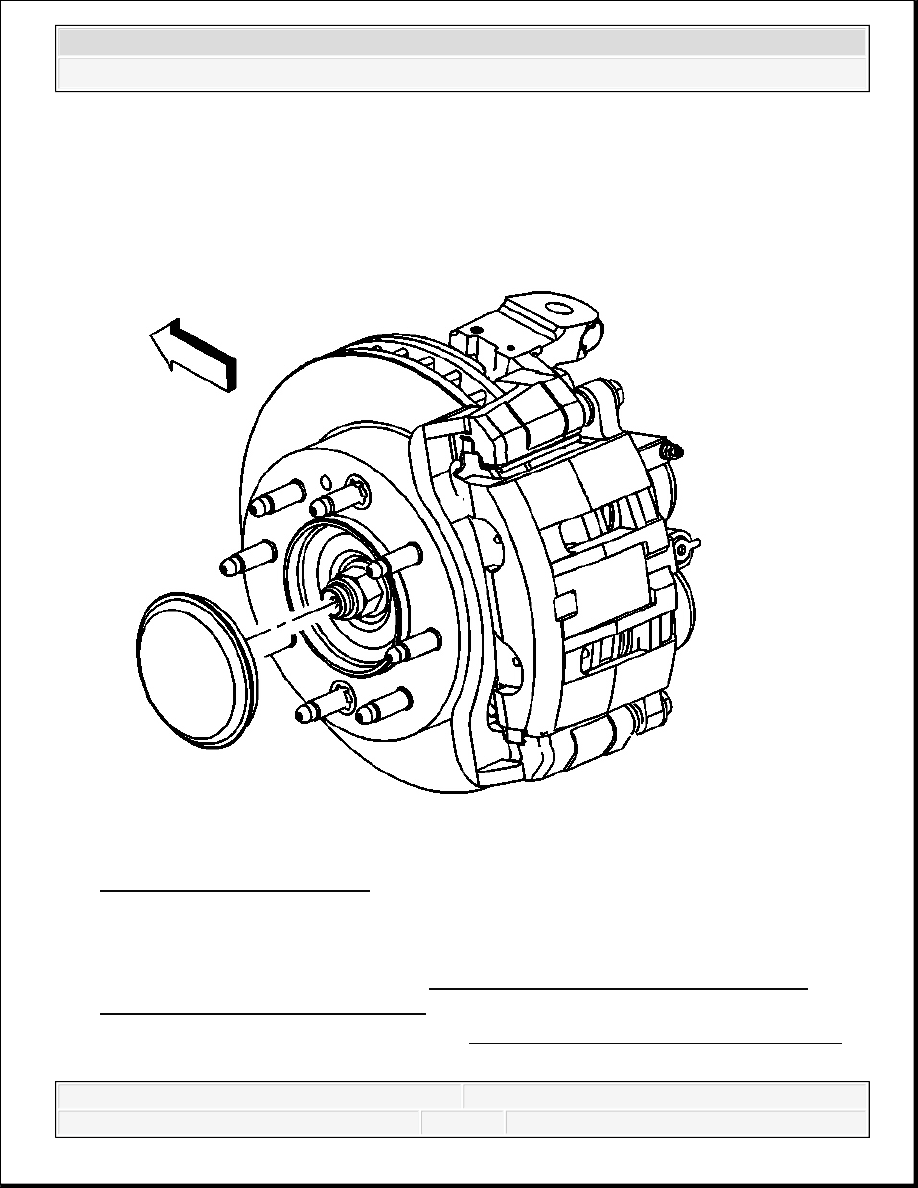

Tighten the hub nut to 240 N.m (177 lb ft). 6. Remove the drift from the rotor. Fig. 7: Drive Axle Center Cap 7. Install the drive axle center cap, if equipped. 8. Install the stabilizer shaft link. Refer to Stabilizer Shaft Replacement (2500, 3500) or Stabilizer Shaft Replacement (1500) . 9. Install the wheel and tire assembly. Refer to Tire and Wheel Removal and Installation . 10. Lower the vehicle.
