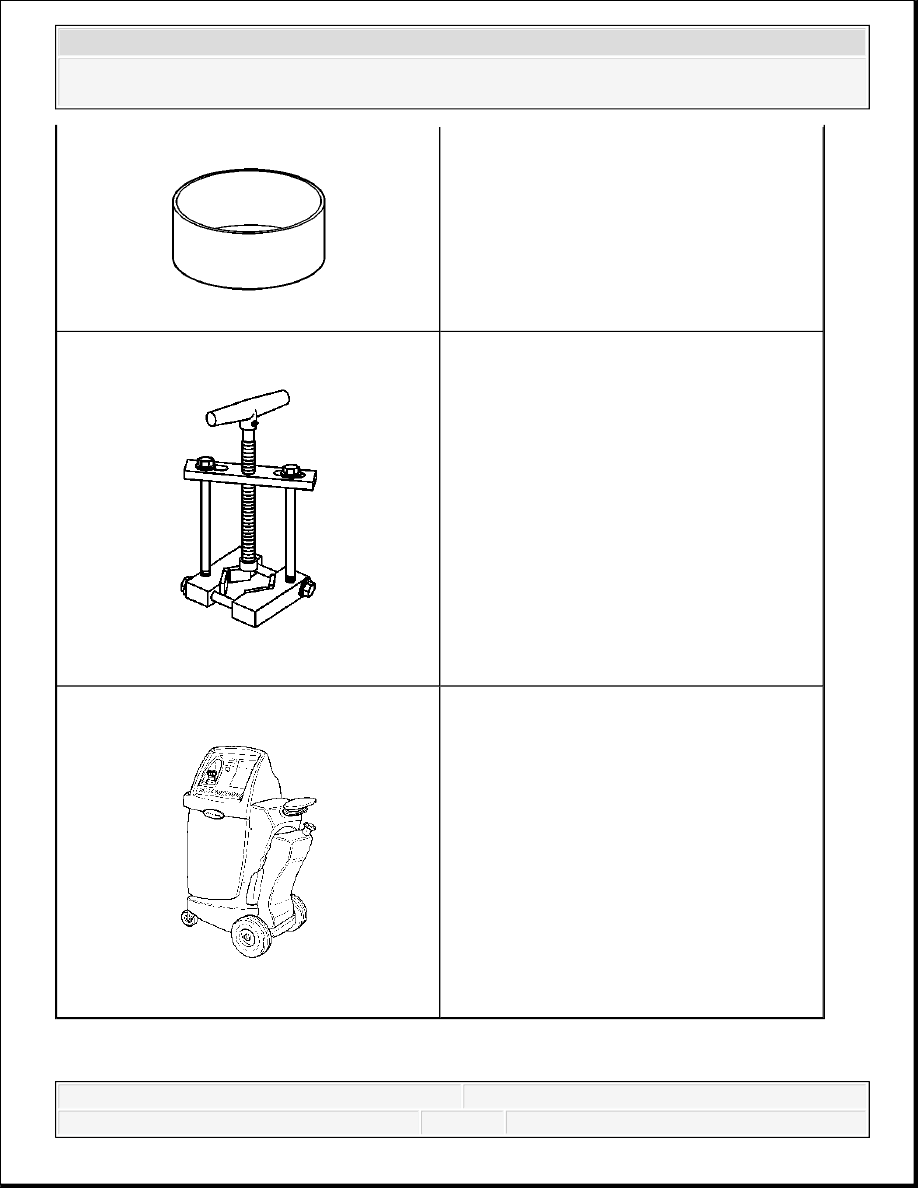

J 44571-1 Reverse Input Clutch Piston Installer J 45053 Universal Clamp Press J 45096 Transmission Oil Cooling System Flush and Flow Test Tool
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS COMPONENT LOCATOR WHEEL DRIVE SHAFTS DISASSEMBLED VIEWS Application Specification Metric English Hub Nut 240 N.m 177 lb ft Inboard Flange Bolts 79 N.m 58 lb ft Small Seal Retaining Clamp 136 N.m 100 lb ft
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

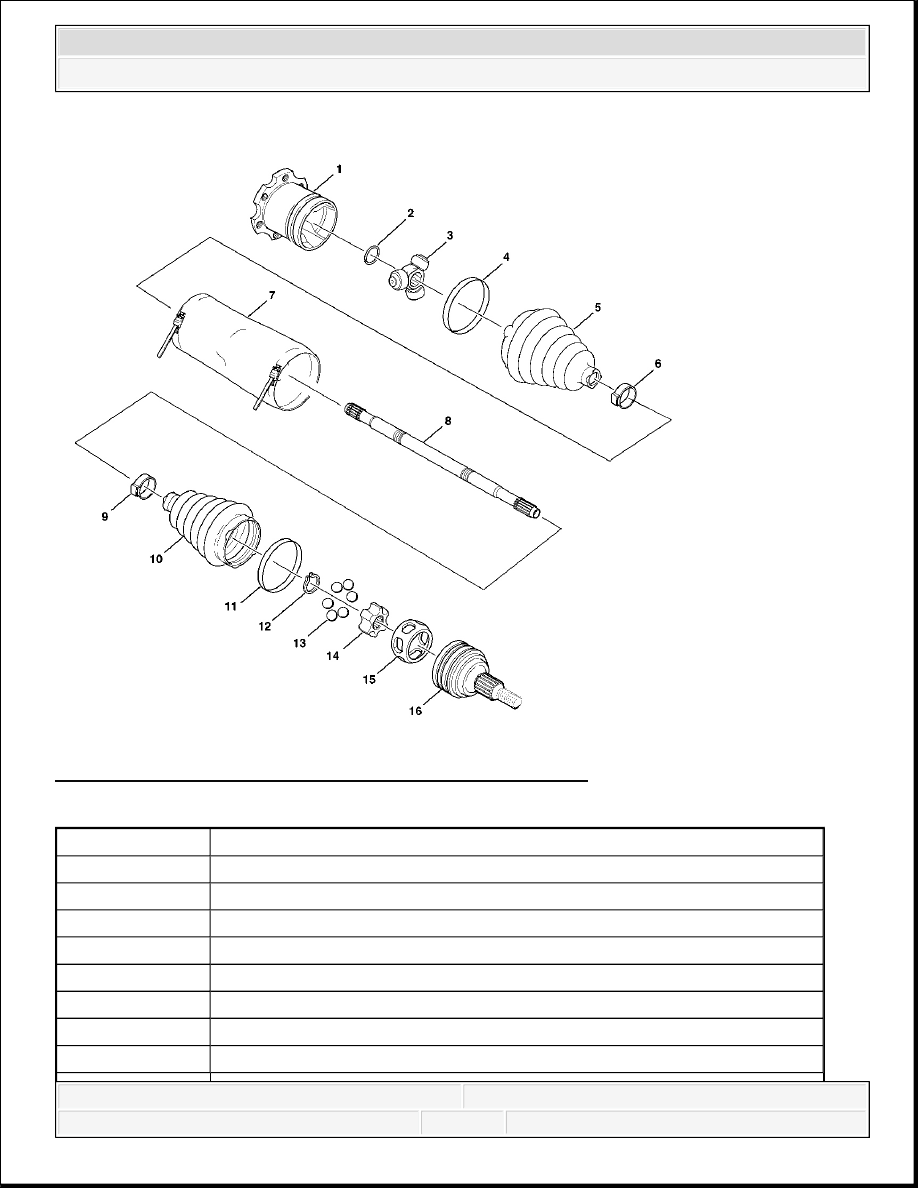

Fig. 1: Wheel Drive Shaft Components, Disassembled View Callout Component Name 1 Tripot Housing Assembly 2 Spacer Ring 3 Tripot Joint Spider Assembly 4 Swage Ring 5 Tripot Joint Boot 6 Small Boot Retaining Clamp 7 Halfshaft Boot Cover (Optional) 8 Halfshaft Bar
2008 Chevrolet Silverado 1500 2008 DRIVELINE/AXLE Wheel Drive Shafts - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
DIAGNOSTIC INFORMATION AND PROCEDURES DIAGNOSTIC STARTING POINT - WHEEL DRIVE SHAFTS Begin the system diagnosis by reviewing the system Description and Operation. Reviewing the SYMPTOMS - WHEEL DRIVE SHAFTS Before beginning diagnosis, review the system description and operation in order to familiarize Classifying the Symptom Wheel Drive Shaft symptoms can usually be classified into the following categories: Noises Vibrations Noise related concerns are diagnosed within the Wheel Drive Shafts section. For vibration Visual/Physical Inspection Inspect the system for aftermarket devices which could affect the operation of the wheel 9 Small Boot Retaining Clamp 10 CV Joint Boot 11 Swage Ring 12 Race Retaining Ring 13 Ball 14 CV Joint Inner Race 15 CV Joint Cage 16 CV Joint Outer Race
