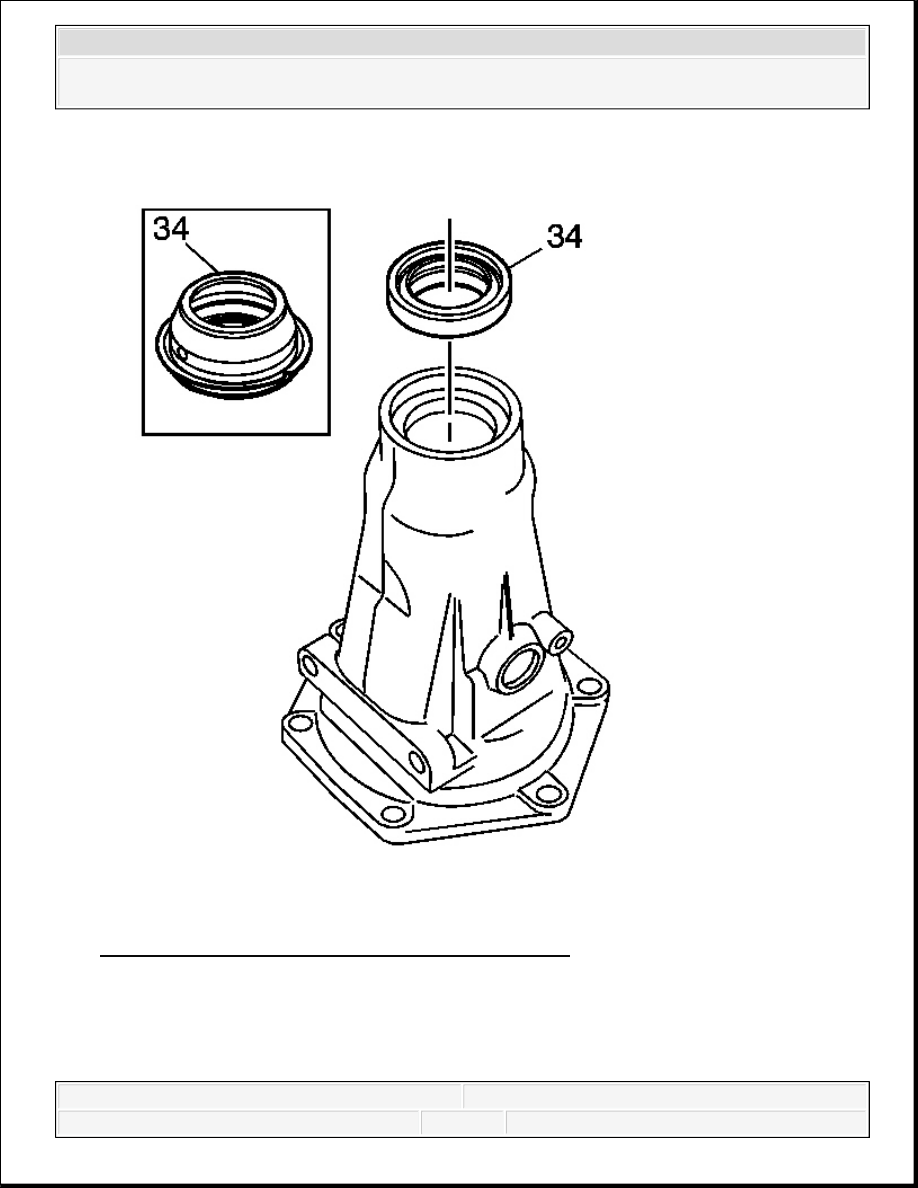

Fig. 523: View Of Case Extension Oil Seal Assembly
Courtesy of GENERAL MOTORS CORP.
2. Remove the case extension oil seal assembly (34) (model dependent).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

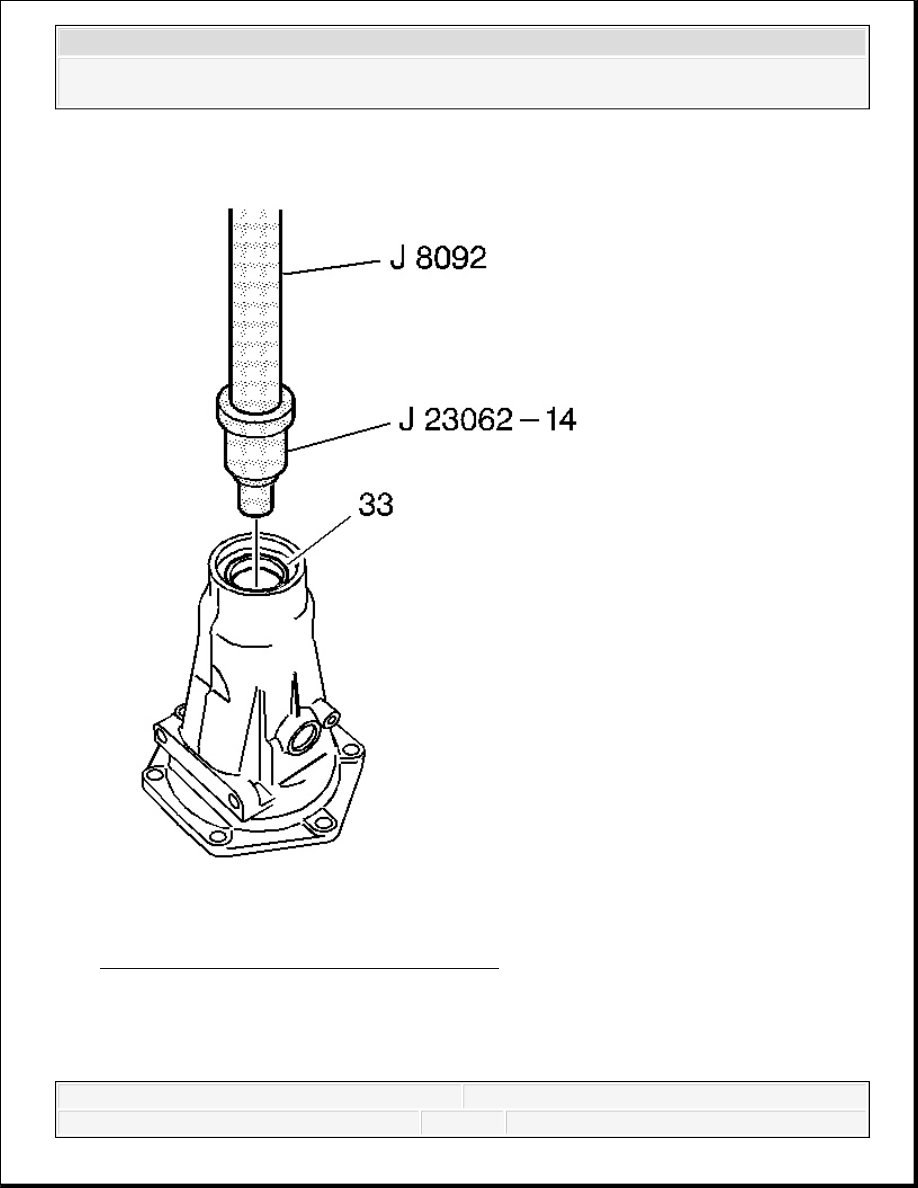

Fig. 524: Removing Case Extension Bushing
Courtesy of GENERAL MOTORS CORP.
3. Using the J 23062-14 and the J 8092 , remove the case extension bushing (33).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

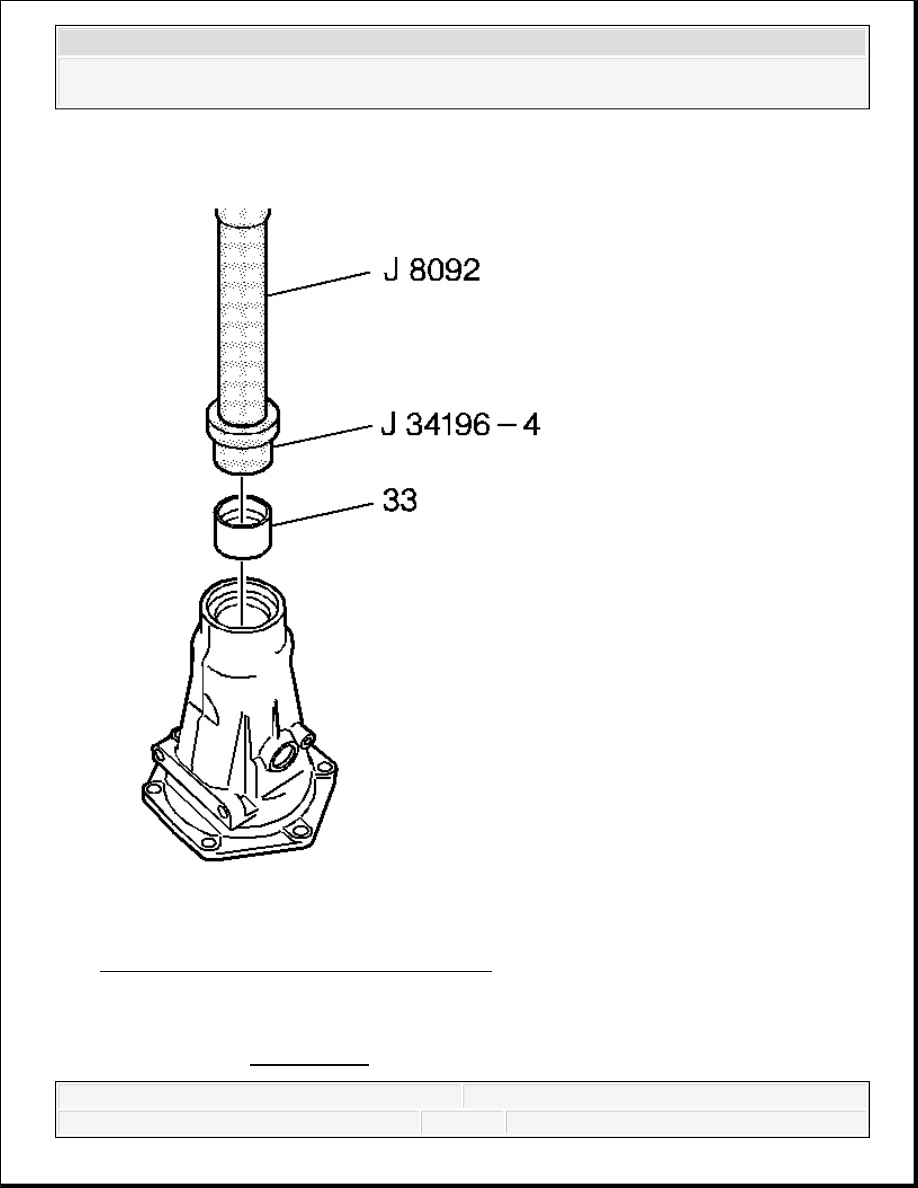

Fig. 525: Installing Case Extension Bushing
Courtesy of GENERAL MOTORS CORP.
4. Using the J 34196-4 which is part of kit J 34196-B and the J 8092 , install a case extension
bushing (33). See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
VEHICLE SPEED SENSOR AND CASE EXTENSION INSTALLATION
Tools Required
J 21426 Rear Seal Installer. See Special Tools.
J 39440 Extension Housing Seal Installer or equivalent. See Special Tools.
Installation
