Chevrolet Silverado / GMC Sierra. Manual - part 1165

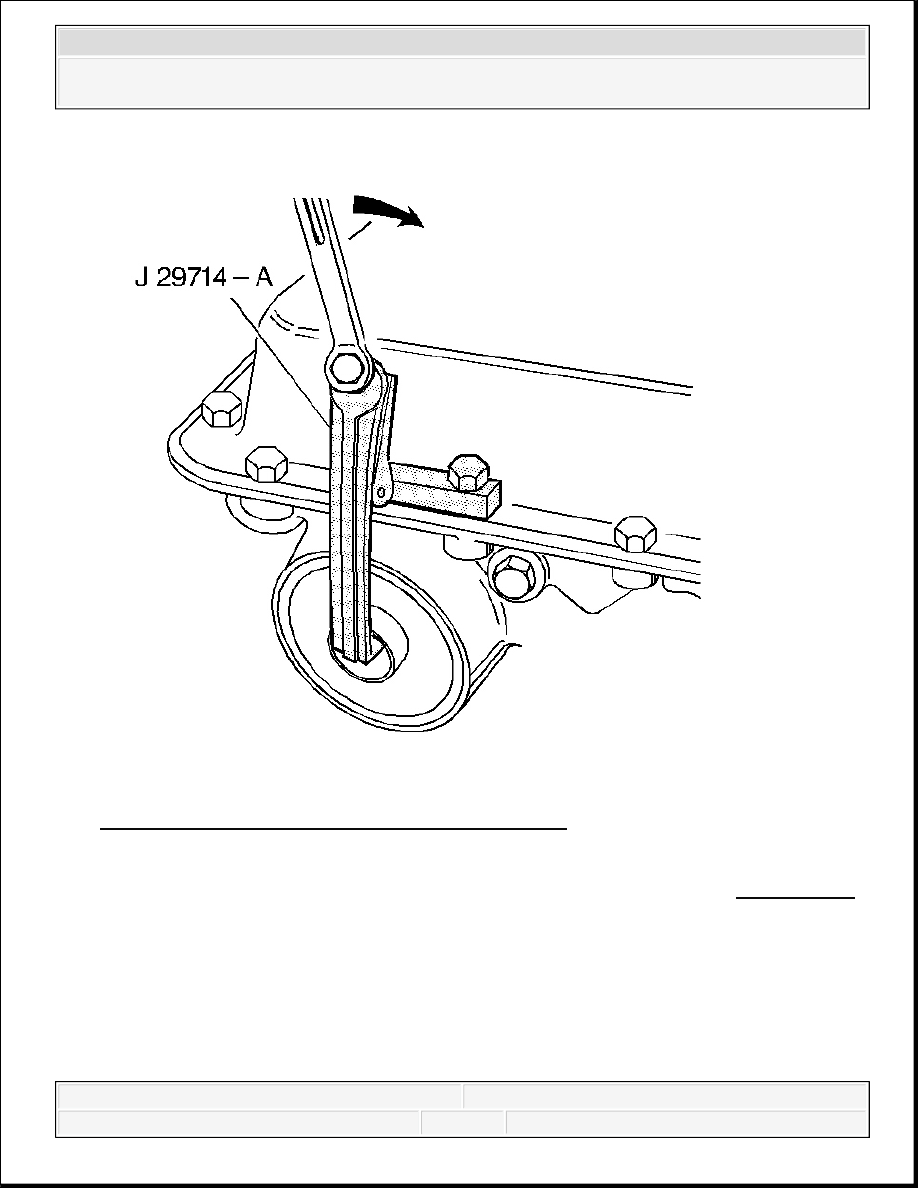

Fig. 520: Compressing Servo Cover With J 29714-A
Courtesy of GENERAL MOTORS CORP.
9. Tighten the bolt on the J 29714-A in order to compress the servo cover. See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

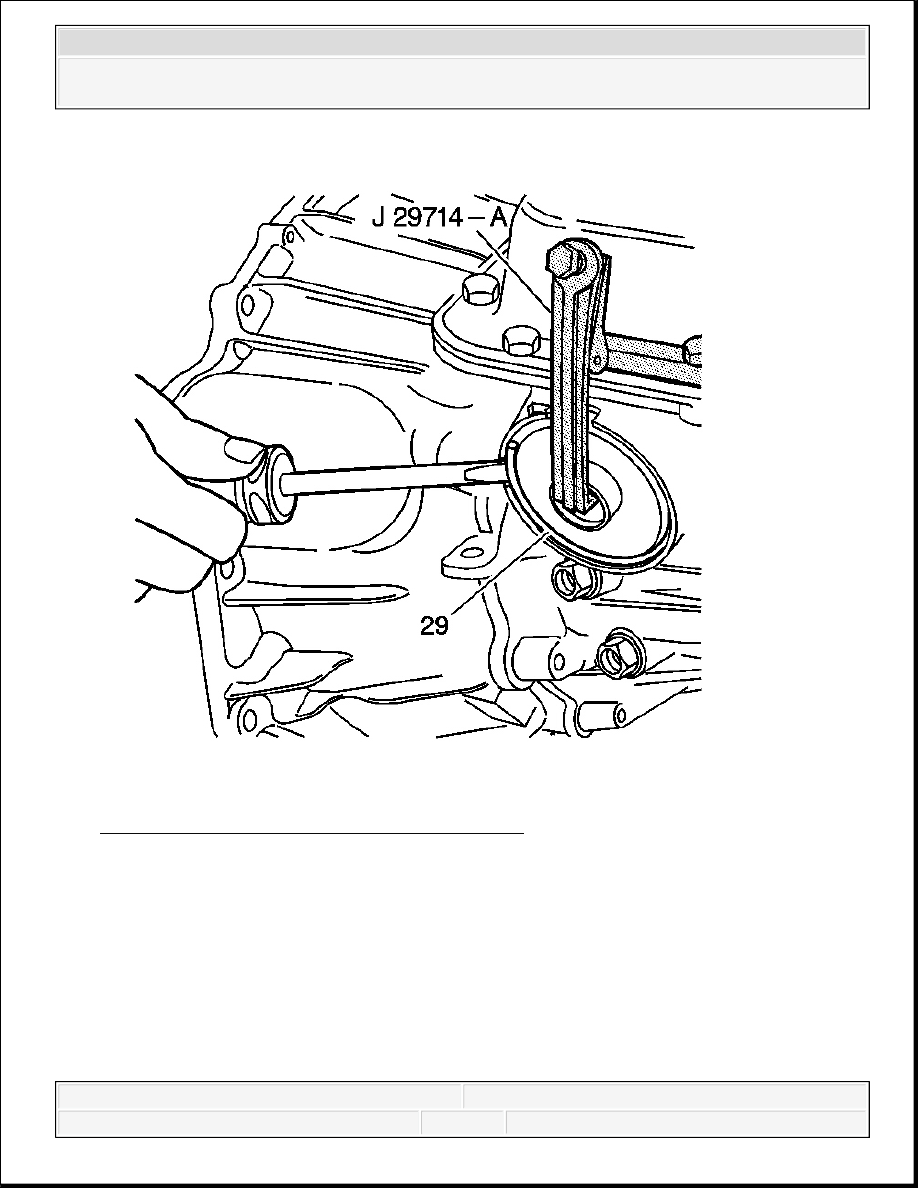

Fig. 521: Locating Servo Cover Retaining Ring
Courtesy of GENERAL MOTORS CORP.
10. Install the servo cover retaining ring (29).
CASE EXTENSION BUSHING REPLACEMENT
Tools Required
J 8092 Driver Handle
J 23062-14 Bushing Remover
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
J 34196-B Transmission Bushing Service Set. See Special Tools.
Replacement
Fig. 522: Identifying Inspection Areas On Case Extension
Courtesy of GENERAL MOTORS CORP.
1. Inspect the case extension for the following conditions:
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
