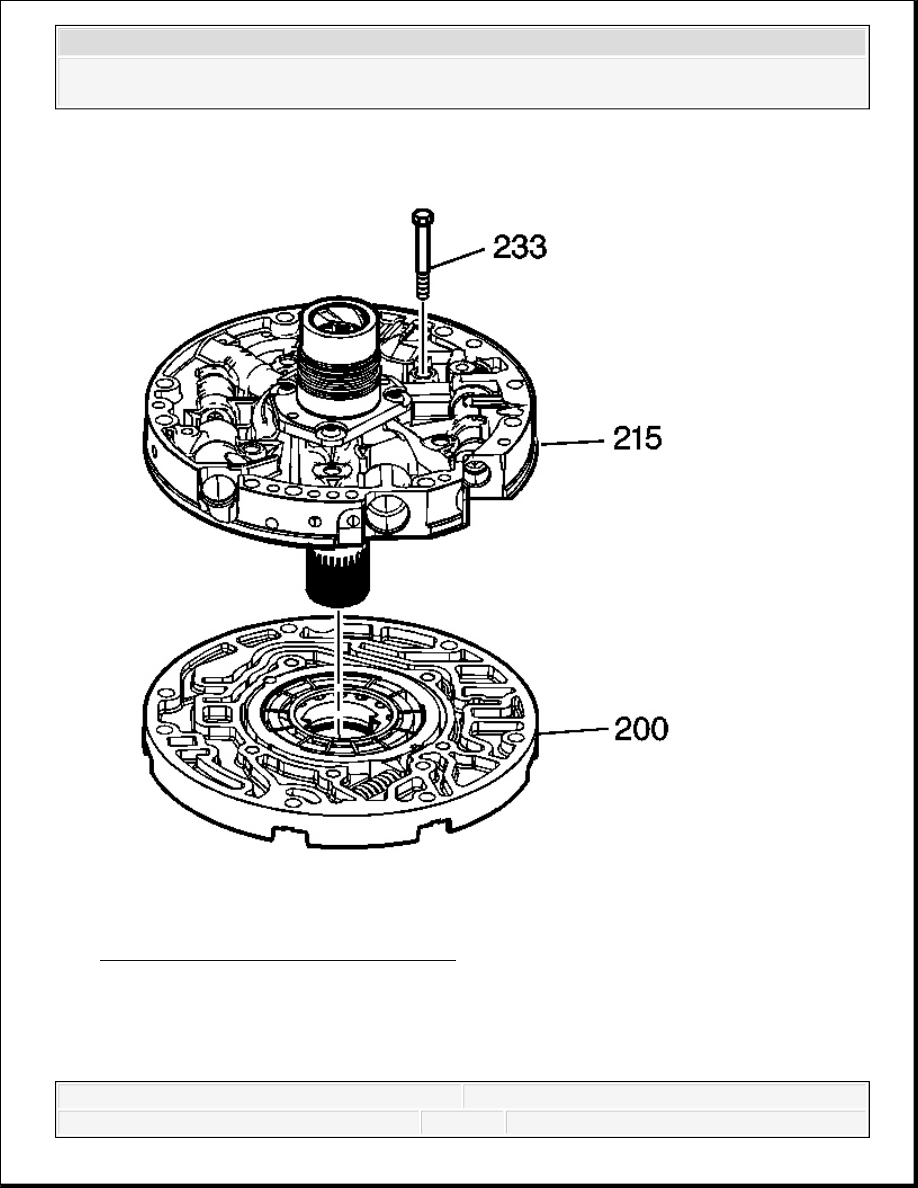

Fig. 447: Identifying Pump Cover Bolts 1. Place the oil pump cover onto the oil pump body and put stator shaft through a hole in the bench. 2. Install the pump cover bolts (233) finger tight only.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

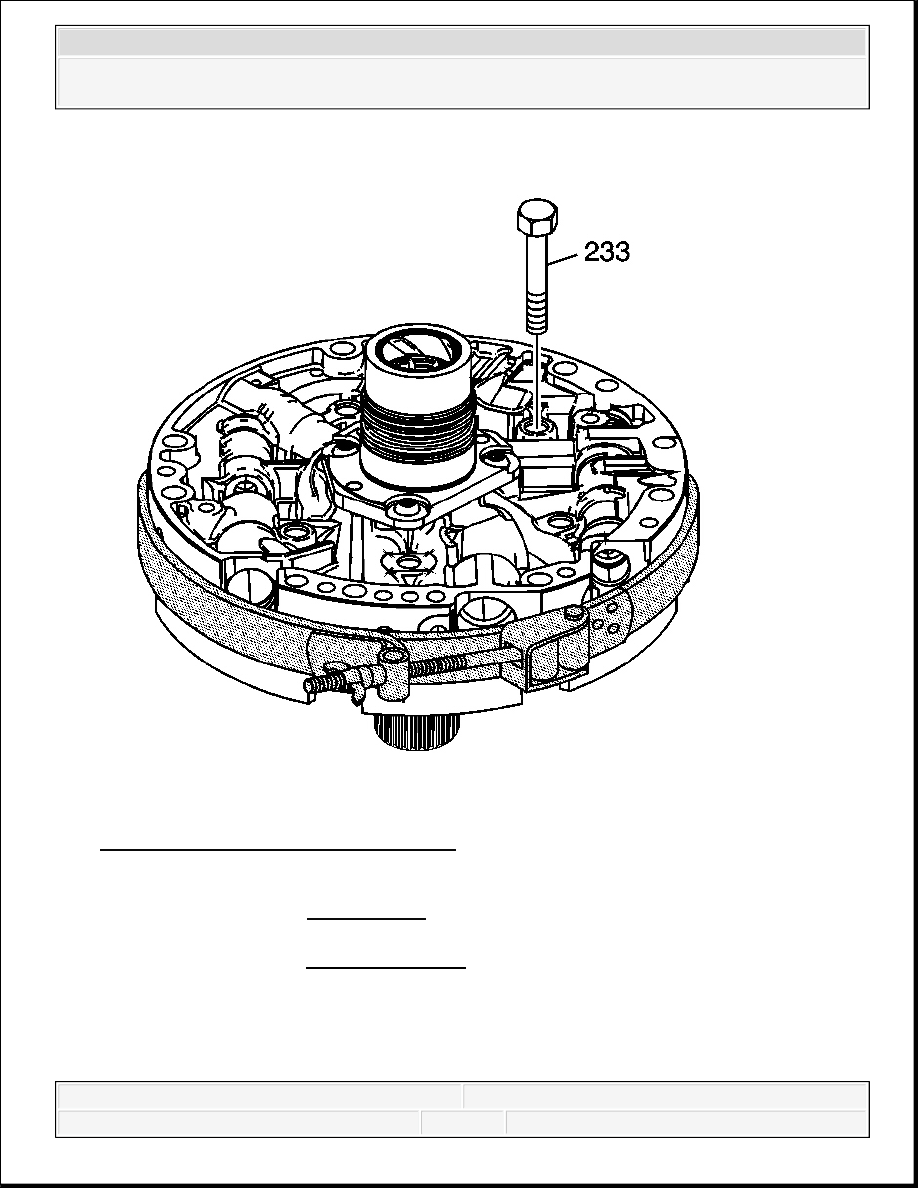

Fig. 448: Identifying Pump Cover Bolts 3. Install the J 21368 . See Special Tools. 4. Tighten the pump cover bolts (233). Tighten: Tighten the bolts to 24 N.m (18 lb ft). NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

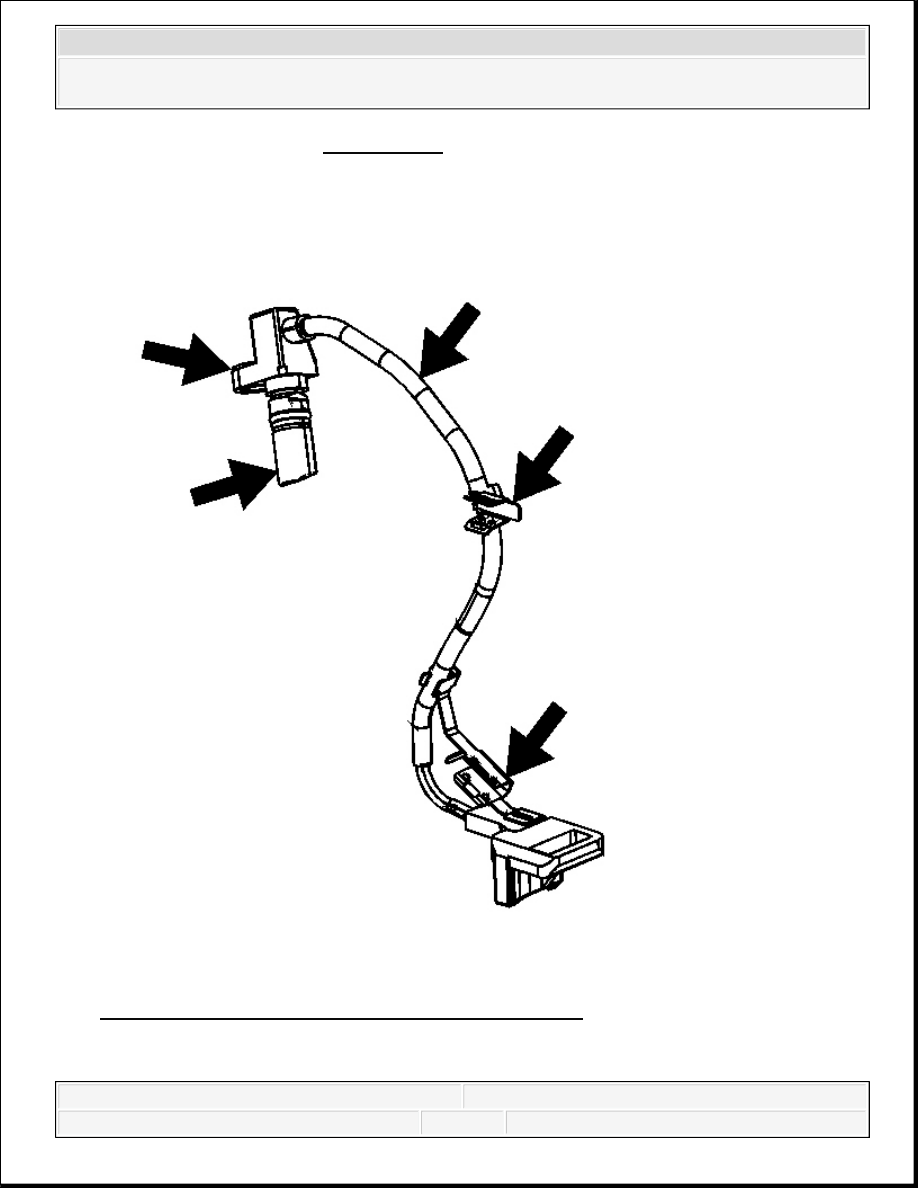

5. Remove the J 21368 . See Special Tools. INPUT SPEED SENSOR INSTALLATION Fig. 449: View Of Input Speed Sensor (ISS) Assembly
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

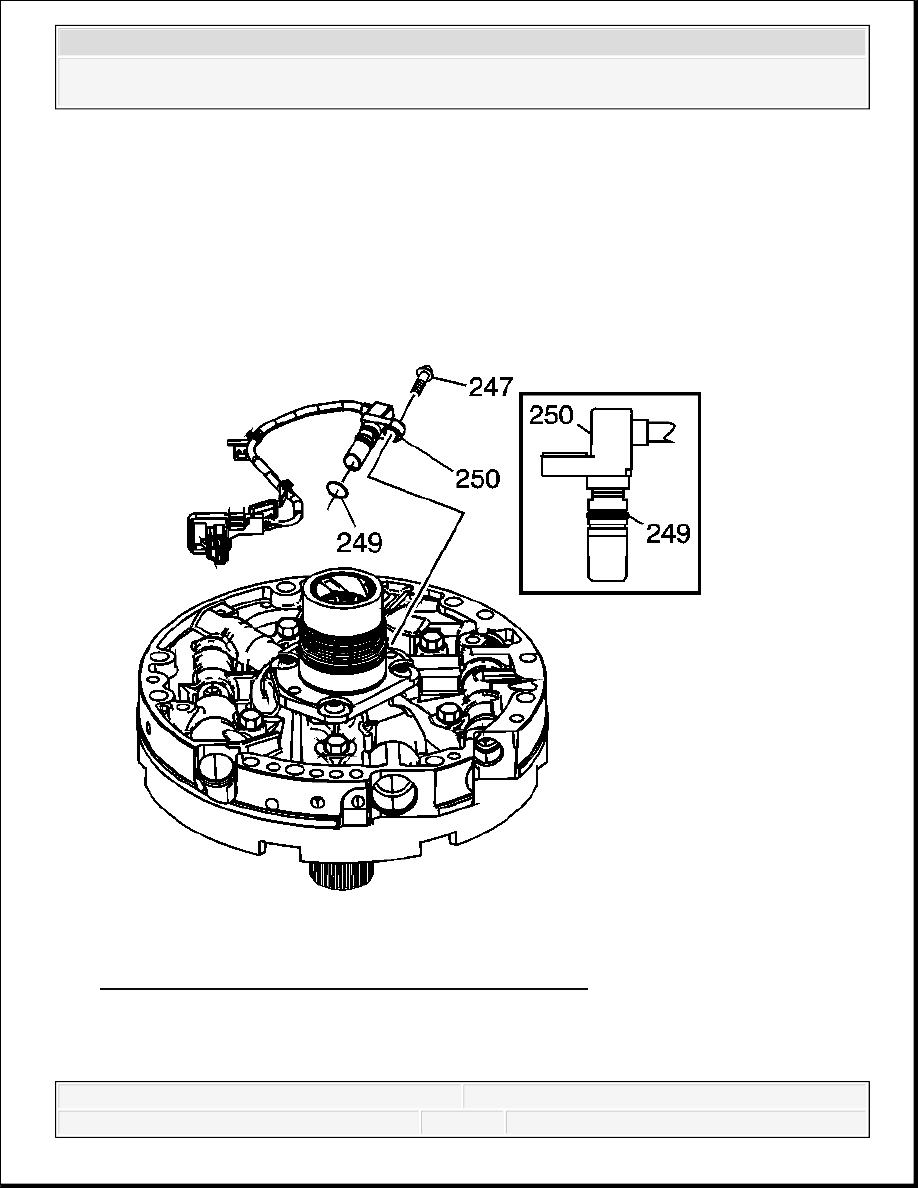

1. Inspect the input speed sensor (ISS) assembly (250) for the following conditions: Cracked or damaged housing Worn, broken or missing harness brackets; replace the ISS assembly if necessary Damaged or worn wining or electrical connector Loose, missing or damaged mounting bolt insert Fig. 450: Identifying Input Speed Sensor (ISS) O-Ring 2. Remove the ISS O-ring (249) and discard.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
