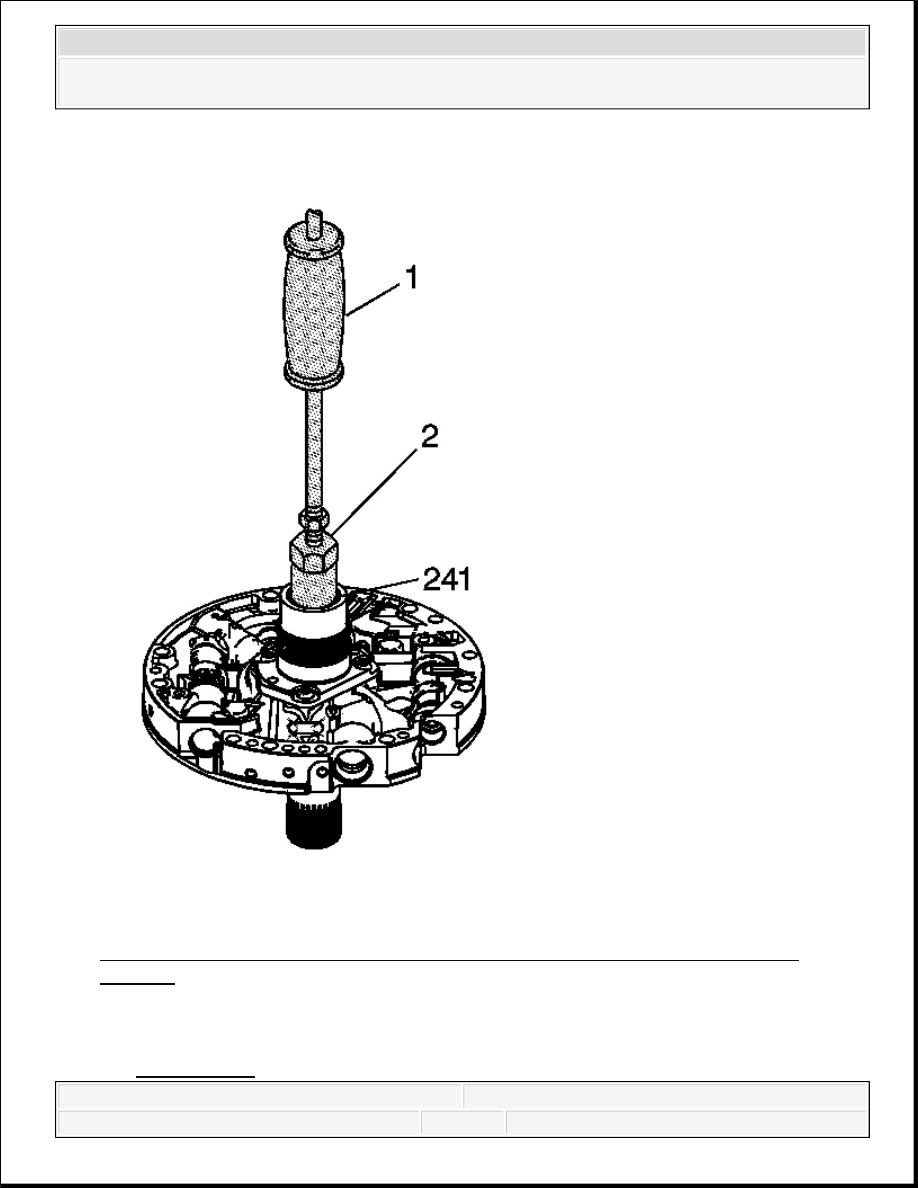

Fig. 440: Identifying Special Tools J 21465-14, J 7004-A & Starter Shaft Rear
Bushing
Courtesy of GENERAL MOTORS CORP.
4. Using the J 25019-14 (2) with the J 7004-A (1), remove the stator shaft rear bushing (241).
See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Installation Procedure

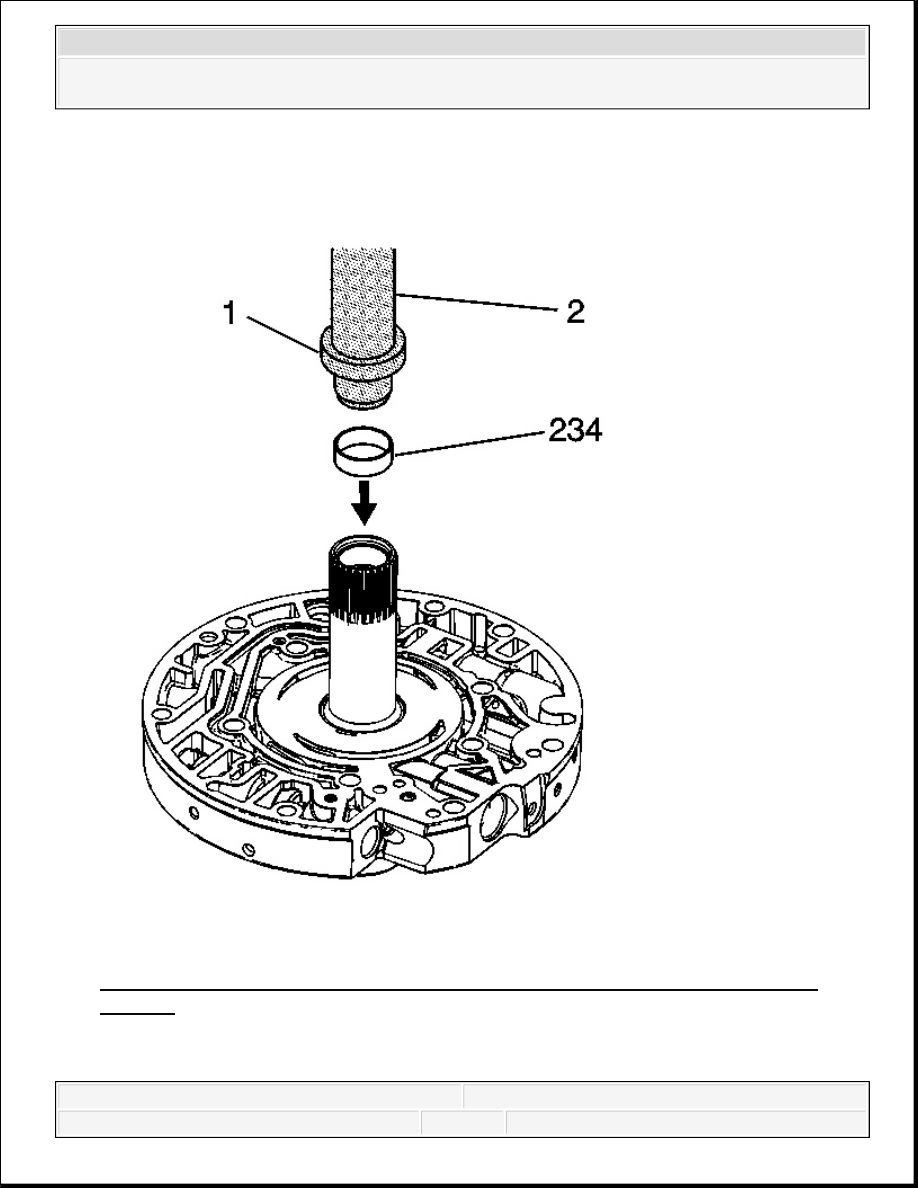

Fig. 441: Identifying Special Tools J 21465-2, J 8092 & New Starter Shaft Front
Bushing
Courtesy of GENERAL MOTORS CORP.
1. Using the J 21465-2 (1) and the J 8092 (2), install a new stator shaft front bushing (234).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

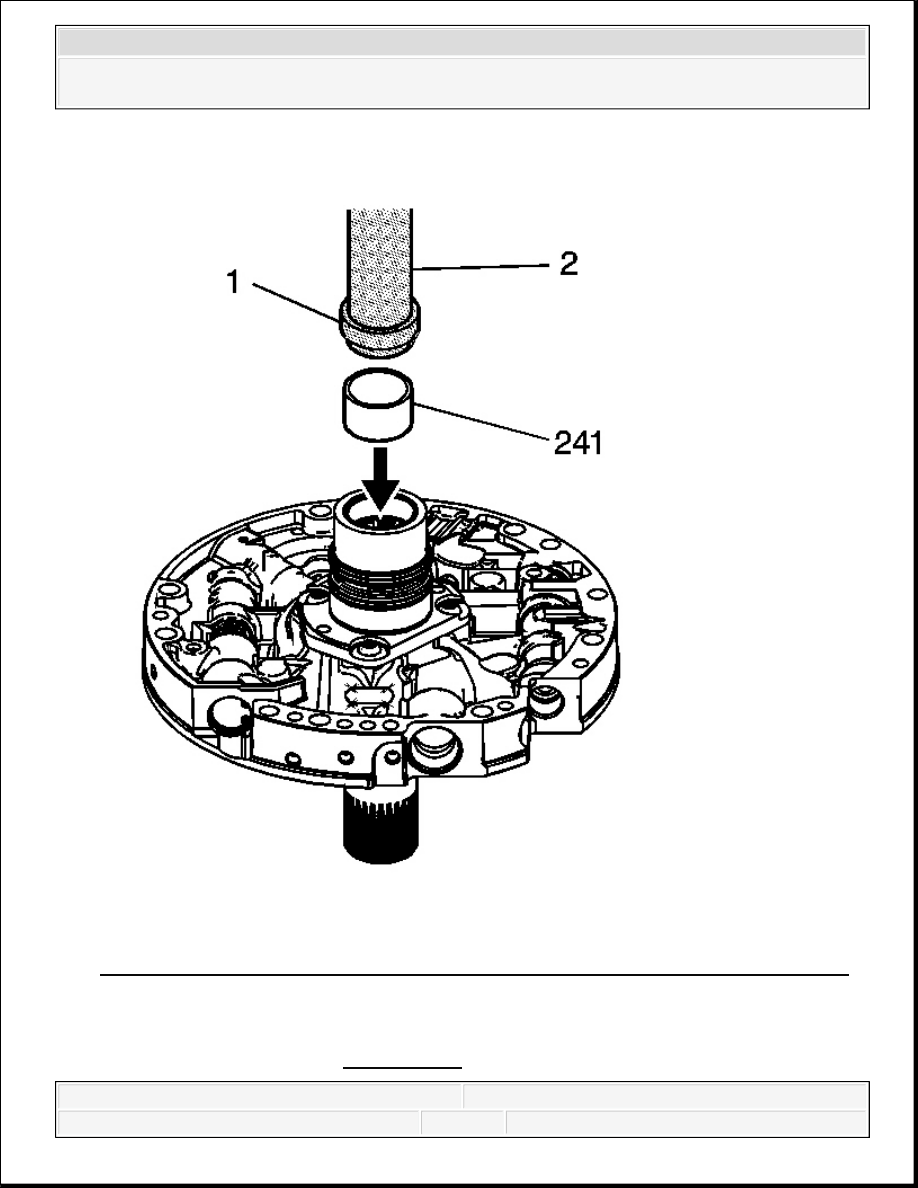

Fig. 442: Identifying Special Tools J 34196-B, J 8092 & Starter Shaft Rear Bushing
Courtesy of GENERAL MOTORS CORP.
2. Using the J 34196-2 (1) which is part of kit J 34196-B and the J 8092 (2), install the stator
shaft rear bushing (241). See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
OIL PUMP COVER ASSEMBLE
Tools Required
J 38735-3 Pusher. See Special Tools.
J 39855 Stator Shaft Seal Installer. See Special Tools.
Assemble

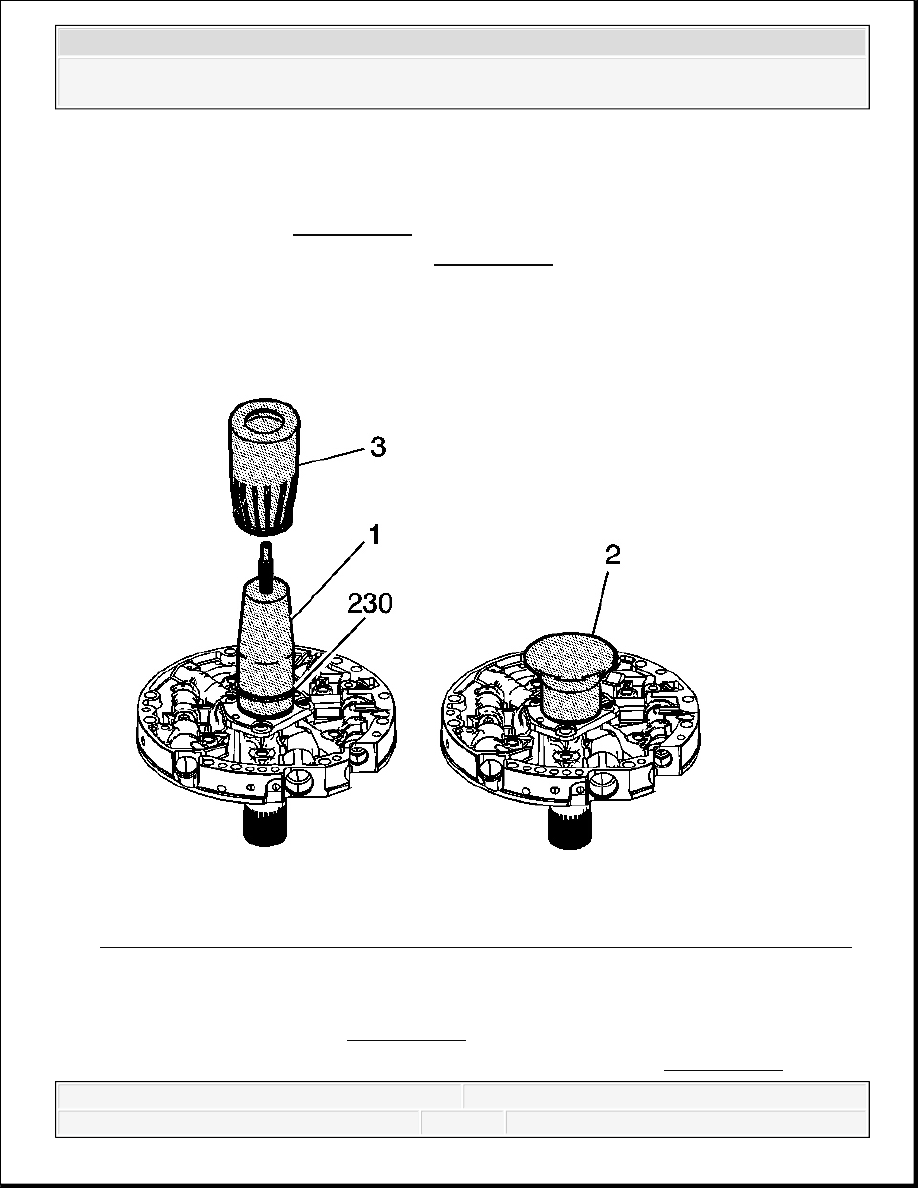

Fig. 443: Identifying Special Tools J 39855, J 38735-3 & Stator Shaft Oil Seal Rings
Courtesy of GENERAL MOTORS CORP.
1. Using the J 39855-1 (1) which is part of kit J 39855 and the J 38735-3 (3), install the stator
shaft oil seal rings (230). See Special Tools.
2. Place J 39855-2 (2) which is part of kit J 39855 over the seals. See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
