Chevrolet Silverado / GMC Sierra. Manual - part 1134
REVERSE INPUT CLUTCH ASSEMBLE
Tools Required
J 23327-1 Forward Clutch Spring Compressor (Bridge). See Special Tools.
J 25018-A Clutch Spring Compressor Adapter. See Special Tools.
J 44571-1 Reverse Input Clutch Piston Installer. See Special Tools.
Assemble

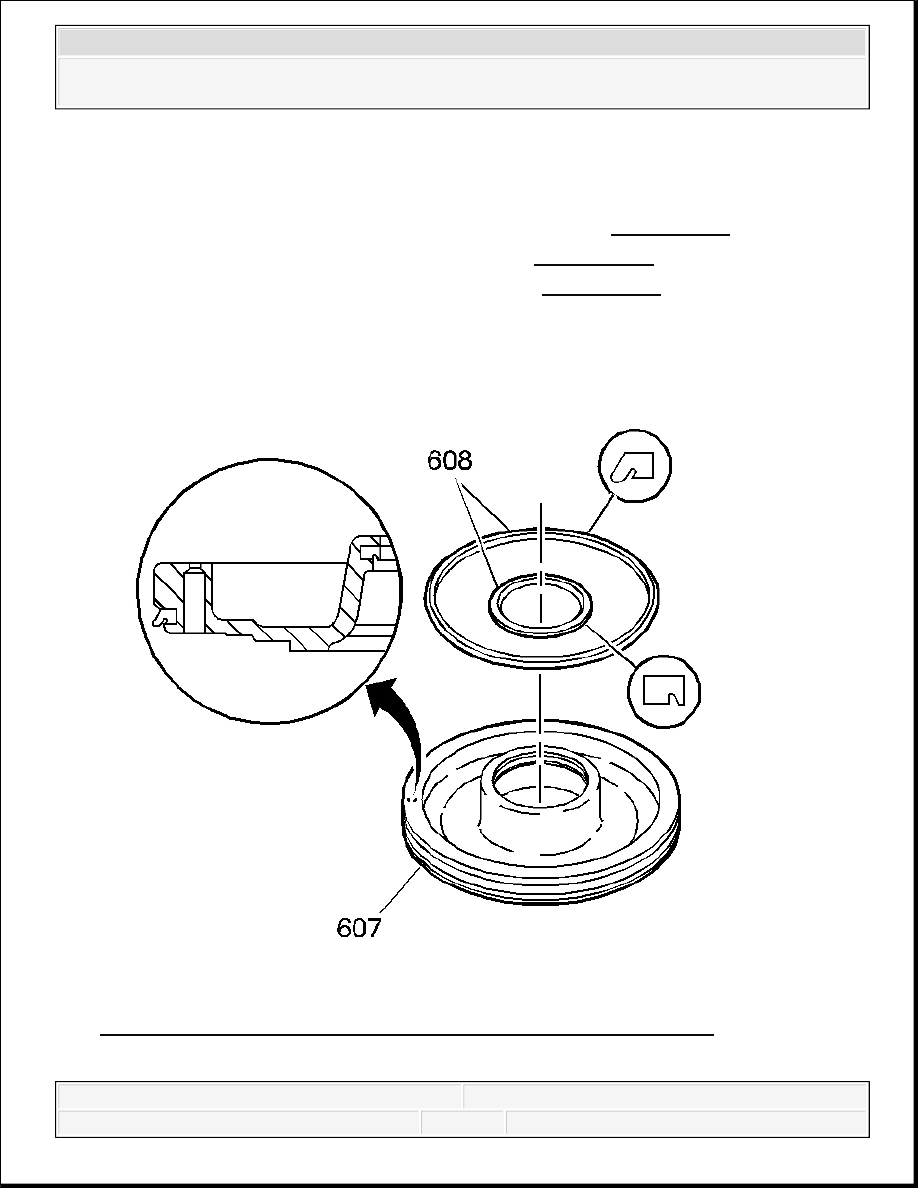

Fig. 405: Locating Inspection Areas On Reverse Input Clutch Piston
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
1. Inspect the reverse input clutch piston (607) for the following:
Damaged or porosity
Ring groove damage
2. Install the reverse input clutch inner and outer seals (608) on the piston.

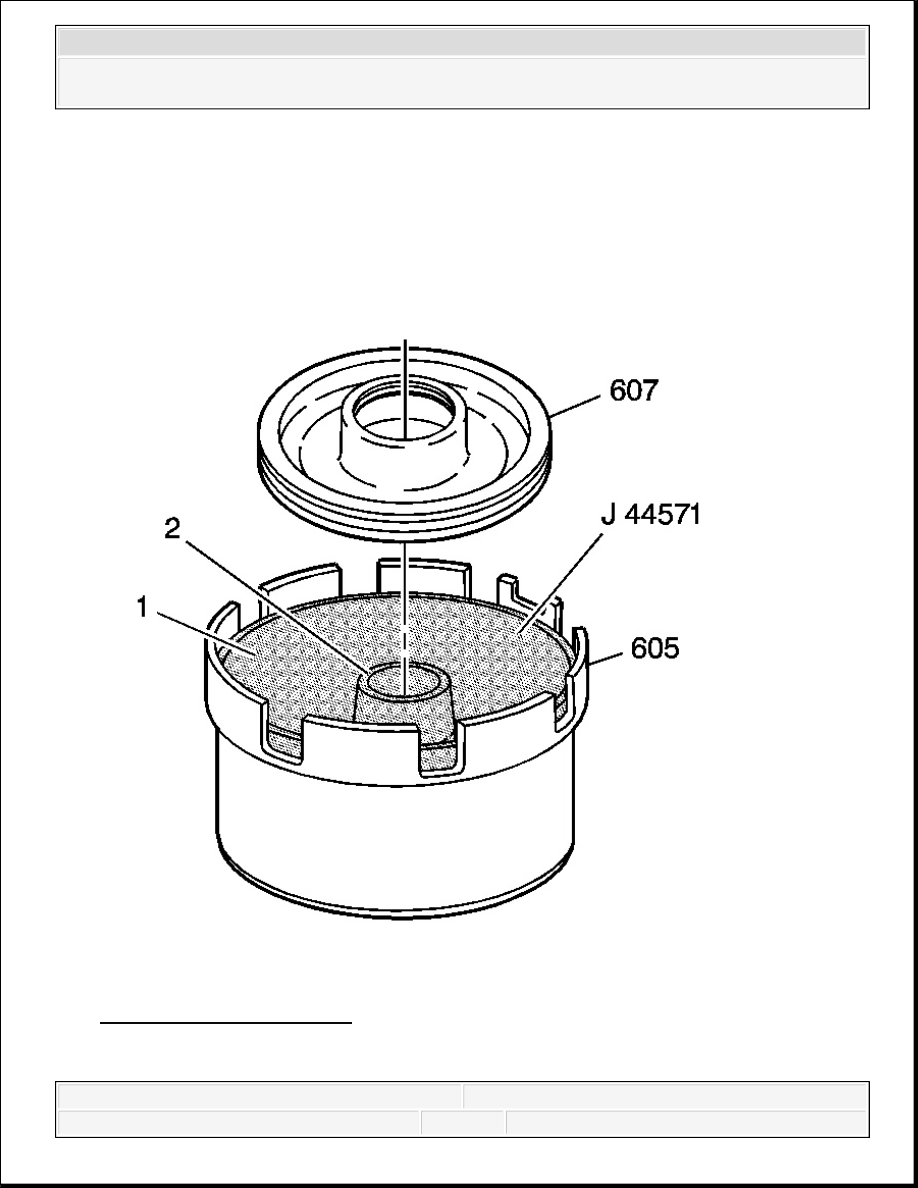

Fig. 406: View Of J 44571-1
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
3. Install the J 44571-1 inner (2) and outer (1) reverse input clutch piston installer. See
Special Tools.
4. Install the piston (607 into the housing (605).
5. Remove the J 44571-1 . See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

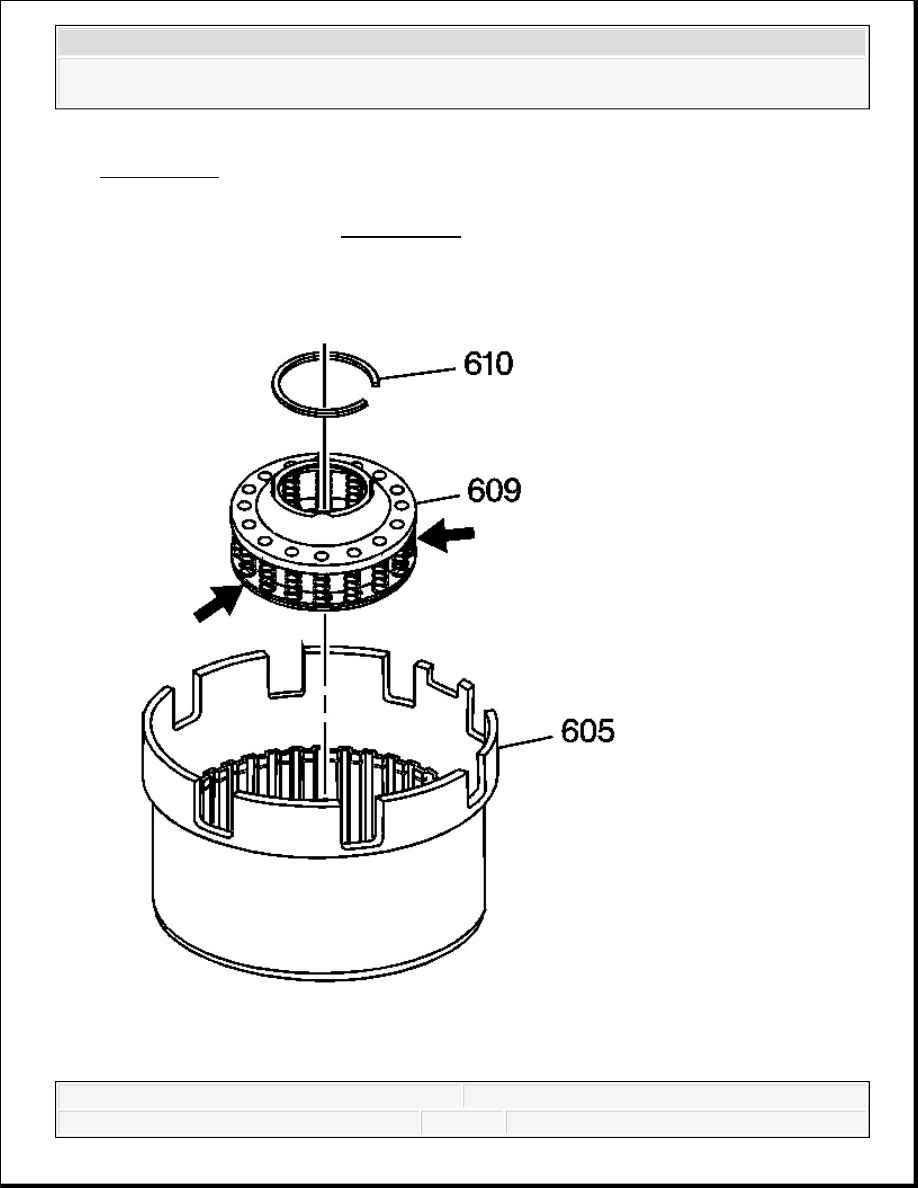

Fig. 407: Identifying Reverse Input Clutch Spring Assembly
Courtesy of GENERAL MOTORS CORP.
6. Inspect the reverse input clutch spring assembly (609) for bent, broken, distorted or
damaged springs.
7. Install the reverse input clutch spring assembly (609).

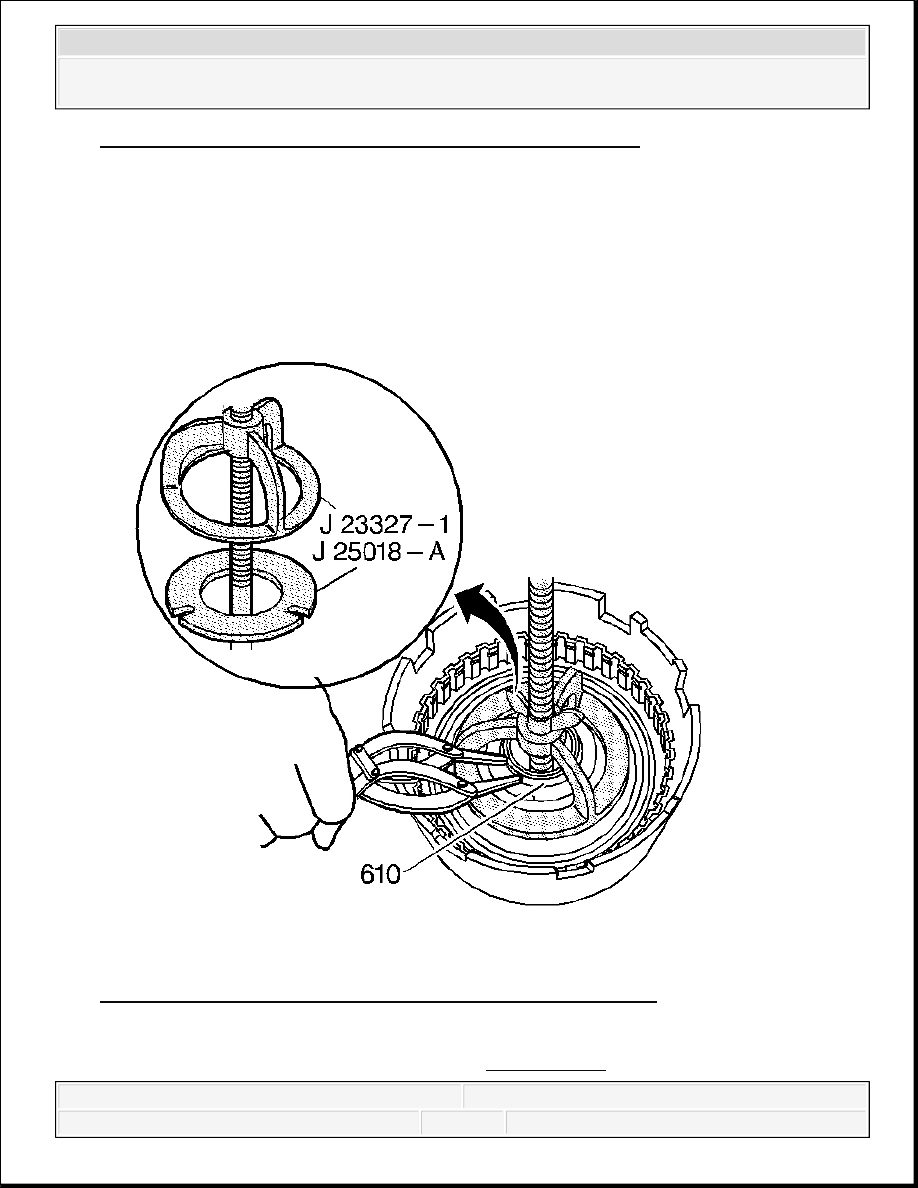

Fig. 408: View Of Reverse Input Clutch Spring Retainer Ring
Courtesy of GENERAL MOTORS CORP.
8. Install the J 23327-1 and the J 25018-A . See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
