Chevrolet Silverado / GMC Sierra. Manual - part 1132

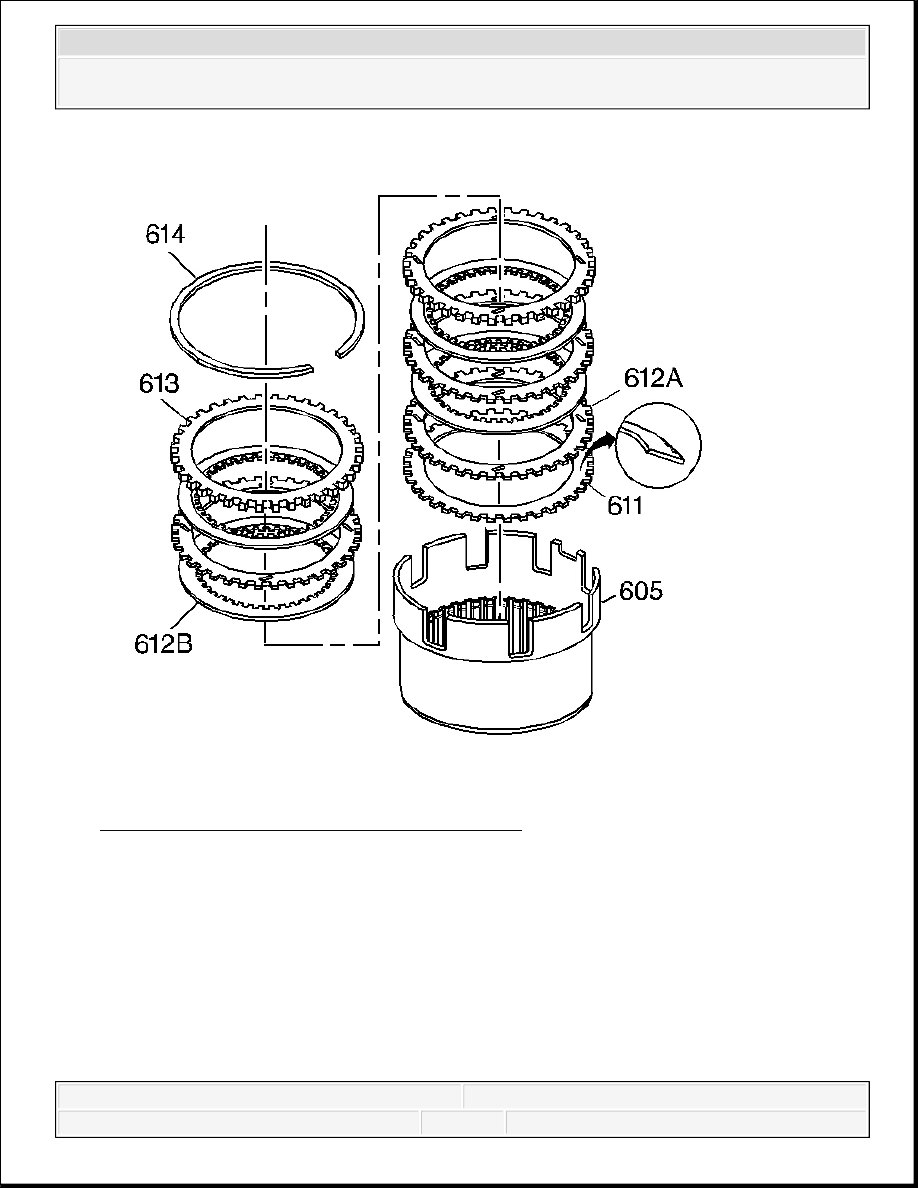

Fig. 397: Locating Reverse Input Clutch Plates
Courtesy of GENERAL MOTORS CORP.
1. Remove the reverse input clutch retaining ring (614).
2. Remove all reverse input clutch plates (611-613).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

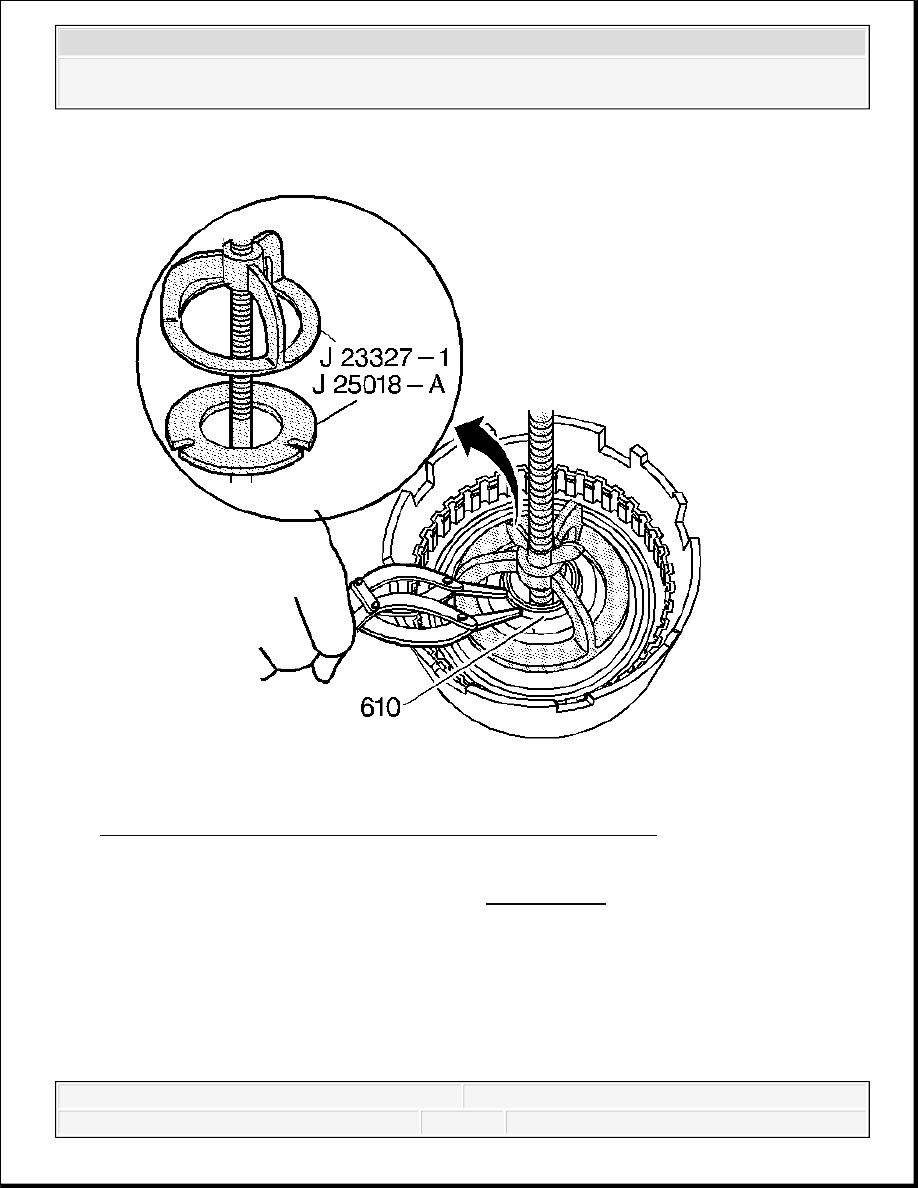

Fig. 398: View Of Reverse Input Clutch Spring Retainer Ring
Courtesy of GENERAL MOTORS CORP.
3. Install the J 23327-1 and the J 25018-A . See Special Tools.
4. Compress the reverse input clutch spring assembly.
5. Remove the reverse input clutch spring retainer ring (610).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

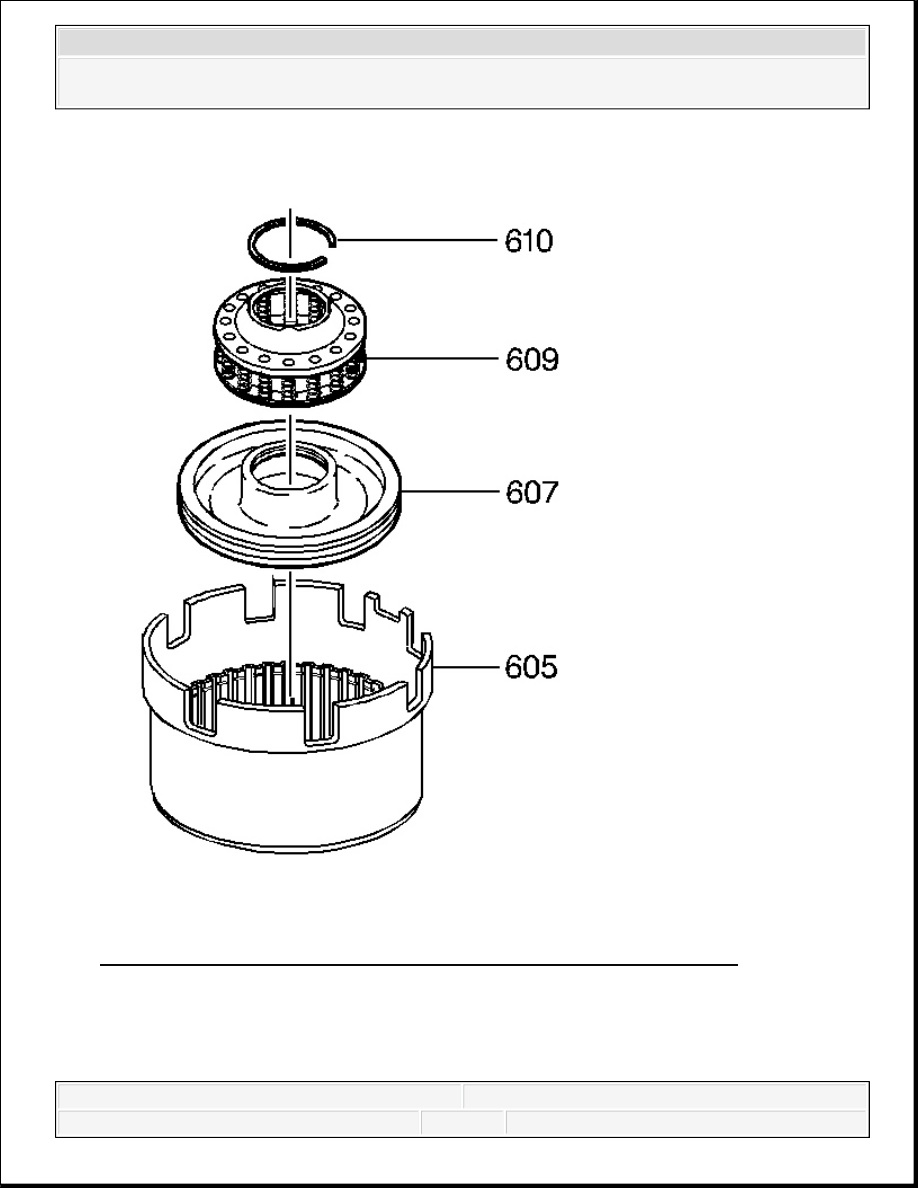

Fig. 399: Identifying Reverse Input Clutch Spring & Piston Assemblies
Courtesy of GENERAL MOTORS CORP.
6. Remove the reverse input clutch spring assembly (609).
7. Remove the reverse input clutch piston assembly (607).
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
REVERSE INPUT CLUTCH BUSHING REPLACEMENT
Tools Required
J 25019 Bushing Service Set. See Special Tools.
J 34196-B Transmission Bushing Service Set. See Special Tools.
J 7004-A Universal Remover. See Special Tools.
J 8092 Driver Handle
Removal Procedure

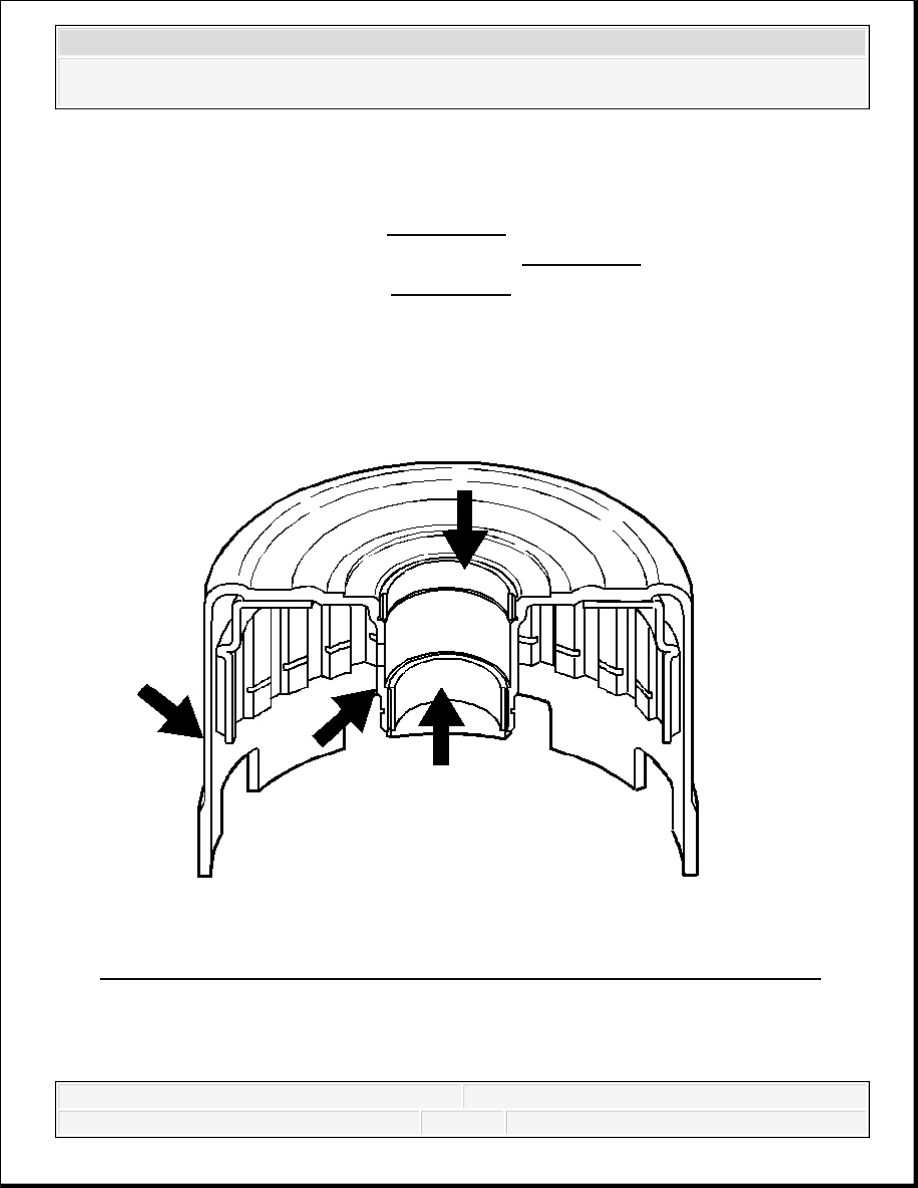

Fig. 400: Inspection Areas On Reverse Input Clutch Housing & Drum Assembly
Courtesy of GENERAL MOTORS CORP.
1. Inspect the reverse input clutch housing and drum assembly for the following conditions:
Damaged or worn bushings
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
