Fig. 356: Locating 3rd & 4th Clutch Backing Plate Retainer Ring 4. Remove the 3rd and 4th clutch backing plate retainer ring (656). 5. Remove all 3rd and 4th clutch plates (653-655). 6. Remove the 3-4 clutch boost spring assemblies (600). NOTE: The correct number of fiber plates must be used to avoid IMPORTANT: The 3rd and 4th clutch plate stack is model specific. Clutch plate stack up could be either 6 or 7 plates.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

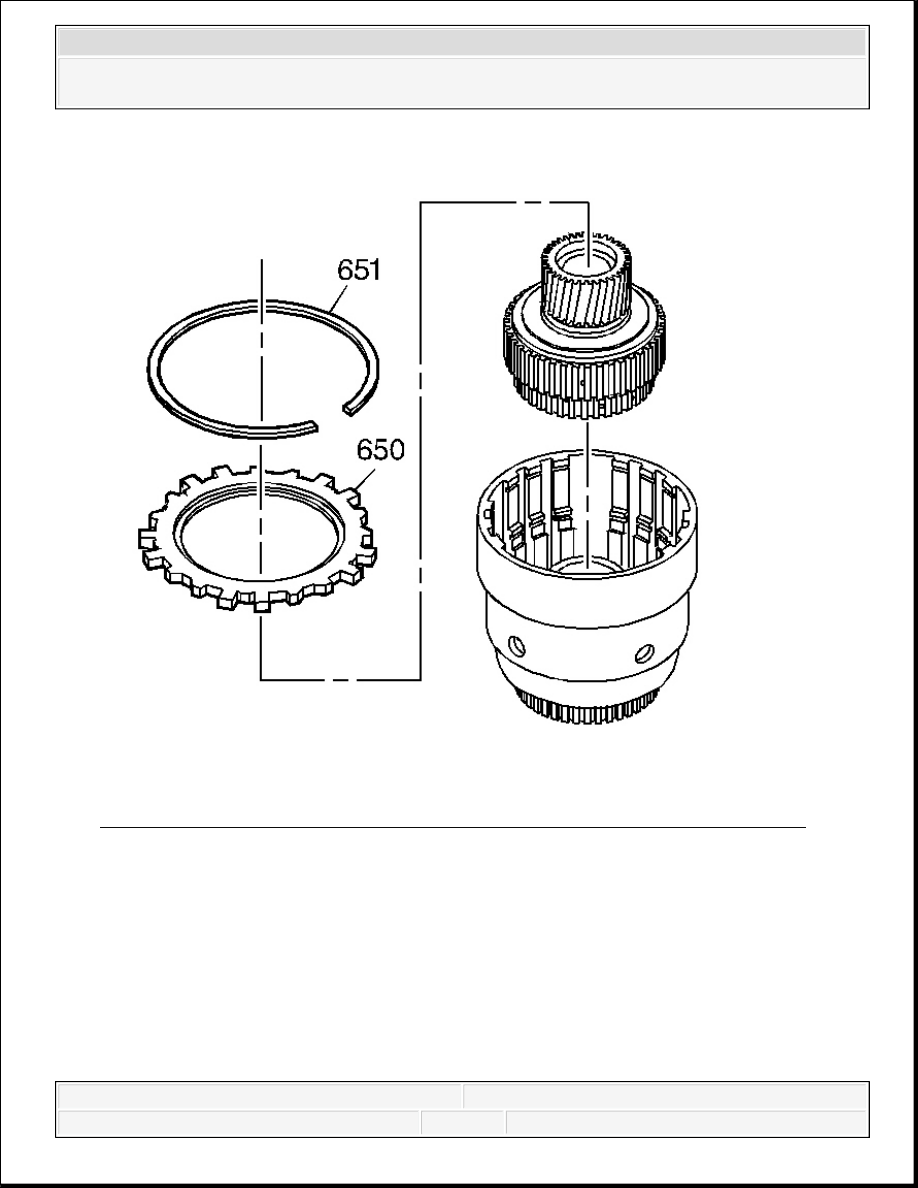

Fig. 357: Identifying Forward Clutch Selective Backing Plate & Retainer Ring 7. Remove the forward clutch backing plate retainer ring (651). 8. Remove the forward clutch selective backing plate (650). 9. Remove the forward clutch sprag assembly.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

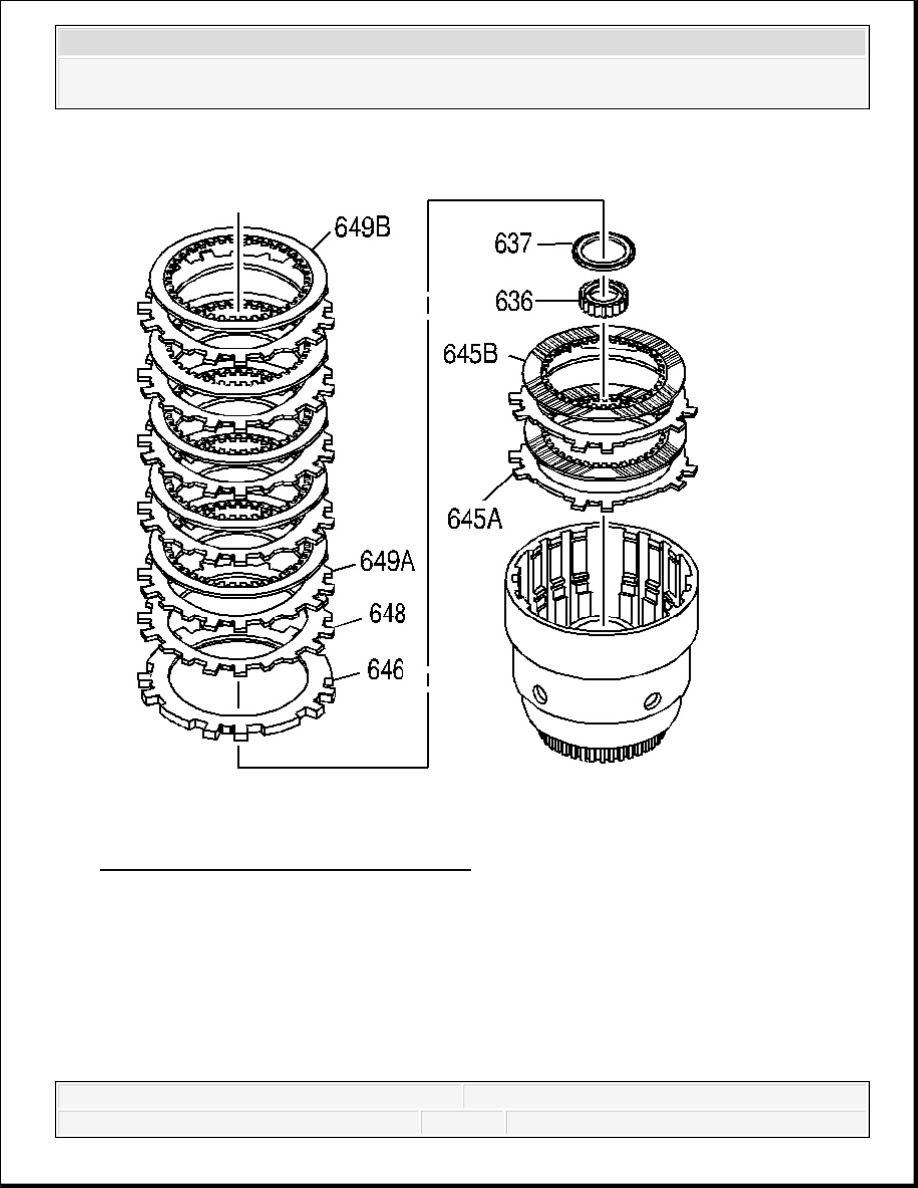

Fig. 358: View Of Forward Clutch Plates 10. Remove all forward clutch plates (646, 648, 649A, 649B). 11. Remove the input sun gear bearing assembly (637). 12. Remove the input housing to output shaft seal (636). 13. Remove all overrun clutch plates (645A, 645B).
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

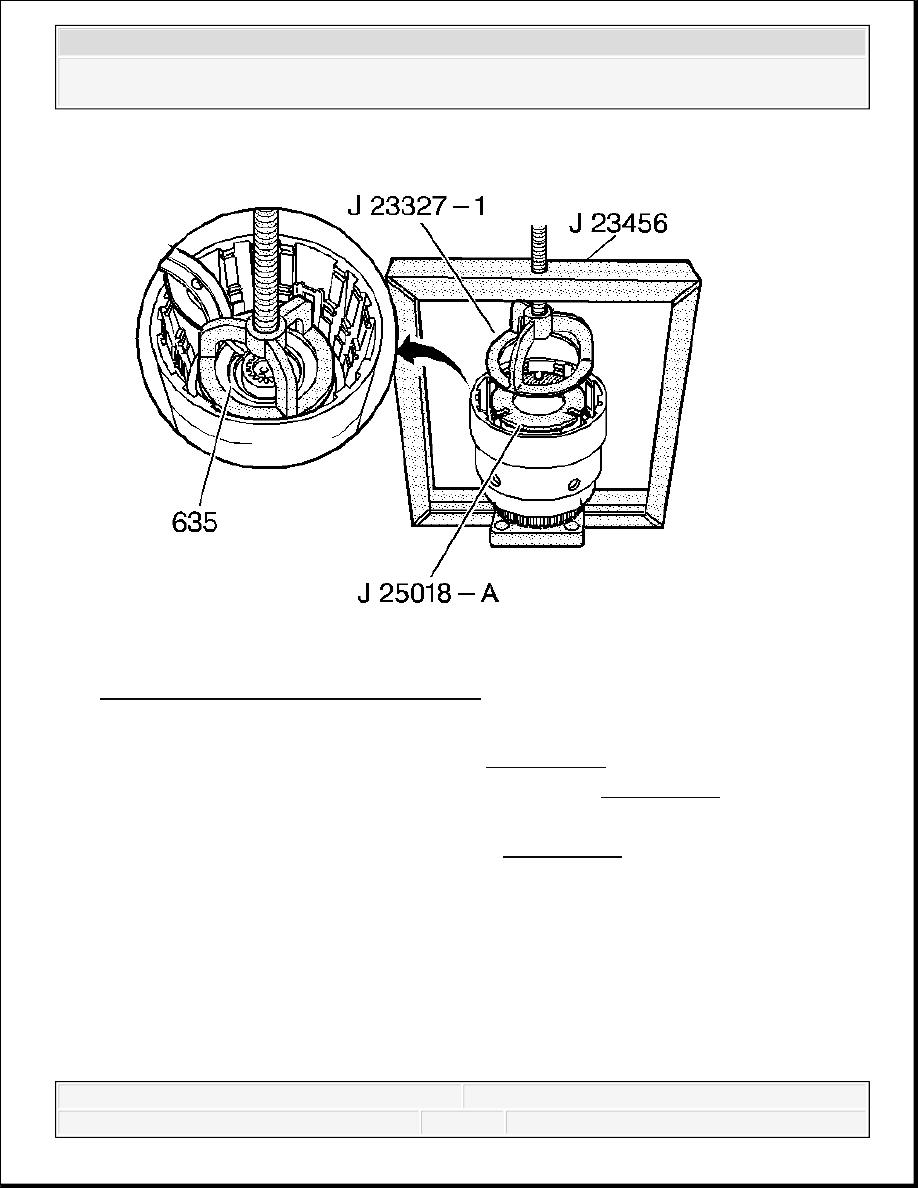

Fig. 359: Installing J 23327-1 & J 25018-A 14. Install the J 23327-1 and the J 25018-A . See Special Tools. 15. Compress the overrun clutch spring, using the J 23456 . See Special Tools. 16. Remove the overrun clutch spring retainer snap ring (635). 17. Remove the J 23327-1 and the J 25018-A . See Special Tools.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
