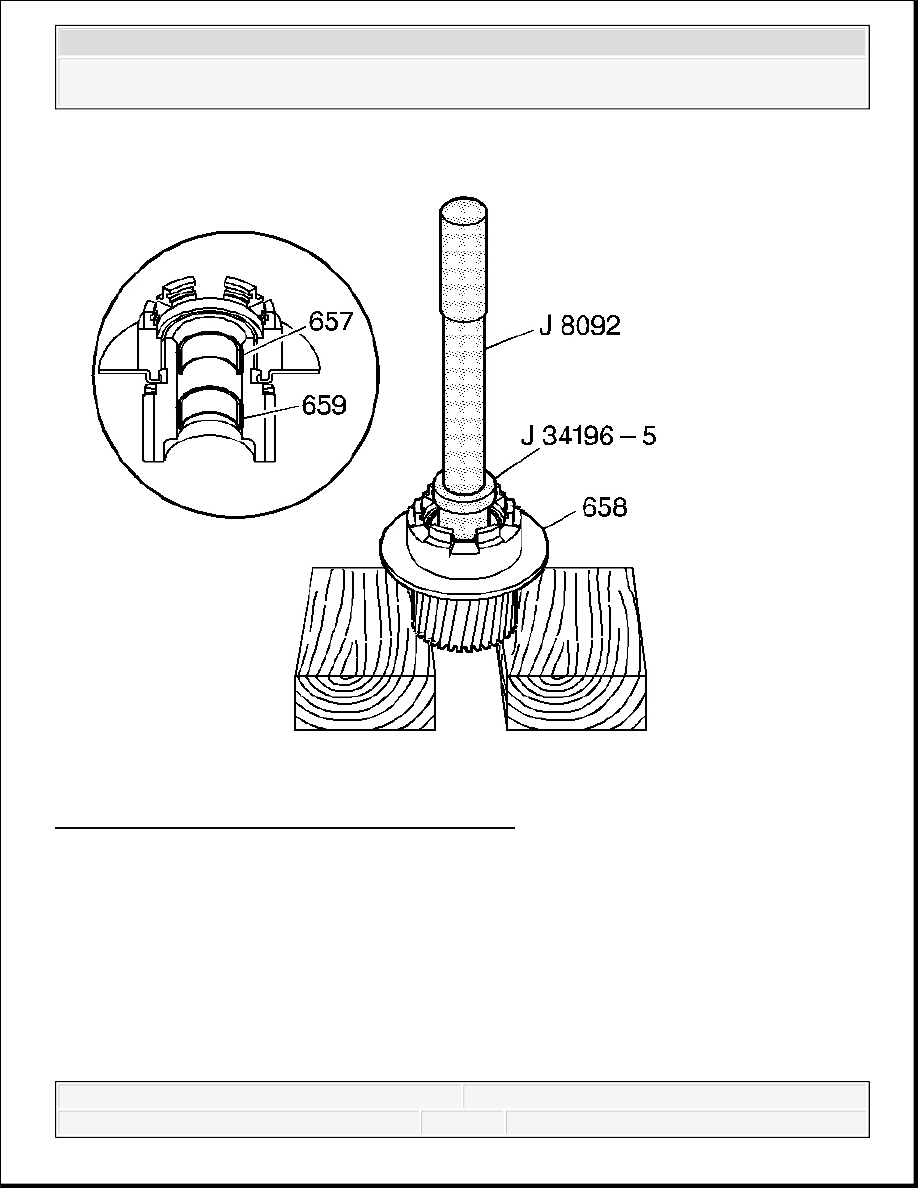

Fig. 349: Removing Input Sun Gear Front Bushing
Courtesy of GENERAL MOTORS CORP.
Using J 34196-5 which is part of kit J 34196-B with J 8092 , remove the input sun gear front
bushing (657) and rear bushing (659).
Installation Procedure
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

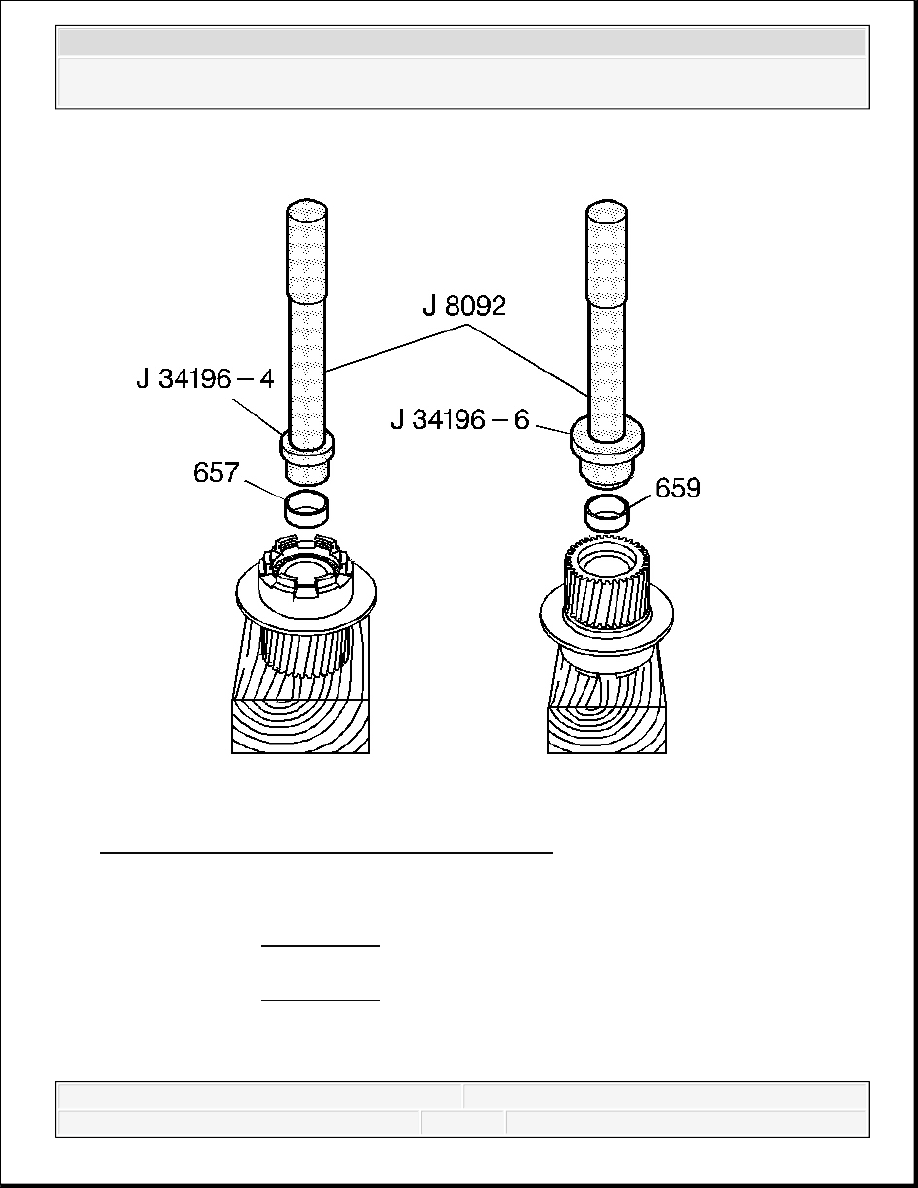

Fig. 350: Installing Input Sun Gear Front Bushing
Courtesy of GENERAL MOTORS CORP.
1. Using J 34196-4 which is part of kit J 34196-B with J 8092 , install the input sun gear front
bushing (657). See Special Tools.
2. Using J 34196-6 which is part of kit J 34196-B with J 8092 , install the input sun gear rear
bushing (659). See Special Tools.
INPUT CARRIER INSPECTION AND INSTALLATION
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Special Tools
J 36850 Transjel Lubricant. See Special Tools.
J 29837-A Output Shaft Support Fixture. See Special Tools.
Installation
Fig. 351: View Of Input Carrier Captive Thrust Bearing Assembly
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Courtesy of GENERAL MOTORS CORP.

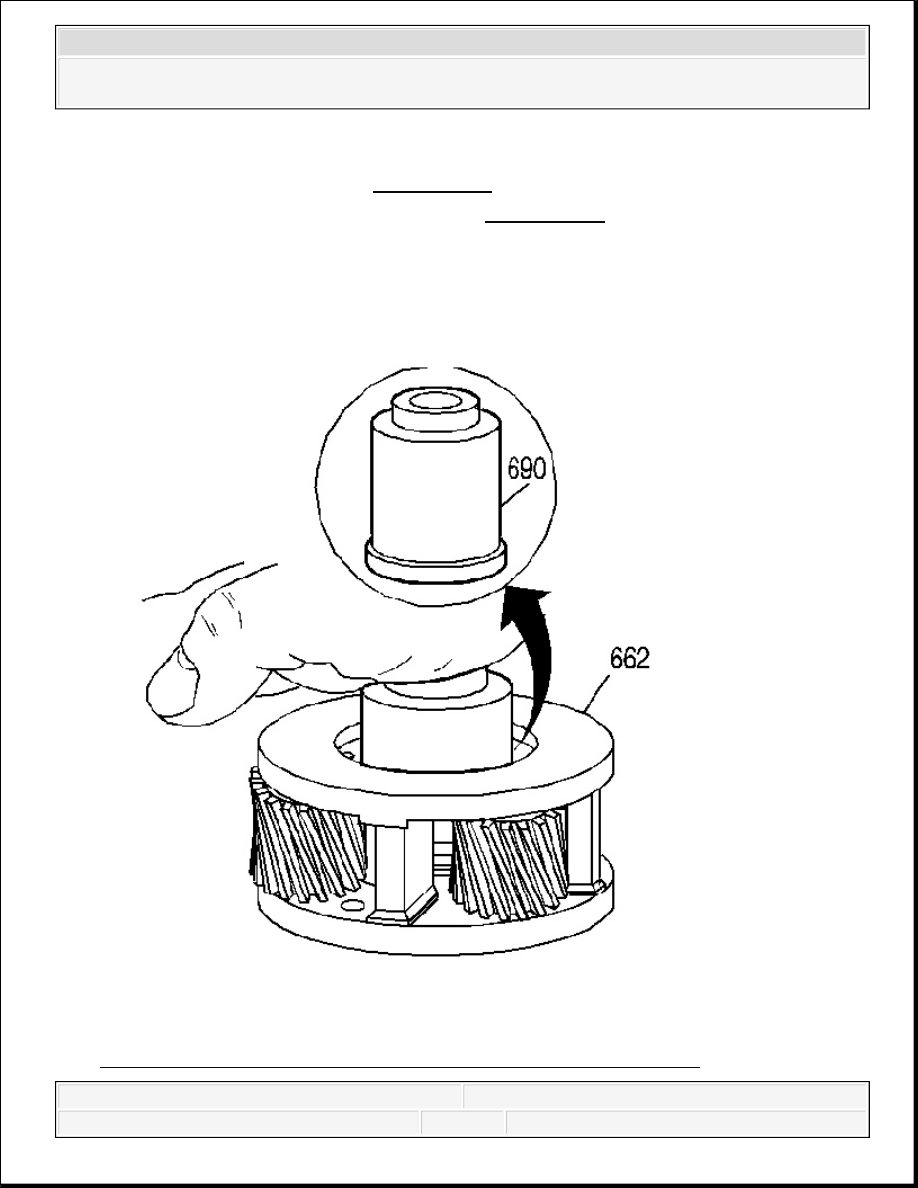

1. Inspect the input carrier captive thrust bearing assembly. To check the captive thrust bearing
in the input carrier (662) for wear, place a bushing or an output shaft sleeve (690) onto the
bearing race and turn it with the palm of your hand. Do not touch the pinion gears. Any
imperfections will be felt through the bushing.

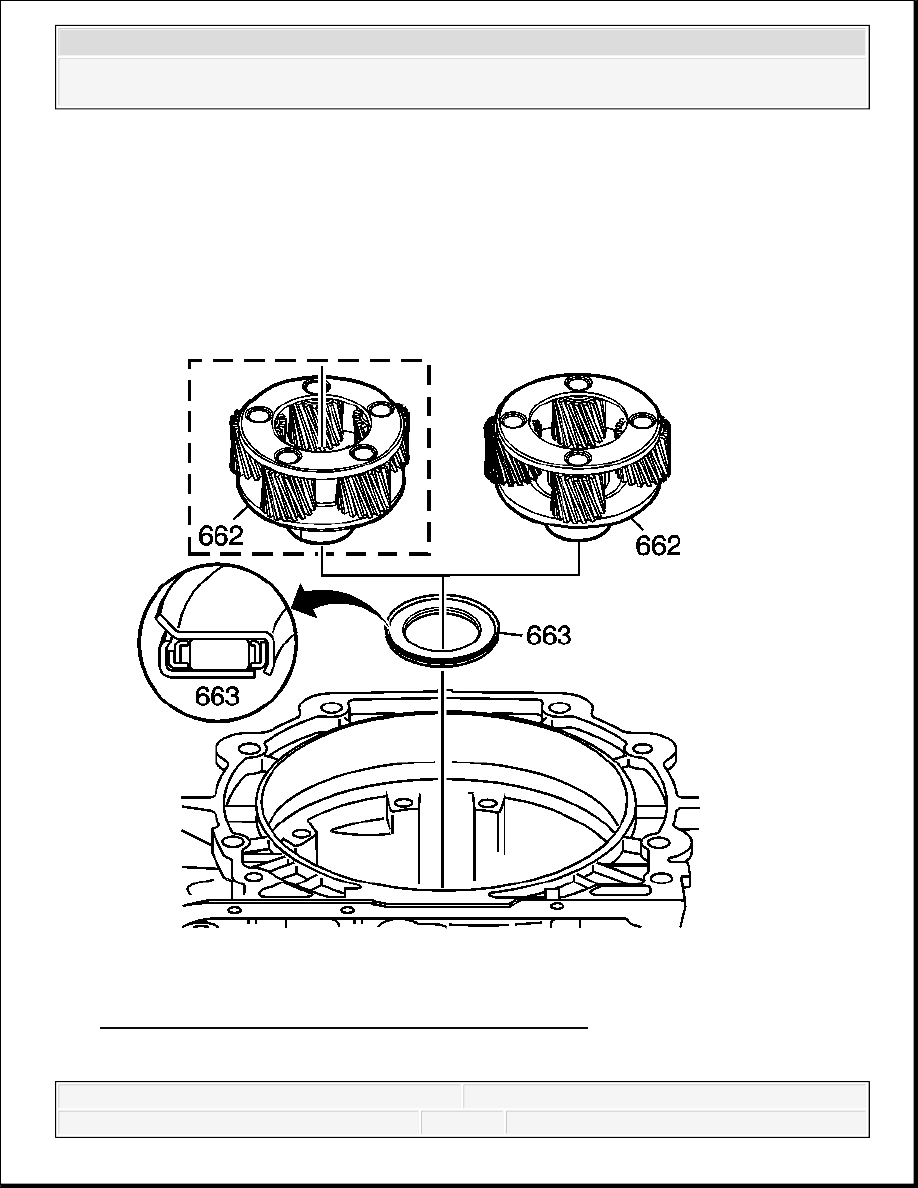

Fig. 352: Input Carrier And Thrust Bearing Assembly
Courtesy of GENERAL MOTORS CORP.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
