Chevrolet Silverado / GMC Sierra. Manual - part 1115
Fig. 338: Removing Reaction Carrier Shaft Front Bushing
Courtesy of GENERAL MOTORS CORP.
3. UsingJ 29369-2 with J 23907 , remove the reaction carrier shaft front bushing (665). See
Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Fig. 339: Using J 25019-14 & J 25019-14 To Remove Reaction Carrier Shaft Rear
Bushing
Courtesy of GENERAL MOTORS CORP.
4. UsingJ 25019-14 with J 7004-A , remove the reaction carrier shaft rear bushing (667). See
Special Tools.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Fig. 340: Installing Reaction Carrier Shaft Front Bushing
Courtesy of GENERAL MOTORS CORP.
1. Using J 34196-3 which is part of kit J 34196-B with J 8092 , install a new reaction carrier
shaft front bushing (665). See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

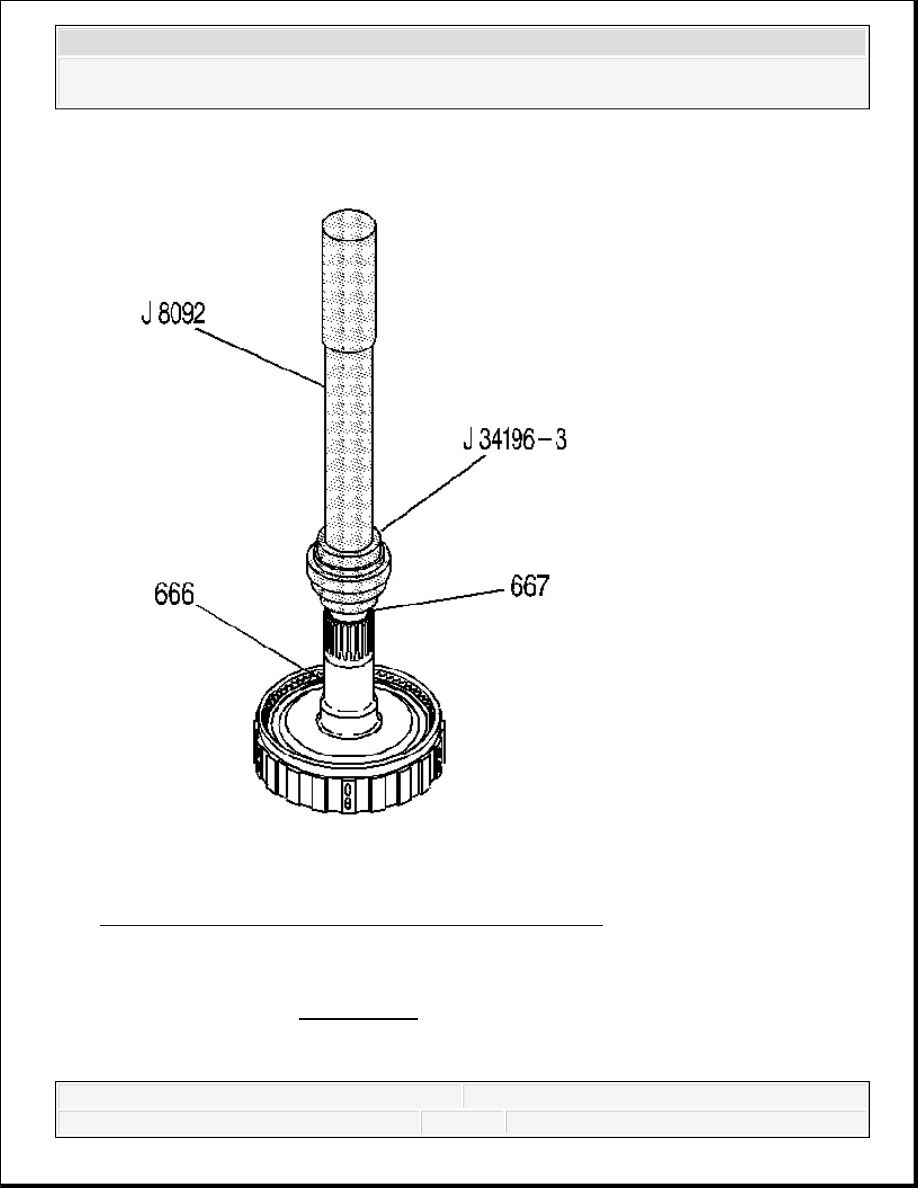

Fig. 341: View Of Reaction Carrier Shaft Rear Bushing
Courtesy of GENERAL MOTORS CORP.
2. Using J 34196-3 which is part of kit J 34196-B with J 8092 , install a reaction carrier shaft
rear bushing (667). See Special Tools.
INPUT INTERNAL GEAR, REACTION SHAFT AND SHELL INSTALLATION
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
