46. If equipped, install the torque converter bolts.
Tighten: Tighten the bolts to 63 N.m (47 lb ft).

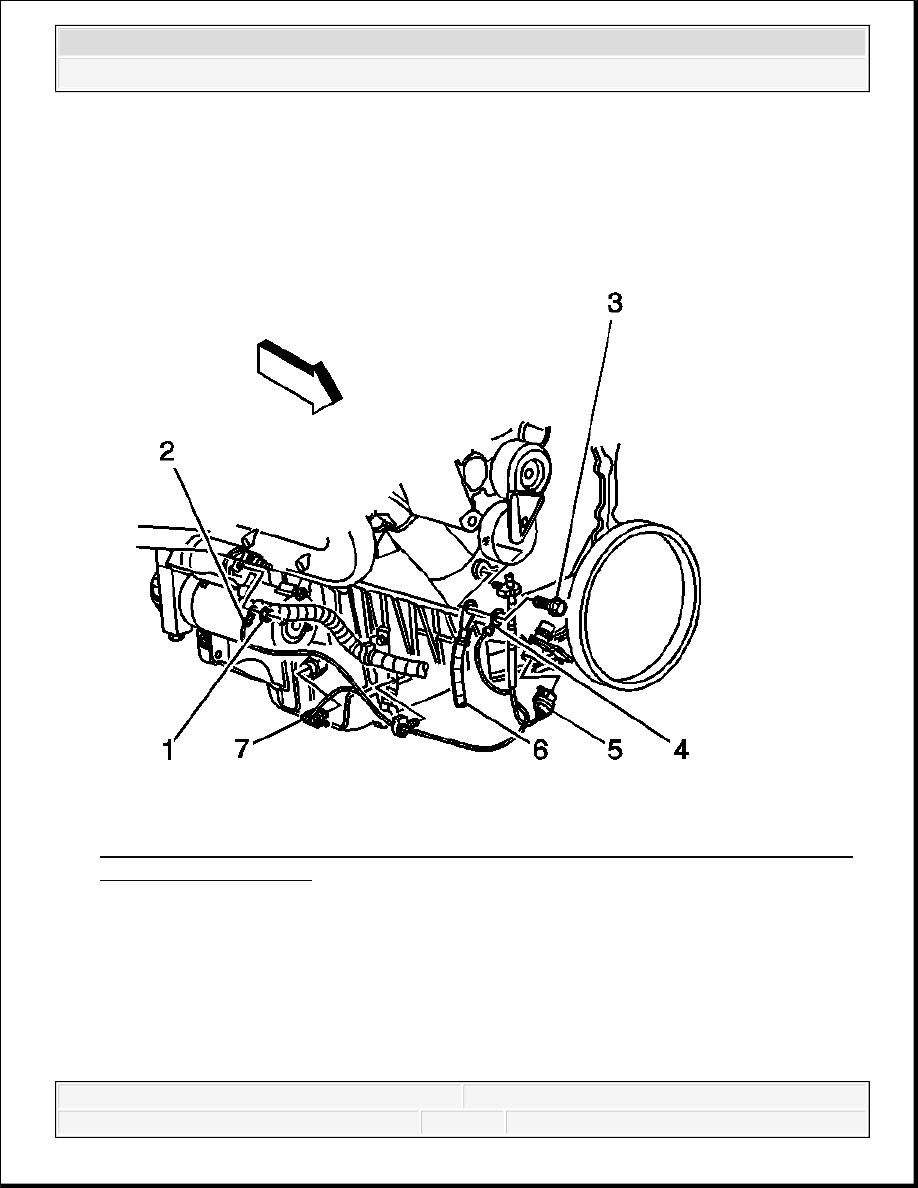

Fig. 353: View Of Oil Level Sensor Electrical Connector, CKP Electrical Connector
& Battery Ground Bolt
Courtesy of GENERAL MOTORS CORP.
47. Install the ground bolt (3) holding the negative battery cable (6) and ground cable (4) to the
engine.
48. Connect the CKP sensor electrical connector (5) and install the harness to the retainer clip.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

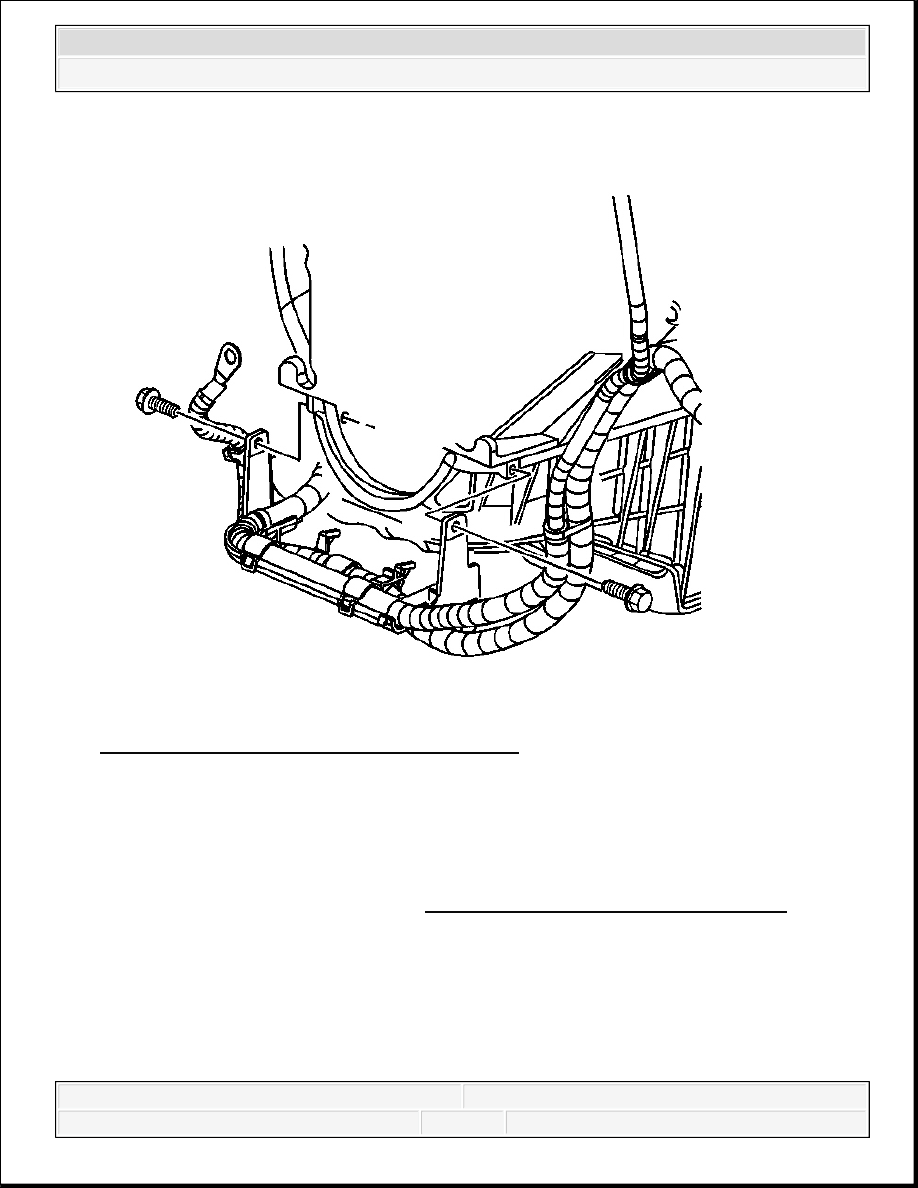

Fig. 354: View Of Battery Cable Bracket Bolts
Courtesy of GENERAL MOTORS CORP.
49. Install the battery cable bracket bolts.
Tighten: Tighten the bolts to 12 N.m (106 lb in).
50. Install the catalytic converter. Refer to Catalytic Converter Replacement (4.3L) .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

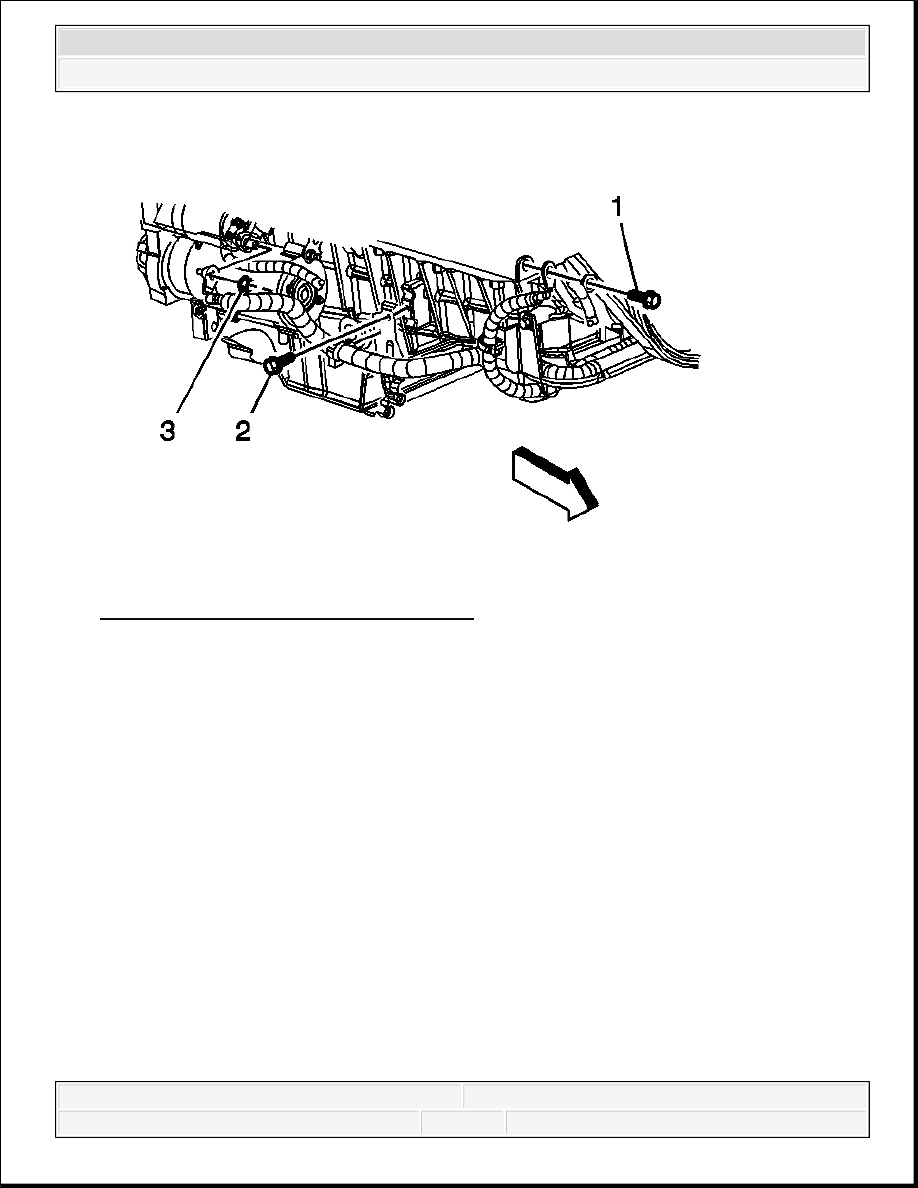

Fig. 355: Positive Battery Cable Clip Bolt
Courtesy of GENERAL MOTORS CORP.
51. Install the positive battery cable clip bolt (2).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

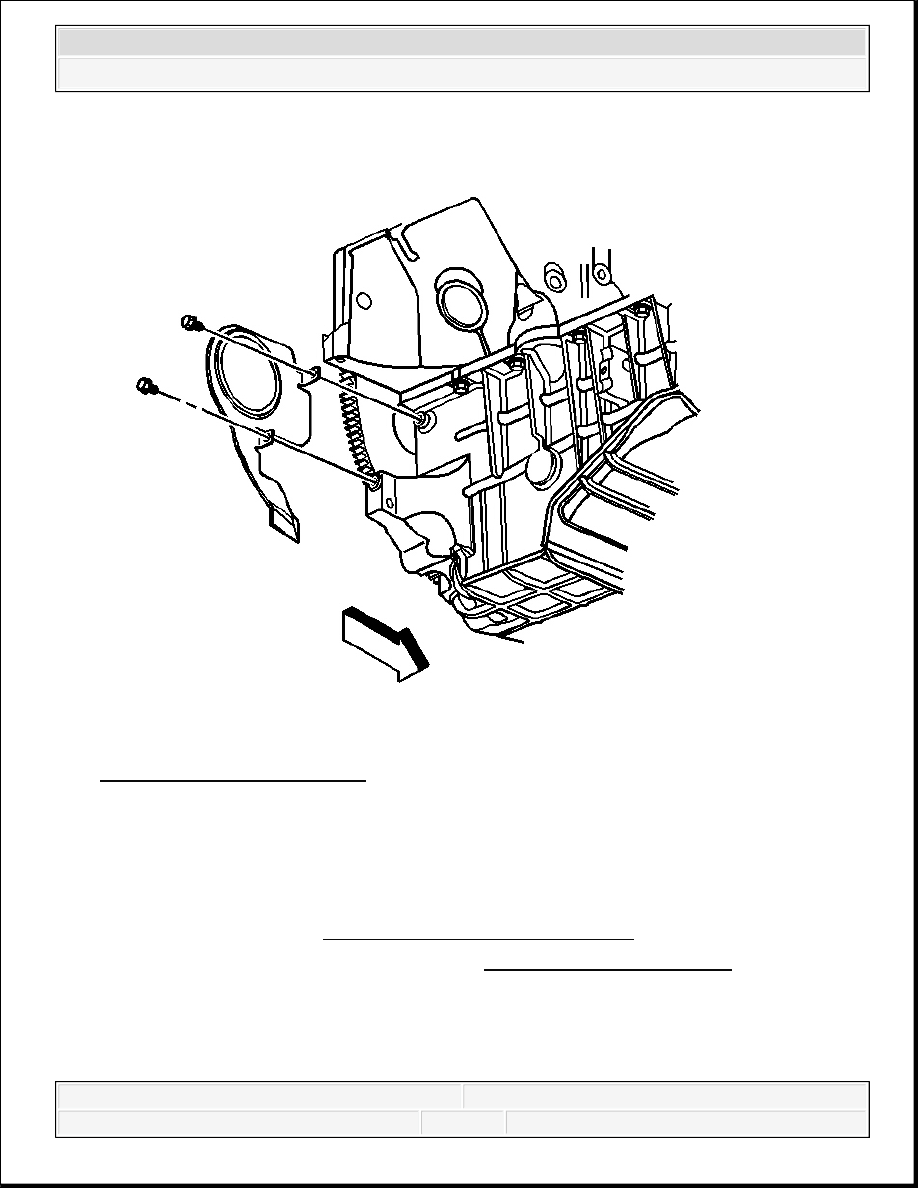

Fig. 356: Transmission Cover
Courtesy of GENERAL MOTORS CORP.
52. Install the transmission cover.
Tighten: Tighten the bolts to 12 N.m (106 lb in).
53. Install the starter. Refer to Starter Motor Replacement (4.3L) .
54. If equipped, install the engine shield. Refer to Engine Shield Replacement .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
