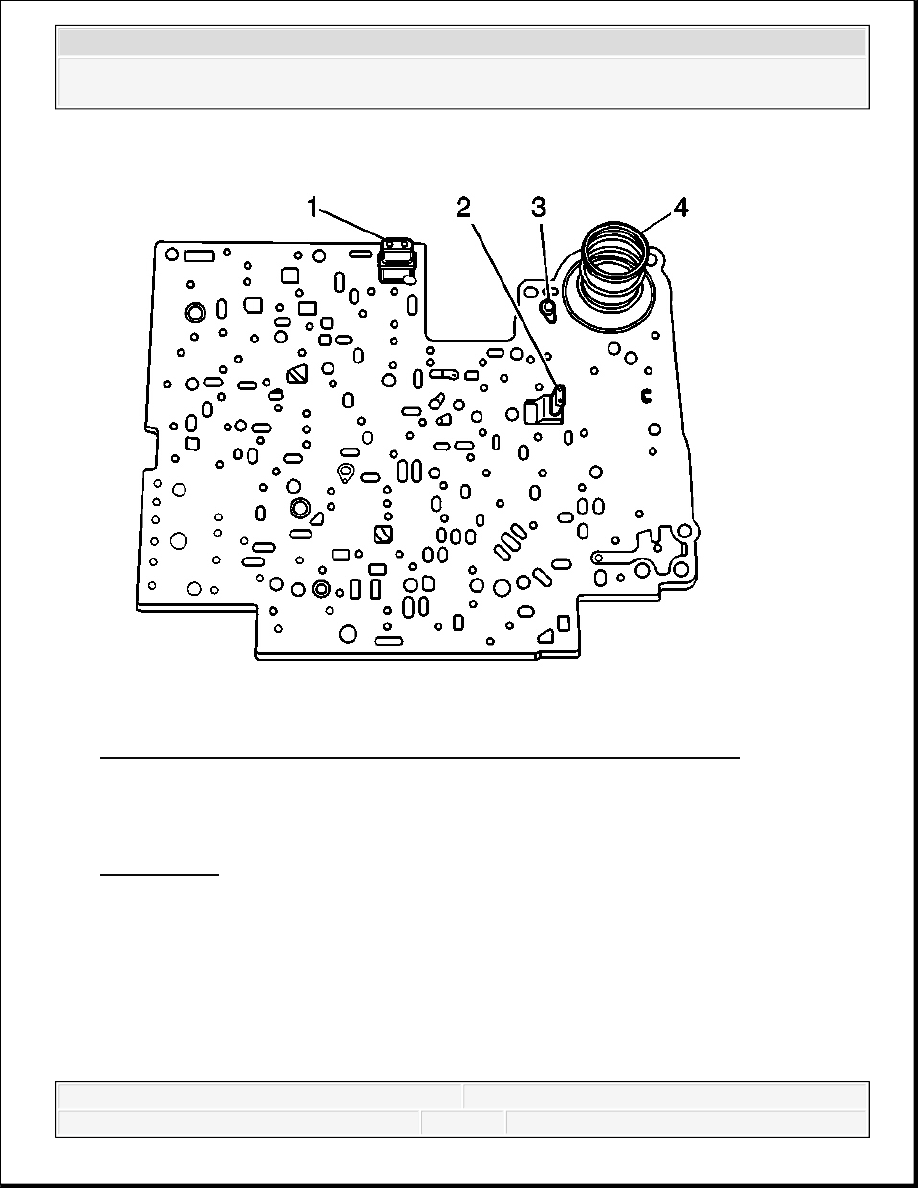

Fig. 190: View Of Solenoid Screens, Check Ball & Accumulator Spring 5. Install the spacer plate to transmission case gasket and the spacer plate to valve body gasket to the spacer plate; use J 36850 in order to retain the gaskets to the spacer plate. See The case gasket is identified by a C. Be sure to place the case gasket on the transmission case side of the spacer plate. The valve body gasket is identified by a V. Be sure to place the valve body gasket on the valve body side of the spacer plate. 6. Ensure that the solenoid screens (1, 2) are in place on the spacer plate.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

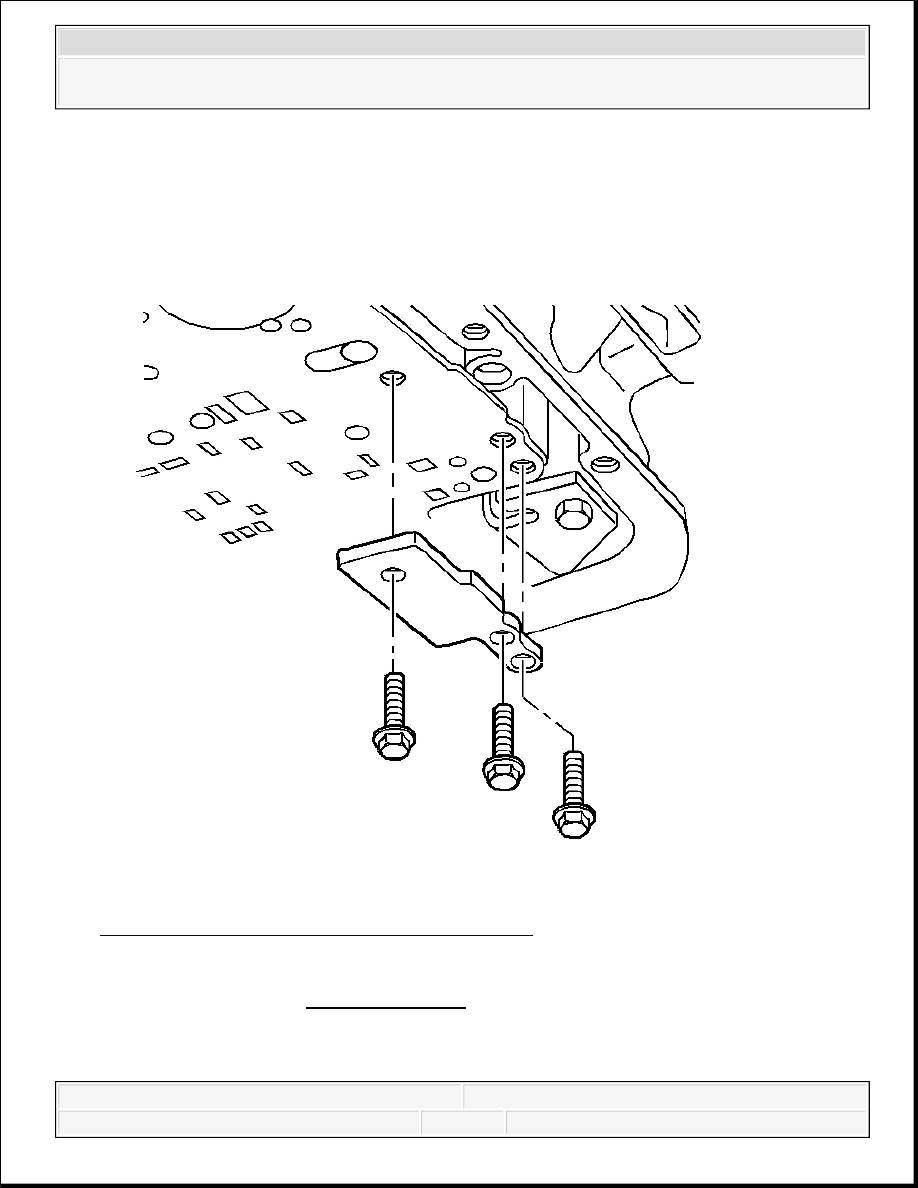

7. Place the checkball (3) on the spacer plate in the location shown. 8. Place the 3-4 accumulator spring (4) on the spacer plate. 9. Install the spacer plate and related components to the transmission. Fig. 191: View Of Spacer Plate Support & Bolts 10. Install the spacer plate support and the spacer plate support bolts. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

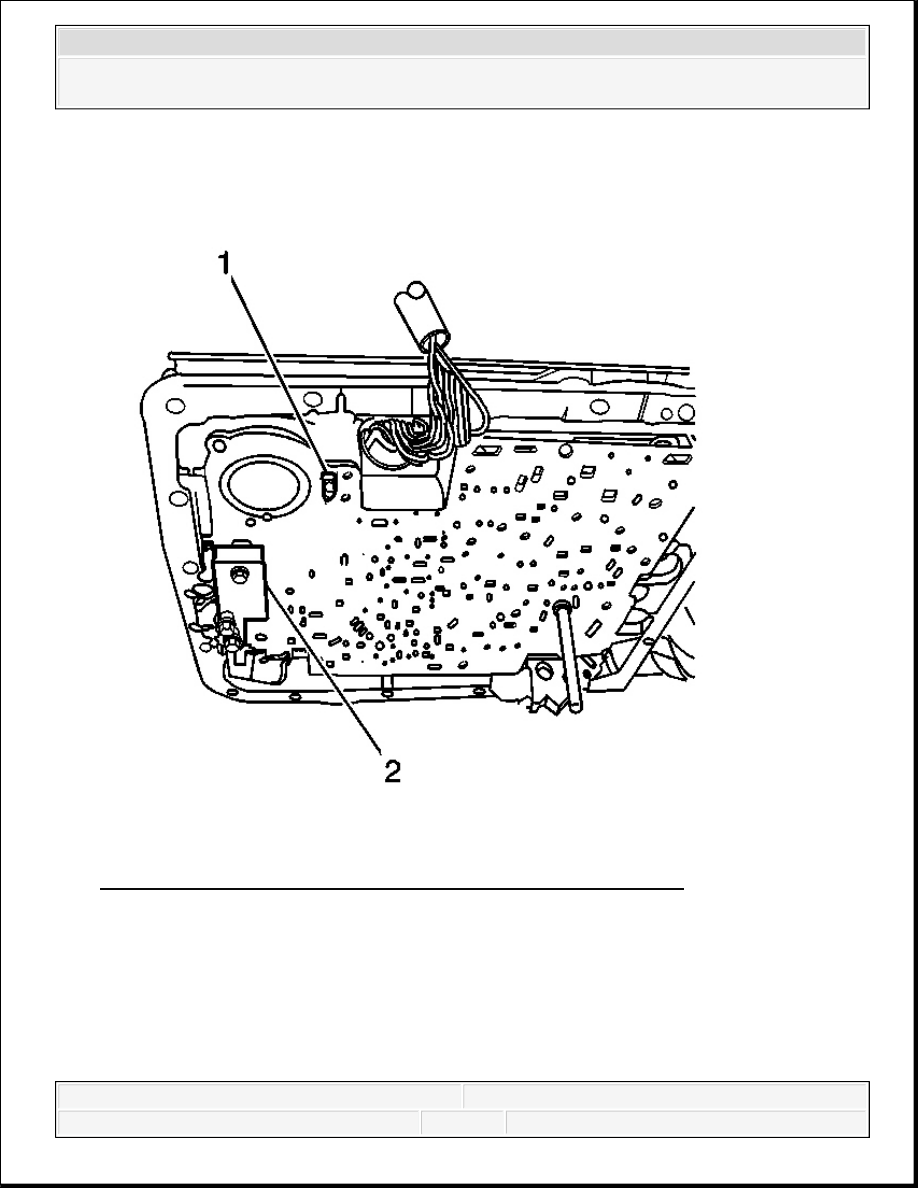

Tighten: Tighten the bolts to 11 N.m (97 lb in). Fig. 192: View Of Spacer Plate Support And Checkball Location 11. After installing the spacer plate support (2), look through the hole in the spacer plate to ensure that the checkball (1) has remained in the proper location.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

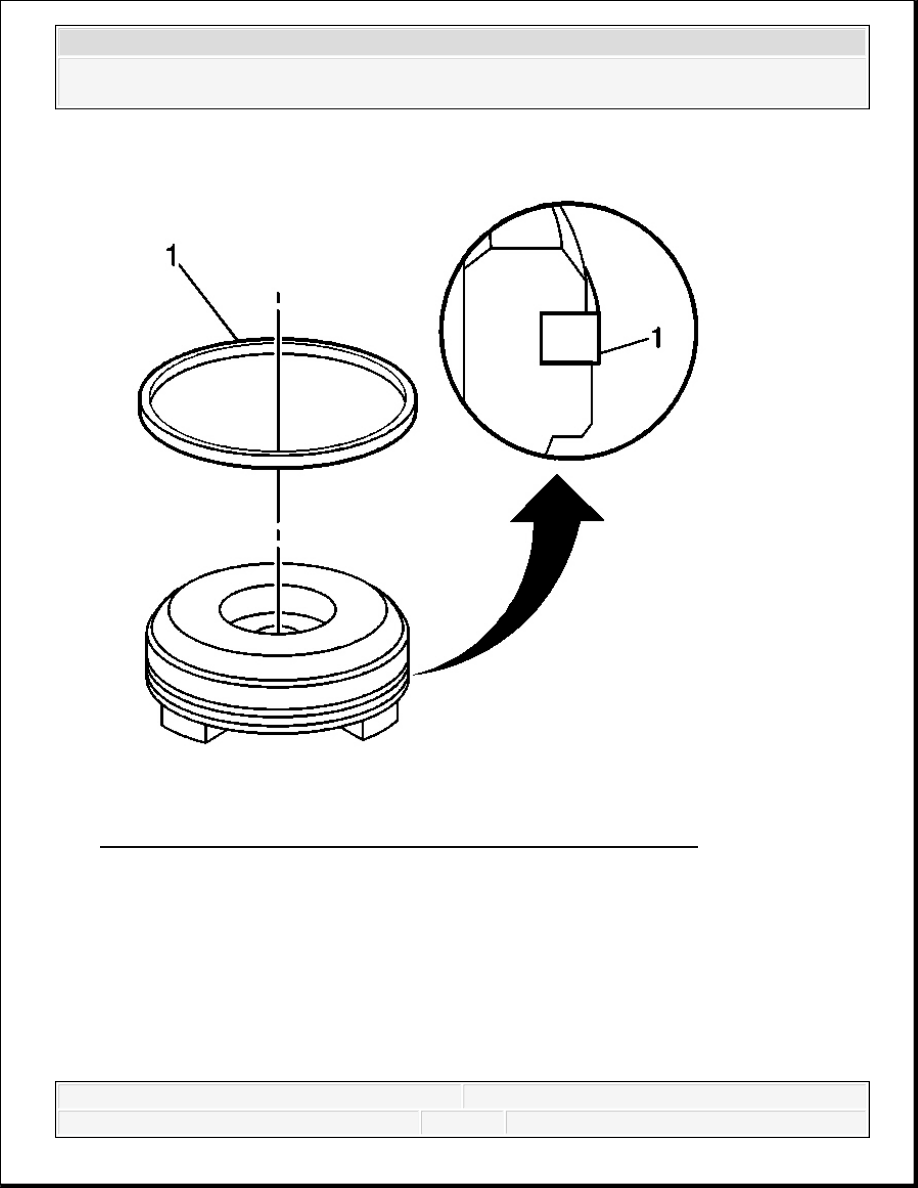

Fig. 193: View Of Accumulator Piston Seal & Accumulator Piston 12. Install a new 1-2 accumulator piston seal (1) to the 1-2 accumulator piston.
