Installation Procedure

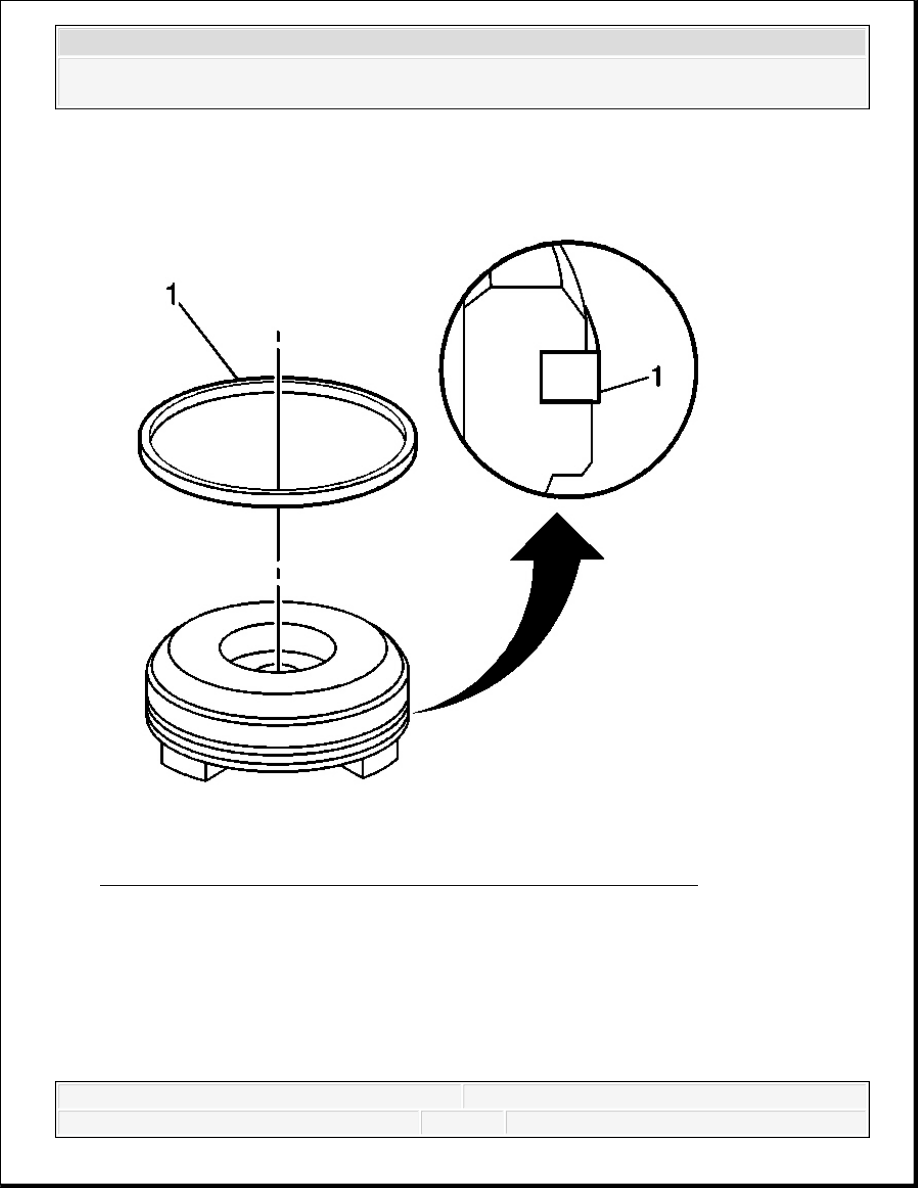

Fig. 186: View Of Accumulator Piston Seal & Accumulator Piston
Courtesy of GENERAL MOTORS CORP.
1. Install a new 3-4 accumulator piston seal (1) to the 3-4 accumulator piston.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
Fig. 187: Locating Transmission Case Components
Courtesy of GENERAL MOTORS CORP.
2. Install the 3-4 accumulator pin (1) into the transmission case and retain the pin with J
36850 . See Special Tools.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

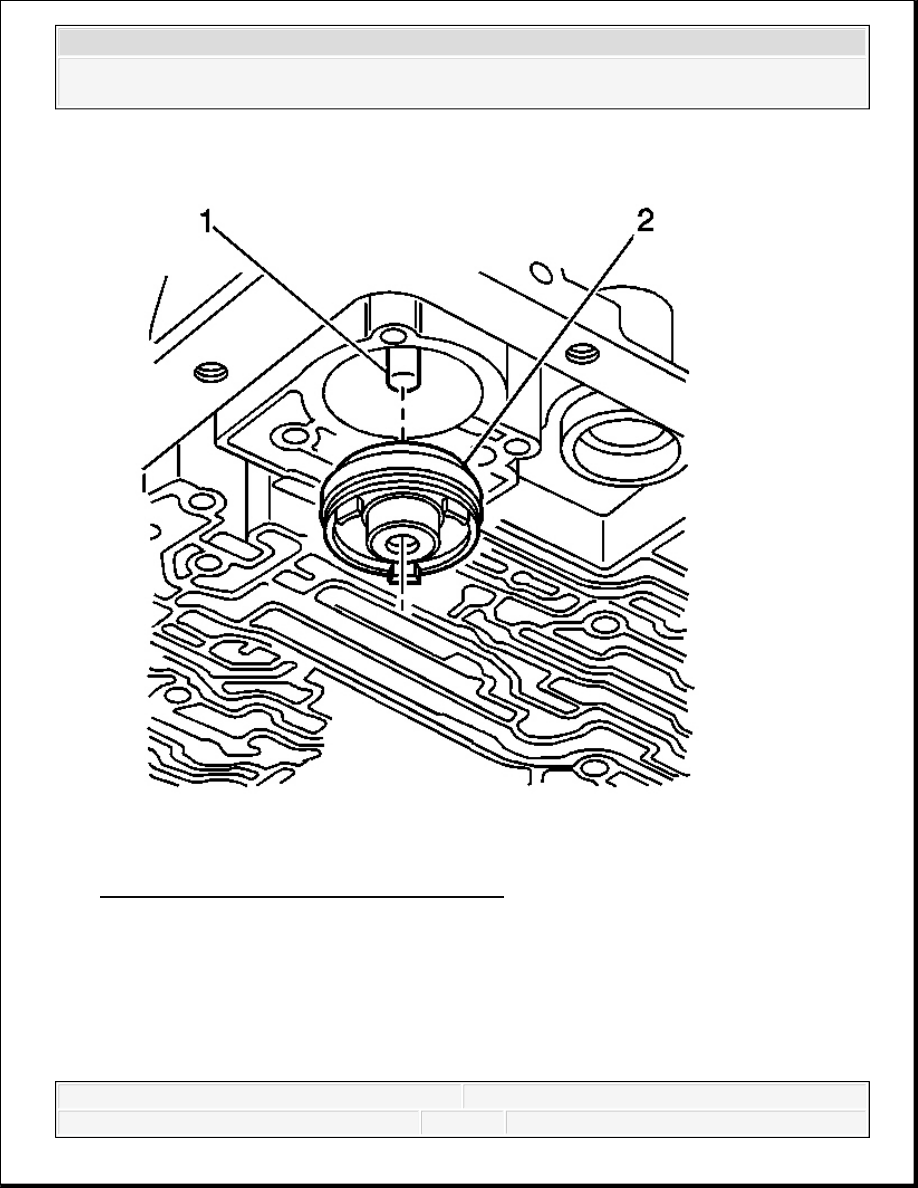

Fig. 188: Identifying 3-4 Accumulator Piston
Courtesy of GENERAL MOTORS CORP.
3. Install the 3-4 accumulator piston (2) onto the pin (1) in the transmission case.
Ensure that the 3-4 accumulator piston legs face away from the transmission case.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado

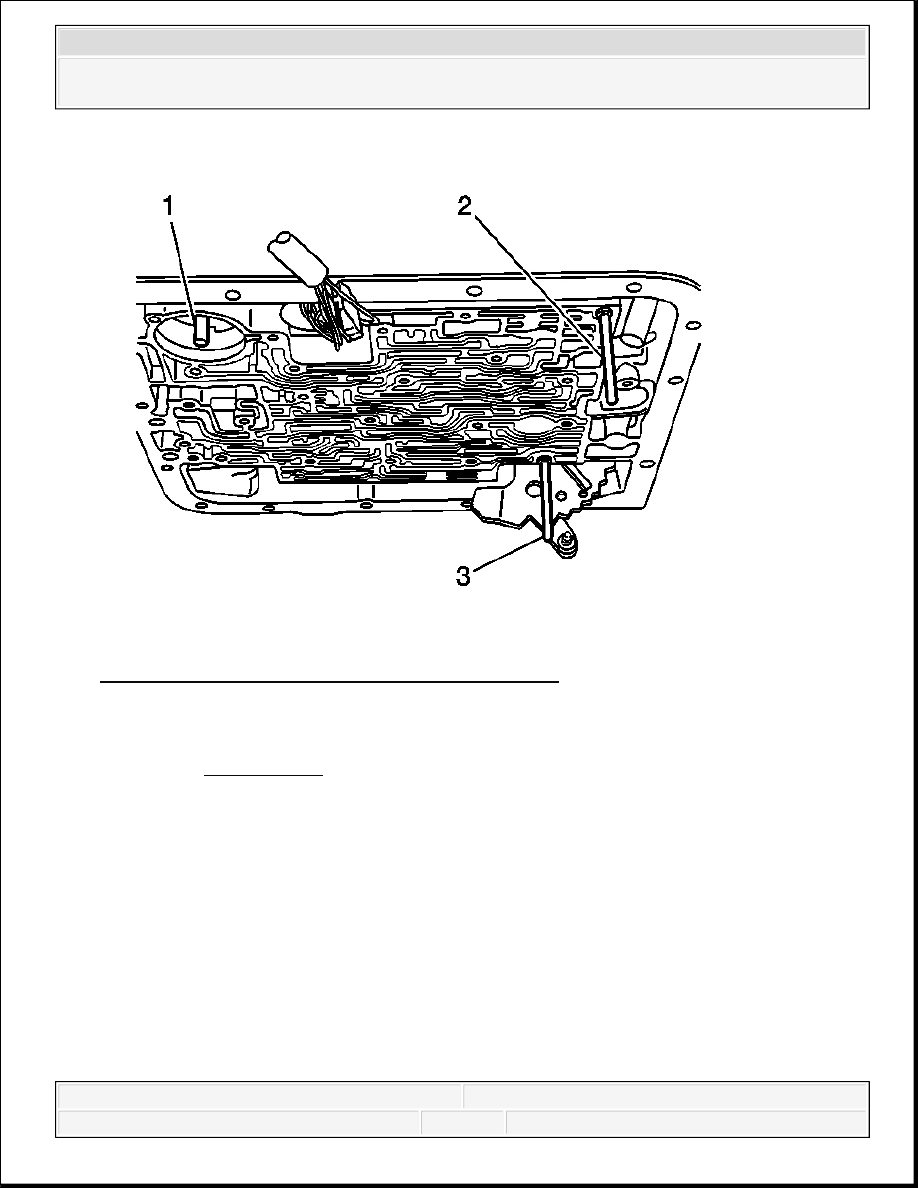

Fig. 189: Locating Transmission Case Components
Courtesy of GENERAL MOTORS CORP.
4. Install the J 25025-B (2, 3) to the transmission case. See Special Tools.
