Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection. 7. Install the front grill assembly. Refer to Radiator Grille Replacement (Chevrolet) or Radiator Grille Replacement (GMC) . TRANSMISSION FLUID COOLER HOSE/PIPE QUICK-CONNECT FITTING DISCO Removal Procedure Fig. 72: Identifying Retaining Ring On Quick Connect Fitting
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

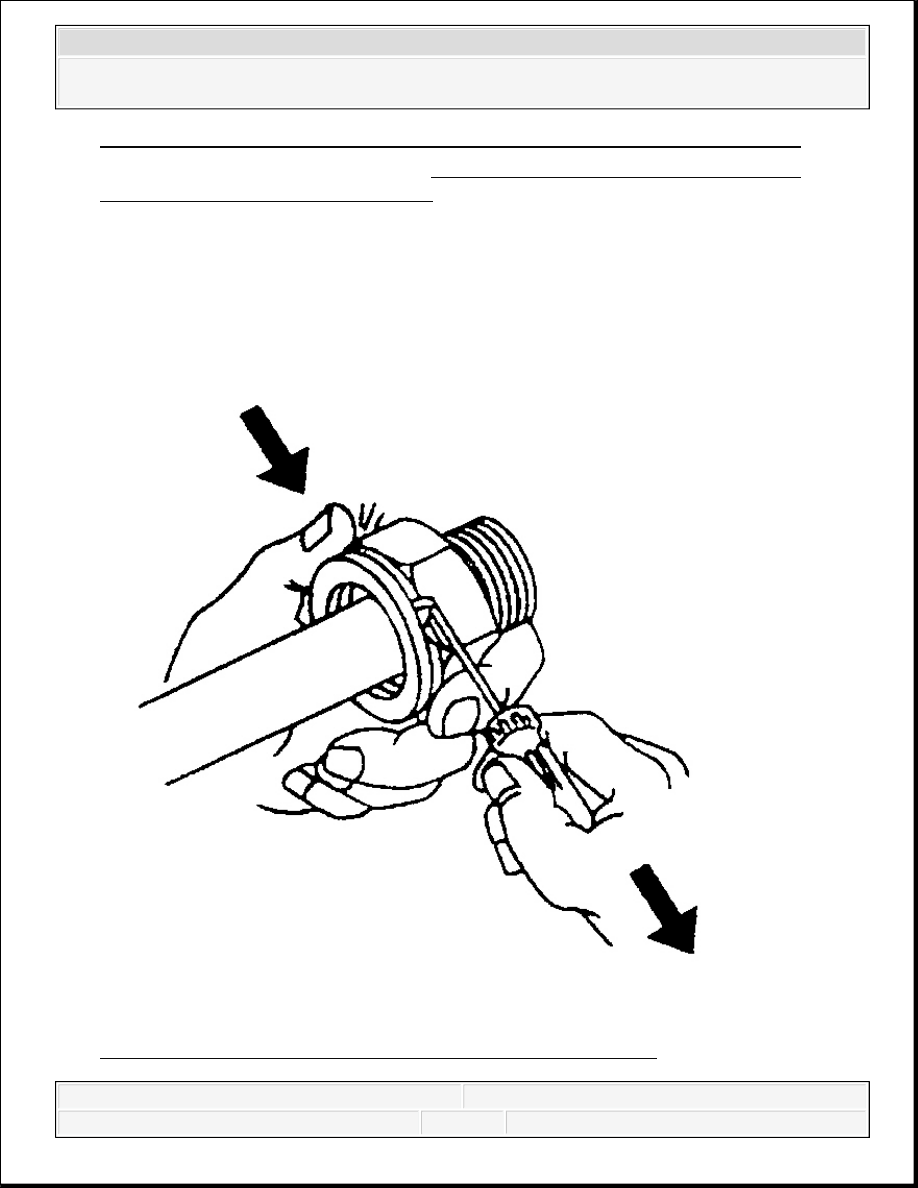

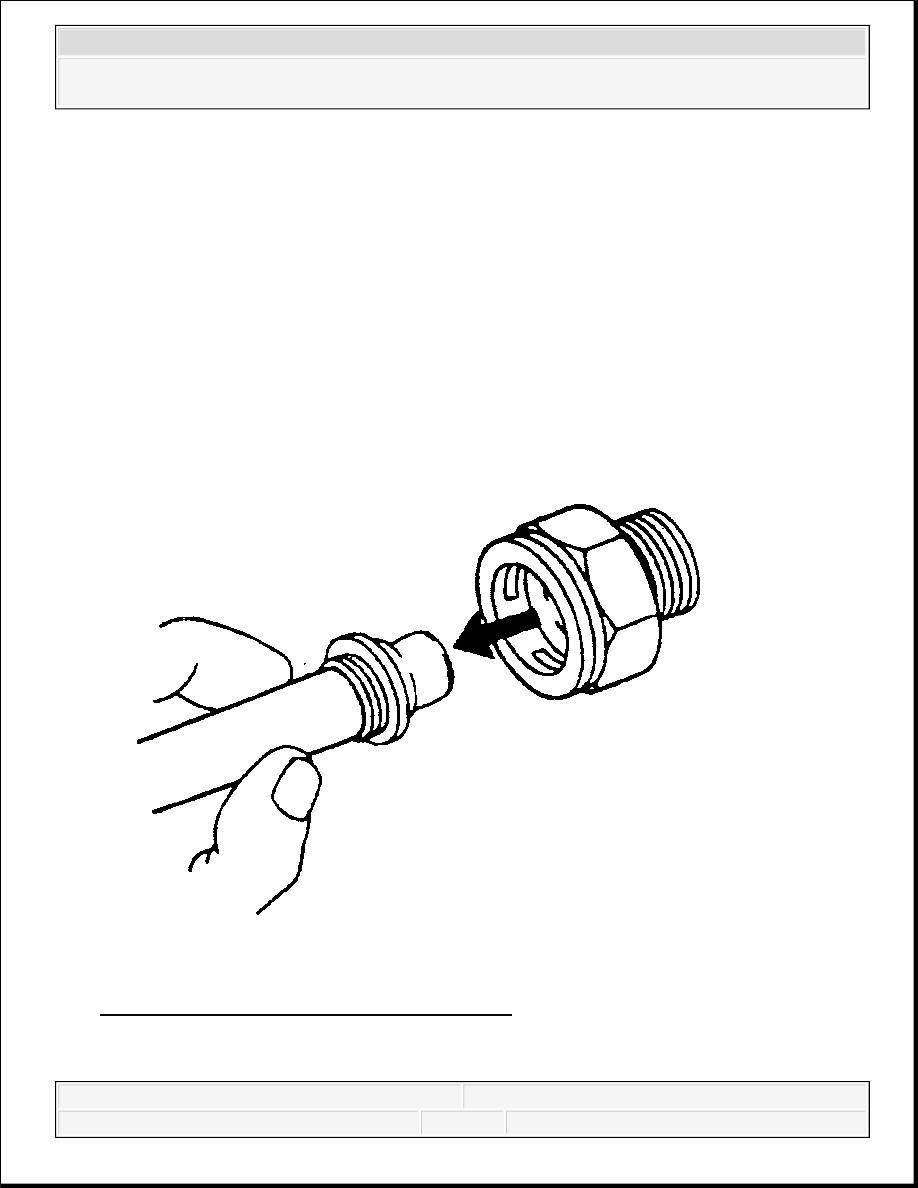

1. Pull the plastic cap back from the quick connect fitting and down along the cooler line about 5 cm (2 in). 2. Using a bent-tip screwdriver, pull on one of the open ends of the retaining ring in order to rotate the retaining ring around the quick connect fitting until the retaining ring is out of 3. Remove the retaining ring from the quick connect fitting. 4. Discard the retaining ring. Fig. 73: Cooler Line & Quick Connect Fitting 5. Pull the cooler line straight out from the quick connect fitting. IMPORTANT: Perform the following procedure when removing the retaining rings and cooler lines from the quick connect fittings located
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

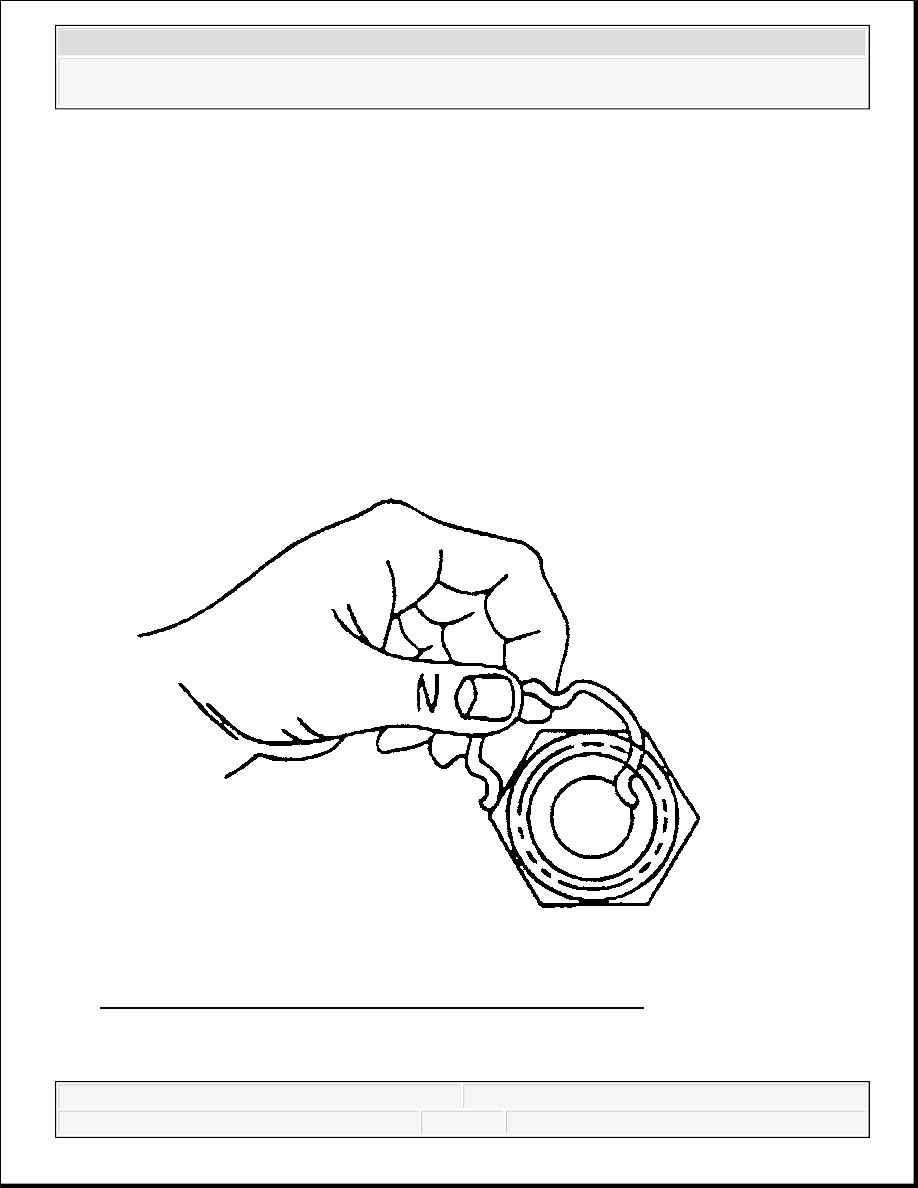

Installation Procedure 1. Install a new retaining ring into the quick connect fitting using the following procedure: Fig. 74: Hooking Retaining Ring Into Quick Connect Fitting 2. Hook one of the open ends of the retaining ring in one of the slots in the quick connect IMPORTANT: Do not reuse any of the existing oil lines or oil line Do not reuse any of the existing retaining rings that were Ensure the following procedures are performed when
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E/4L70-E - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

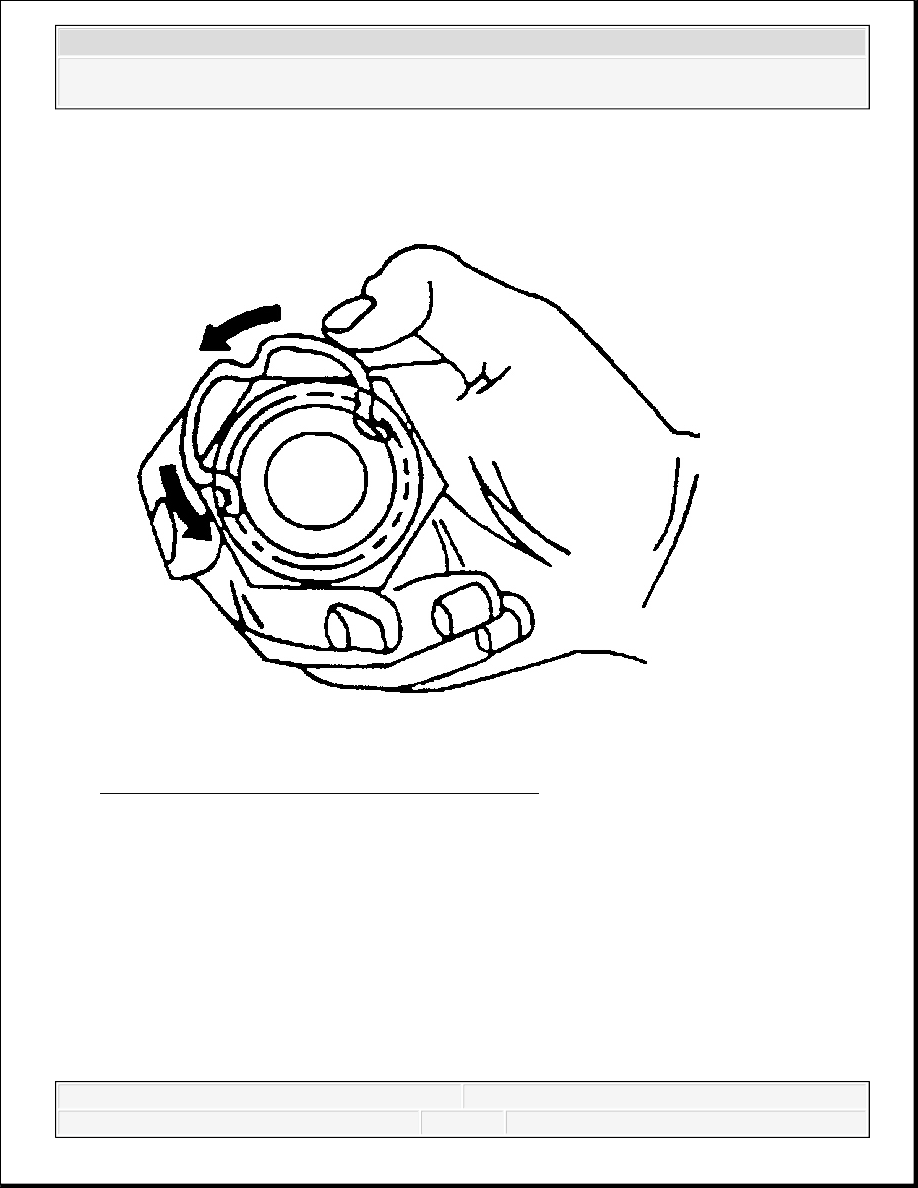

fitting. Fig. 75: Rotating Retaining Ring Around Fitting 3. Rotate the retaining ring around the fitting until the retaining ring is positioned with all three ears through the three slots on the fitting.
