Fig. 71: View Of EVAP Canister Purge Solenoid Valve Tube Quick Connect Fitting 24. Position the EVAP canister purge solenoid tube, and connect the tube quick connect fitting (1) to the EVAP purge solenoid valve. Refer to Plastic Collar Quick Connect Fitting
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

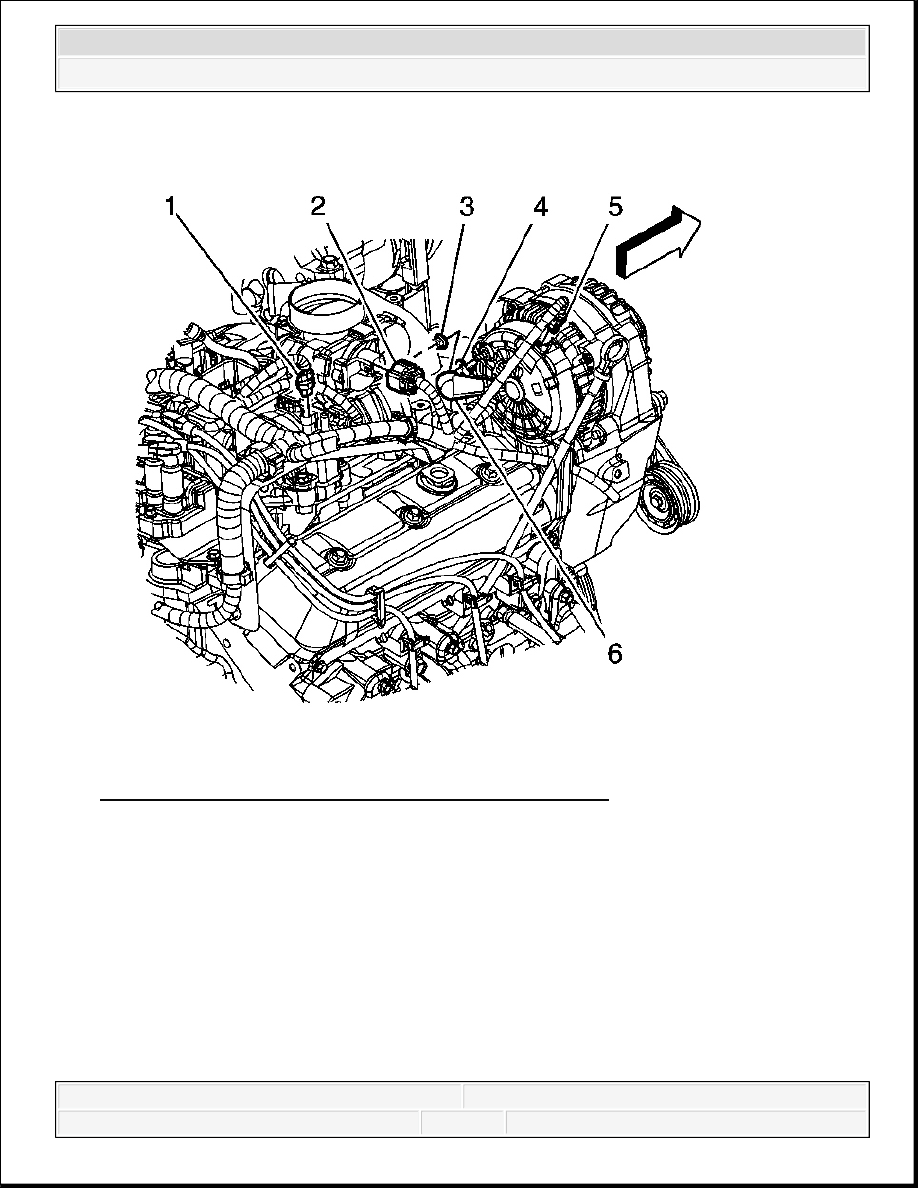

Fig. 72: View Of Engine Wiring Harness & Components 25. Connect the following electrical connectors: The EVAP canister purge solenoid valve (1) The MAP sensor
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

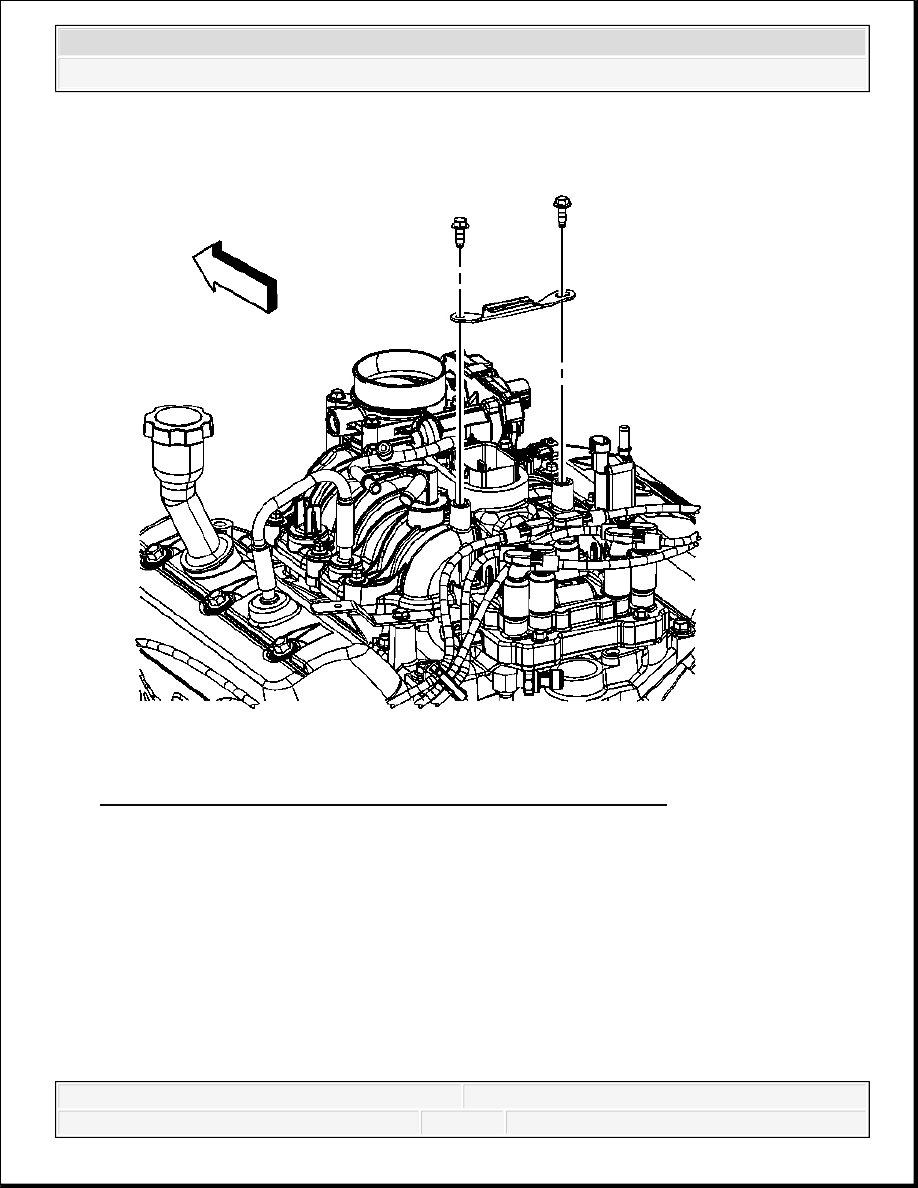

Fig. 73: View Of Engine Wiring Harness Rear Bracket & Bolts 26. Place the engine wiring harness rear bracket onto the upper intake manifold and install the bolts. Tighten: Tighten the bolts to 10 N.m (89 lb in).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
|
|
|
