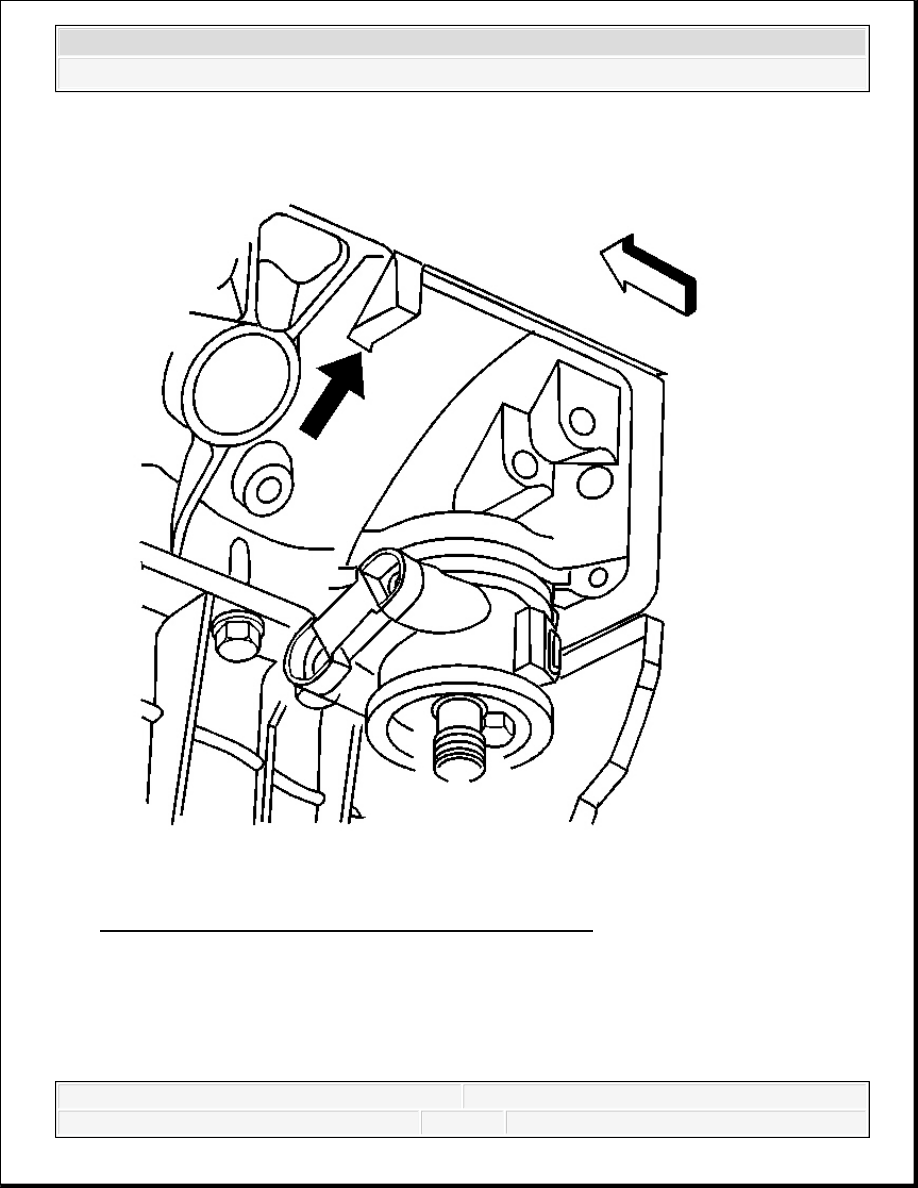

Fig. 23: View Of Square Tab At Rear Of Engine Block
Courtesy of GENERAL MOTORS CORP.
4. Using an adjustable jack on the square tab at the rear of the engine block, raise the engine.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

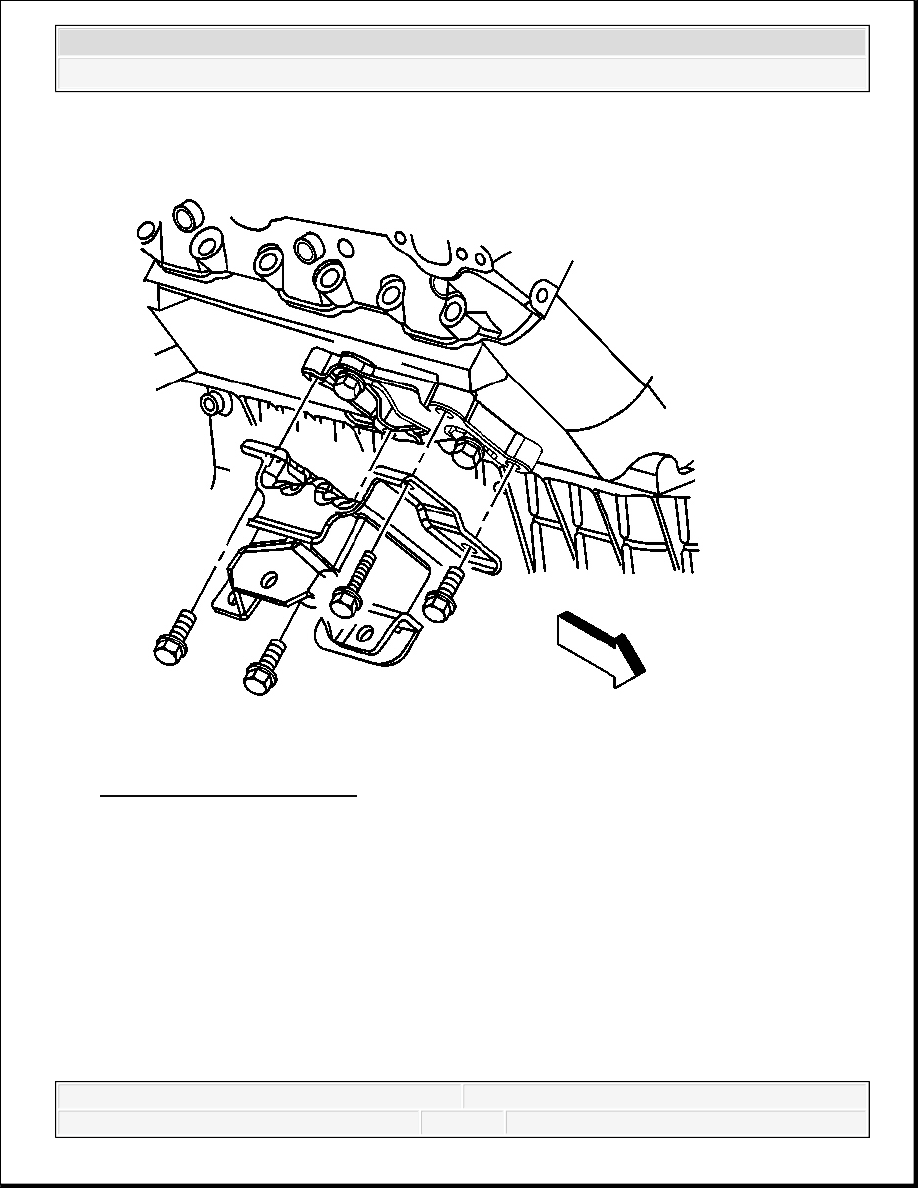

Fig. 24: Engine Mount Bolts
Courtesy of GENERAL MOTORS CORP.
5. Remove the engine mount bolts. (right side shown, left side similar).
6. Remove the engine mount.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

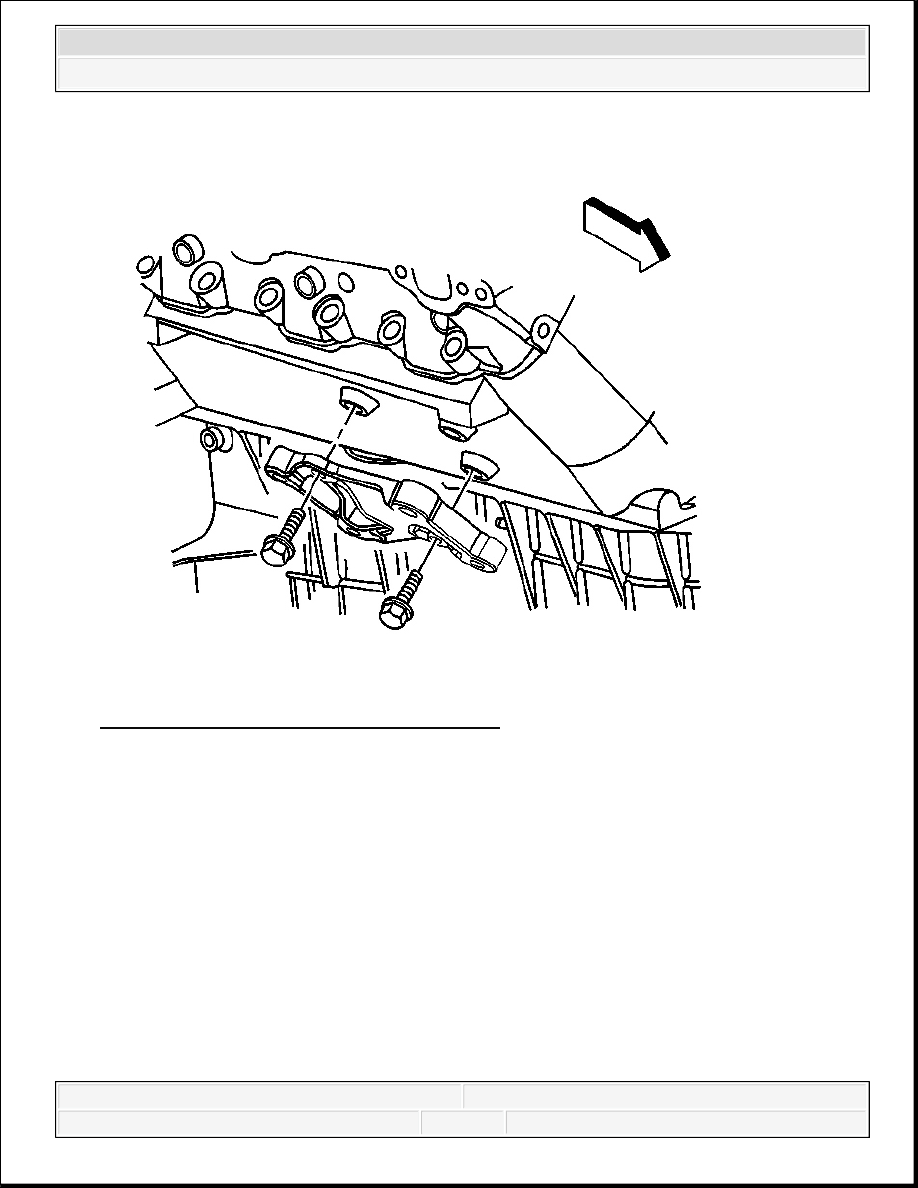

Fig. 25: Engine Mount Side Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
7. If equipped and necessary, remove the engine mount side bracket bolts and bracket. (right
side shown, left side similar).
