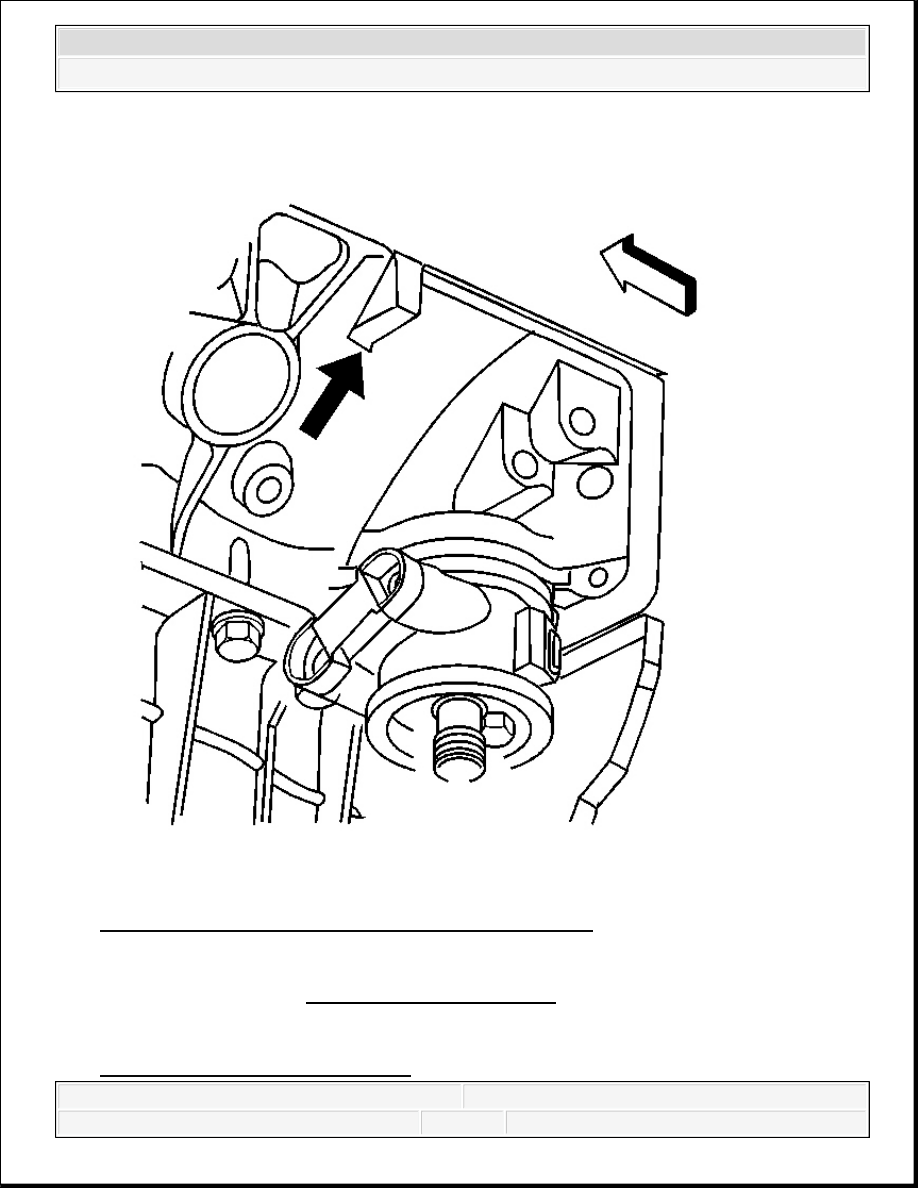

Fig. 20: View Of Square Tab At Rear Of Engine Block
Courtesy of GENERAL MOTORS CORP.
4. In order to access the square tab on the right side of the engine remove the starter. Refer to
Starter Motor Replacement (4.3L) .
NOTE:
Refer to ENGINE LIFTING NOTICE .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
5. Using a jack on the square tab at the rear of the engine block (left side shown) raise the
engine in order to complete the following tasks:
Remove weight from the engine mount.
Place a slight tension on the rubber cushion.
Observe the engine mount while raising the engine.
6. Replace the engine mount if the following conditions exist:
Heat check cracks cover the hard rubber surface.
The rubber cushion is separated from the metal plate of the engine mount.
There is a split through the rubber cushion.
7. Install the starter, if removed. Refer to Starter Motor Replacement (4.3L) .
ENGINE MOUNT REPLACEMENT - LEFT SIDE
Removal Procedure
NOTE:
Refer to ENGINE MOUNTING NOTICE .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

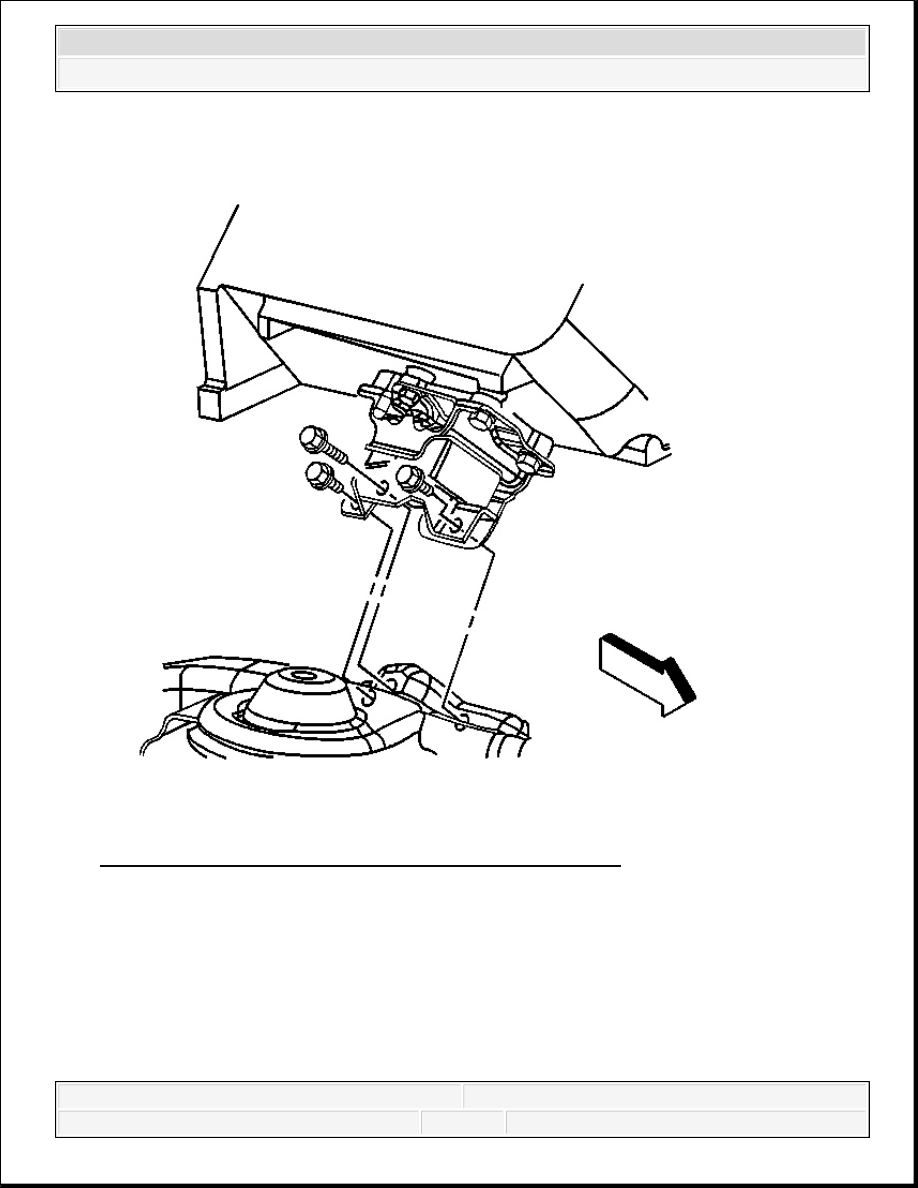

Fig. 21: Engine Mount To Engine Mount Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
1. From under the hood, remove the engine mount to engine mount bracket bolts. (right side
shown, left side similar).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

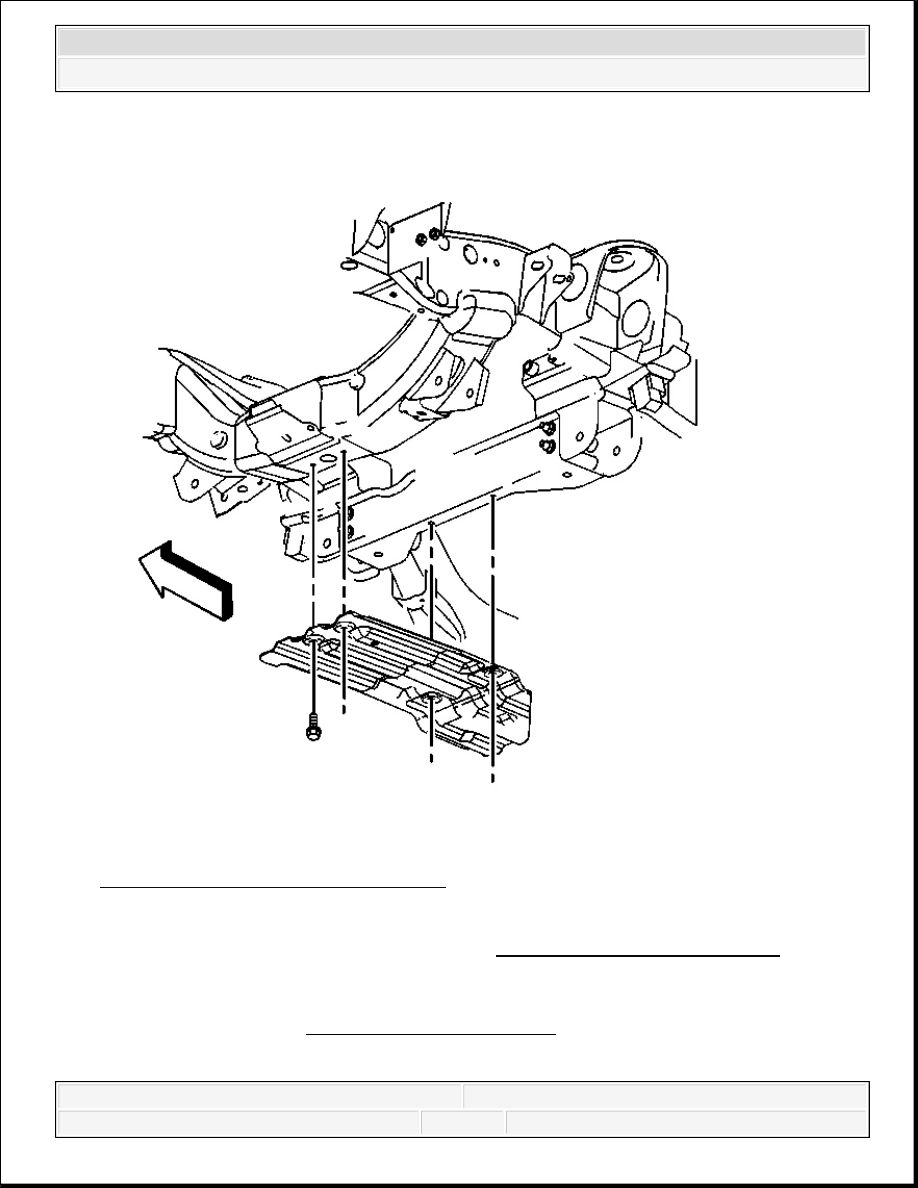

Fig. 22: Identifying Oil Pan Skid Plate
Courtesy of GENERAL MOTORS CORP.
2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
3. Remove the oil pan skid plate bolts and plate.
NOTE:
Refer to ENGINE LIFTING NOTICE .
