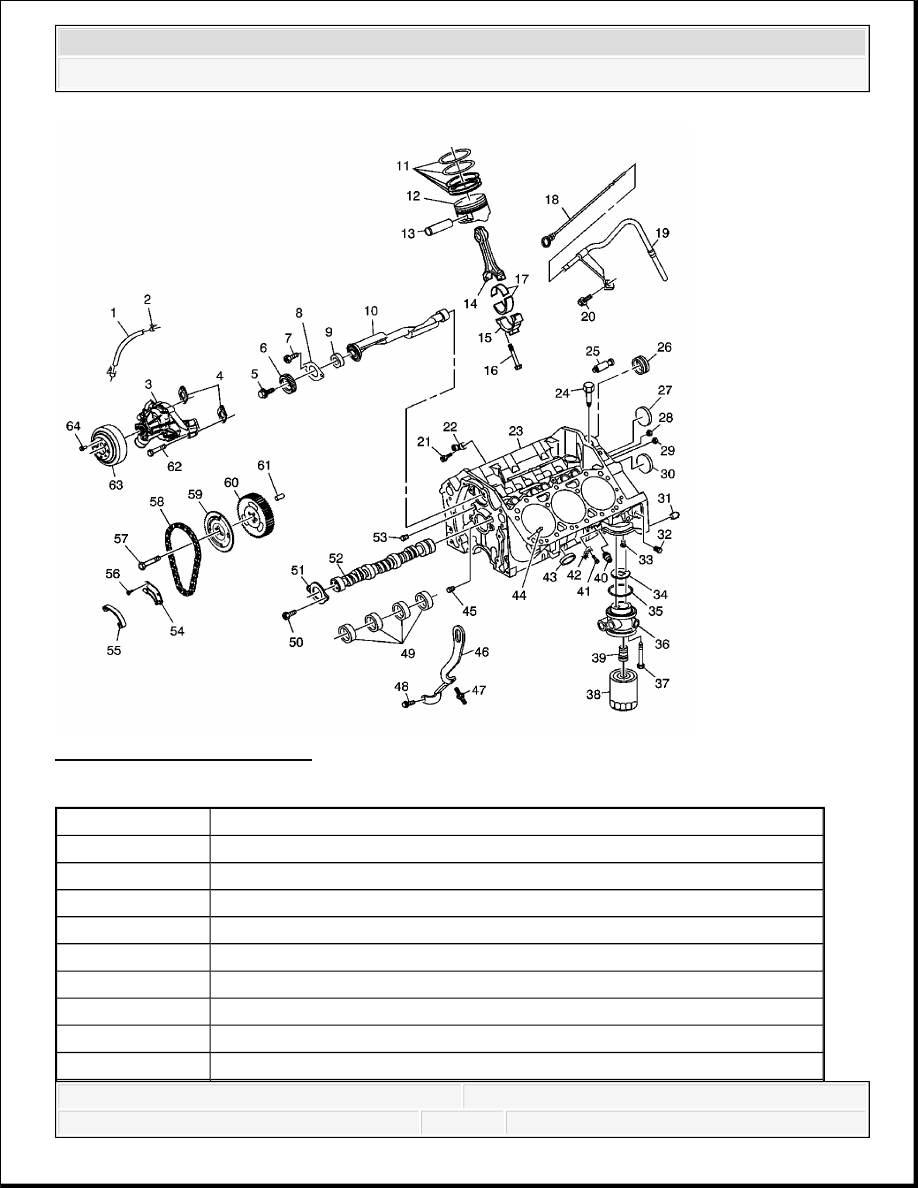

Fig. 4: Lower Engine View 1
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Thermostat Bypass Hose
2
Thermostat Bypass Pipe Clamp
3
Water Pump
4
Water Pump Gasket
5
Balance Shaft Gear Bolt
6
Balancer Shaft Driven Gear
7
Balance Shaft Retainer Bolt
8
Balancer Shaft Retainer
9
Balancer Shaft Front Bearing
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
10
Balance Shaft
11
Piston Ring Set
12
Piston
13
Piston Pin
14
Connecting Rod
15
Connecting Rod Bearing Cap
16
Connecting Rod Bolt
17
Connecting Rod Bearing
18
Oil Level Indicator
19
Oil Level Indicator Tube
20
Oil Level Indicator Tube Bolt
21
Knock Sensor Bolt
22
Knock Sensor
23
Engine Block
24
Engine Oil Pressure Indicator Switch Fitting
25
Engine Oil Pressure Indicator Switch
26
Balancer Shaft Rear Bearing
27
Engine Block Coolant Hole Plug
28
Engine Block Oil Gallery Plug
29
Engine Block Oil Gallery Plug
30
Engine Block Oil Gallery Plug
31
Transmission Locating Pin
32
Engine Block Oil Gallery Plug
33
Oil Filter Bypass Valve
34
Engine Oil Cooler Adapter Gasket
35
Engine Oil Cooler Adapter Seal
36
Engine Oil Cooler Adapter
37
Engine Oil Cooler Adapter Bolt
38
Oil Filter
39
Oil Pressure Relief Valve Spring Seat Pin
40
Block Heater
41
Knock Sensor Bolt
42
Knock Sensor
43
Engine Block Coolant Hole Plug
44
Cylinder Head Location Pin
45
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
Engine Block Oil Gallery Plug
46
Engine Lift Front Bracket
47
Engine Lift Front Bracket Bolt
48
Engine Lift Front Bracket Bolt
49
Camshaft Bearing
50
Camshaft Thrust Bearing Bolt
51
Camshaft Thrust Plate
52
Camshaft
53
Engine Block Oil Gallery Plug
54
Timing Chain Tensioner Bracket
55
Timing Chain Tensioner Shoe
56
Timing Chain Tensioner Bolt
57
Camshaft Sprocket Bolt
58
Timing Chain
59
Camshaft Sprocket
60
Balancer Shaft Drive Gear
61
Camshaft Sprocket Location Pin
62
Water Pump Bolt
63
Water Pump Pulley
64
Water Pump Pulley Bolt
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

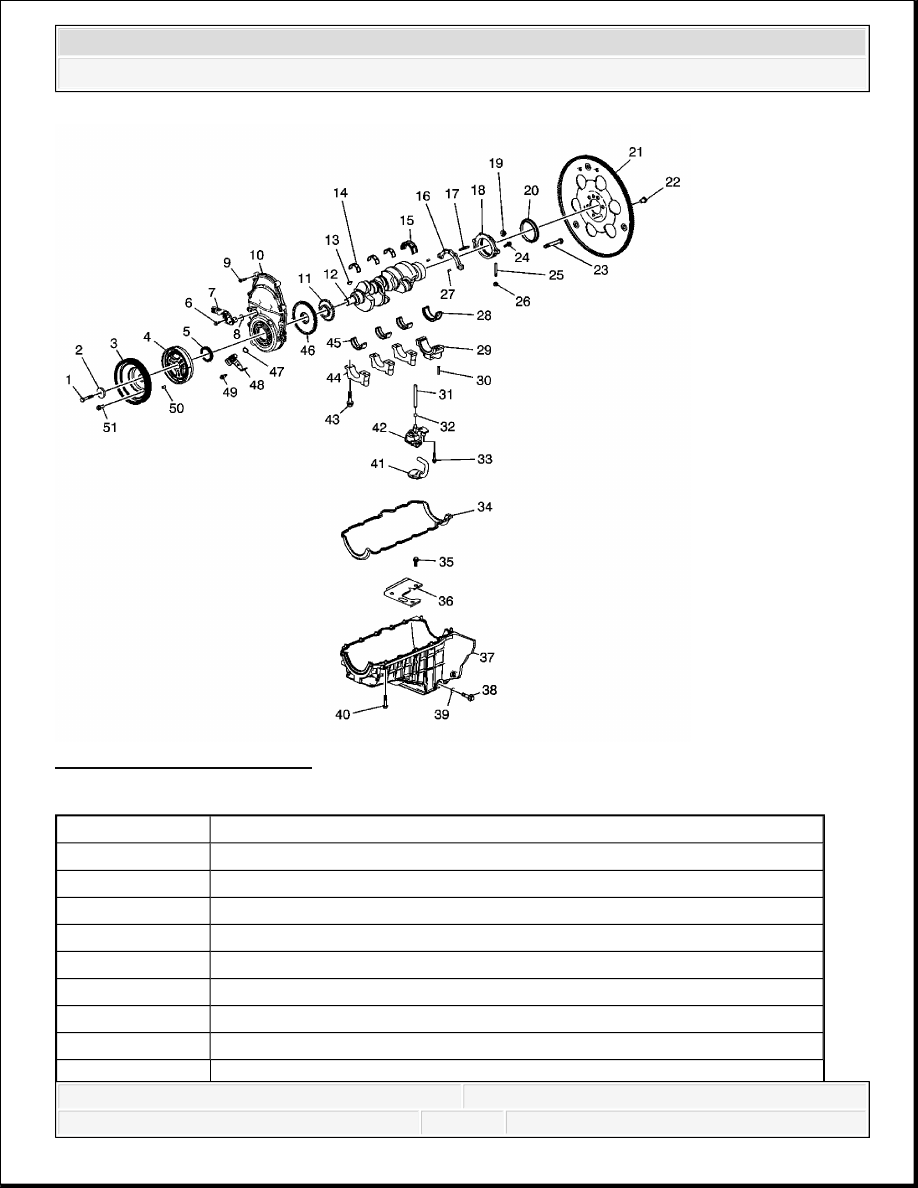

Fig. 5: Lower Engine View 2
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Crankshaft Balancer Bolt
2
Crankshaft Balancer Washer
3
Drive Belt Pulley
4
Crankshaft Balancer
5
Crankshaft Front Oil Seal
6
Camshaft Sensor Bolt
7
Camshaft Position Sensor Assembly
8
Camshaft Sensor Seal
