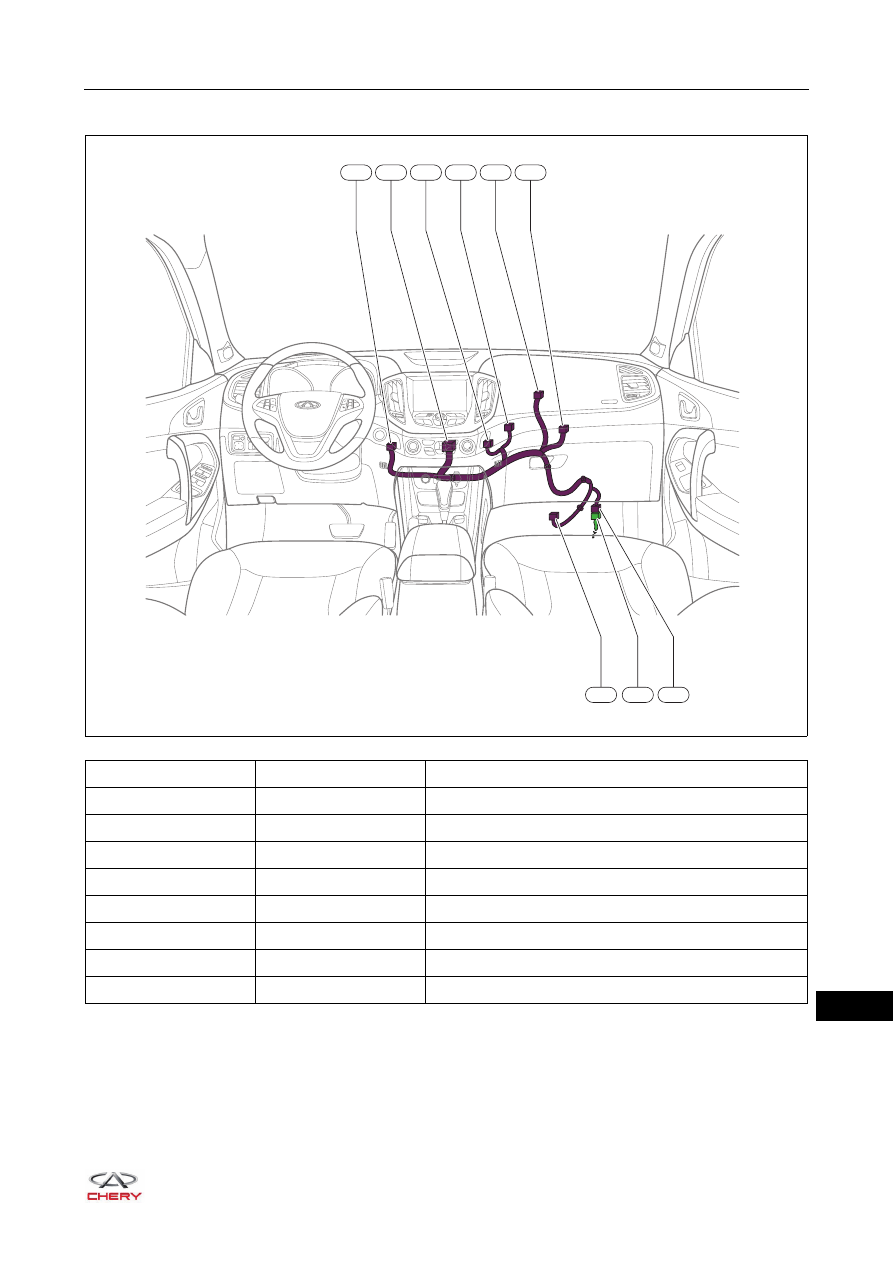

A/C Wire Harness (for Electrical A/C System)

Connector Code

Connector Color/Pin

Connector Name

K-001

B/6

Mode Damper Motor

K-002

W/40

HVAC Control Panel

K-003

B/6

Mixed Damper Motor

K-004

B/6

Speed Resistor

K-005

W/2

Evaporator Temperature Sensor

K-006

B/6

Inner and Outer Circulation Motor

K-007

W/22

to Instrument Panel Wire Harness Connector I-039

K-008

W/2

Blower

ET21510300

K-008

I-027

K-007

K-001 K-002 K-003 K-004 K-005 K-006
