Chery Tiggo 5 (T21). Manual - part 552

51–

53

51

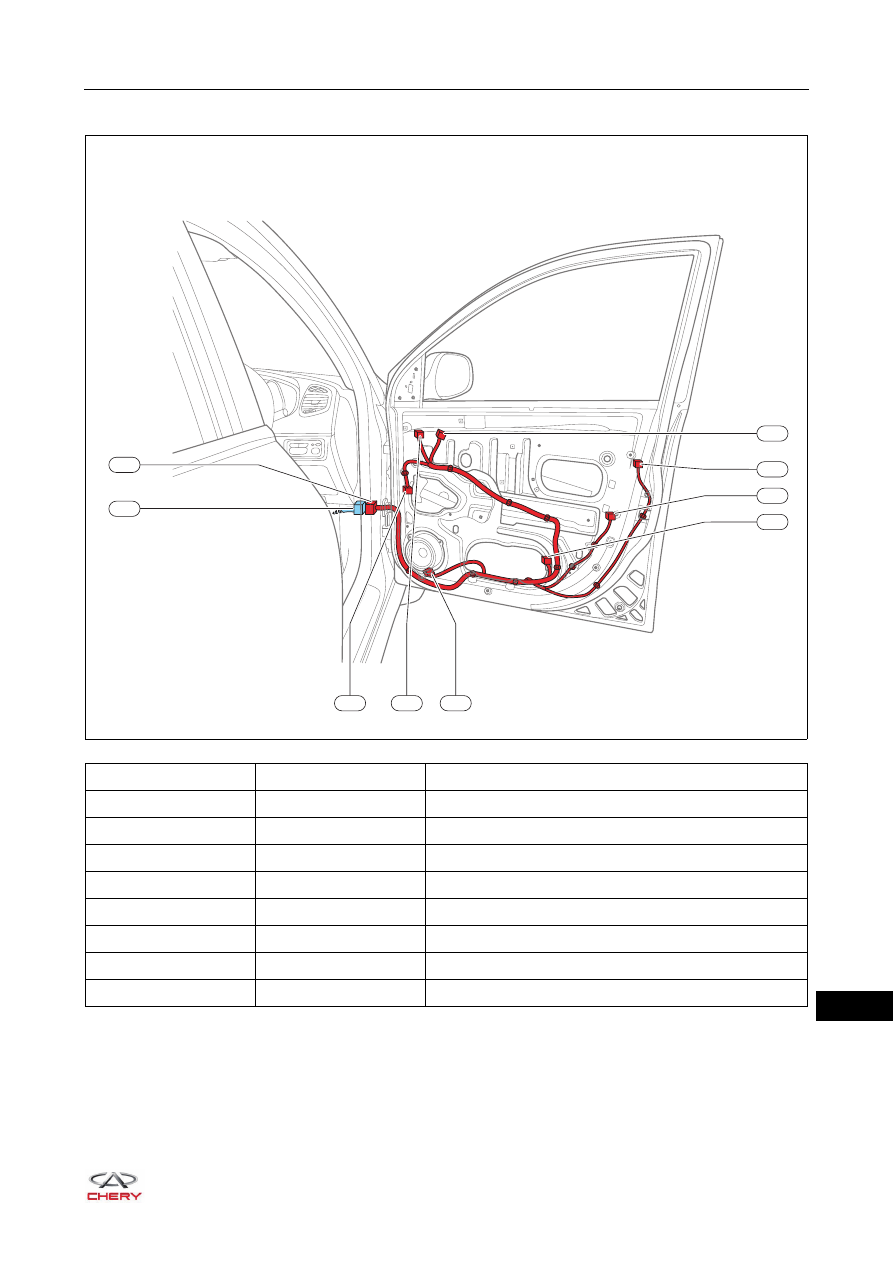

Front Right Door Wire Harness

Connector Code

Connector Color/Pin

Connector Name

H-001

Gr/2

Front Right Power Window Regulator Motor

H-002

W/32

to Body Wire Harness Connector B-061

H-003

B/10

Front Right Power Window Switch

H-004

B/2

Right Handle Sensor

H-005

B/6

Front Right Door Contact Switch

H-006

W/2

Front Right Door Courtesy Light

H-007

B/2

Front Right Door Speaker

H-008

W/16

Power Rear View Mirror Motor

ET21510260

H-003

H-004

H-005

H-006

H-008

H-007

H-001

H-002

B-061

51–

54

51

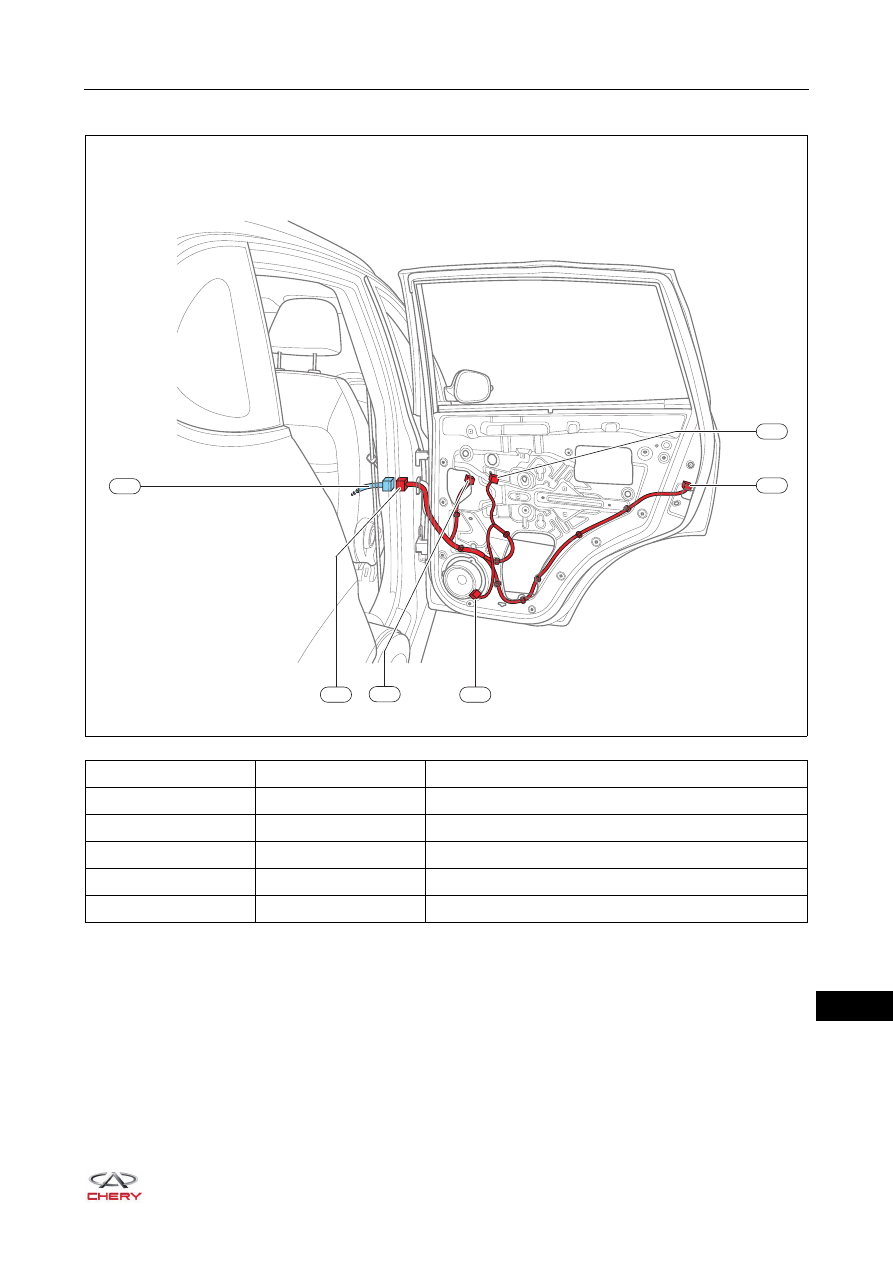

Rear Right Door Wire Harness

Connector Code

Connector Color/Pin

Connector Name

L-001

B/6

Rear Left Door Contact Switch

L-002

B/10

Rear Left Power Window Switch

L-003

B/2

Rear Left Door Speaker

L-004

Gr/2

Rear Left Power Window Regulator Motor

L-005

W/16

to Body Wire Harness Connector B-026

ET21510270

L-005

B-026

L-001

R-003

L-002

L-003

L-004

51–

55

51

Rear Right Door Wire Harness

Connector Code

Connector Color/Pin

Connector Name

R-001

Gr/2

Rear Right Power Window Regulator Motor

R-002

W/16

to Body Wire Harness Connector B-005

R-003

B/10

Rear Right Power Window Switch

R-004

B/6

Rear Right Door Contact Switch

R-005

B/2

Rear Right Door Speaker

ET21510280

R-003

R-004

B-005

R-003

R-002

R-001

R-005

51–

56

51

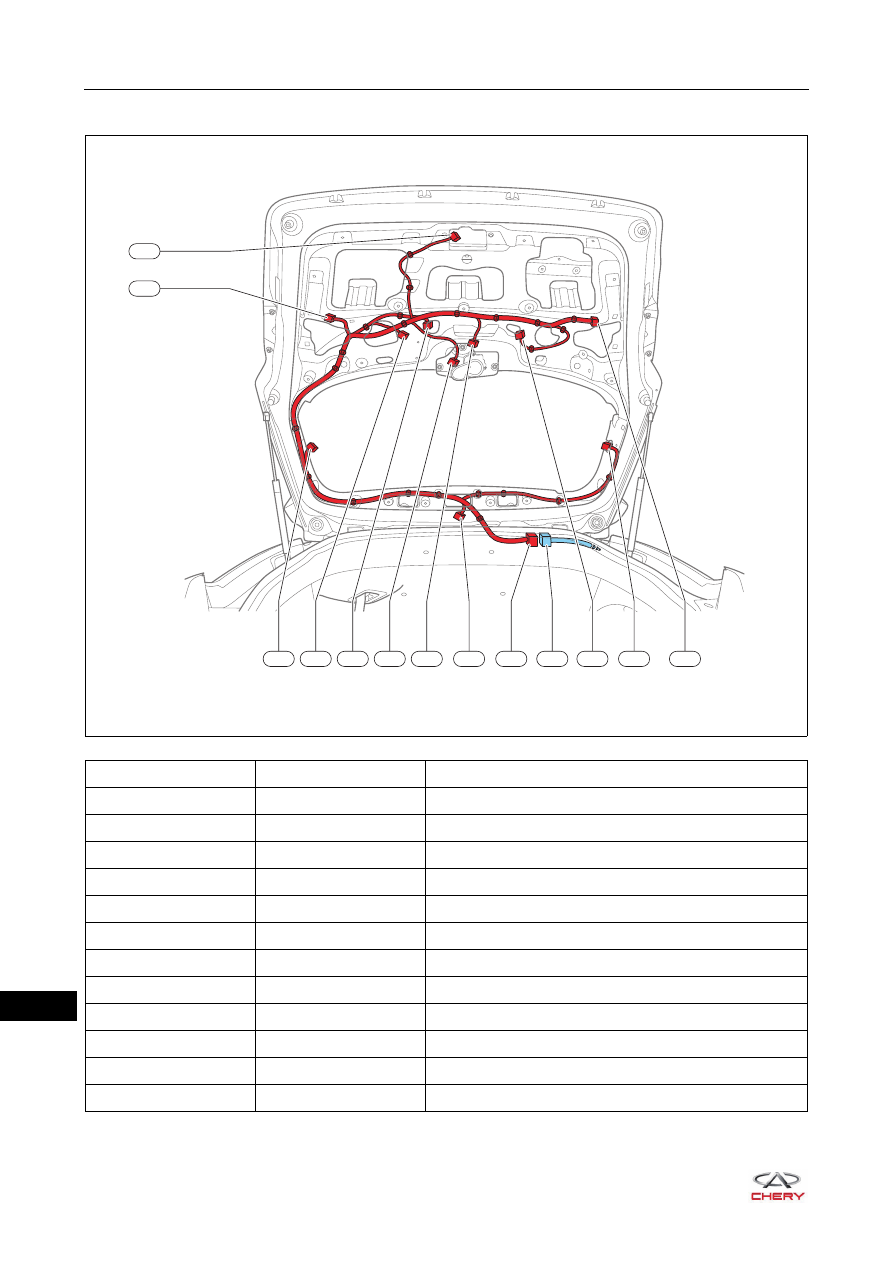

Back Door Wire Harness

Connector Code

Connector Color/Pin

Connector Name

T-001

B/2

Rear Right Combination Light

T-002

B/1

Defroster Negative

T-003

W/2

Right License Plate Light

T-004

W/15

to Body Wire Harness Connector B-012

T-005

W/2

High Mounted Stop Light

T-006

B/2

Back Door Switch

T-007

W/3

Rear Wiper Motor

T-008

W/2

Left License Plate Light

T-009

B/6

Camera

T-010

B/1

Defroster Positive

T-011

B/2

Rear Left Combination Light

T-012

W/6

Back Door Lock

ET21510290

T-001

T-002

T-003

B-012

T-004

T-005

T-006

T-007

T-008

T-009

T-010

T-012

T-011
