Clearance between front apron plate and rear apron plate at
A-30: 8.0 ± 3.0 mm
Flush between front apron plate and rear apron plate at



A-30: 0

 mm

Clearance between front towing hook cover plate and front
bumper at A-31: 0.8 ± 0.5 mm
Flush between front towing hook cover plate and front
bumper at A-31: -0.5 ± 0.5 mm

8.0±3.0

FRONT APRON PLATE

REAR APRON PLATE

0

0

+1.0

RT21500270

+1.0
  0

FRONT TOWING
HOOK COVER PLATE

FRONT BUMPER

0.8±0.5

-0.5

±0.5

RT21500350

50–

20

50

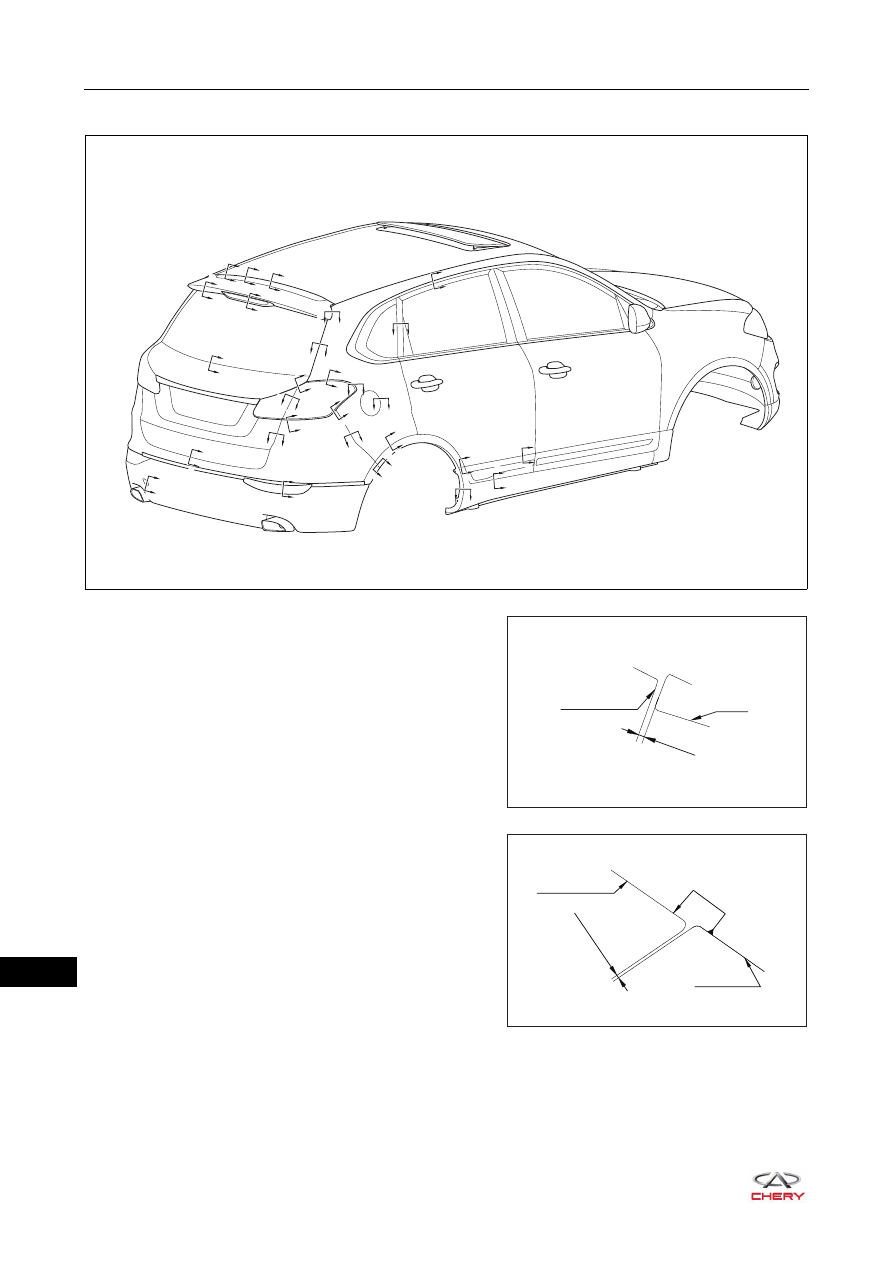

Rear Body Assembly Dimensions

Clearance between rear spoiler and roof at B-1: 8.9 ± 2.0 mm

Clearance between rear spoiler and back door at B-2:
1.5

 mm

Flush between rear spoiler and back door at B-2: -1.5 ± 1.0 mm

RT21500720

B

10

B

17

B

13

B

6

B

28

B

8

B

14

B

18

B

25

B

22

B

7

B

15

B

16

B

24

B

27

B

26

B

1

B

4

B

5

B

2

B

3

B

9

B

12

B

11

B

21

B

23

B

19

B

20

RT21500420

REAR SPOILER

ROOF

8.9±2.0

RT21500430

REAR SPOILER

BACK DOOR

-1.5±1.0

1.5

-1.5

+1.0

+1.0
 -1.5

50–

21

50

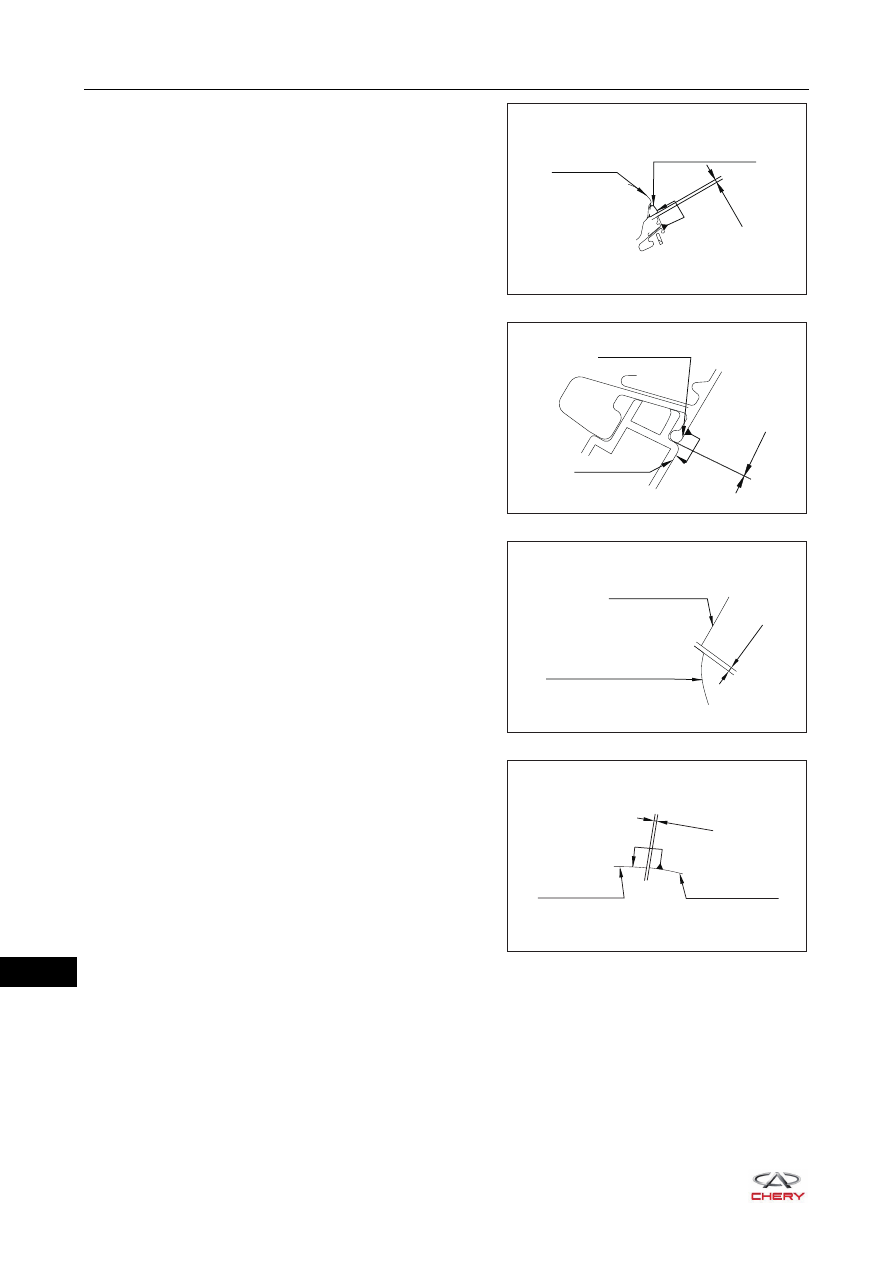

Clearance between back door and roof at B-3: 8.9 ± 2.0 mm
Flush between back door and roof at B-3: -2.0 ± 2.0 mm

Clearance between rear spoiler and rear windshield at B-4:
4.0 ± 2.0 mm

Clearance between rear spoiler and high mounted stop light
at B-5: 1.0 ± 1.0 mm
Flush between rear spoiler and high mounted stop light at



B-5: -1.0 ± 1.0 mm

Clearance between side body outer panel and rear spoiler at
B-6: 8.0 ± 2.0 mm

RT21500450

BACK DOOR

ROOF

8.9±2.0

-2.0±2.0

RT21500410

4.0±2.0

REAR WINDSHIELD

REAR SPOILER

RT21500440

REAR SPOILER

HIGH MOUNTED STOP LIGHT

-1.0±1.0

1.0±1.0

RT21500470

SIDE BODY OUTER PANEL

REAR SPOILER

8.0±2.0

50–

22

50

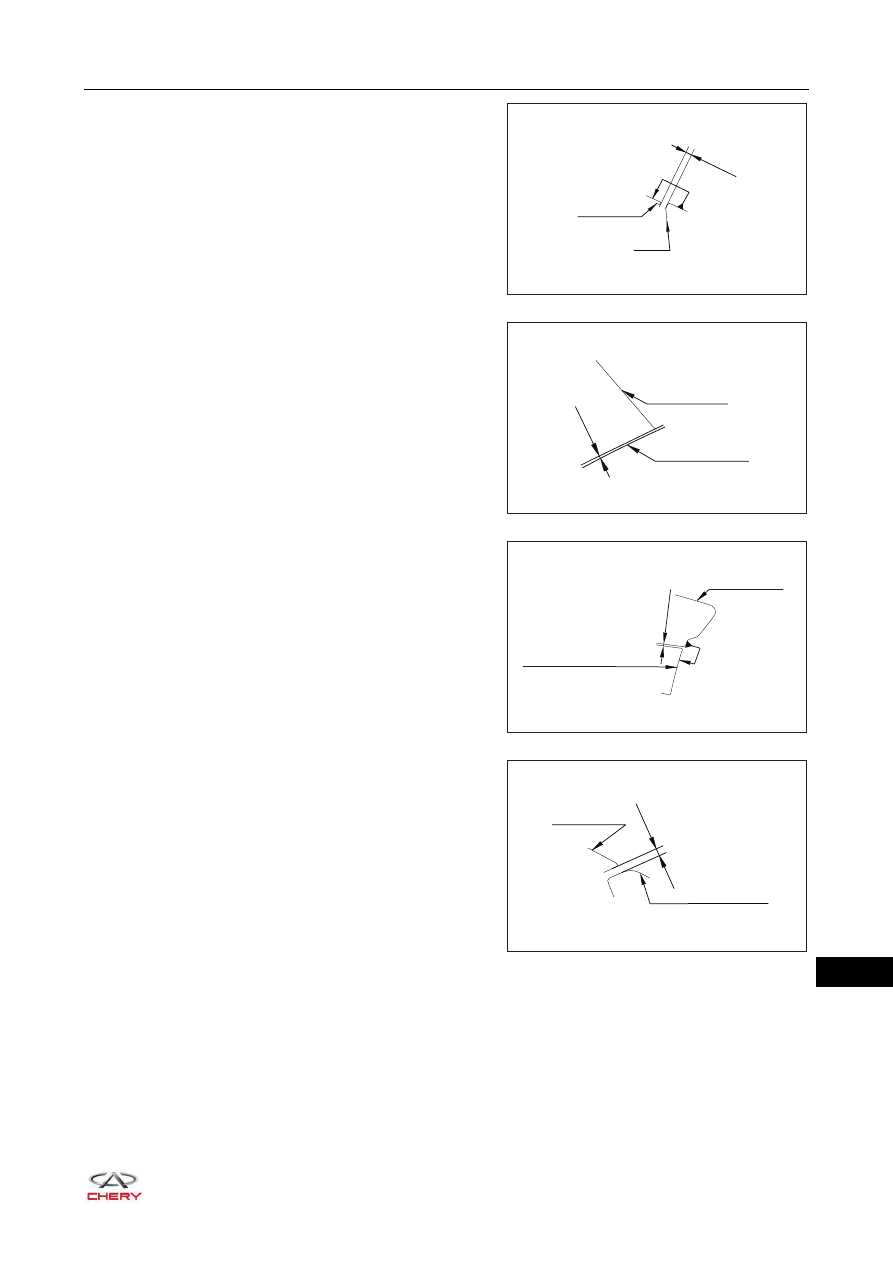

Clearance between side body outer panel and trim panel
garnish at B-7: 4.5 ± 1.2 mm
Flush between side body outer panel and trim panel garnish
at B-7: 1.6 ± 1.2 mm

Clearance between rear door and triangular block at B-8:



0.3 ± 0.2 mm
Flush between rear door and triangular block at B-8:



1.0 ± 0.7 mm

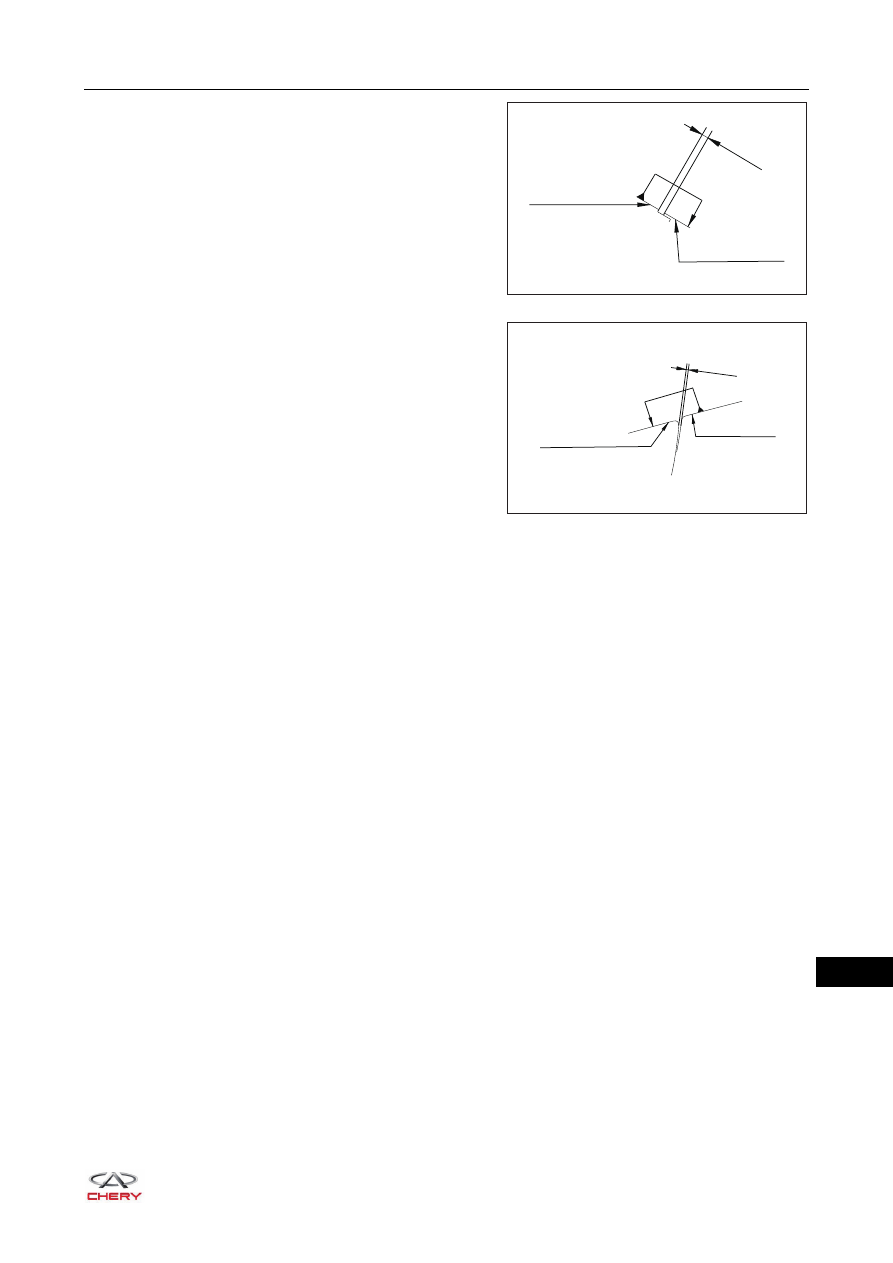

Clearance between rear windshield and back door upper
trim board at B-9: 3.0 ± 1.5 mm

Clearance between rear combination light and rear fog light
at B-10: 4.0 ± 2.0 mm
Flush between rear combination light and rear fog light at



B-10: -0.8 ± 2.0 mm

RT21500480

TRIM PANEL GARNISH

4.5±1.2

1.6±1.2

SIDE BODY
OUTER PANEL

RT21500490

TRIANGULAR BLOCK

REAR DOOR

1.0±0.7

0.3±0.2

3.0±1.5

RT21500670

REAR WINDSHIELD

BACK DOOR UPPER TRIM BOARD

4.0±2.0

-0.8±2.0

RT21500660

REAR FOG LIGHT

REAR
COMBINATION LIGHT
