50–

7

50

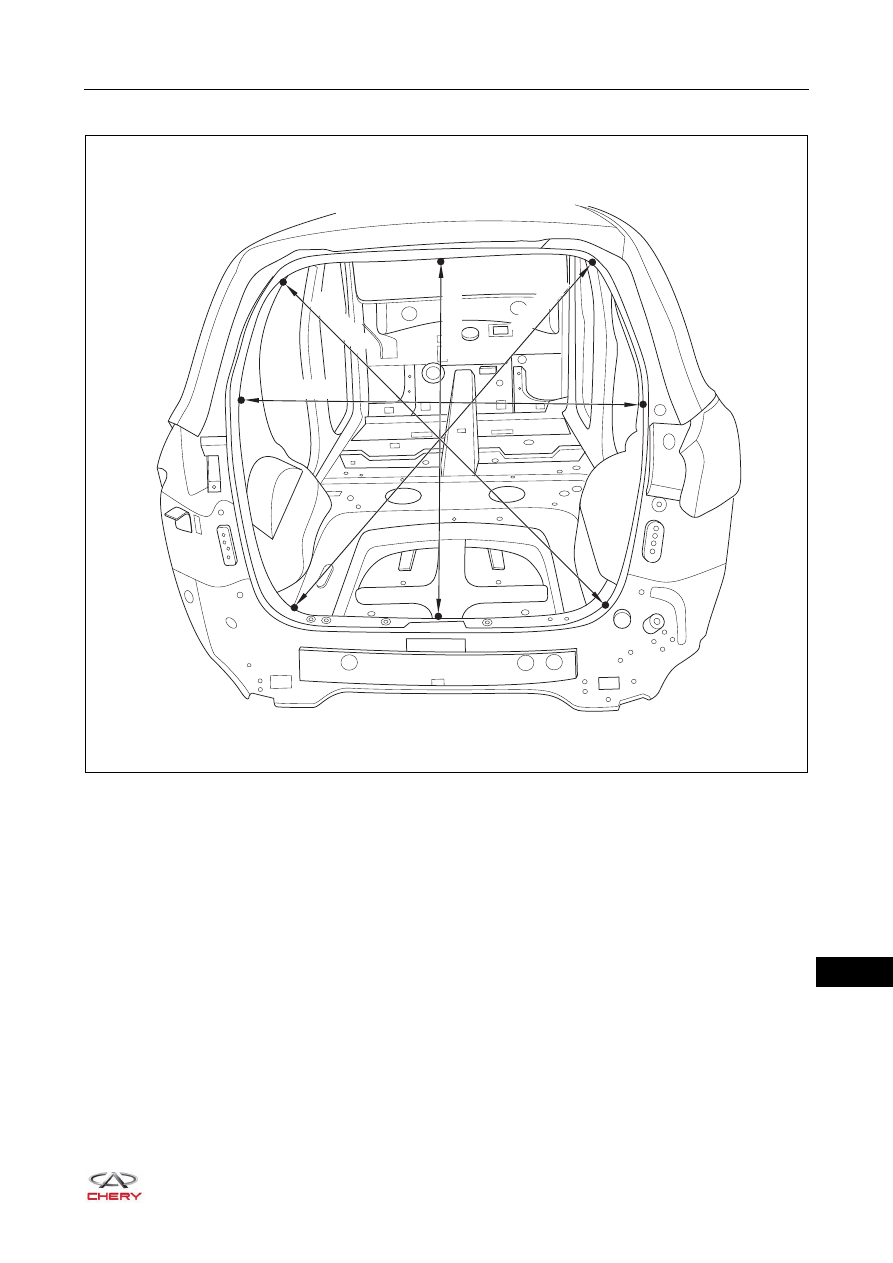

Body Opening Dimensions (Rear View)

RT21500040

1080 mm

1003 mm

1254 mm

1254 mm

50–

8

50

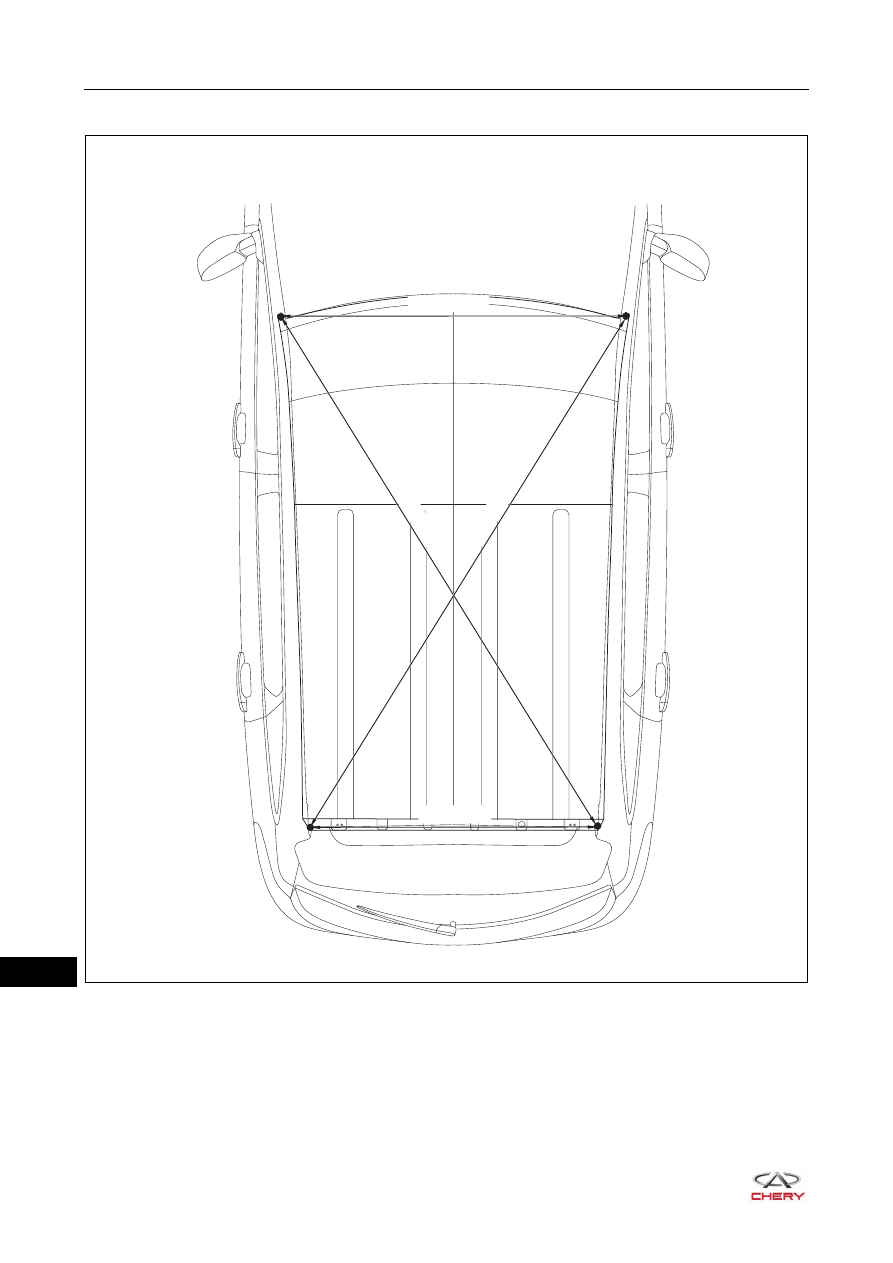

Body Opening Dimensions (Top View)

RT21500050

2222.3 mm

2222.3 mm

1237.4 mm

927.3 mm

50–

9

50

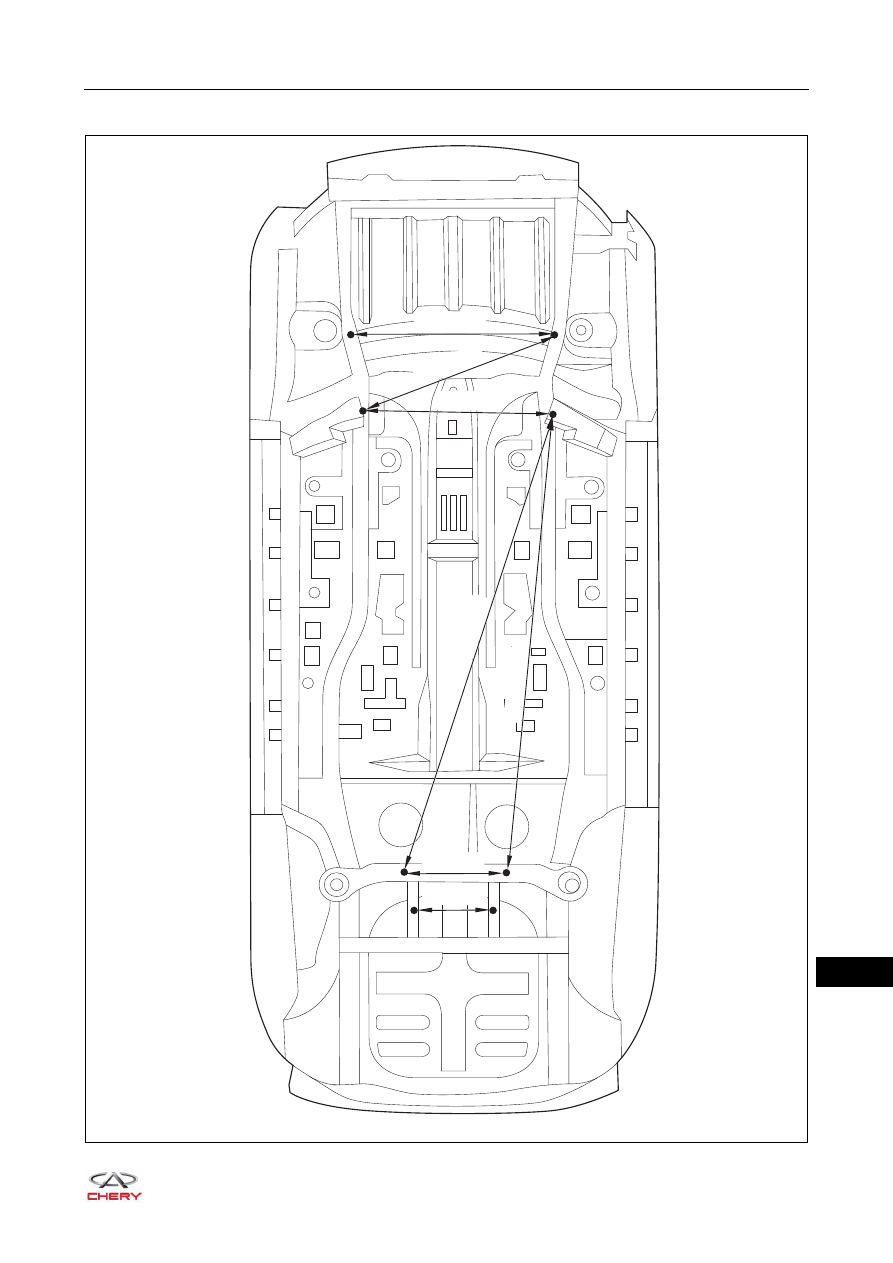

Body Frame Dimensions

RT21500090

912.9 mm

890 mm

952.6 mm

2058.1 mm

460 mm

354 mm

2155.1 mm

50–

10

50

Body Assembly Dimensions

1. Gap is indicated by the standard distance measurement symbol

.

2. Flush measurement method and instructional symbol description:

a. Reference surface is indicated by

.

b. Pointed surface is indicated by

.

c. If the level is higher than the reference surface, the number is positive, whereas negative.
