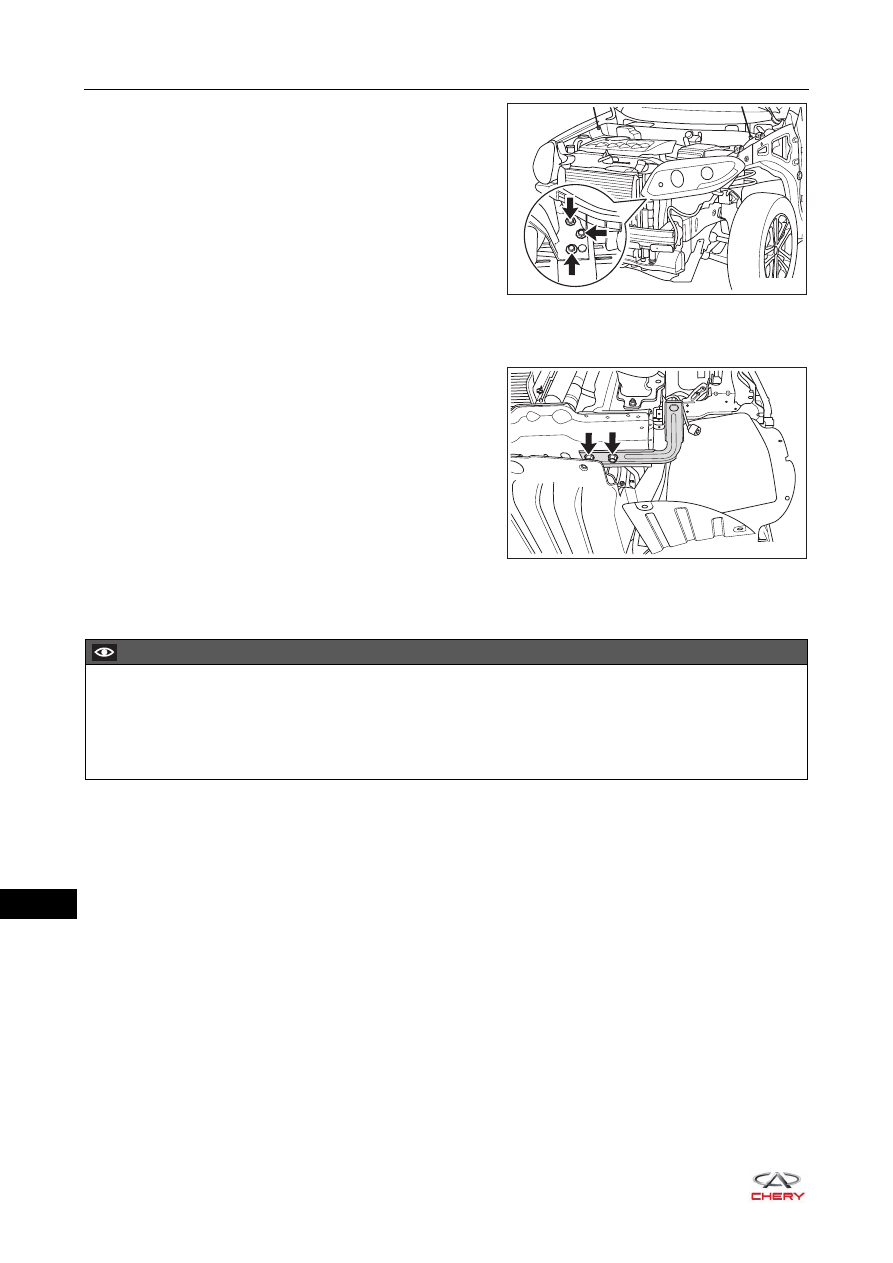

b. Remove 3 fixing bolts (arrow) from the front bumper

upper mounting bracket assembly.



(Tightening torque: 10 ± 1 N·m)

c. Remove the front bumper upper mounting bracket

assembly.

7. Remove the front bumper lower stiffener bracket assembly (

See page 48-16

).

8. Remove the front bumper lower left mounting bracket assembly (take left side as an example).

a. Remove 2 fixing bolts (arrow) from the front bumper

lower mounting bracket assembly.



(Tightening torque: 10 ± 1 N·m)

b. Remove the front bumper lower left mounting bracket

assembly.

Installation

Installation is in the reverse order of removal.

RT21480160

RT21480170

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing front bumper mounting bracket

assembly.

 Try to prevent body paint surface from being scratched when installing front bumper mounting bracket

assembly.

48–

19

48

Front Bumper Crossmember Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front bumper assembly (

See page 48-16

).

4. Remove the horn assembly (

See page 41-8

).

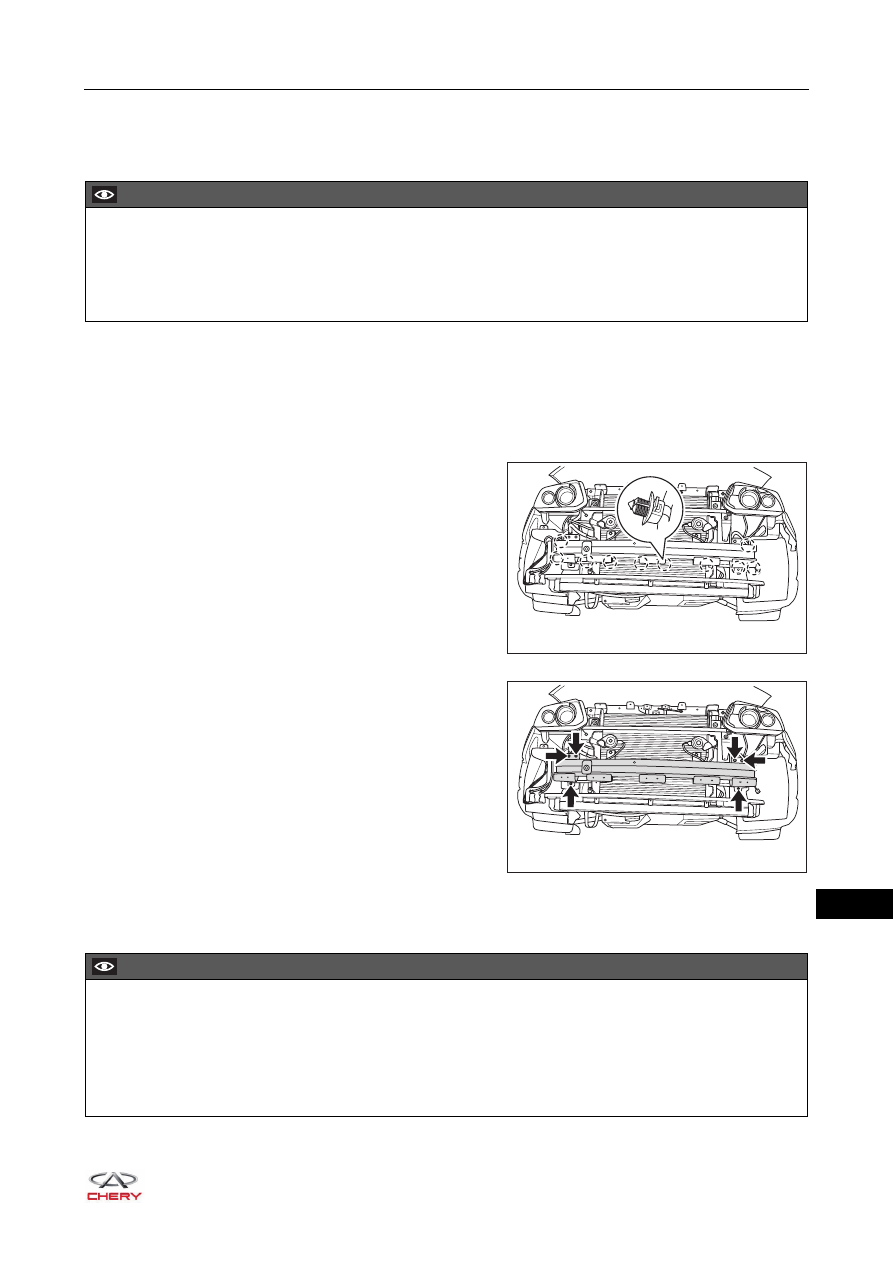

5. Remove the front bumper crossmember assembly.

a. Disengage the wire harness clips from the front

bumper crossmember assembly.

b. Remove 6 fixing nuts (arrow) from the front bumper

crossmember assembly.



(Tightening torque: 23 ± 2 N·m)

c. Remove the front bumper crossmember assembly.

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing front bumper crossmember

assembly.

 Try to prevent body paint surface from being scratched when removing front bumper crossmember

assembly.

RT21480180

RT21480190

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing front bumper crossmember

assembly.

 Try to prevent body paint surface from being scratched when installing front bumper crossmember

assembly.

 Front bumper crossmember assembly should not be loose, shaking and deformed after installing it.

48–

20

48

Wheel Flare Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

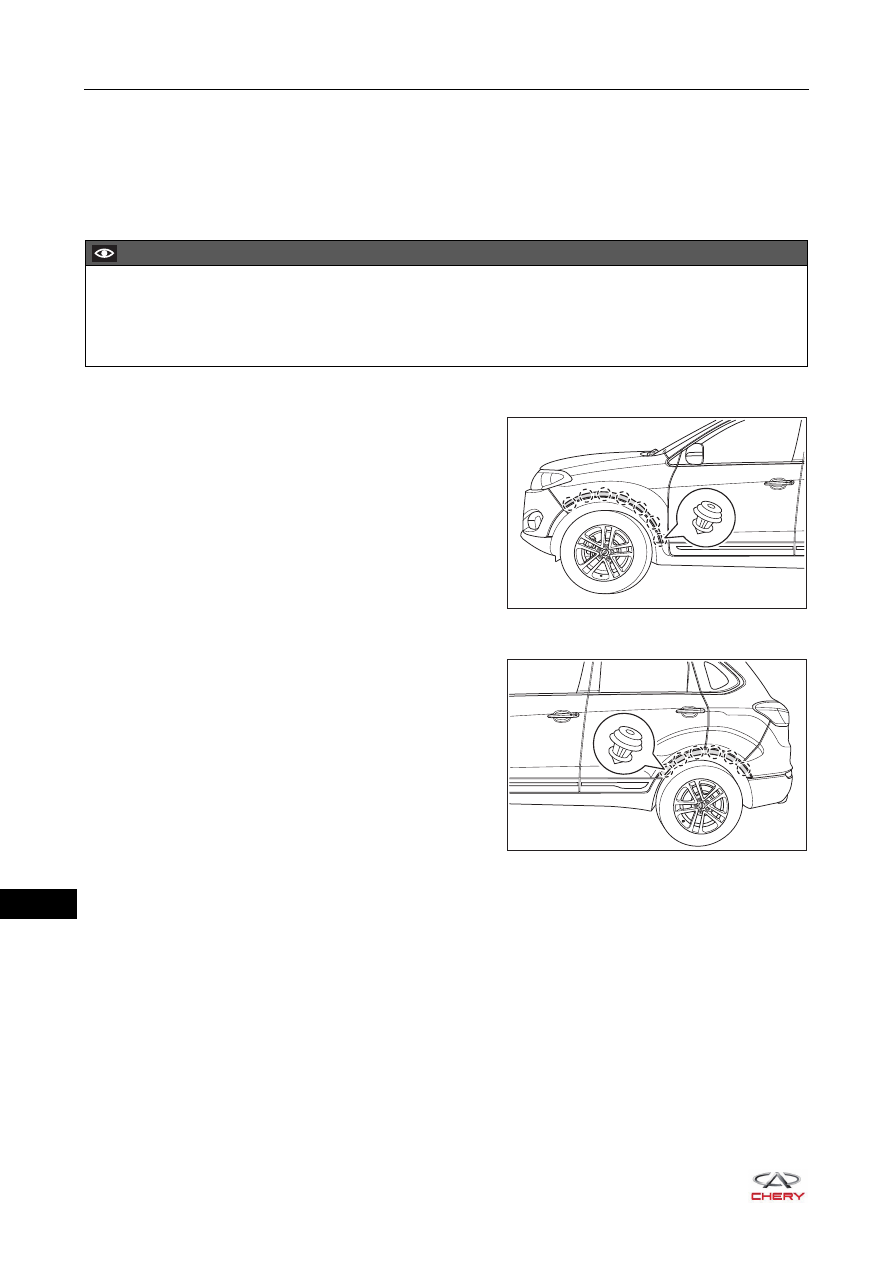

1. Remove the front left wheel flare assembly.

a. Remove the clips from the front left wheel flare

assembly.

b. Remove the front left wheel flare assembly.

2. Remove the rear left wheel flare assembly.

a. Remove the clips from the rear left wheel flare

assembly.

b. Remove the rear left wheel flare assembly.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing wheel flare assembly.
 Appropriate force should be applied when removing the wheel flare assembly, and operate carefully.
 Try to prevent body paint surface from being scratched when removing wheel flare assembly.

RT21480191

RT21480192

48–

21

48

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing wheel flare assembly.
 Try to prevent body paint surface from being scratched when installing wheel flare assembly.
 Make sure damaged clips are replaced and wheel flare assembly is installed in place when installing

wheel flare assembly.
