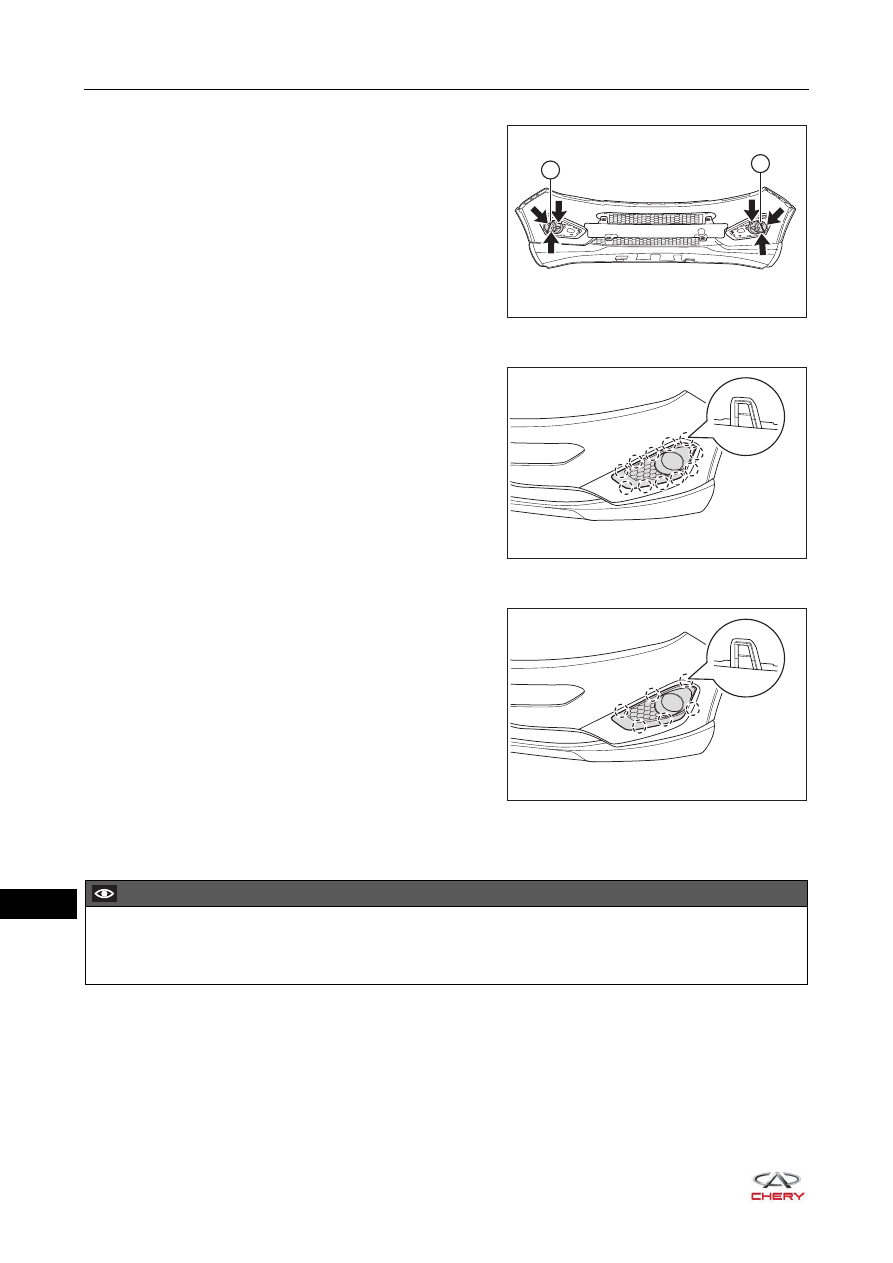

5. Remove the front fog light assembly.

a. Remove 6 fixing crews (arrow) from the front fog light

assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

b. Remove the front left fog light assembly (1) and front

right fog light assembly (2) from the front bumper
assembly.

6. Remove the front left fog light cover garnish (take left side as an example).

a. Using a screwdriver wrapped with protective tape, pry

up the claws on front left fog light cover garnish.

b. Remove the front left fog light cover garnish from the

front bumper assembly.

7. Remove the front left fog light cover (take left side as an example).

a. Using a screwdriver wrapped with protective tape, pry

up the claws on front left fog light cover.

b. Remove the front left fog light cover from the front

bumper assembly.

Assembly

Assembly is in the reverse order of disassembly.

RT21480120

1

2

RT21480130

RT21480140

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing front bumper assembly.
 Try to prevent body paint surface from being scratched when installing front bumper assembly.

48–

15

48

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing front bumper assembly.
 Try to prevent body paint surface from being scratched when installing front bumper assembly.
 Make sure that front bumper is installed correctly and fitting clearance between front bumper and body is

appropriate when installing front bumper assembly.

48–

16

48

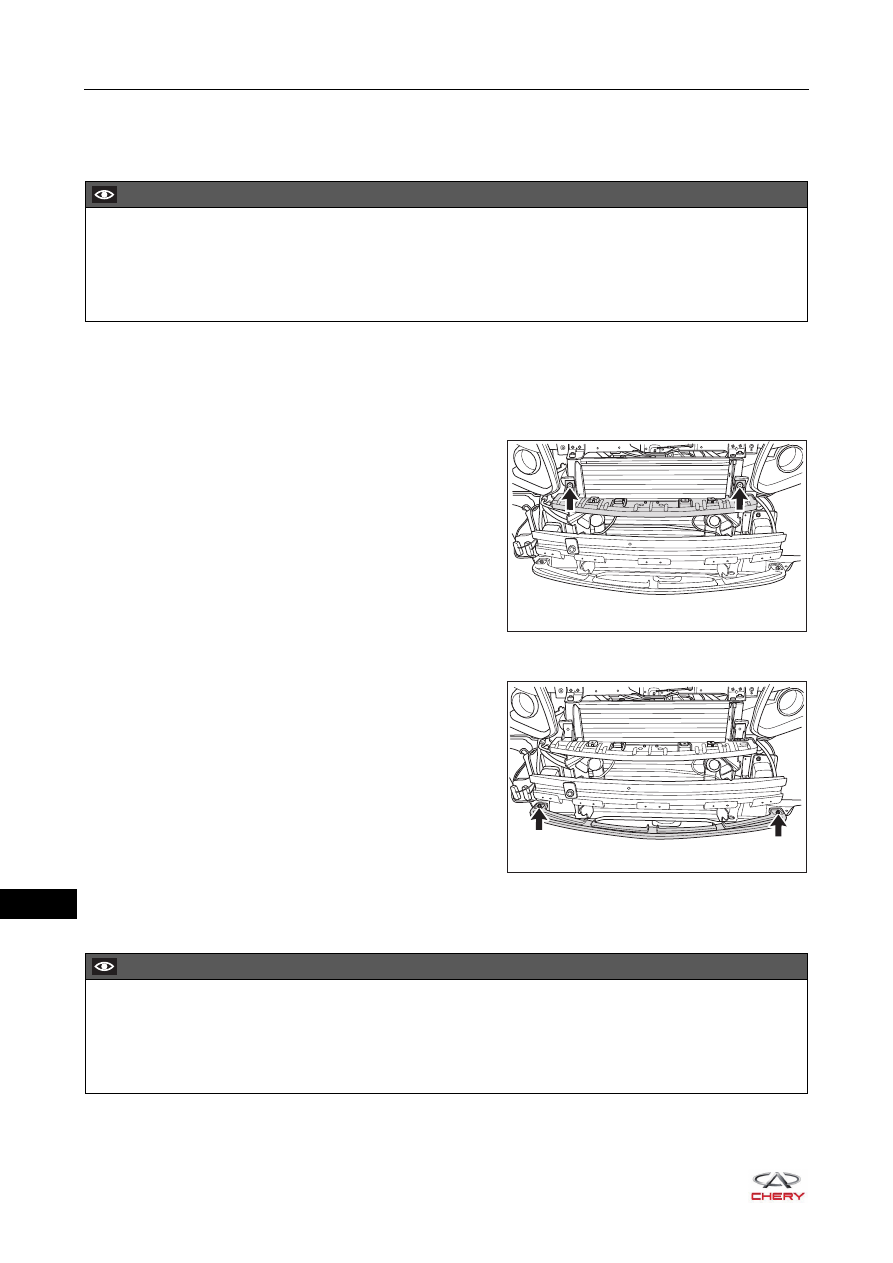

Front Bumper Stiffener Bracket Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front bumper assembly (

See page 48-11

).

4. Remove the front bumper center stiffener bracket assembly.

a. Remove 2 fixing bolts (arrow) from the front bumper

center stiffener bracket assembly.



(Tightening torque: 10 ± 1 N·m)

b. Remove the front bumper center stiffener bracket

assembly.

5. Remove the front bumper lower stiffener bracket assembly.

a. Remove 2 fixing nuts (arrow) from the front bumper

lower stiffener bracket assembly.



(Tightening torque: 10 ± 1 N·m)

b. Remove the front bumper lower stiffener bracket

assembly.

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing front bumper stiffener bracket

assembly.

 Try to prevent body paint surface from being scratched when removing front bumper stiffener bracket

assembly.

RT21480200

RT21480201

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing front bumper stiffener bracket

assembly.

 Try to prevent body paint surface from being scratched when installing front bumper stiffener bracket

assembly.

48–

17

48

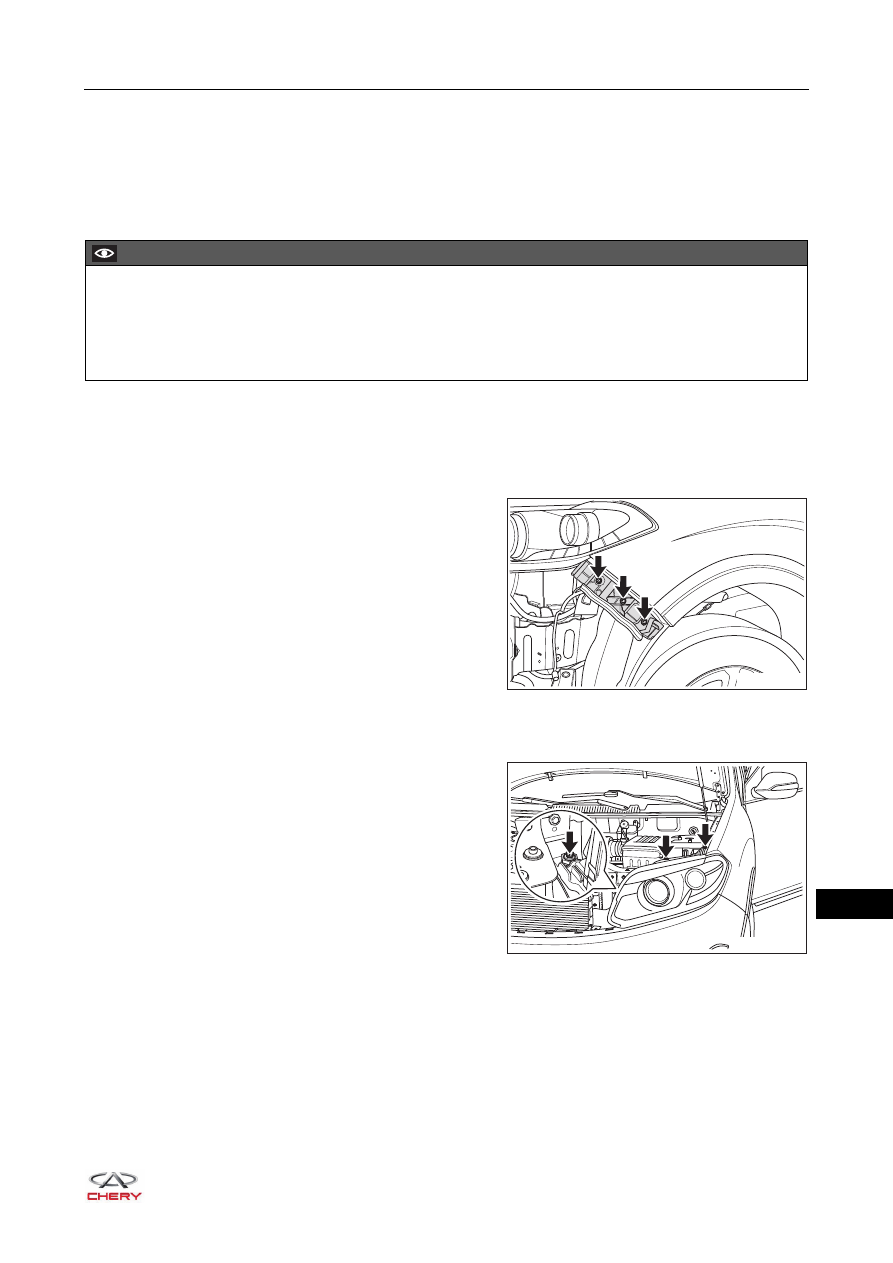

Front Bumper Mounting Bracket Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front bumper assembly (

See page 48-11

).

4. Remove the front bumper left mounting bracket assembly.

a. Remove 3 fixing bolts (arrow) from the front bumper

left mounting bracket assembly.



(Tightening torque: 10 ± 1 N·m)

b. Remove the front bumper left mounting bracket

assembly.

5. Remove the front bumper center stiffener bracket assembly (

See page 48-16

).

6. Remove the front bumper left mounting bracket assembly (take left side as an example).

a. Remove 3 fixing bolts (arrow) from the headlight.



(Tightening torque: 3.5 ± 0.5 N·m)

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing front bumper mounting bracket

assembly.

 Try to prevent body paint surface from being scratched when removing front bumper mounting bracket

assembly.

RT21480150

RT21480151
