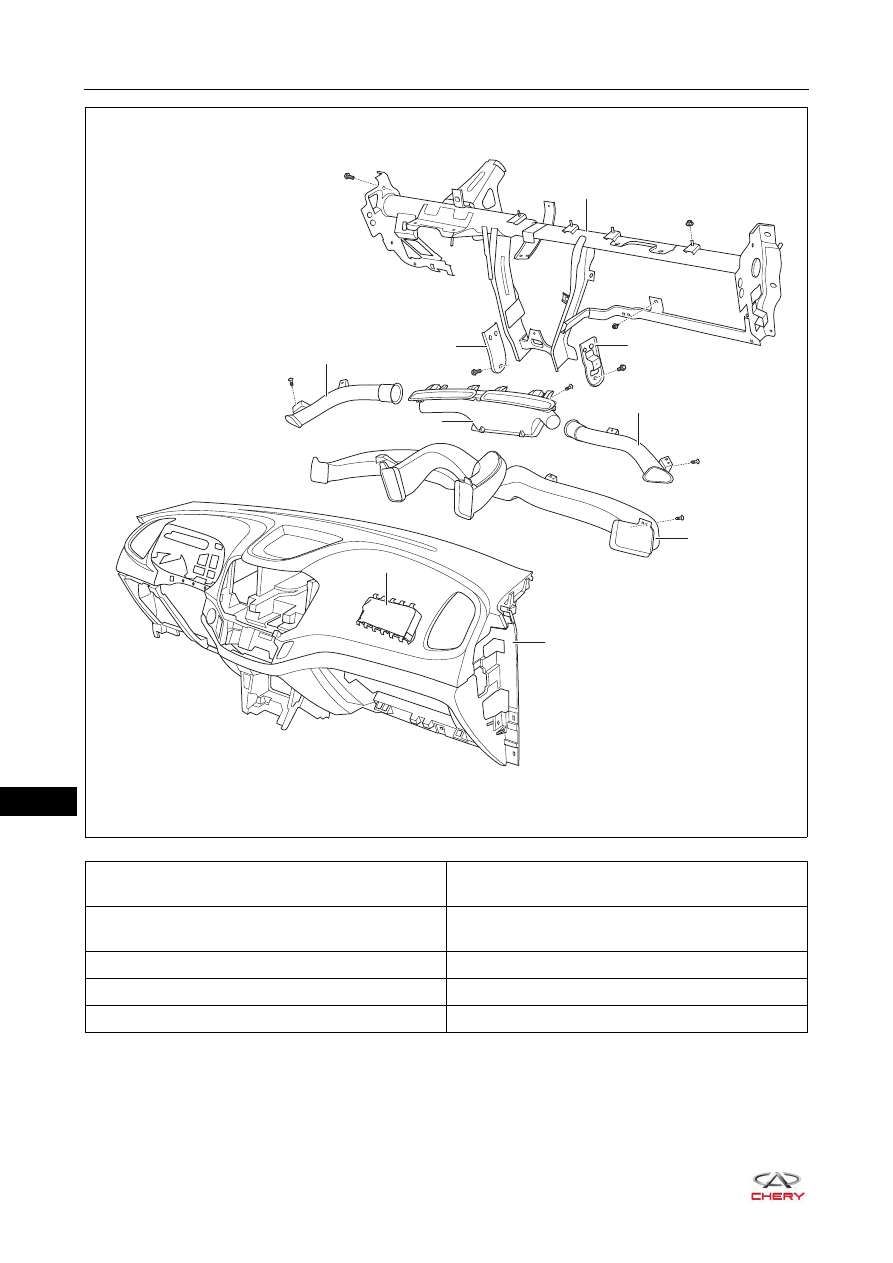

Instrument panel of this model consists of instrument panel assembly, auxiliary fascia console assembly and
instrument panel crossmember system.

1 - Instrument Panel Crossmember Assembly

2 - Instrument Panel Crossmember Lower Left

Bracket Assembly

3 - Instrument Panel Crossmember Lower Right

Bracket Assembly

4 - Left Defroster Duct Assembly

5 - Center Defroster Duct Assembly

6 - Right Defroster Duct Assembly

7 - Face Air Duct Assembly

8 - Instrument Panel Assembly

9 - Front Passenger Airbag

RT21450030

7

8

3

5

2

4

6

9

1

×8

×2

×2

×6

×3

×3

×2

×5

×4

45–

7

45

Specifications

Torque Specifications

Description

Torque (N·m)

Auxiliary Fascia Console Front Protector Fixing Bolt

5 ± 1

Auxiliary Fascia Console Assembly Fixing Screw

1.5 ± 0.5

Auxiliary Fascia Console Assembly Fixing Bolt

5 ± 1

Front Storage Box Fixing Screw

1.5 ± 0.5

Armrest Box Assembly Fixing Screw

1.5 ± 0.5

Auxiliary Fascia Console Rear Cover Plate
Assembly Fixing Screw

1.5 ± 0.5

Cup Holder Assembly Fixing Screw

1.5 ± 0.5

Auxiliary Fascia Console Front Trim Ring Fixing
Screw

1.5 ± 0.5

Gear Backlight Fixing Screw

1.5 ± 0.5

Instrument Panel Lower Left Protector Assembly
Fixing Screw

2 ± 0.5

Front Passenger Airbag Assembly Fixing Bolt

10 ± 1

Instrument Panel Assembly Fixing Bolt

7 ± 1

Face Air Duct Assembly Fixing Screw

1.5 ± 0.5

Defroster Duct Assembly Fixing Screw

1.5 ± 0.5

Center Defroster Duct Assembly Fixing Screw

1.5 ± 0.5

Instrument Panel Right Outlet Assembly Fixing
Screw

1.5 ± 0.5

Instrument Panel Fuse and Relay Box Fixing Bolt

7 ± 1

Connector Mounting Bracket Fixing Bolt

7 ± 1

Diagnostic Interface Fixing Screw

1.5

Smart Entry Start Controller Fixing Nut

7 ± 1

Instrument Panel Crossmember Lower Bracket
Assembly

25 ± 3

Steering Column Assembly Fixing Nut

25 ± 3

Steering Column Assembly Fixing Bolt

25 ± 3

Blower Fixing Bolt

4 ± 1

Ground Wire Fixing Nut

15 ± 2

Instrument Panel Crossmember Assembly Fixing
Bolt

25 ± 3

Instrument Panel Crossmember Assembly Fixing
Nut

7 ± 1

Instrument Panel Crossmember Assembly Fixing
Screw

7 ± 1

Instrument Panel Crossmember Bracket Assembly
Fixing Bolt

25 ± 3

45–

8

45

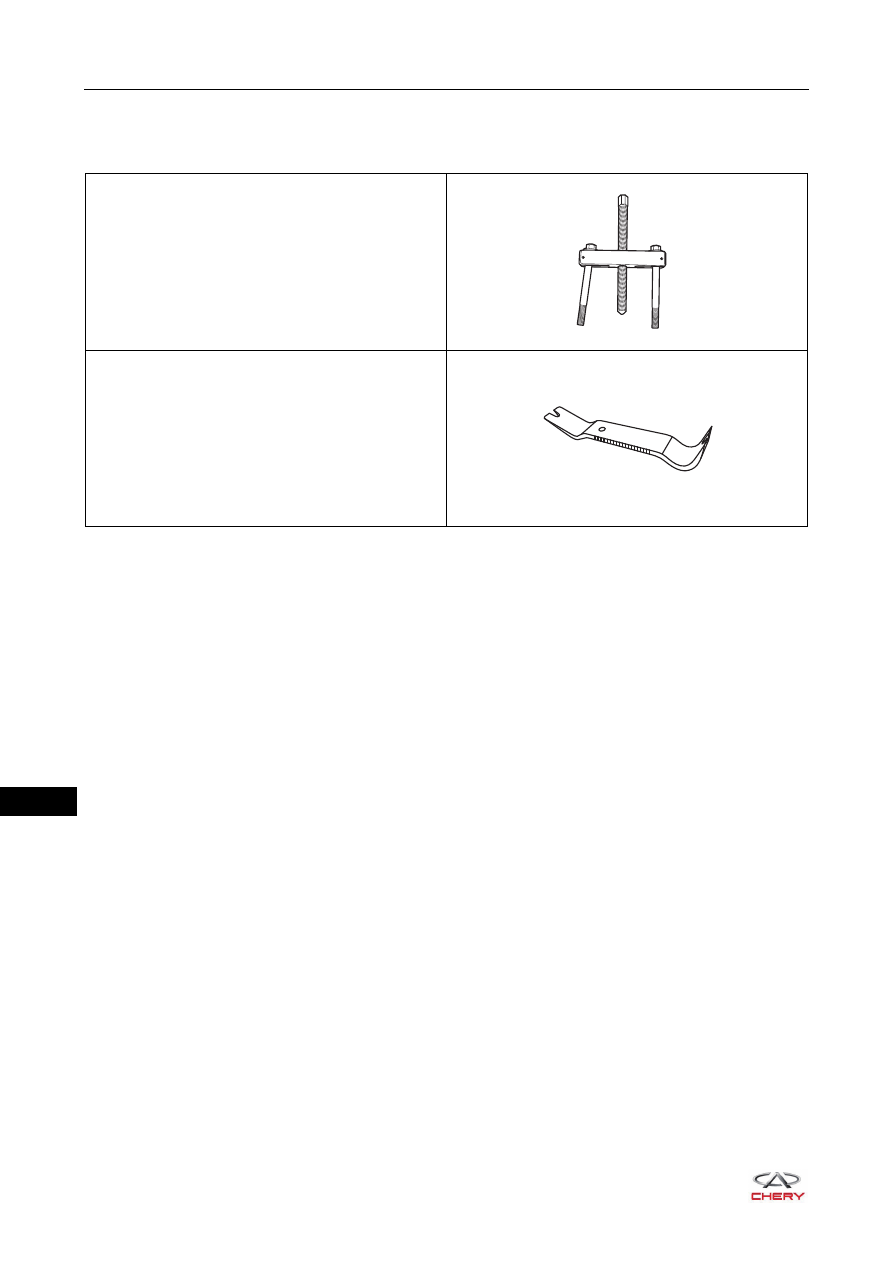

Tools

Special Tools

Steering Wheel Remover

Interior Crow Plate

RCH0000014

RCH0000025

45–

9

45

ON-VEHICLE SERVICE

Auxiliary Fascia Console Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the portable ashtray assembly.

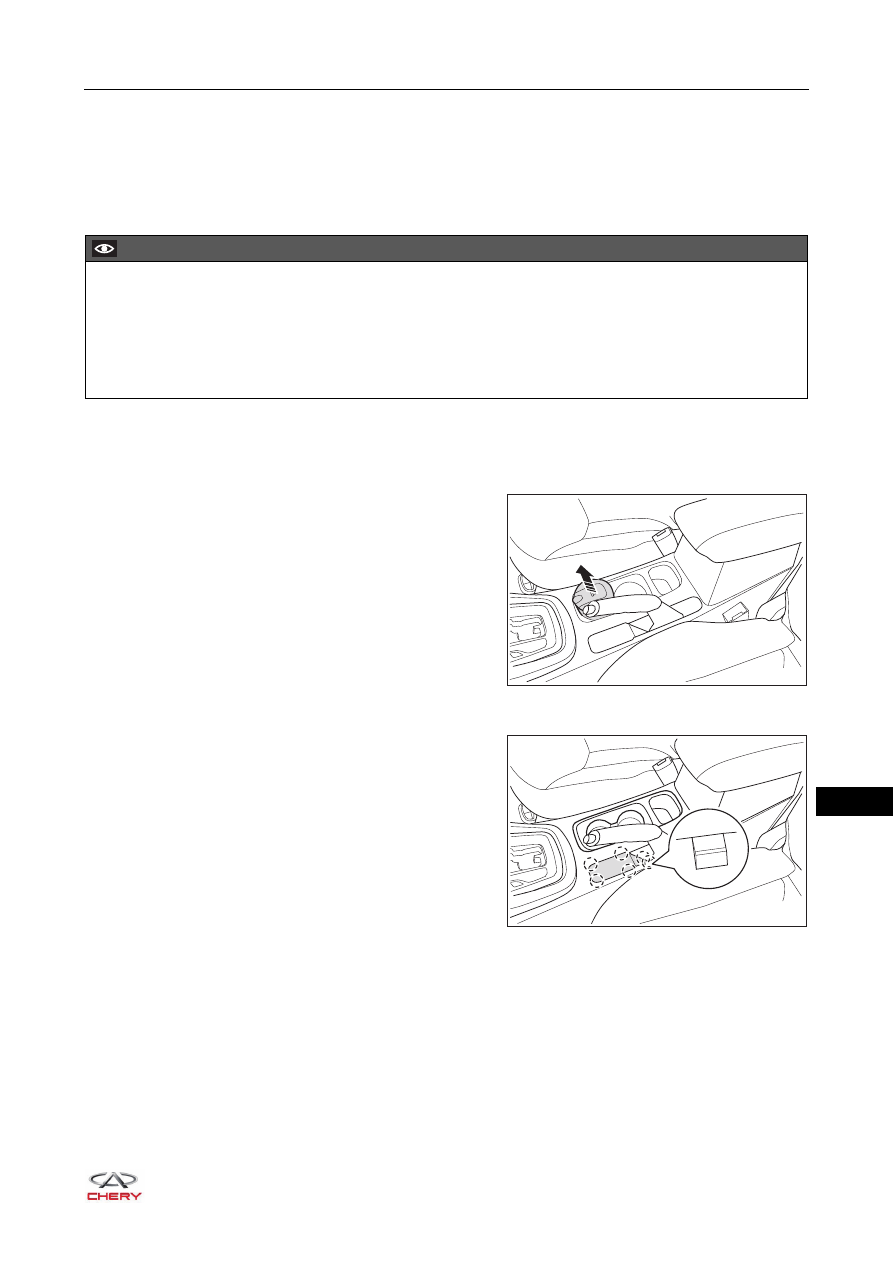

a. Remove the portable ashtray assembly in the

direction of arrow as shown in the illustration.

4. Remove the parking brake garnish.

a. Using a screwdriver wrapped with protective tape, pry

up the claws on parking brake garnish, and remove
the parking brake garnish.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing auxiliary fascia console

assembly.

 Appropriate force should be applied when removing auxiliary fascia console assembly. Be careful not to

operate roughly.

 DO NOT scratch interior and body paint when removing auxiliary fascia console assembly.

RT21450040

RT21450050
