INSTRUMENT PANEL

GENERAL INFORMATION

Description

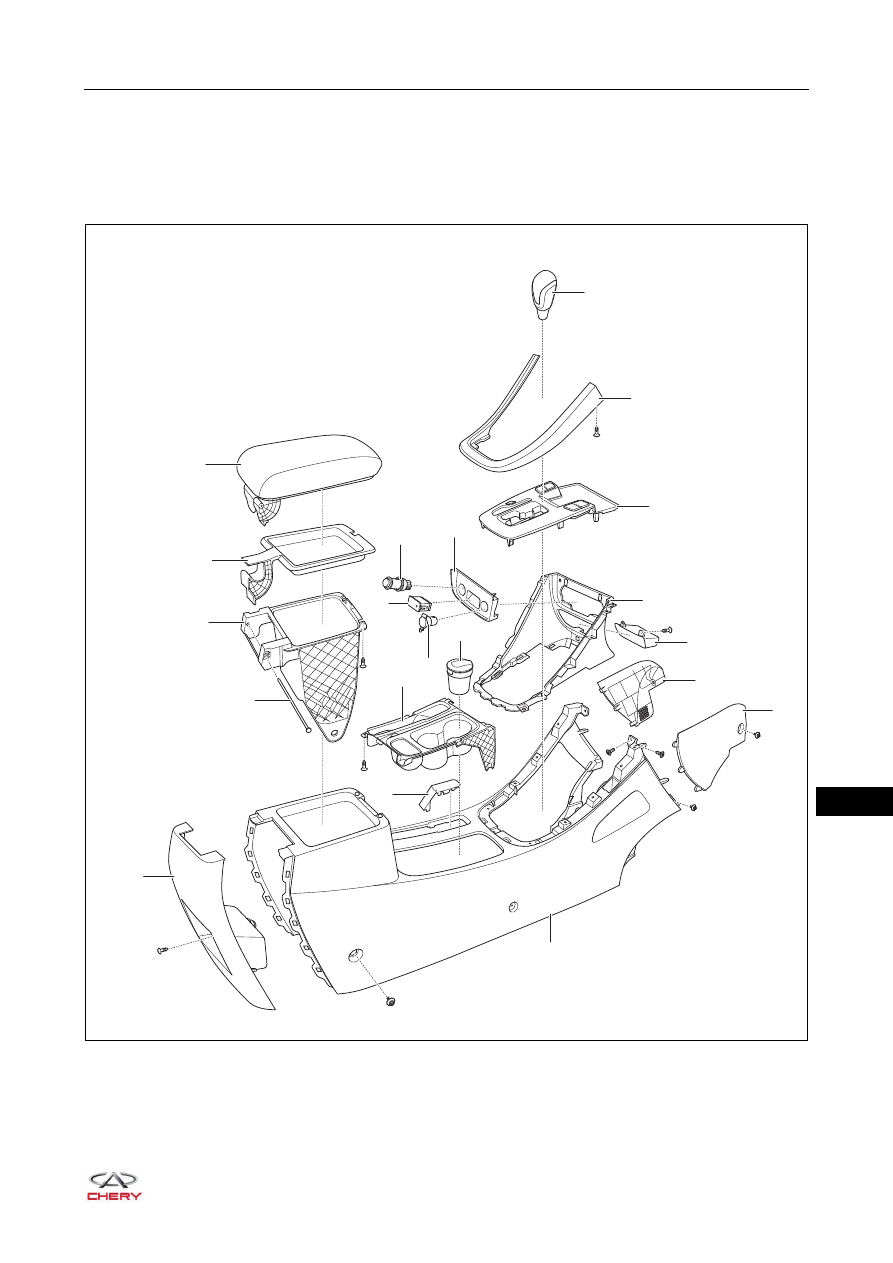

Auxiliary Fascia Console Assembly

RT21450010

×2

×4

×10

×9

×4

×4

×2

×2

×2

1

2

3

4

5

6

7

9

8

15

16

13

11

12

18

17

19

20

14

10

45–

4

45

1 - Shift Knob

2 - Auxiliary Fascia Console Front Trim Ring

3 - Gearshift Cover Plate Assembly

4 - Auxiliary Fascia Console Front Inner Protector

Assembly

5 - Front Storage Box

6 - Auxiliary Fascia Console Front Left Protector

7 - Auxiliary Fascia Console Front Right Protector

8 - Auxiliary Fascia Console Assembly

9 - Auxiliary Fascia Console Rear Cover Plate

Assembly

10 - Parking Brake Garnish

11 - Cup Holder Assembly

12 - Backup Power Supply Assembly

13 - Portable Ashtray Assembly

14 - Multifunctional Interface

15 - Cigarette Lighter Assembly

16 - USB Panel Assembly

17 - Hinge Shaft

18 - Armrest Box Assembly

19 - Armrest Inner Storage Box

20 - Armrest Box Cover Assembly

45–

5

45

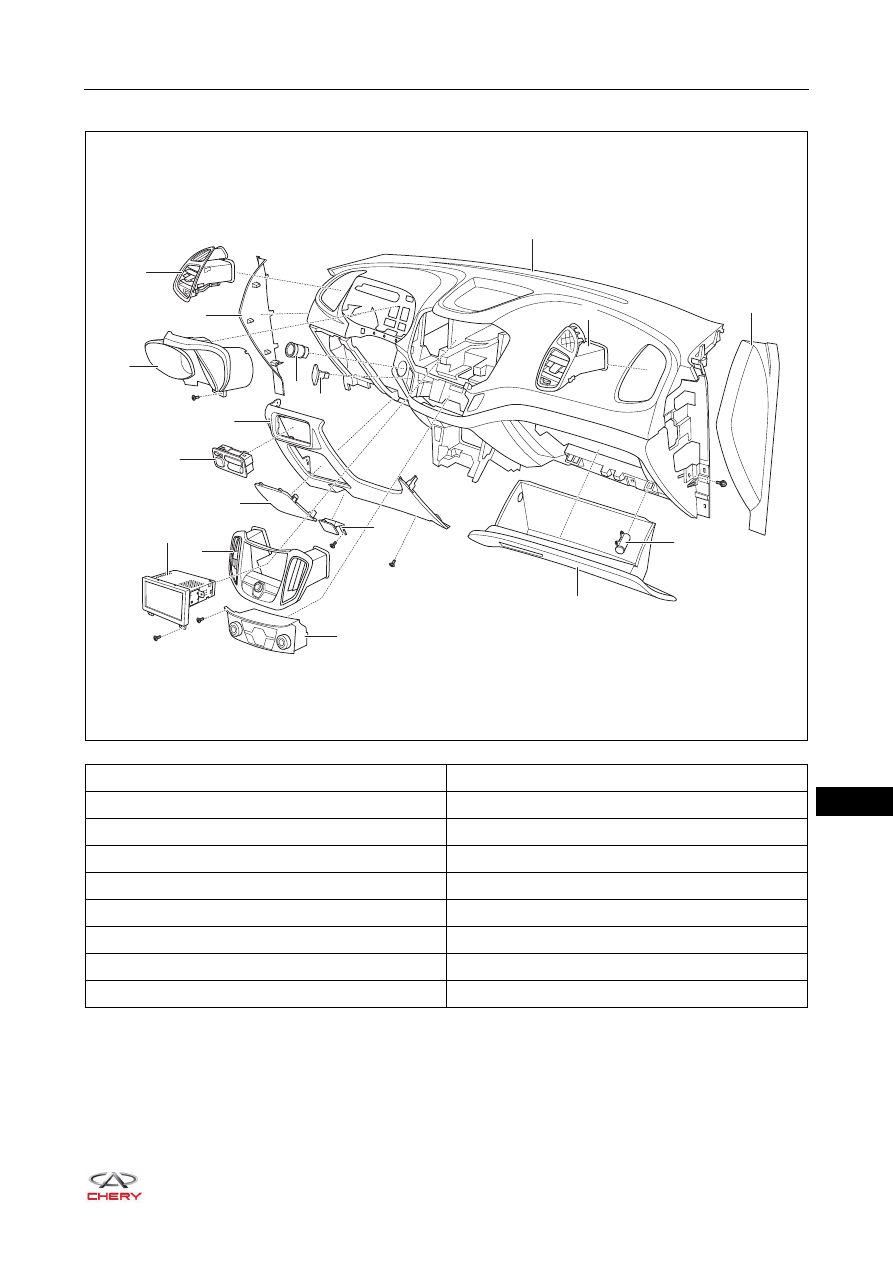

Instrument Panel Assembly

1 - Instrument Panel Assembly

2 - Instrument Panel Right End Panel Assembly

3 - Damper Assembly

4 - Glove Box Assembly

5 - Hood Grip Assembly

6 - A/C Control Panel Assembly

7 - No Disc DVD Assembly

8 - DVD Panel Assembly

9 - Fuse Box Cover

10 - Combination Light Adjust Switch Panel

11 - Instrument Panel Lower Left Protector Assembly 12 - Instrument Cluster

13 - Hazard Warning Light

14 - Engine Switch

15 - Instrument Panel Left End Panel Assembly

16 - Instrument Panel Left Outlet Assembly

17 - Instrument Panel Right Outlet Assembly
