Triangular Window Glass Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the C-pillar upper protector assembly (

See page 49-26

).

4. Remove the triangular window glass trim board.
5. Remove the triangular window glass assembly.

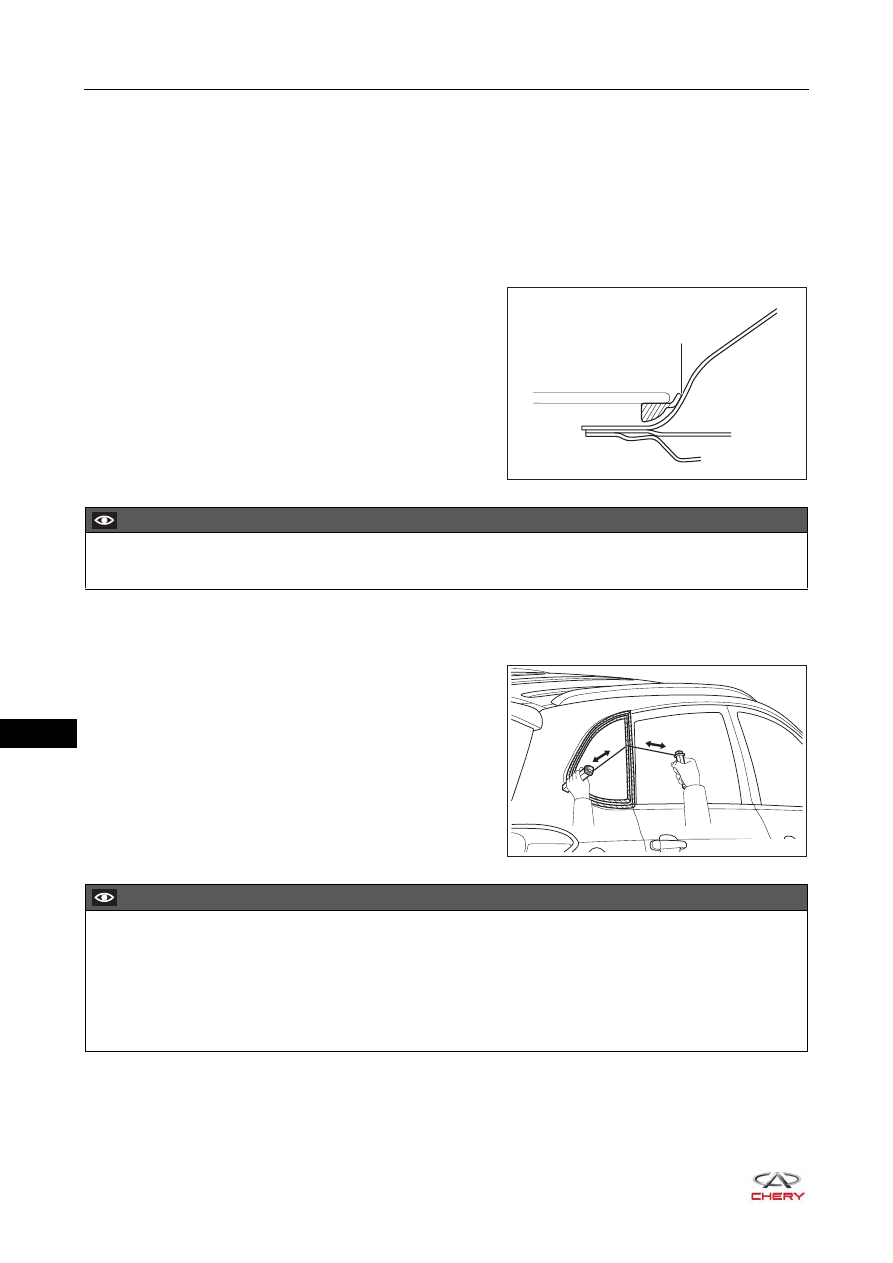

a. Cut the adhesive with a knife.

b. Apply protective tape to the outer surface of body to prevent scratches.
c. Pass a piano wire through the seam between body and triangular window glass assembly.
d. Tie wooden blocks or similar objects to both piano

wire ends, cut off adhesive by pulling the piano wire
around triangular window glass assembly, and
remove the triangular window glass assembly.

Cut

RT21430300

CAUTION

 Try to prevent body paint surface from being scratched when cutting the adhesive.

RT21430310

CAUTION

 When removing triangular window glass assembly, two technicians are required.
 DO NOT drop the triangular window glass assembly when removing it.
 Leave as much adhesive on body as possible when cutting the adhesive.
 When separating the triangular window glass assembly from vehicle, be careful not to damage the body

paint or interior/exterior ornaments.

43–

65

43

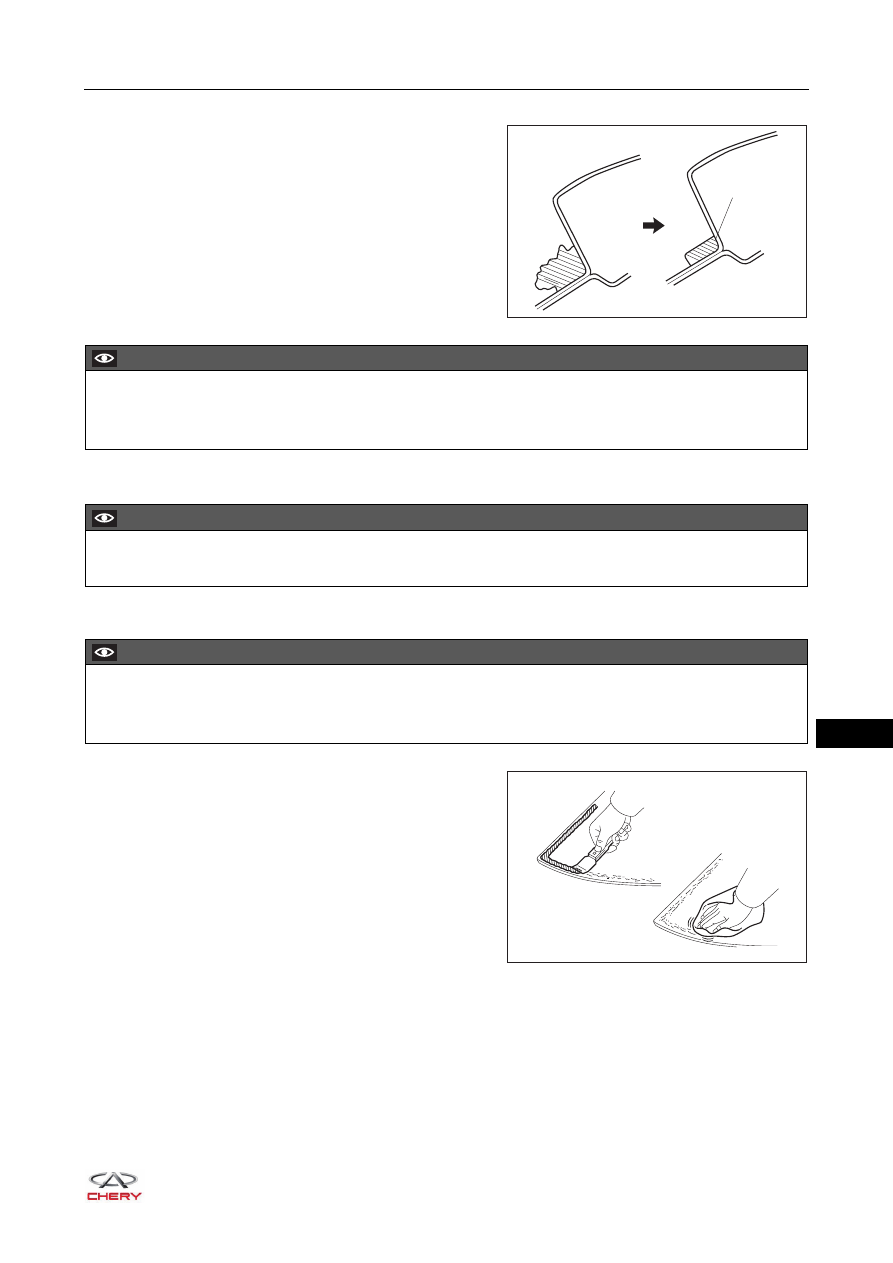

6. Clean the vehicle body.

a. Using a knife, cut away excess adhesive on the

contact surface of vehicle body as shown in the
illustration.

b. Clean the contact surface of vehicle body with cleaner.

7. Clean the removed glass.

a. Remove the adhesive sticking to glass with a scraper.
b. Clean the outer edges of glass with glass cleaner.

Adhesive

RT21430320

CAUTION

 Try to prevent body paint surface from being scratched when cutting the adhesive.
 Leave as much adhesive on body as possible when cutting the adhesive.

CAUTION

 Even if all adhesive has been removed, cleaning of vehicle would be necessary.

CAUTION

 DO NOT touch the glass after cleaning it.
 Even if new glass is used, it is necessary to clean it with glass cleaner.

RT21430330

43–

66

43

Installation

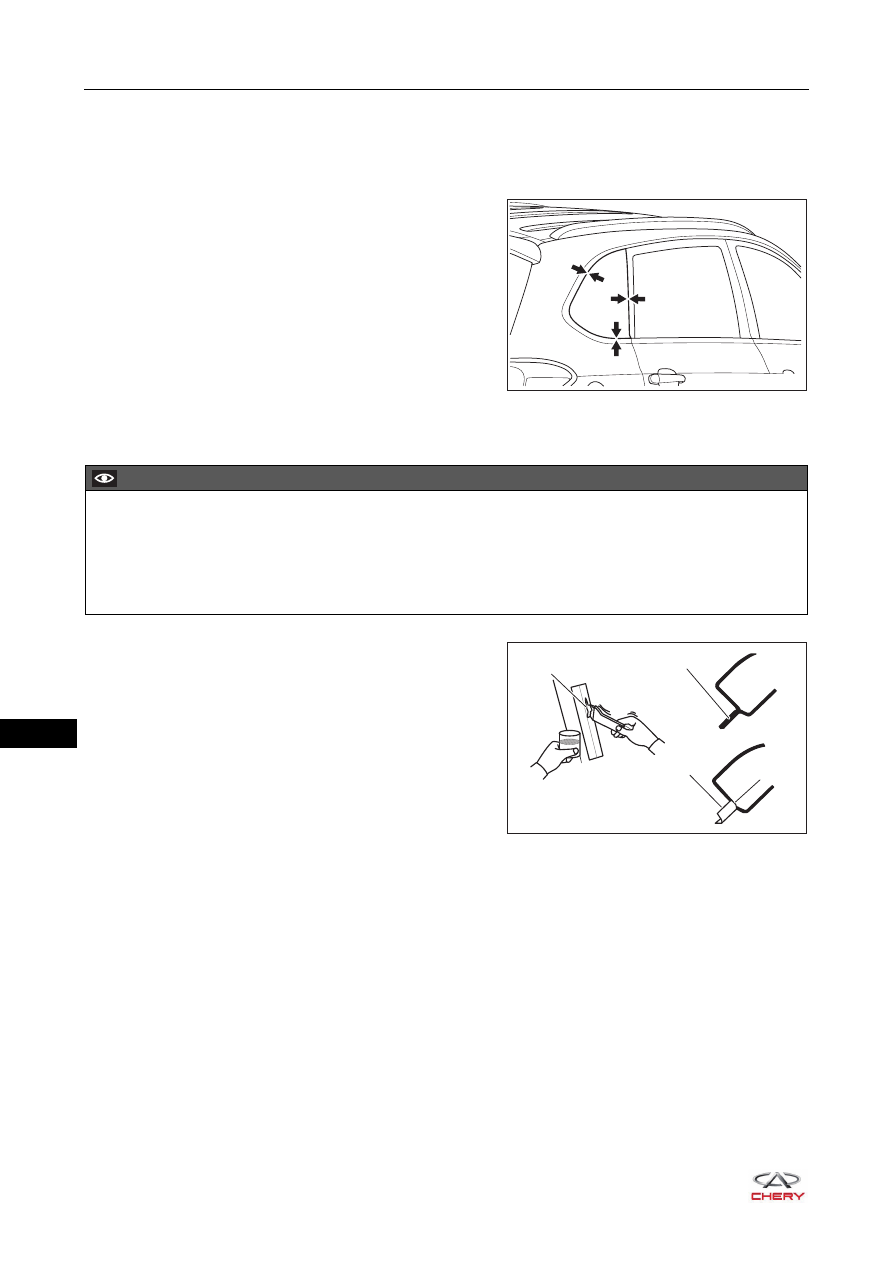

1. Position the triangular window glass assembly.

a. Align the clip with installation hole on roof panel.
b. Check if whole contact surface of glass rim is perfectly even.
c. Place matchmarks on the triangular window glass

assembly and body at the positions shown in the
illustration.

d. Remove the triangular window glass assembly.

2. Apply a coat of primer M to the contact surface of body.

a. Using a brush, apply a coat of primer M to the contact

surface of body.

b. Width of primer is 13 - 15 mm.

RT21430340

CAUTION

 Allow primer to dry for at least 3 minutes.
 DO NOT apply primer to the adhesive.
 DO NOT apply too much primer.
 DO NOT keep any opened primer M for later use.

Primer M

Primer M

Primer M

Adhesive

RT21430350

43–

67

43

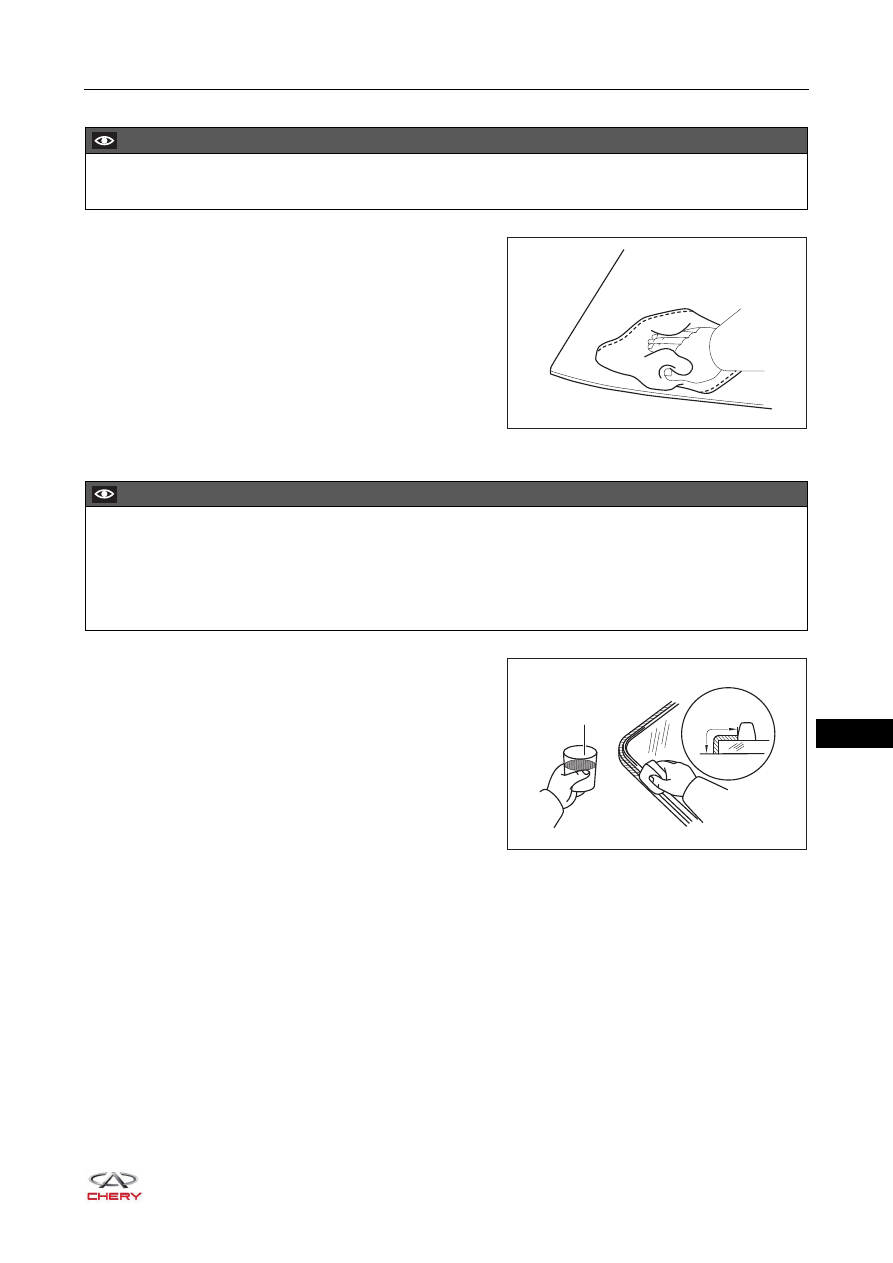

3. Clean the contact surface of triangular window glass.

a. Remove any residue on the contact surface of

triangular window glass assembly with a piece of
clean cloth soaked with glass cleaner.

4. Apply a coat of primer G to the contact surface of triangular window glass assembly.

a. Using a brush or sponge, apply a coat of primer G to

the glass rim and contact surface.

b. Use a piece of clean cloth to wipe off the excess

primer before drying.

c. Width of primer is 13 - 15 mm.

CAUTION

 DO NOT touch the triangular window glass surface after cleaning it.

RT21430360

CAUTION

 Allow primer to dry for at least 3 minutes.
 DO NOT apply primer to the adhesive.
 DO NOT apply too much primer.
 DO NOT keep any of the opened primer G for later use.

Primer G

13-15 mm

RT21430370
