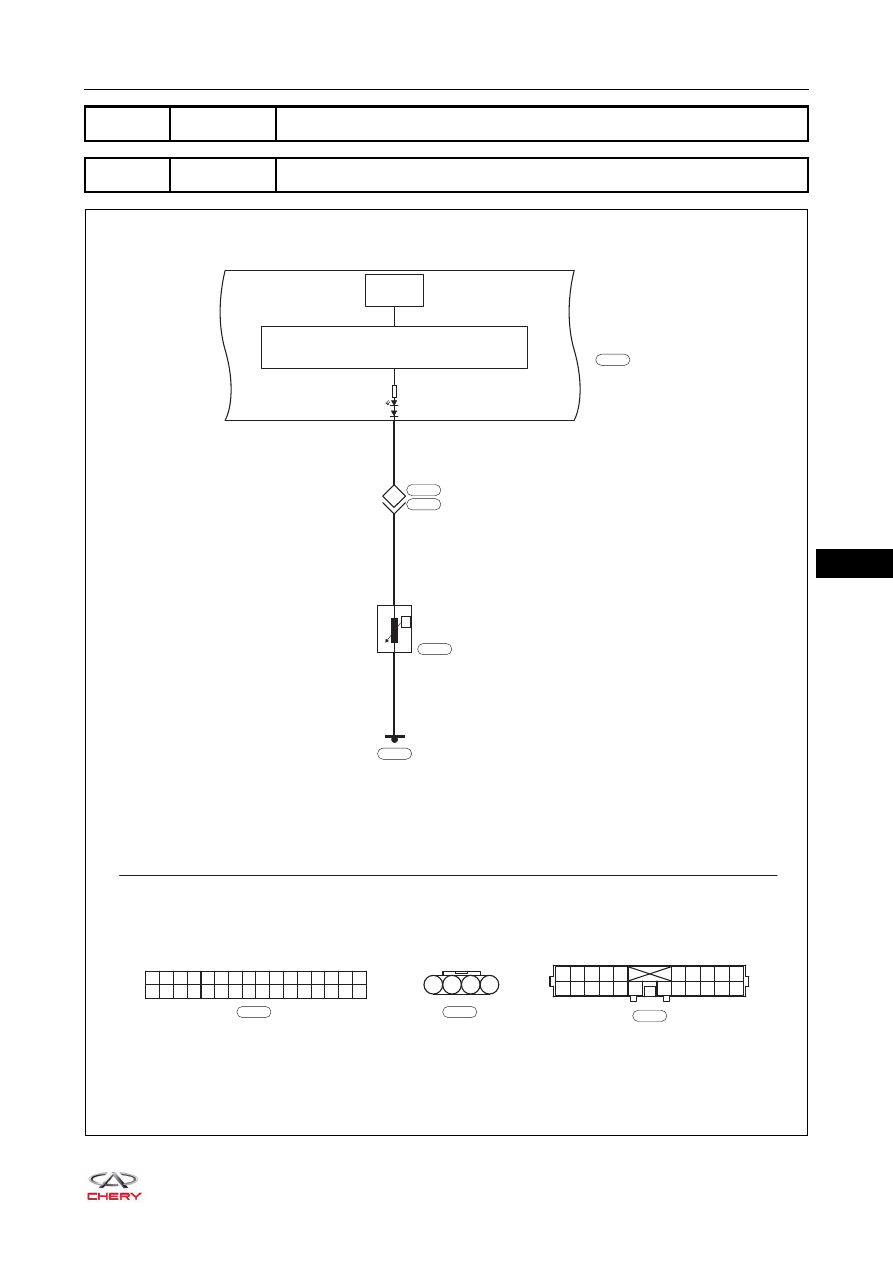

Chery Tiggo 5 (T21). Manual - part 435

38–

21

38

DTC

B1101-11 Fuel Sensor Fault Circuit Short to Ground

DTC

B1101-15 Fuel Sensor Fault Circuit Short to Battery or Open

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

Br

B-032

21

VB

VB

12

1

2

Q

FUEL
PUMP
MOTOR

INSTRUMENT
CLUSTER

I-015

L

I-015

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

W

I-006

I-006

B-003

B-038

MICROPROCESSOR

FUEL
GAUGE

lOW FUEL
LEVEL

1

2

3

4

B

B-038

ET21380060

38–

22

38

Self-diagnosis Detection Logic

Diagnosis Procedure

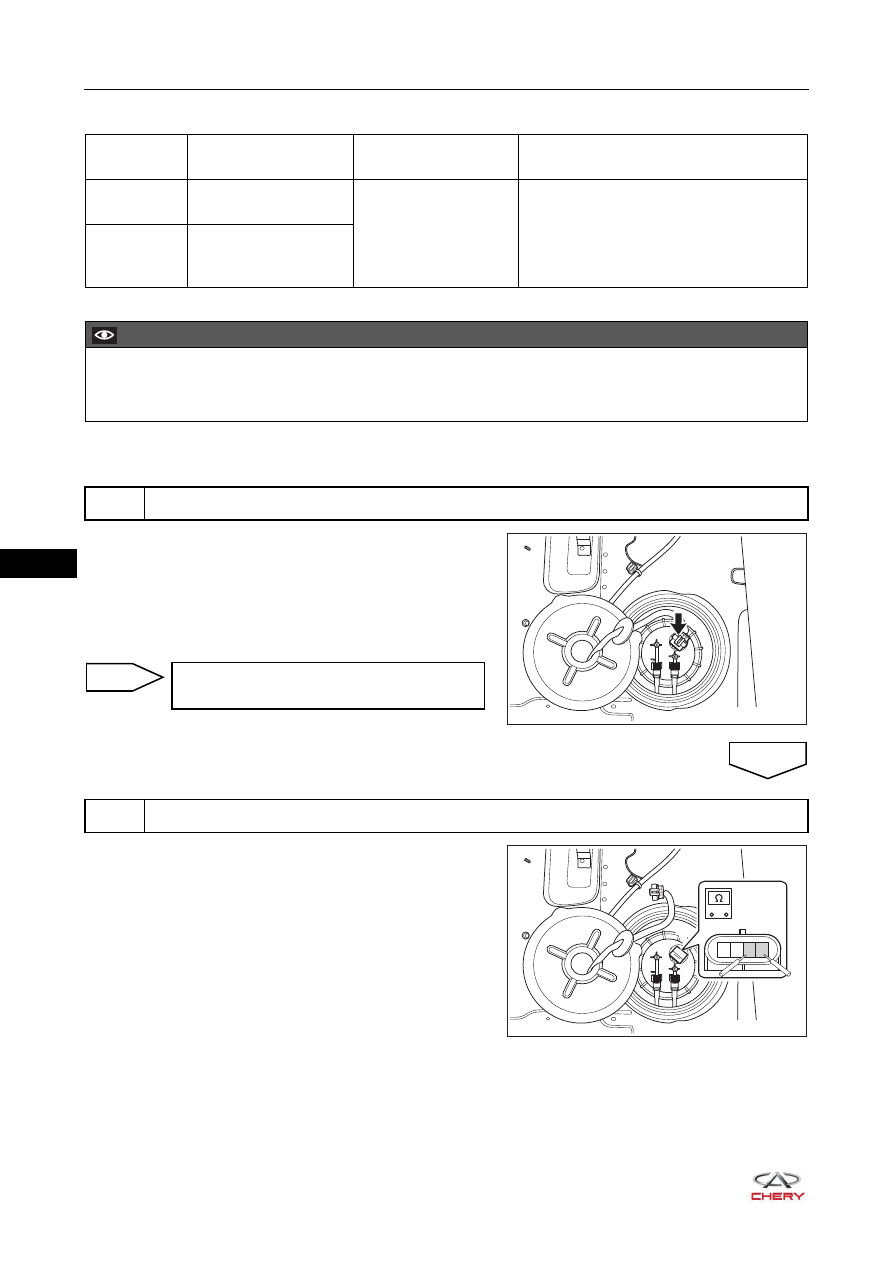

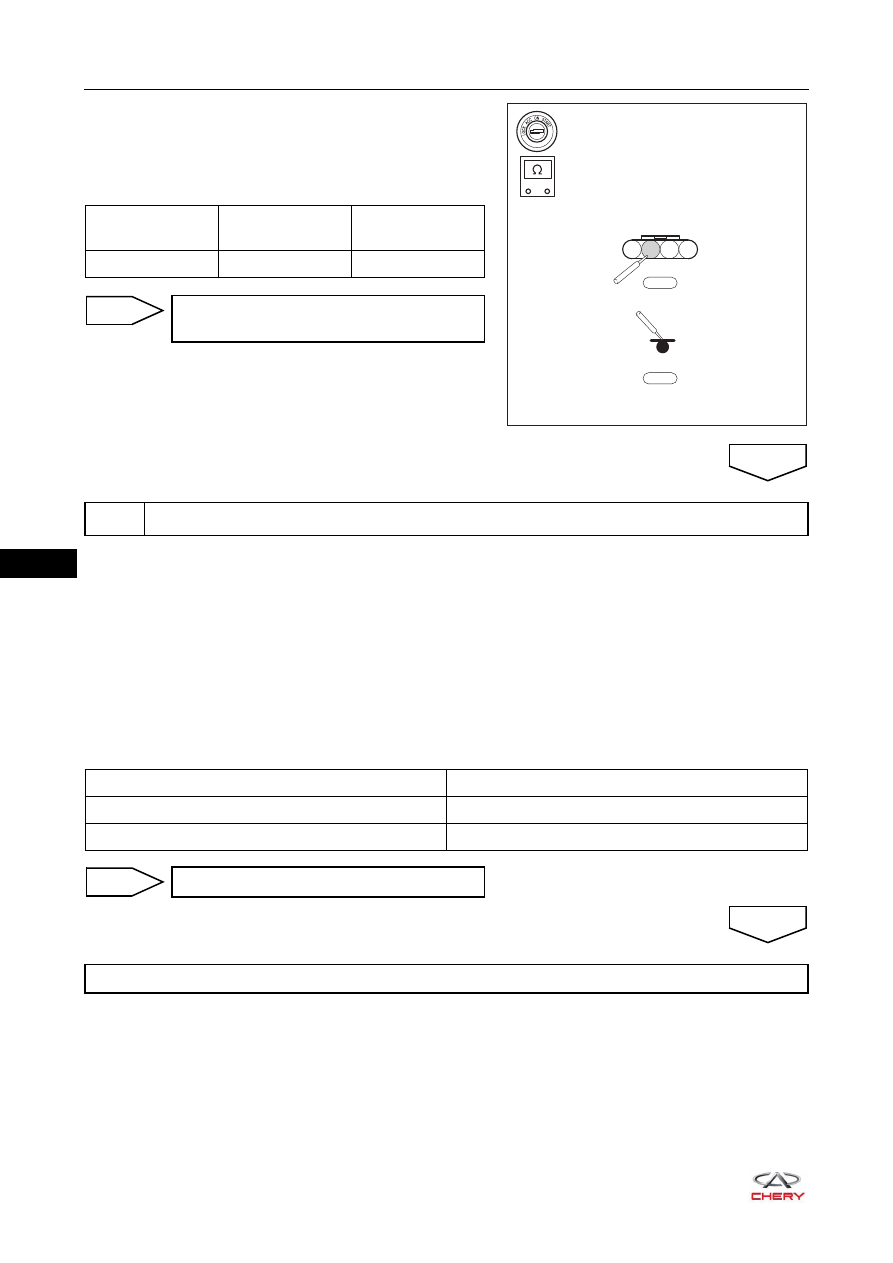

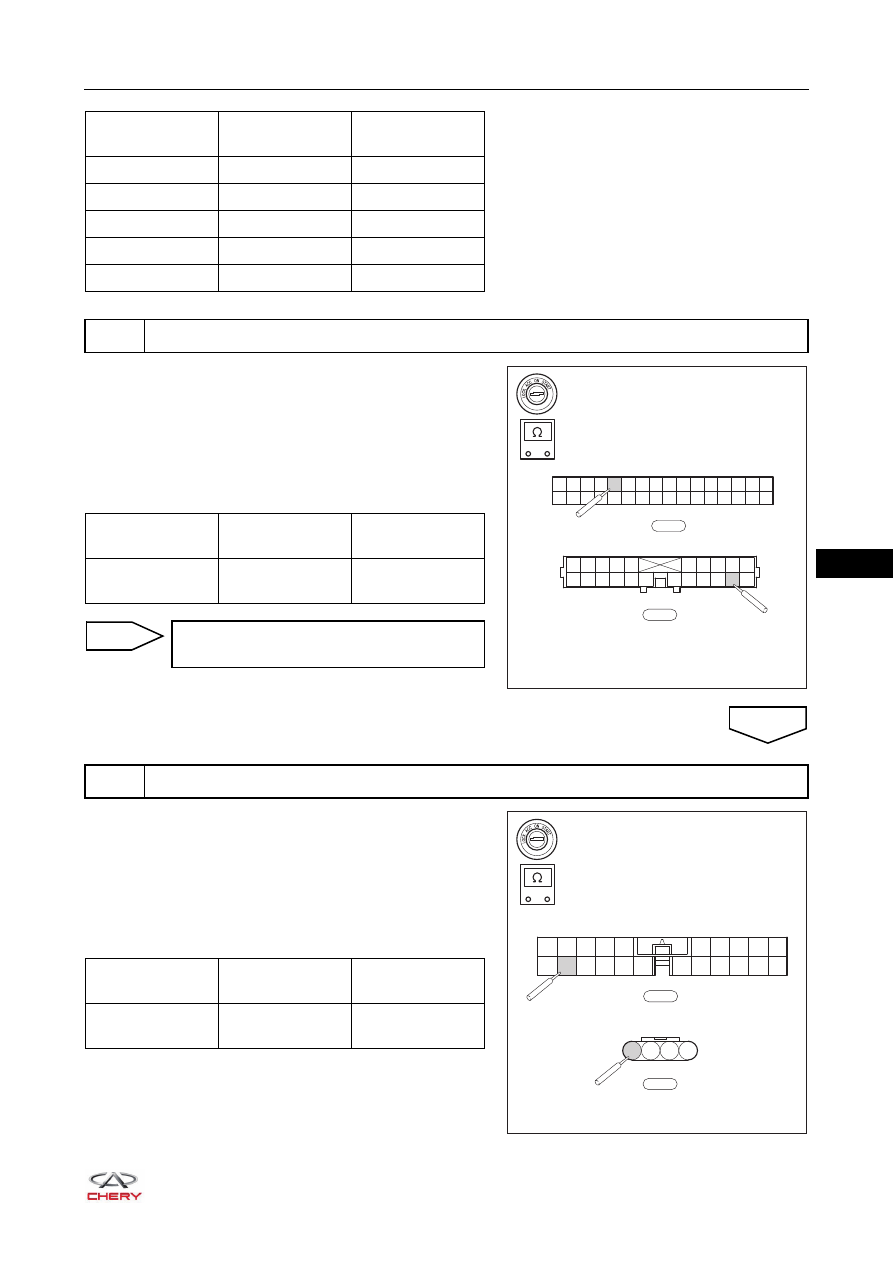

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the fuel level sensor and fuel pump connector

B-038.

d. Check the wire harness, connector and terminals for

deformation, bend or damage.

a. Connect the negative battery cable.
b. Turn ignition switch to ON.
c. Check the remaining oil amount segments from fuel

gauge in the instrument cluster.

d. Turn ignition switch to LOCK.
e. Disconnect the negative battery cable.
f. Disconnect the fuel level sensor and fuel pump connector

B-038.

g. Using a digital multimeter, measure the resistance

between terminal 1 and terminal 2 of fuel level sensor.

h. Check if fuel level sensor is normal according to the

correspondence between fuel amount segments and
standard resistance of fuel level sensor as shown in the
table below.

DTC Code

DTC Definition

DTC Detection

Condition

Possible Cause

B1101-11

Fuel Sensor Fault
Circuit Short to Ground

Ignition switch ON

 Charging system
 Wire harness or connector
 Instrument cluster

B1101-15

Fuel Sensor Fault
Circuit Short to Battery
or Open

CAUTION

 When performing circuit diagnosis and test, always refer to circuit diagram for specific circuit and

component information.

1

Check fuel level sensor wire harness and connector

RT21380060

Repair or replace fuel level sensor wire
harness and connector

NG

2

Check fuel level sensor

OK

RT21380050

-

+

1

2

3

4

38–

23

38

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the instrument panel wire harness connectors

I-015 and I-006.

d. Using a digital multimeter, check for continuity between

instrument panel wire harness connectors I-015 and



I-006 according to the table below.

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the body wire harness connectors B-003 and

B-038.

d. Using a digital multimeter, check for continuity between

body wire harness connectors B-003 and B-038
according to the table below.

Fuel Gauge

Position

Multimeter

Connection

Specification (Ω)

E

1 - 2

275 ± 5

1/4

1 - 2

165 ± 5

1/2

1 - 2

97 ± 4

3/4

1 - 2

79 ± 3

F

1  -  2

32  ±  3

3

Check instrument panel wire harness and connector

RT21380130

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

I-015

-

+

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

I-006

Multimeter

Connection

Condition

Specified

Condition

I-015 (21) -

I-006 (12)

Always

Continuity

Repair or replace instrument panel wire
harness and connector

NG

4

Check body wire harness and connector

OK

RT21380140

-

+

1

2

3

4

5

11

12

13

14

15

16

17 18

19

20

21

22

6

7

8

9

10

B-003

1

2

3

4

B-038

Multimeter

Connection

Condition

Specified

Condition

B-003 (12) -

B-038 (1)

Always

Continuity

38–

24

38

e. Disconnect the body wire harness connector B-038 and

ground B-032.

f. Using a digital multimeter, check for continuity between

body wire harness connector B-038 and ground B-032
according to the table below.

a. Connect all connectors.
b. Connect the negative battery cable.
c. Turn ignition switch to ON.
d. Use X-431 3G diagnostic tester (the latest software) to record and clear the DTCs stored in the instrument

panel control system.

e. Turn ignition switch to LOCK and wait for a few seconds.
f. Turn ignition switch to ON.
g. Use X-431 3G diagnostic tester (the latest software) to read the DTCs in the instrument cluster system

again.

h. Read the DTCs.

RT21380150

-

+

1

2

3

4

B-038

B-032

Multimeter

Connection

Condition

Specified

Condition

B-038 (2) - B-032

Always

Continuity

Repair or replace body wire harness and
connector

NG

5

Reconfirm DTCs

OK

Result

Proceed to

DTC B1101-11 and B1101-15 are output

NG

No DTC is output

OK

Replace instrument cluster

System is normal

NG

OK
