BRAKE

GENERAL INFORMATION

Description

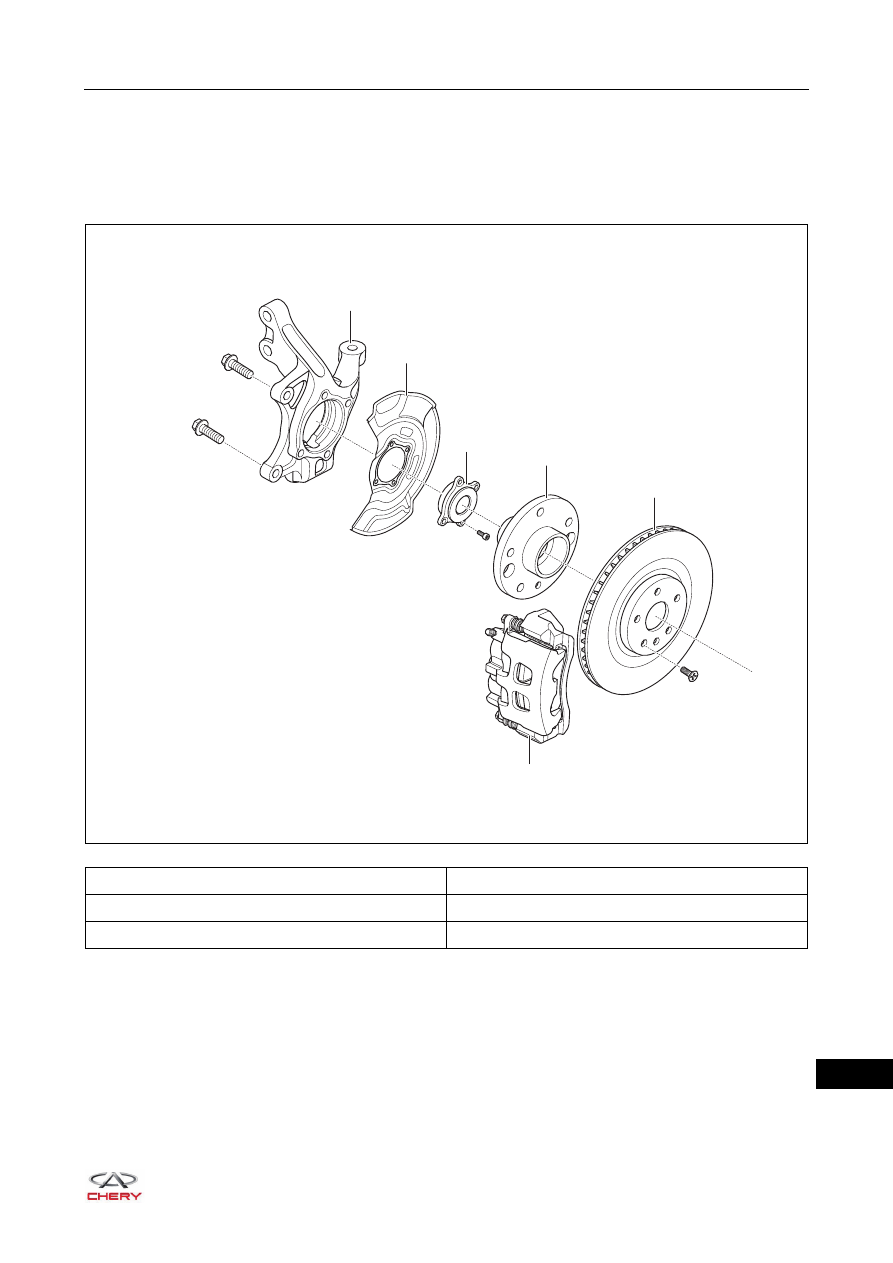

Front Disc Brake Assembly

1 - Front Steering Knuckle

2 - Front Wheel Mudguard

3 - Front Hub Bearing

4 - Front Hub Assembly

5 - Front Brake Disc

6 - Front Brake Caliper Assembly

RT21260010

×4

6

1

2

3

4

5

26–

4

26

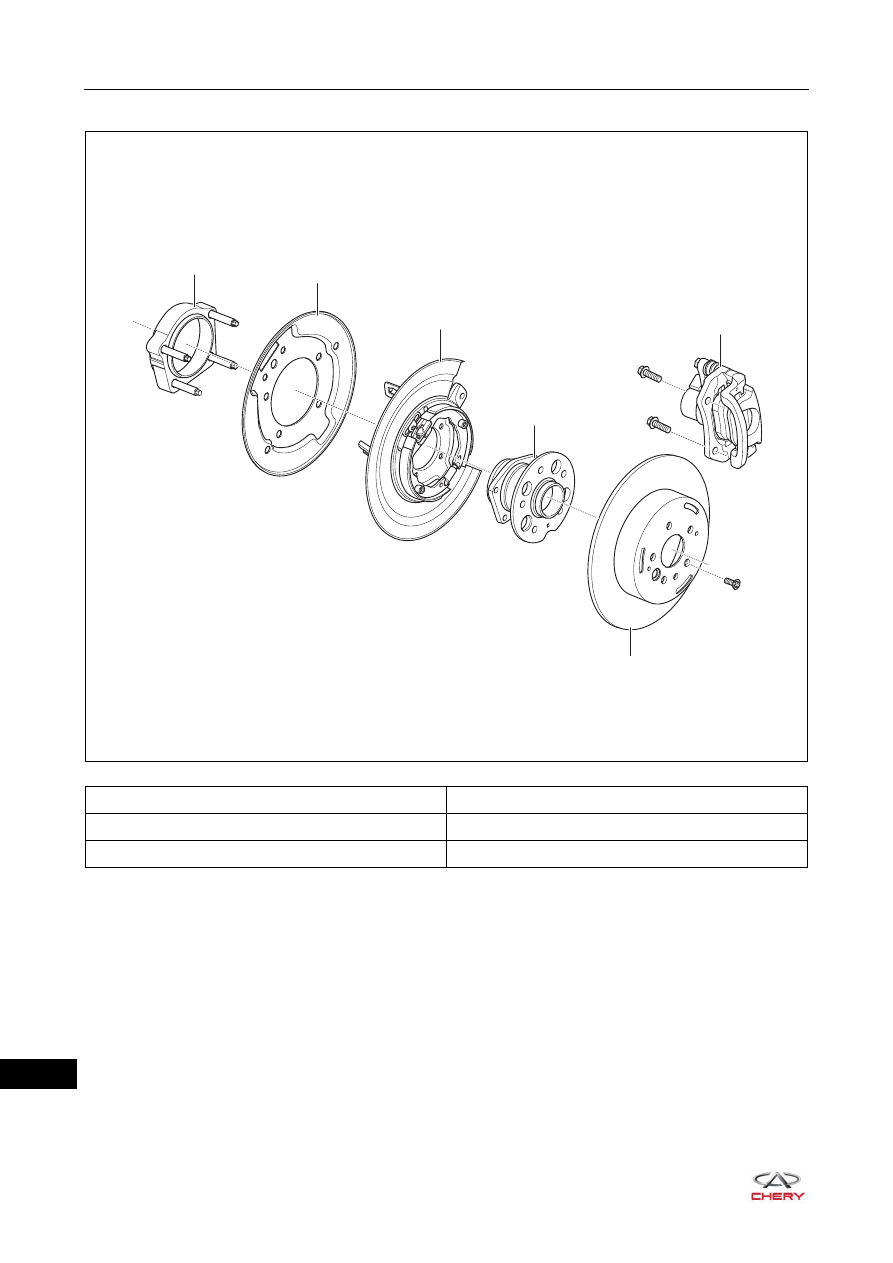

Rear DIH (Drum-in-hat)

Brake system uses following configuration: disc brake is used for front wheels, and DIH (Drum-in-hat) is used
for rear wheels (disc brake is used for driving brake, and drum brake is used for parking brake).
Using lever principle, brake pedal pushes pushrod into vacuum booster, which boosts the force of pushrod by
using vacuum and then transmits the force to brake master cylinder assembly. Hydraulic pressure, produced
in the brake master cylinder assembly, is transmitted to ABS Hydraulic Control Unit (HCU) through brake
tube, and then distributed to individual brake calipers. The brake calipers apply force to brake linings using
hydraulic pressure. The brake linings will cause wheel speed to decrease or stop depending on amount of
brake pressure applied.

1 - Connecting Plate Assembly

2 - Rear Brake Bottom Board

3 - Rear Brake Assembly

4 - Rear Hub Bearing Unit

5 - Rear Brake Caliper Assembly

6 - Rear Brake Disc

RT21260020

6

5

1

2

3

4

26–

5

26

Specifications

Torque Specifications

Description

Torque (N·m)

Wheel Mounting Bolt

110 ± 10

Coupling Nut Between Brake Fluid Reservoir
Assembly and Body

9 ± 1

Coupling Plug Between Brake Master Cylinder
Assembly and Brake Pipe

16 ± 2

Coupling Nut Between Brake Master Cylinder
Assembly and Vacuum Booster Assembly

21 - 25

Coupling Bolt Between Brake Fluid Reservoir
Assembly and Brake Master Cylinder Assembly

3 - 5

Coupling Nut Between Vacuum Booster Assembly
and Brake Pedal Assembly

25 ± 3

Coupling Nut Between Brake Pedal Assembly and
Body

25 ± 3

Coupling Bolt Between Front Brake Caliper
Assembly and Front Brake Hose Assembly

27 ± 2

Coupling Bolt Between Front Brake Caliper
Assembly and Front Steering Knuckle Assembly

100 ± 10

Front Brake Disc Positioning Screw

10 ± 1

Front Brake Caliper Bleeder Plug

9 - 11

Locating Bolt Between Front Brake Caliper Fixing
Bracket and Front Brake Cylinder Assembly

25 ± 3

Coupling Plug Between Front Brake Hose Assembly
and Front Brake Pipe

16 ± 2

Coupling Bolt Between Rear Brake Caliper
Assembly and Rear Brake Hose Assembly

20 ± 2

Coupling Bolt Between Rear Brake Caliper
Assembly and Rear Brake Bottom Board Assembly

100 ± 10

Rear Brake Disc Positioning Screw

10 ± 1

Rear Brake Caliper Bleeder Plug

9 - 11

Locating Bolt Between Rear Brake Caliper Fixing
Bracket and Rear Brake Cylinder Assembly

25 ± 3

Coupling Plug Between Rear Brake Hose Assembly
and Brake Pipe

16 ± 2

26–

6

26

Front Disc Brake

Rear DIH (Drum-in-hat)

Description

Standard Thickness

(mm)

Minimum Thickness

(mm)

Maximum Runout (mm)

Front Brake Disc

25

23

0.06

Front Brake Lining

9.2

2

-

Description

Standard Thickness

(mm)

Minimum Thickness

(mm)

Maximum Runout (mm)

Rear Brake Disc

10

8

0.06

Rear Brake Lining

8.2

2

-
