Chery Tiggo 5 (T21). Manual - part 285

25–

73

25

Assembly

Assembly is in the reverse order of disassembly.

Installation

Installation is in the reverse order of removal.

CAUTION

 Check if shock pad is deteriorated or damaged. Replace if necessary.

CAUTION

 ABS control module assembly consists of hydraulic control module and electronic control module. As a

unit, they cannot be repaired or replaced individually.

 When installing fixing bolts and screws, be sure to tighten them to specified torque.
 Perform ABS bleeding procedures for brake system after completing installation (

See page 25-70

).

 Using X-431 3G diagnostic tester, enter brake control system, record and clear the trouble code, then

drive vehicle to perform a road test, confirming that the ABS system operates normally and brake pedal
feel is good.

25–

74

25

Front Wheel Speed Sensor

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.
1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front left wheel (

See page 24-9

).

4. Remove the front left wheel speed sensor.

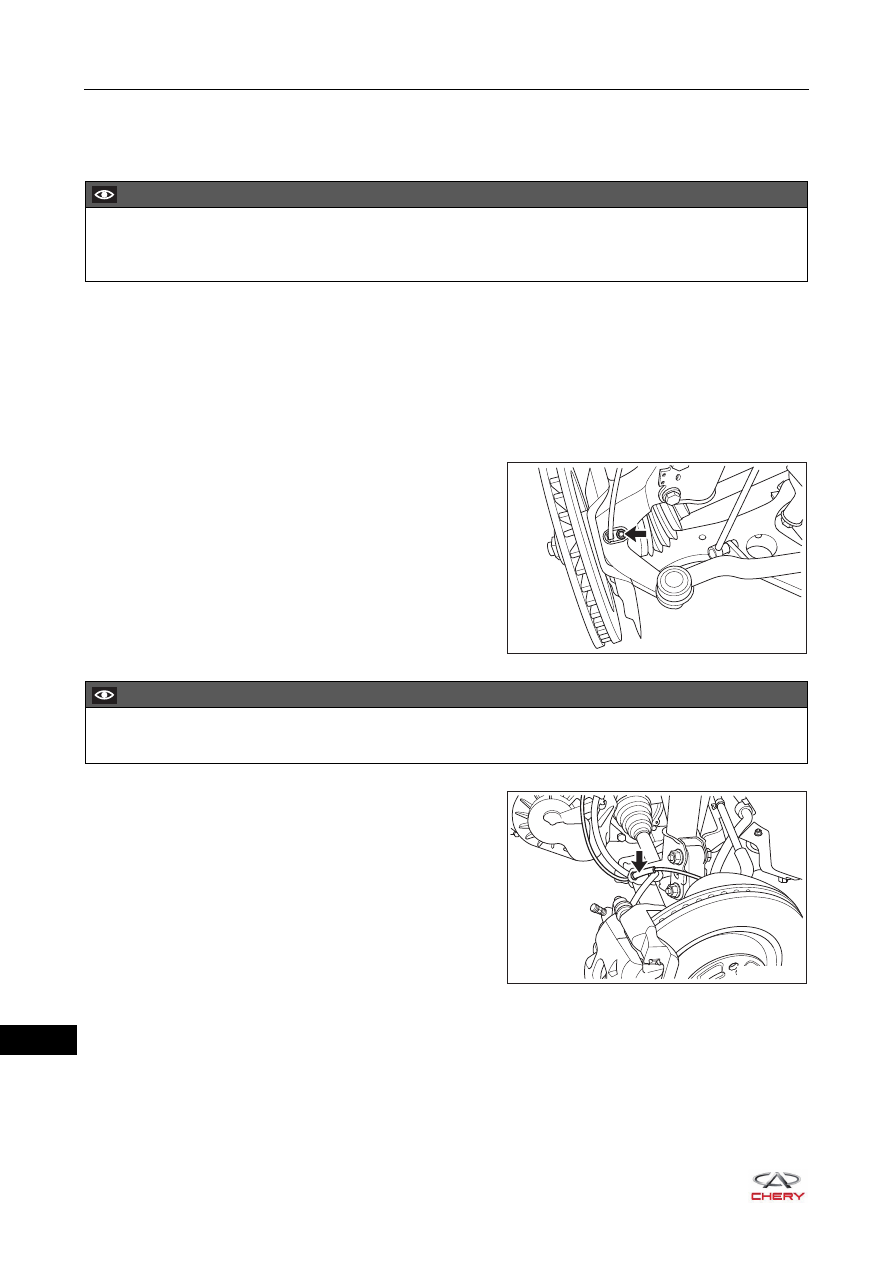

a. Remove the coupling bolt (arrow) between front left

wheel speed sensor and front left steering knuckle
assembly, and disengage the front left wheel speed
sensor carefully.



(Tightening torque: 10 ± 1 N·m)

b. Detach the attachment part (arrow) of front left wheel

speed sensor wire harness from the front left shock
absorber assembly.

HINT:
Observe the winding direction of sensor wire harness
to prevent incorrect installation.

CAUTION

 Keep the wheel speed sensor away from oil or other dirt. Otherwise, the speed signal generated by

wheel speed sensor may be inaccurate, and the system may fail to operate normally.

RT21250106

CAUTION

 Keep the head and installation hole of sensor free of foreign matter.

RT21250110

25–

75

25

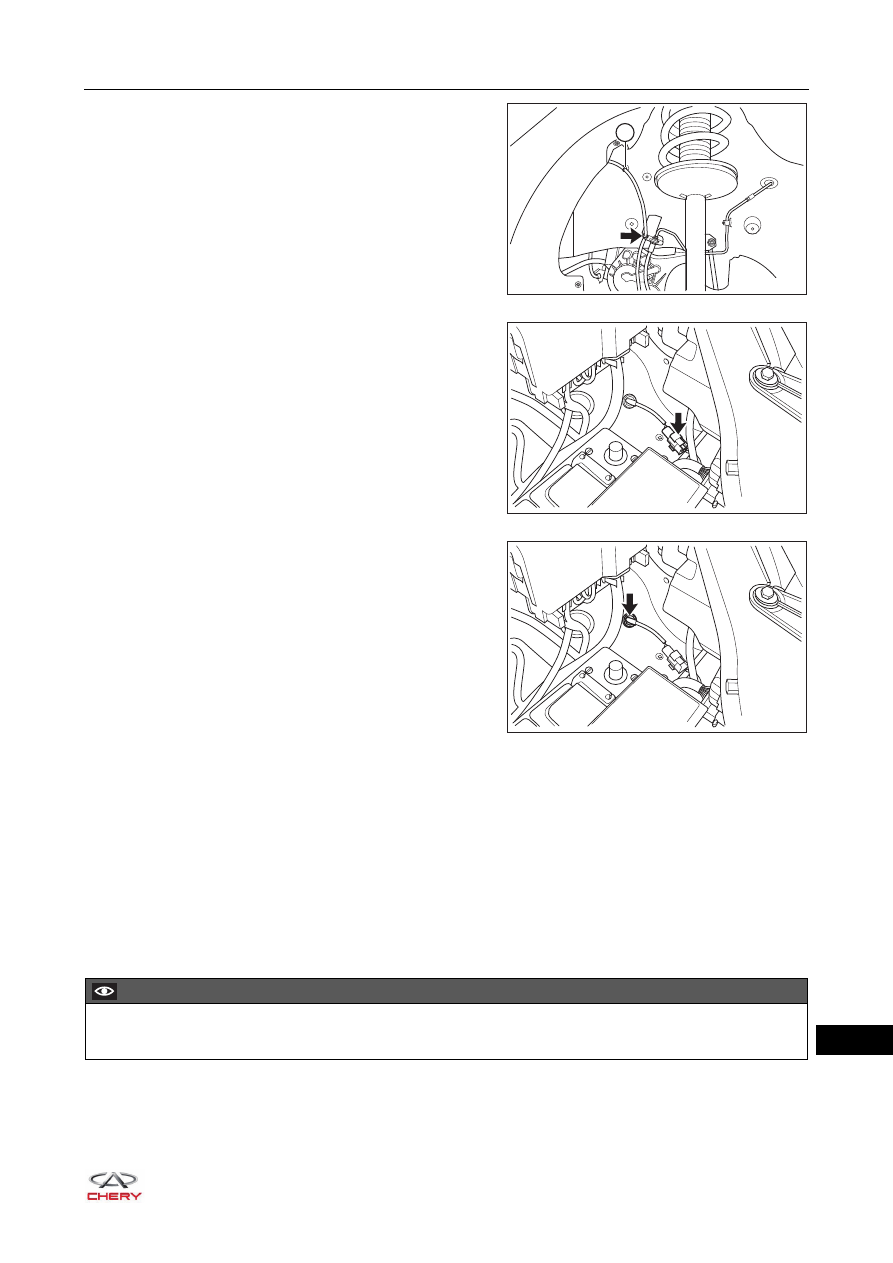

c. Detach the attachment part (arrow) and fixing clamp

(1) of front left wheel speed sensor wire harness from
the fixing bracket and body.

HINT:
Observe the winding direction of sensor wire harness
to prevent incorrect installation.

d. Disconnect the front left wheel speed sensor wire

harness connector (arrow).

e. Detach the front left wheel speed sensor wire harness

cover (arrow) from body.

f. Remove the front left wheel speed sensor.

Inspection

1. Check the front wheel speed sensor.

a. Check front wheel speed sensor surface for breakage, dents or notch.
b. Check front wheel speed sensor connector or wire harness for scratches, breakage or damage.
c. If any of the above conditions occurs, replace the front wheel speed sensor with a new one.

Installation

Installation is in the reverse order of removal.

1

RT21250120

RT21250130

RT21250140

CAUTION

 When installing coupling bolts, be sure to tighten them to specified torque.

25–

76

25

Rear Wheel Speed Sensor

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.
1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear left wheel (

See page 24-9

).

4. Remove the left C-pillar lower protector assembly (

See page 49-23

).

5. Remove the rear left wheel speed sensor.

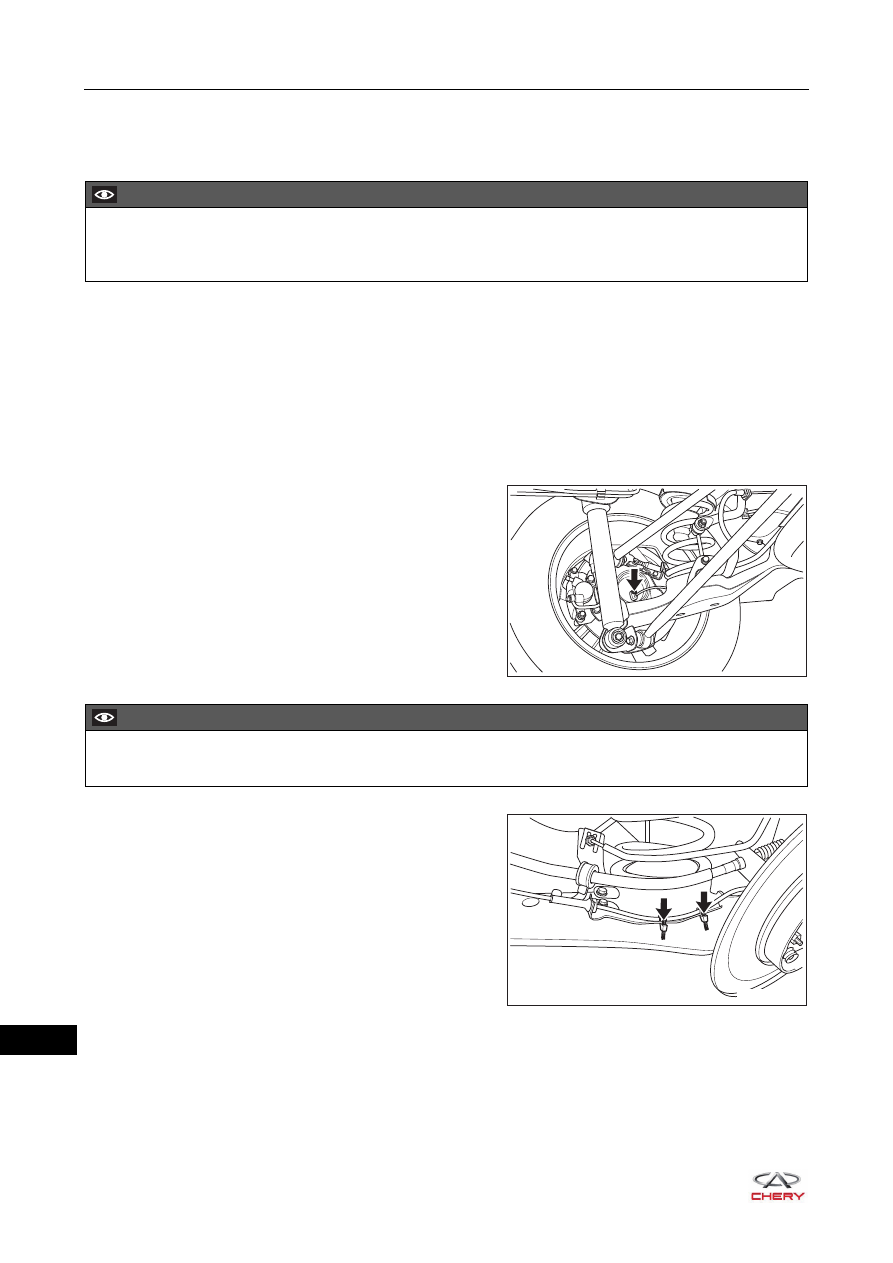

a. Remove the coupling bolt (arrow) between rear left

wheel speed sensor and rear left hub bearing unit,
and disengage the rear left wheel speed sensor.



(Tightening torque: 10 ± 1 N·m)

b. Loosen the fixing bands (arrow) from the rear left

wheel speed sensor wire harness.

CAUTION

 Keep the wheel speed sensor away from oil or other dirt. Otherwise, the speed signal generated by

wheel speed sensor may be inaccurate, and the system may fail to operate normally.

RT21250143

CAUTION

 Keep the head and installation hole of sensor free of foreign matter.

RT21250150
