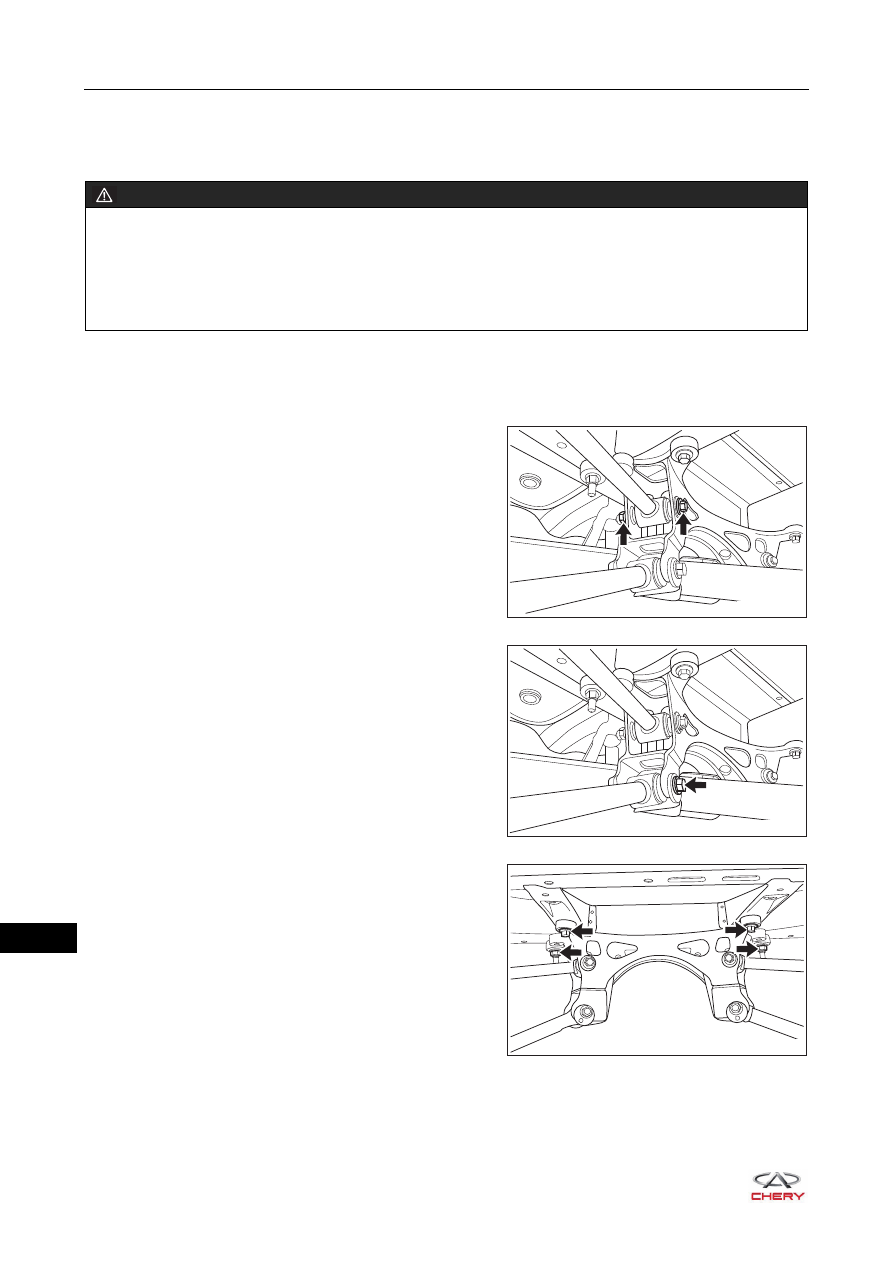

22– 20 22 Rear Sub Frame Assembly Removal 1. Remove the rear wheel ( 2. Remove the center exhaust pipe assembly ( ). 3. Remove the rear sub frame assembly. a. Remove the coupling bolts and nuts (arrow) between rear suspension upper left swing arm assembly and (Tightening torque: 120 ± 10 N·m) b. Remove the coupling bolt and nut (arrow) between rear suspension lower left swing arm assembly and (Tightening torque: 120 ± 10 N·m) c. Remove 2 coupling bolts and 2 coupling nuts (arrow) between rear sub frame assembly and body. (Tightening torque: 120 ± 10 N·m) d. Remove the rear sub frame assembly. WARNING Be sure to wear necessary safety equipment to prevent accidents. RT21220330 RT21220340 RT21220350 |
