QR019CHB CVT

GENERAL INFORMATION

18-3

Description 18-3
Precautions 18-7
Operation 18-7
Tools 18-13
Specifications 18-14
Circuit Diagram

18-15

Transmission Control Unit (TCU)

Pin-Out Table

18-20

DIAGNOSIS & TESTING

18-21

Transmission Fluid Level and

Quality Inspection

18-21

Gear Shift Cable Inspection and

Adjustment 18-21
Transmission Range Sensor

Inspection 18-22
Transmission Fluid Temperature

Sensor Inspection

18-23

Primary Shaft Speed Sensor

Inspection 18-23
Turbine/Secondary Shaft Speed

Sensor Inspection

18-24

Problem Symptoms Table

18-26

Diagnostic Help

18-26

Intermittent DTC Troubleshooting

18-27

Ground Inspection

18-27

Diagnostic Trouble Code (DTC)

Chart 18-27
Data Stream List

18-31

Power Supply and Ground

Circuit Test

18-35

Power Supply Circuit Test

18-35

Ground Circuit Test

18-41

P0705 18-44
P0715 18-48
P0716 18-48
P0720 18-52
P1745 18-52
P0730 18-56
P0791 18-58
P0792 18-58
P0811 18-62
P081E 18-62
P0894 18-62
P0842 18-64
P0843 18-64
P0847 18-68

P0848 18-68
P0890 18-72
P0891 18-72
P0900 18-77
P0902 18-77
P0903 18-77
P0928 18-82
P0930 18-82
P0931 18-82
P0938 18-89
P0939 18-89
P0940 18-89
P0960 18-93
P0962 18-93
P0963 18-93
P0964 18-98
P0966 18-98
P0967 18-98
P0970 18-103
P0971 18-103
P2797 18-108
P2798 18-108

ON-VEHICLE SERVICE

18-110

Automatic Transmission Fluid

(ATF) Replacement

18-110

Draining 18-110
Filling 18-110
Inspection 18-111

Differential Oil Seal

18-112

Removal 18-112
Installation 18-112

Transmission Fluid Cooler

18-113

Removal 18-113
Installation 18-113

Primary Shaft Speed Sensor

18-114

Removal 18-114
Installation 18-114

Secondary Shaft Speed Sensor

18-115

Removal 18-115
Installation 18-115

Turbine Speed Sensor

18-116

Removal 18-116
Installation 18-116

Primary Shaft Pressure Sensor

18-117

Removal 18-117
Installation 18-117

18–

3

18

QR019CHB CVT

GENERAL INFORMATION

Description

Continuous Variable Transmission (CVT) is a kind of continuous mechanical transmission. The most
difference between CVT and common gear-type transmission is that CVT uses two groups of pulleys for
driving instead of complex and heavy gear combined drive. It shifts speeds by changing the contact radius of
drive pulley and driven pulley.

CVT mainly consists of the following components:

 Torque converter
 Planetary gear system
 Drive and driven pulley system (transmission system)
 Steel belt (steel belt consists of two groups of metal rings and hundreds of metal plates)
 Oil pump
 Valve body

QR019CHB CVT features with:

 Automatic and manual modes.
 Electronic hydraulic control.
 At D gear, it realizes automatic continuous variable speeds; at M gear, it realizes manual 7-gear variable

speeds, providing users with dual driving fun.

 It can keep engine lowest speed at a certain vehicle speed.
 It can reduce vehicle emission and NVH (Noise, Vibration, Harshness).
 It can improve vehicle economy and reduce fuel consumption.
 Accelerator pedal responses rapidly when accelerating. Acceleration is gentle and smooth without impact.

18–

4

18

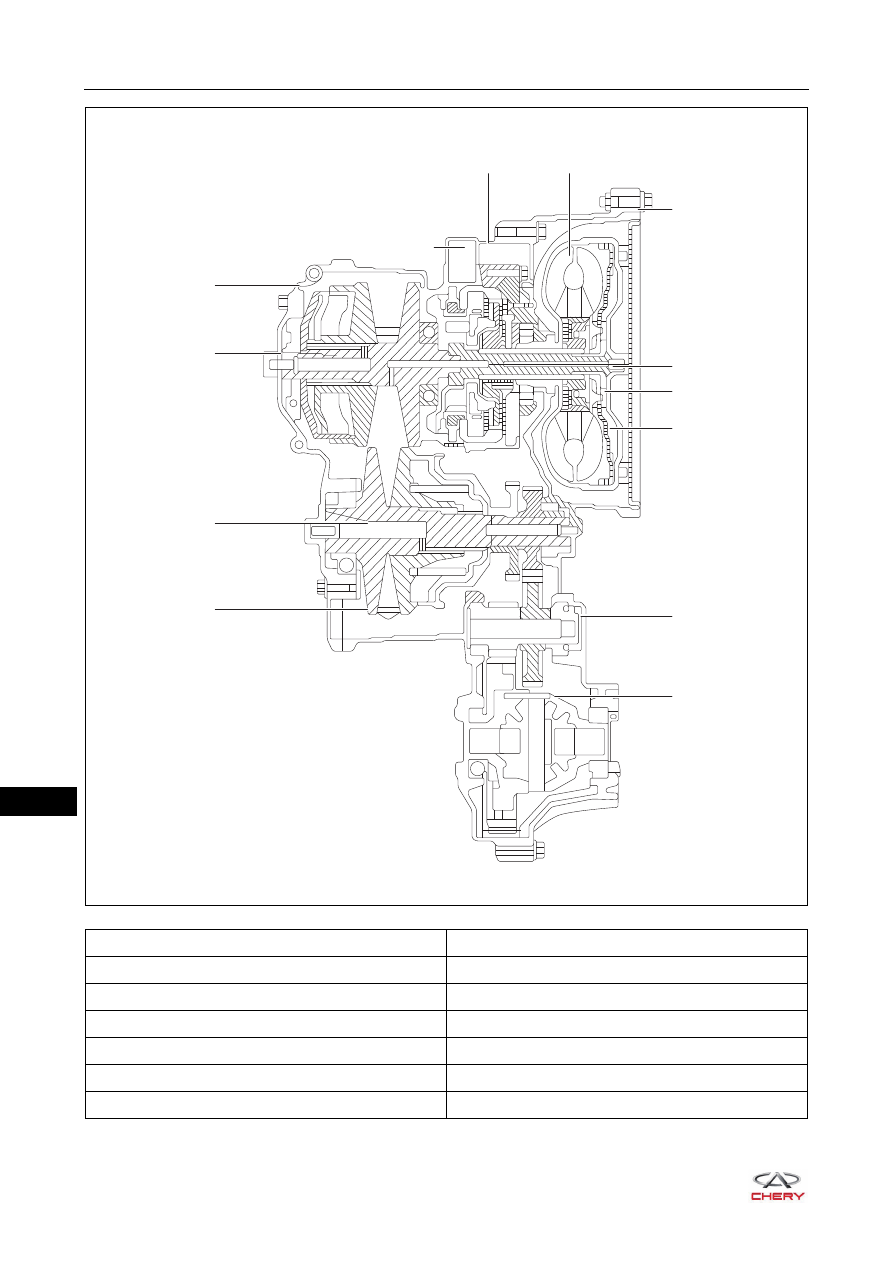

1 - Rear Case

2 - Drive Clutch

3 - Transmission Case

4 - Torque Converter

5 - Torque Converter Case

6 - Input Shaft

7 - Oil Pump Thrust Gasket

8 - Oil Pump

9 - Output Shaft

10 - Differential

11 - Steel Belt

12 - Output Pulley Shaft

13 - Input Pulley Shaft

5

6

7

8

9

10

4

3

2

1

13

12

11

RT21180010
